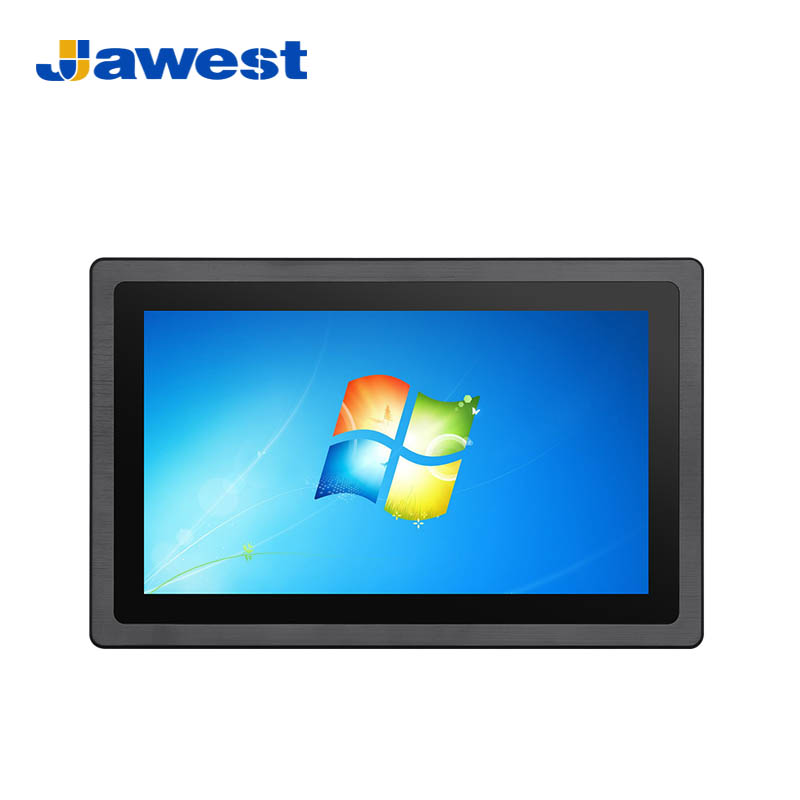

7” to 23.8” Options Industrial Touch Screen PC with J1900 / i5-6200U / i5-4200U / i3-4005U CPU Options | Dual-LAN, Multiple COM Ports, Fanless All-in-One PC, 9-36V Wide Voltage, OEM/ODM Support
In modern industrial automation, equipment reliability, real-time data visibility, and seamless system integration have become essential elements for achieving higher productivity and operational stability. The industrial touch screen PC has emerged as a crucial interface device that bridges operators, machines, and backend systems. With scalable screen sizes from 7 inches to 23.8 inches, multiple CPU configurations including Intel Celeron J1900, i5-6200U, i5-4200U, and i3-4005U, and a rugged fanless design, this all-in-one industrial PC provides a flexible, high-performance solution for a wide range of industrial environments.
Product Model Fast Guide
| Product Models | LCD Displays | Resolution | Aspect Ratio | Brightness | Dimension (L*W*D) | Get A Quote Now! |
| JWS070-W22 | 7" | 1024*600 | 16:9 | 300cd/㎡ | 225.04*160.7*60.7mm | Inquiry |
JWS080-W22
| 8" | 1024*768 | 4:3 | 250~300cd/㎡ | 225.5*185*66.2mm | Inquiry |
| JWS101-W22 | 10.1"
| 800*1280 | 10:16 | 300cd/㎡ | 293.6*193.3*56.23mm | Inquiry |
| JWS104-W22 | 10.4" | 1024*768 | 4:3 | 400cd/㎡ | 288*231*49mm | Inquiry |
| JWS116-W22 | 11.6" | 1920*1080 | 16:9 | 250~300cd/㎡ | 323.7*218.5*46mm | Inquiry |
| JWS120-W22 | 12" | 1024*768 | 4:3 | 500cd/㎡ | 319*257*52mm | Inquiry |
| JWS121-W22 | 12.1" | 1280*800 | 16:10 | 350cd/㎡ | 330*227.34*61.2mm | Inquiry |
| JWS133-W22 | 13.3" | 1920*1080 | 4:3 | 400cd/㎡ | 373.62*245.17*46mm | Inquiry |
| JWS150-W22 | 15" | 1024*768
| 4:3 | 350cd/㎡ | 379*300*52.5mm | Inquiry |
| JWS156-W22 | 15.6" | 1920*1080 | 16:9 | 300cd/㎡ | 420*269*50mm | Inquiry |
| JWS170-W22 | 17" | 1280*1024 | 5:4 | 250~300cd/㎡ | 414*345*55.5mm | Inquiry |
| JWS173-W22 | 17.3" | 1920*1080 | 16:9 | 400cd/㎡ | 458*291*52mm | Inquiry |
| JWS185-W22 | 18.5" | 1920*1080 | 16:9 | 270cd/㎡ | 486.5*307.4*58mm | Inquiry |
| JWS190-W22 | 19" | 1280*1024 | 5:4 | 250~300cd/㎡ | 451*380*55mm | Inquiry |
| JWS215-W22 | 21.5" | 1920*1080 | 16:9 | 250~300cd/㎡ | 557*345*53mm | Inquiry
|
| JWS238-W22 | 23.8" | 1920*1080 | 16:9 | 250~300cd/㎡ | 606*376*61mm | Inquiry |
Note: High-brightness screen optional.
1. Flexible Screen Sizes from 7” to 23.8” for Diverse Application Scenarios
This industrial touch screen PC series is designed with scalability in mind. The wide range of display sizes ensures compatibility with various deployment environments:
- 7” to 23.8” screen size option
- Capacitive, resistive, or Non-touch screen options
- High-brightness LCD available for outdoor or high-glare locations
From compact embedded applications to large-format operator panels, users can select the most suitable size for automation, kiosks, manufacturing lines, warehousing, and industrial control rooms.
2. Powerful CPU Options: J1900 / i5-6200U / i5-4200U / i3-4005U
To meet different performance and budget requirements, the system offers multiple Intel processor configurations:
Intel® Celeron® J1900
Entry-level quad-core processor
Suitable for HMI, kiosk terminals, SCADA dashboards
Intel® Core™ i3-4005U
Balanced dual-core performance
Ideal for light industrial automation and data visualization
Intel® Core™ i5-4200U / i5-6200U
High-performance processors
Designed for AI computing, edge processing, and heavy workload applications
This range of CPU options allows integrators to tailor system performance precisely according to application needs.

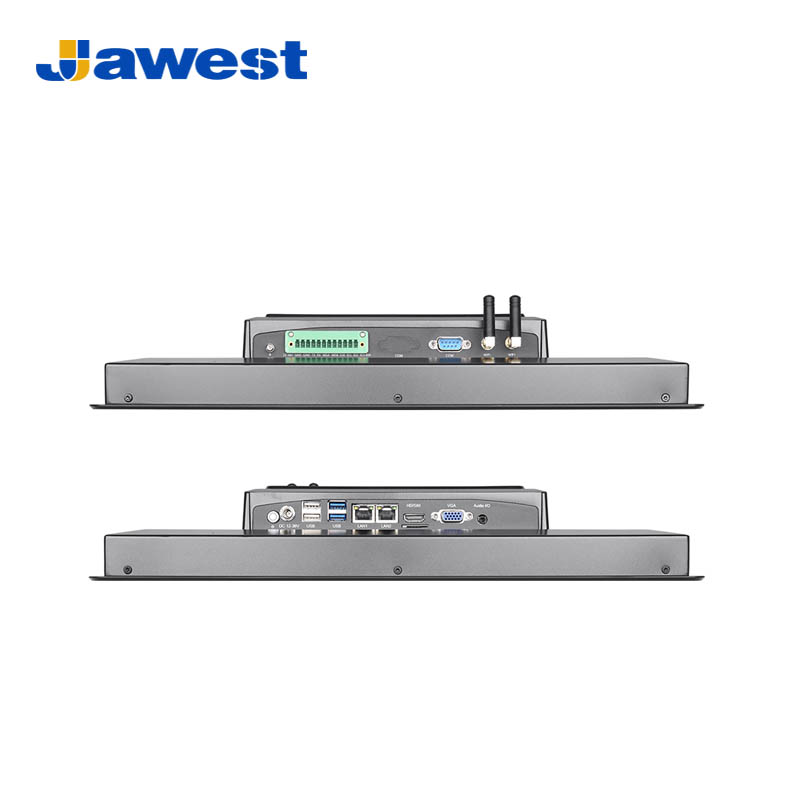

3. Industrial-Grade Connectivity: Dual-LAN and Multiple COM Ports
In industrial automation, stable communication is a decisive factor. This industrial panel PC provides:
Dual-LAN ports for redundancy, network segmentation, or dedicated device communication
Multiple RS-232/RS-485 COM ports supporting legacy serial devices such as PLCs, sensors, barcode scanners, and CNC controllers
USB 2.0/3.0, GPIO, and expansion interfaces
The rich I/O resources enable seamless integration with old and new equipment across the plant floor.

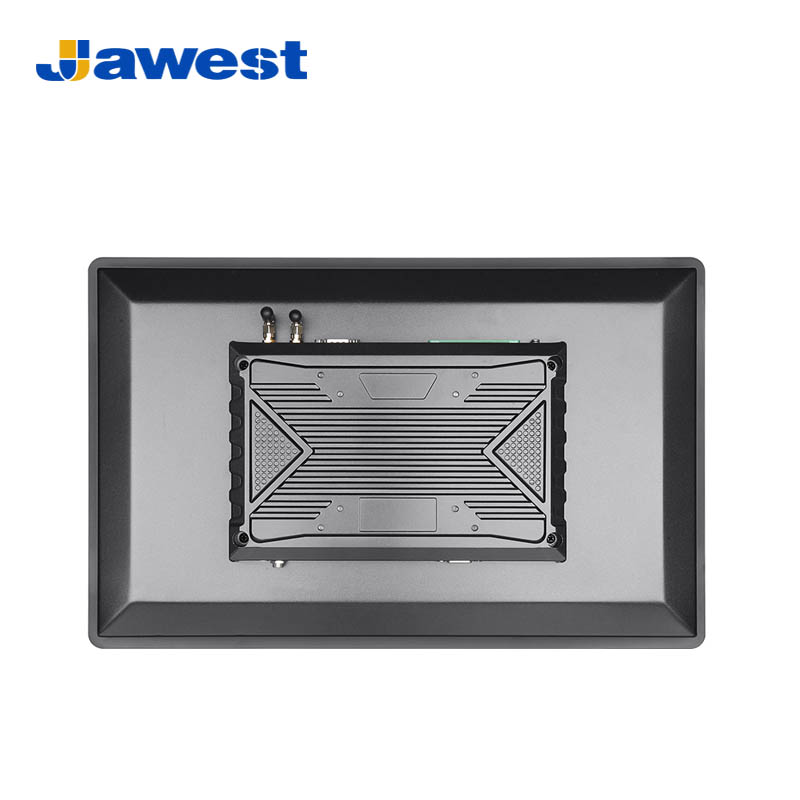

4. Fanless All-in-One Design for Harsh Industrial Environments
A fanless design ensures silent operation, longer service life, and improved reliability by reducing dust or particle intake. This industrial touch panel PC is engineered with:
Fully enclosed aluminum alloy housing
Efficient heat dissipation
Anti-vibration and anti-shock structure
Optional IP65 dustproof and waterproof front panel
It is ideal for dusty manufacturing lines, food processing plants, outdoor kiosks, and vibration-prone machinery environments.
5. Wide Voltage Input: 9-36V for Better Electrical Stability
This industrial panel PC support12 to 36V wide voltage input. But to prevent system failure caused by power fluctuations, the device supports a customized wide-range 9-36V DC input. This ensures:
Stable operation in unstable power conditions
Compatibility with battery-powered and vehicle-mounted devices
Higher protection against industrial electrical noise
This feature is especially critical for transportation, warehouse logistics, and mobile automation equipment.
6. OEM/ODM Customization for Industry-Specific Requirements
For integrators and solution providers, customization capabilities are essential. This product series supports extensive OEM/ODM customization, including:
Logo and branding customization
Custom I/O port configurations
Different mounting options (panel mount, VESA mount, wall mount, open frame)
High-brightness or sunlight-readable displays
These customization options help users create tailored solutions for market-specific or application-specific needs.
