Screen Parameters
| Screen Display | 10.1" / 11.6" / 15.6" / 21.5" |
Resolution
| 1280*800 / 1366*768 / 1920*1080 / 1920*1080 |
| Aspect Ratio | 16:10 / 16:9 / 16:9 / 16:9 |
| Panel Type | Industrial control A level screen with TFT |
| Viewing Angle | 85/85/85/85 (L/R/U/D) |
| Display Color | 16.7M |
| Brightness | 300cd/m2, high nits option |

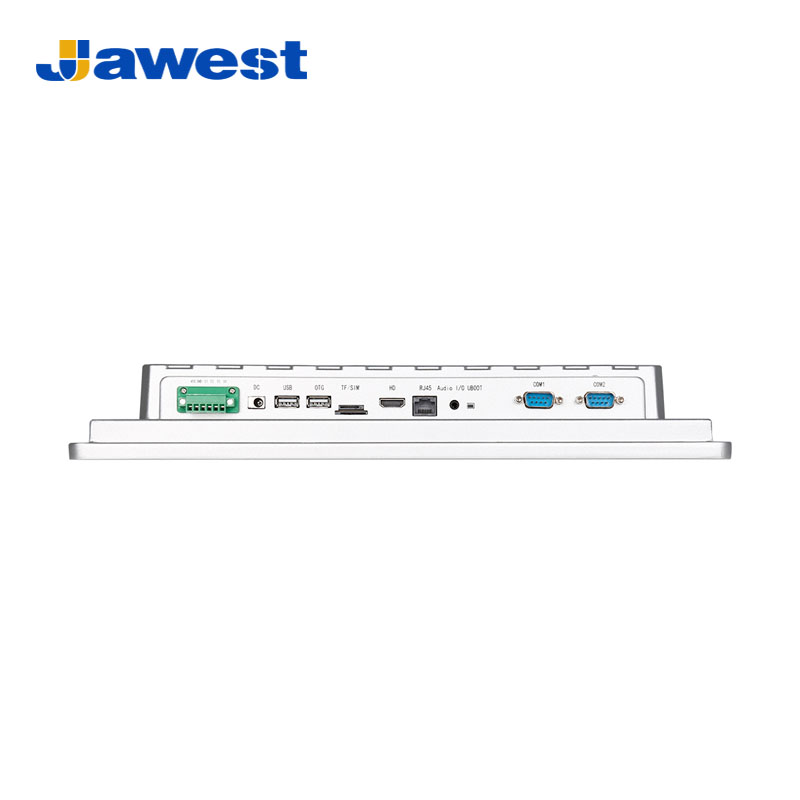

| Interface Parameters | DC port | 1*DC 2.1/industrial terminal |
| HDMI | Support HDMI data output, maximum support 1080P |
| USB-OTG | 1
|
| RJ45 Ethernet | 1*10M/100M/1000M adaptive Ethernet |
| SD/TF | TF data storage, maximum support 64G |
| Phone Jack | 3.5mm standard interface |
| SIM card | Standard SIM card interface supports various formats (depending on 3G/4G module) |
| RS232 | 1*RS232(DB9) |
| RS485/RS422 | Optional |
| GPIO | 3-channel (industrial terminal) |
| LED warning light | Optional |
| Printer/Scan Code Gun/Microphone | Optional (external connected) |
| Wide voltage input | 12V~36V Optional |
| Hardware Configuration | CPU
| RK3288-I, quad-core, 1.8GHz |
| Storage/hard disk | EMMC 16G (16/32/64G optional, maximum support 64G) |
| RAM | DDR3L default with 2G (4G optional) |
| Chipset | Intel Bay trail SOC chipset |
| Operating system | Android 7.1 |
| Graphics card | Mali-T764GPU dual-core, ultra-high performance GPU, supporting HDMI 4K output |
| WiFi | Dual-frequency 2.4/5G |
| Bluetooth / GPS / MIC | Optional |
| RTC (real-time clock) / | Support |
| NFC | 13.56MHZ |
| Camera | 100W HD |
| LED indicator | Red/green/blue (combination) |
| Touch Screen | Touch screen type | Projected capacitive touch screen |
| Resolution | 500DPI |
| Input method | Handwriting or capacitive pen |
| Surface hardness | 7H |
| Calibration | Support |
| Product Reliability | Operating temperature | -10 °C to +60 °C |
| Storage temperature | -20 °C to +70 °C |
| Humidity | 95%, Non-Condensing |
| Power Supply | Power consumption (maximum) | 15W |
| Power consumption (standby) | ≤2W |
| Power input | AC 100-240V 50/60Hz |
| Power output | DC12V / 4A |
