● Display size: 21.5-inch.
● NEMA 4, IP65 – sealed front panel
● Resistive or capacitive touch screen options
● Wide range DC input
● Working operating temp: -10°C ~ +60°C
● Industrial grade motherboard
● Rugged aluminum alloy enclosed industrial LCD monitor
● Ideal for use in industrial and commercial environments

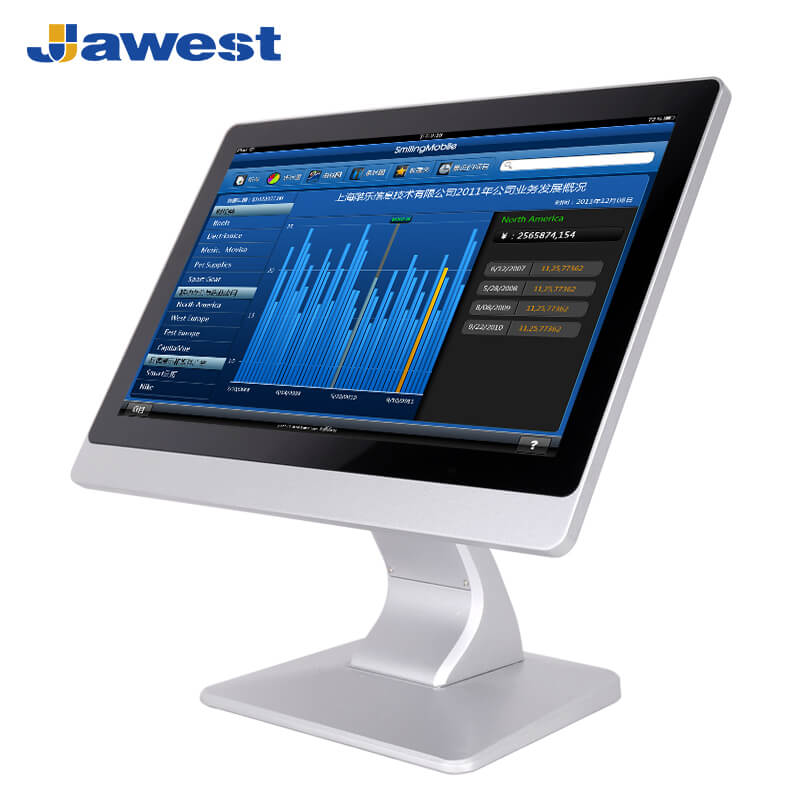

Model: JWS215-M4
Jawest provides IP65 rated waterproof touchscreen LCD monitors and displays to customers with popular single, gesture, and multi touch screen applications include touchscreens and touch screen monitors for retail point of sale, finance & banking, self-service, food service, hospitality, industrial, healthcare, manufacturing, and interactive digital signage. Throughout its history, Jawest has focused on innovative technologies that make it able to carve a niche for itself in the competitive market. Through the Jawest team's rich experience and vast knowledge in this field, we are constantly moving towards the paths of success.




| 10mm bezel aluminum industrial monitor datasheet | |||||||
| Size | 21.5 inch | ||||||
| Display | |||||||
| Panel Type | Industrial LCD panel A, A+ grade | ||||||
| Aspect Ratio | 16:9 | ||||||
| Resolution | 1920*1080 | ||||||
| Contrast | 1000:1 | ||||||
| Luminance | 300 nit (high nit screen is customizable) | ||||||
| Response time | 5ms | ||||||
| Display colors | 16.7M(8-bit) | ||||||
| View angle | 89/89/89/89 | ||||||

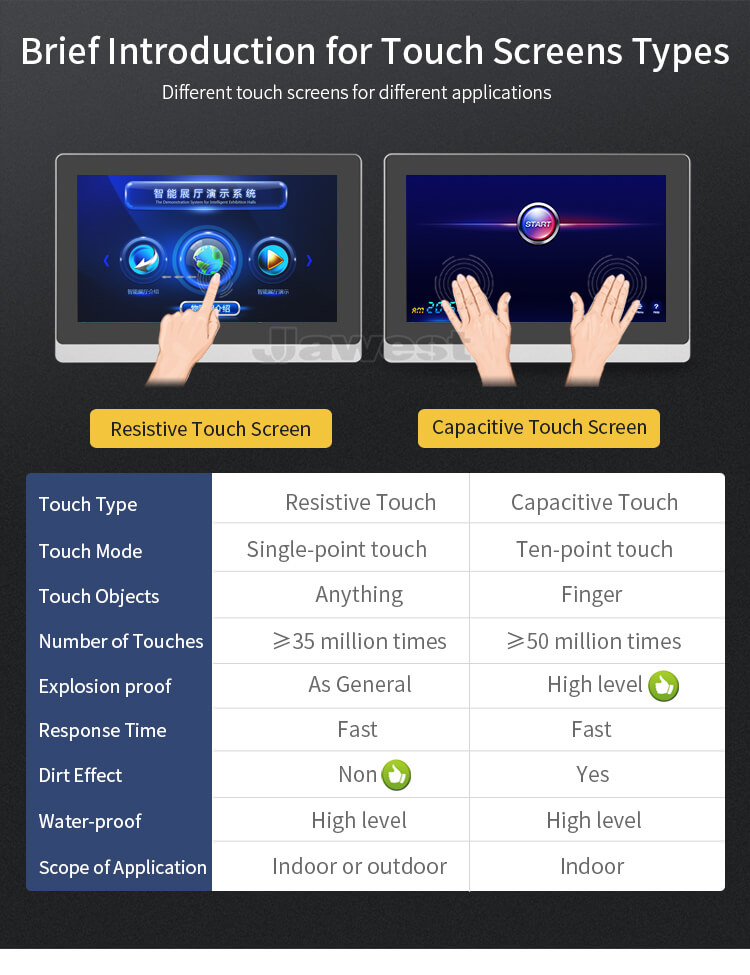

| Touch Screen | 10-point capacitive (Resistive touch screen and Infrared touch for optional) | ||||||

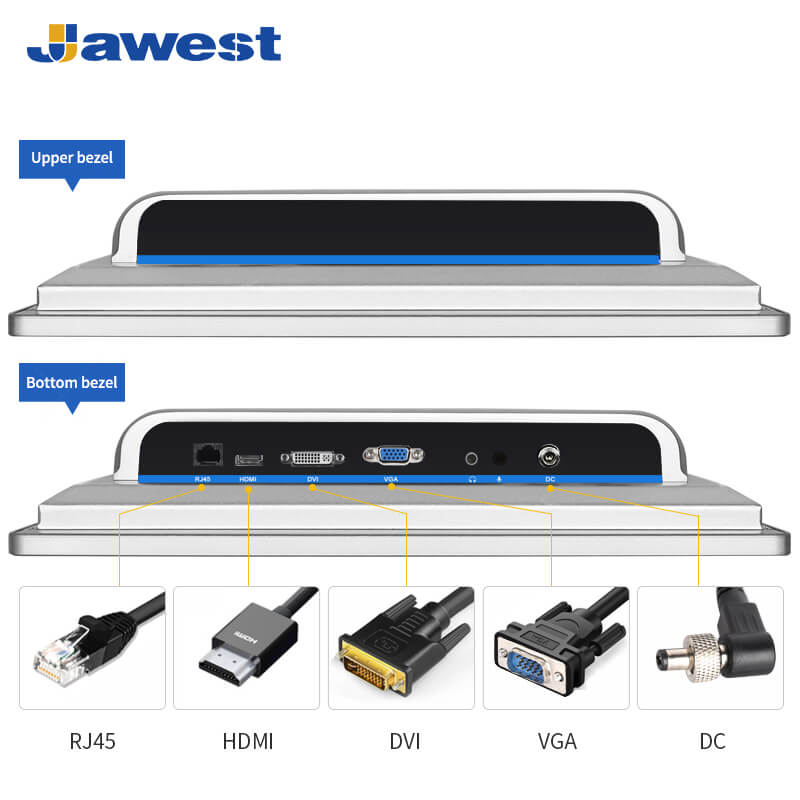

| Interface | HDMI+DVI+VGA+USB/DVI+VGA+USB optional | ||||||
| Power Input | AC 110-240V, 50/60Hz | ||||||
| Power Consumption | ≤30W | ||||||
| Power Standby | ≤1.5W | ||||||
| Plug&Play | DDC1/2B | ||||||
| Working Life | More than 50,000 hours | ||||||
| Operation Temperature | -10°C~60°C | ||||||
| Storage Temperature | -20°C~70°C | ||||||
| Operation Humidity | 10%~80% | ||||||
| Storage Humidity | 10%~90% | ||||||
| Metal Shell | Aluminum alloy enclosure | ||||||
| Color | Silver, black color optional | ||||||
| Bezel thickness | 10mm bezel | ||||||
| IP rating | IP65 for front Panel | ||||||

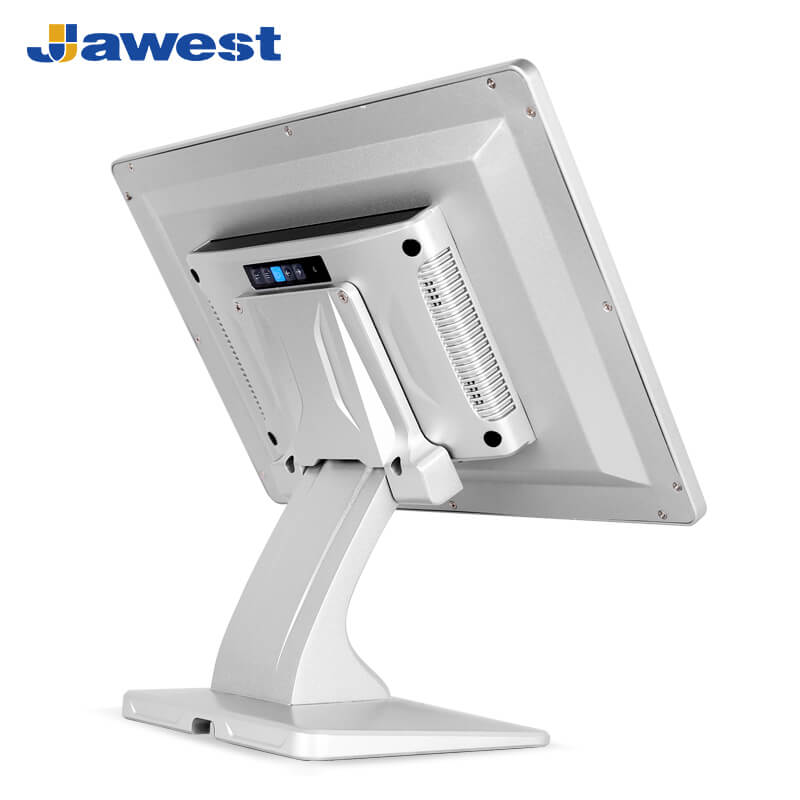

| Installation | VESA, Wall Mount, Desktop, and Ceiling-mounted optional | ||||||
| Certificates | CE, CCC, ISO 9001, FCC, ROHS | ||||||
| Package | EPE+Carton (wooden crate for mass order) | ||||||
