15 inch Panel Mount Displays With PCAP Touch Resistive Touch Industrial Grade

15 inch Panel Mount Displays With PCAP Touch Resistive Touch Industrial Grade

Model: JWS150-M Series

● Panel mount 15″ widescreen LCD monitor

● 4:3 Aspect Ratio; 1024 x 768 resolution

● Resistive, capacitive, Non-touch optional

● Industrial-grade motherboard

● IP65 rated dustproof & waterproof for the front panel

● 300 nits of brightness, supports adjustable controls

● 3 Year Warranty

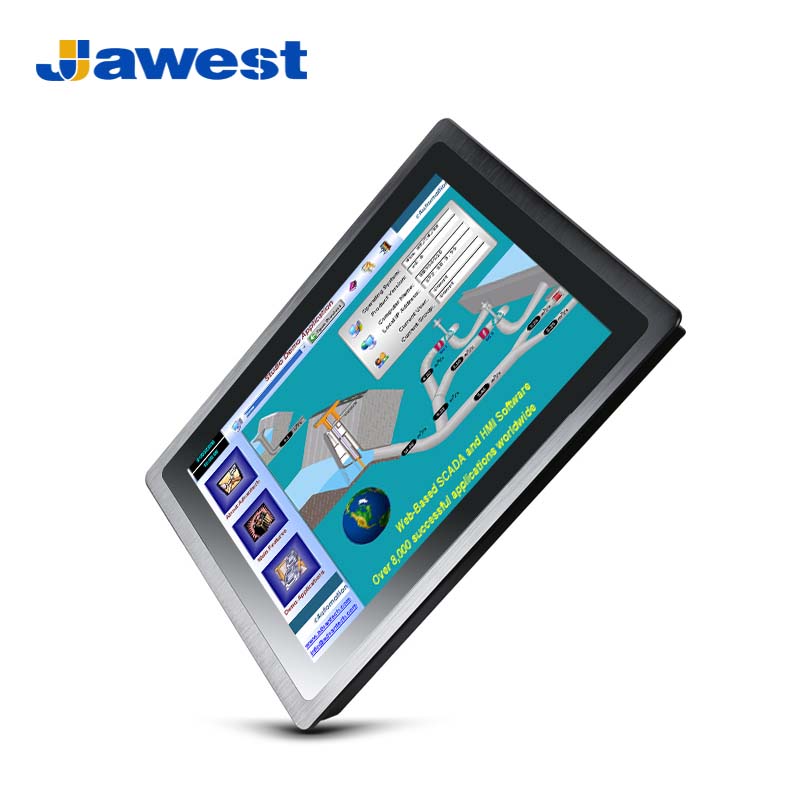

Appearance of the color

Black

Silver

Description
Parameter
Case

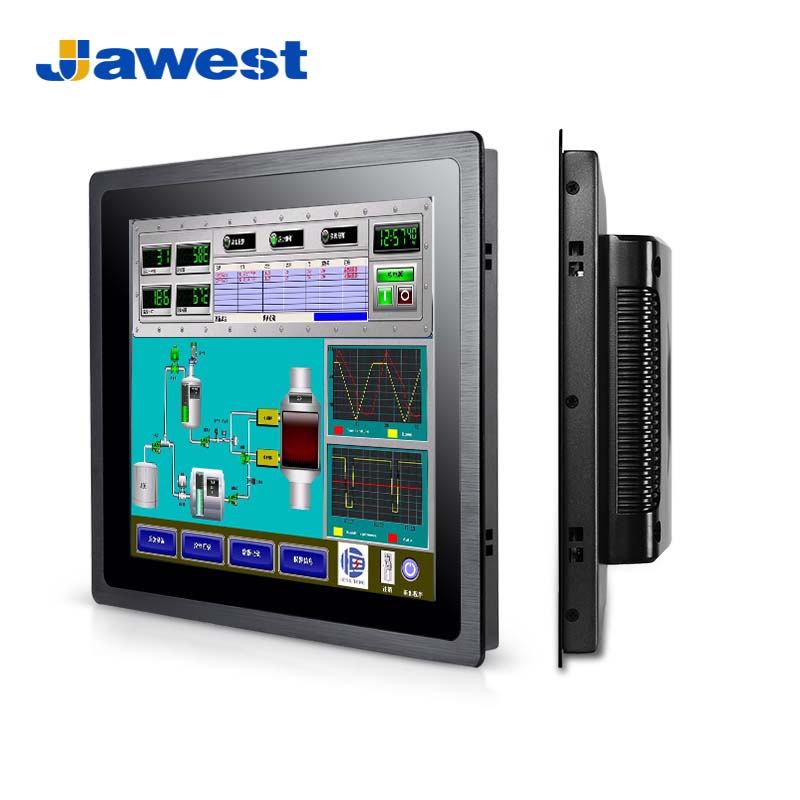

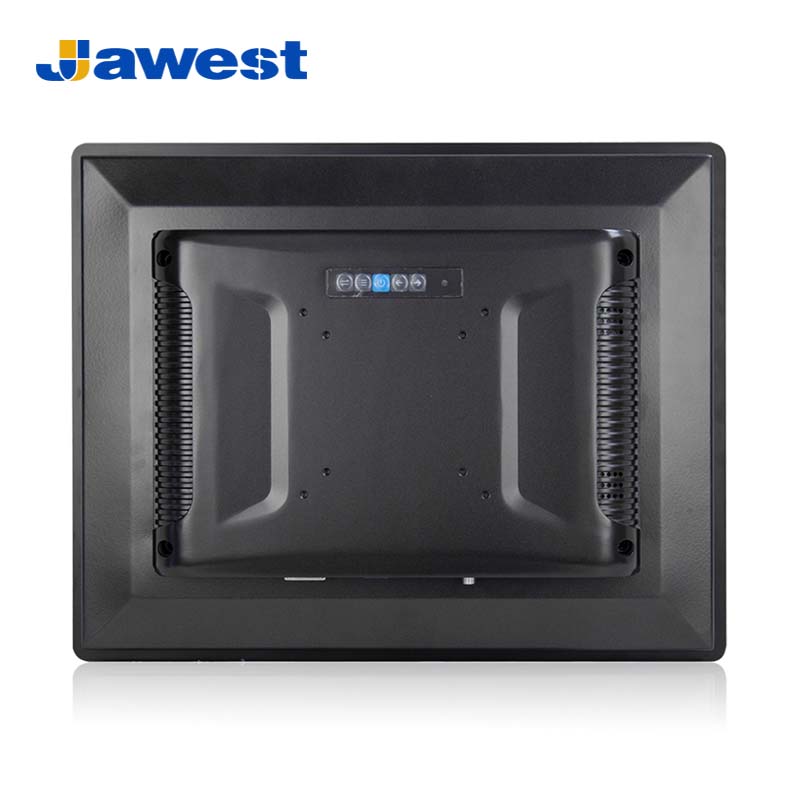

Jawest 15" Industrial Panel Mount Monitor

● JWS150-M Series

Jawest 15" square screen panel mount monitors with standard 1024*768 resolution. Features a robust Aluminum alloy enclosure and industrial-grade drive boards, silent fanless design for 7*24 long-time operation in indoor or outdoor applications, including info kiosks, train control centers, and other industrial site environments.

Touch screen options are available for 4/5 wire resistive/multi-touch capacitive/Non-touch screens. Supports 3G/4G/HD/SD-SDI input, HDMI, RJ45, DVI, and DC power input, and supports I/O port expansion.

Products Models Fast Guide

Products Models	LCD Display	Resolution	Aspect Ratio	Touch Screen	Remark
JWS150-M2	15"	1024*768	4:3	Capacitive / Resistive / Non-touch	Jawest 2nd-GEN Series / 3mm front bezel
JWS150-M5	15"	1024*768	4:3	Capacitive / Resistive / Non-touch	Jawest 5th-GEN Series / 7mm front bezel

Jawest 15 inch Industrial Monitor Datasheet
Size	15 inch
Display
Panel Type	Industrial LCD panel A+ grade
Aspect Ratio	4:3
Resolution	1024*768
Contrast	1000:1
Luminance	350nit-1500nit
Response time	5ms
Active Area (mm)	478*269.24
Display colors	16.7M(8-bit)
View angle	89/89/89/89
Touch Screen	5-wire resistive touch screen/10-point capacitive touch screen/ Non-touch
Interface	HDMI+DVI+VGA+USB/DVI+VGA+USB optional
Power Input	AC 110-240V, 50/60Hz
Power Consumption	≤30W
Power Standby	≤1.5W
Plug&Play	DDC1/2B
Working Life	More than 50,000 hours
Operation Temperature	-10°C-60°C (Support wide temperature customization)
Storage Temperature	-10°C-60°C
Operation Humidity	10%--80%
Storage Humidity	10%-90%
Metal Shell	Aluminum alloy enclosure
Color	Silver, black color optional
Bezel thickness	10mm bezel
IP rating	IP65 dust-proof and water-proof for front Panel
Installation	VESA, Embedded, Wall Mount, Desktop, open frame optional
Certificates	CE, CCC, ISO, FCC, ROHS
Package	EPE+Carton (wooden crate for mass order)
