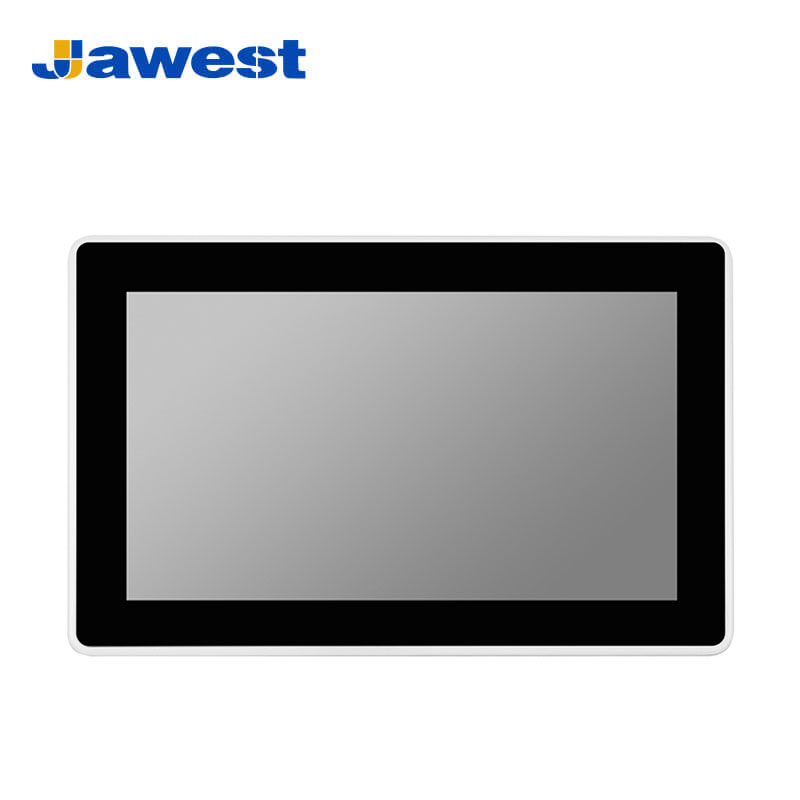

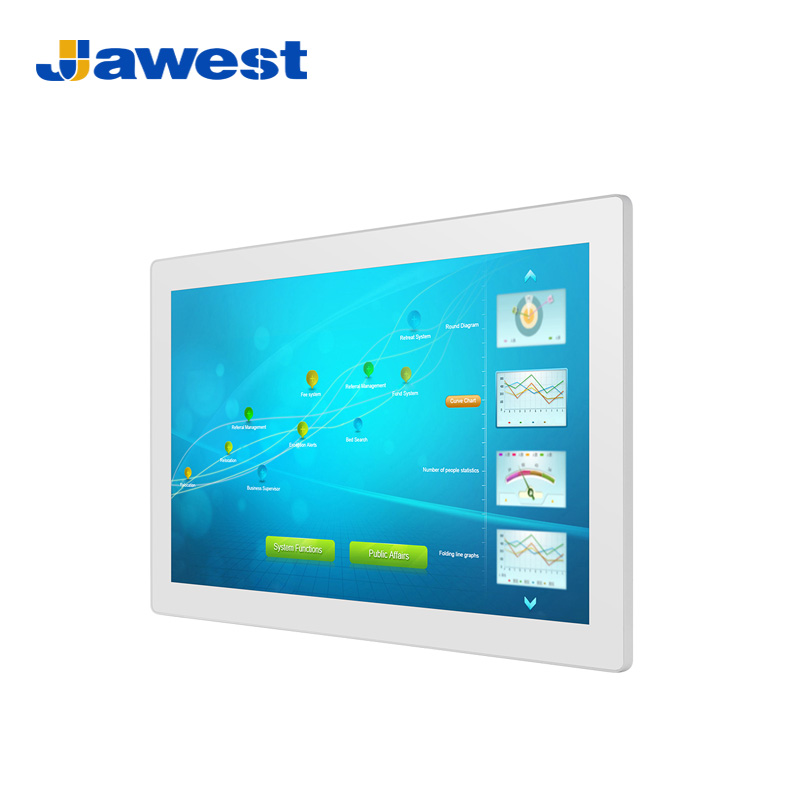

Wall-Mounted Medical Touch Screen Monitor for Healthcare Environments
Product Overview
The Wall-Mounted Medical Touch Screen Monitor is designed to provide reliable visual interaction for hospitals, clinics and other professional healthcare environments. Available in screen sizes from 10.1 inches to 27 inches, the monitor combines a durable 7H hardness projected capacitive touchscreen with responsive 10-point multi-touch capability.
Designed with healthcare applications in mind, this medical touch screen monitor complies with YY9706.102 and IEC60601-1-2 requirements for electromagnetic compatibility. It supports VGA, HDMI and DP video inputs with automatic signal source detection, allowing the display to integrate easily with different medical equipment and computer systems.
An RJ45 touch interface provides a stable and secure connection for touch data transmission. Compared with conventional USB connections, the industrial-style RJ45 interface offers a more secure physical connection for applications requiring reliable operation.
With a built-in power management design and wide DC 12V–36V power input, the monitor can adapt to different healthcare equipment and installation environments. Multiple mounting options, including wall mounting, desktop installation, arm mounting and ceiling mounting, provide flexibility for a wide range of medical display applications.
Product Features
Designed for Modern Healthcare Spaces
Healthcare environments often require display terminals to be installed in limited spaces while maintaining convenient access for patients and medical personnel. The wall-mounted design helps create a clean and organized installation while keeping the display easily accessible.
The touchscreen interface allows users to interact directly with information displayed on the screen. Depending on the connected system, the monitor can be used as an information display terminal, patient interaction terminal, medical equipment display or healthcare workstation screen.
With multiple size options available, system integrators and equipment manufacturers can select an appropriate display size according to installation space and application requirements.

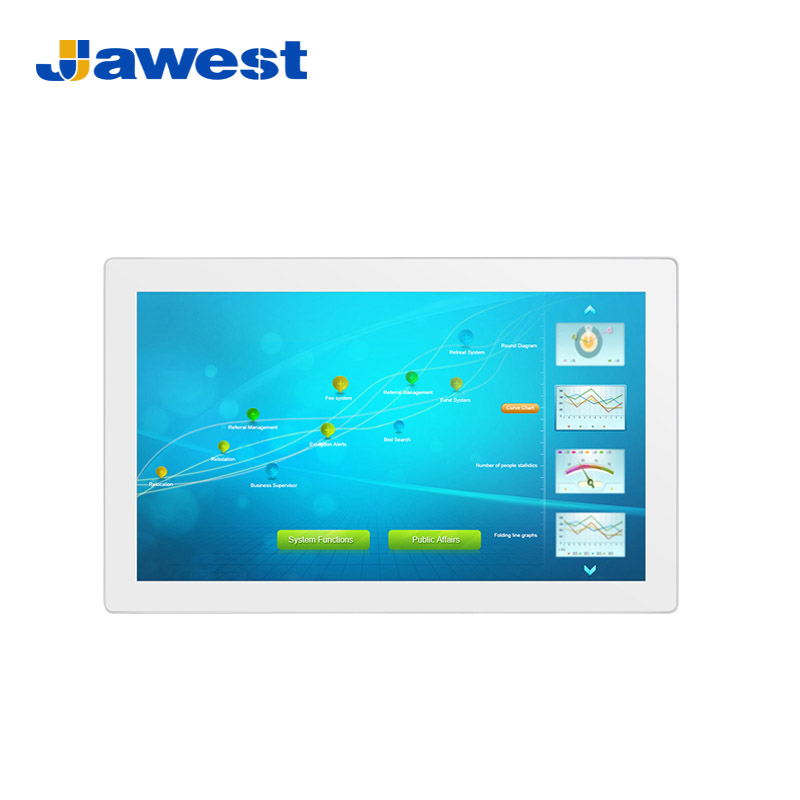

7H Hardness PCAP Touchscreen with 10-Point Multi-Touch
The monitor features a projected capacitive touchscreen designed for smooth and responsive operation. The 10-point multi-touch function supports multi-user or multi-finger interaction where required.
A 7H hardness touch surface provides enhanced durability for frequent daily operation. The touchscreen design is suitable for applications requiring repeated interaction in professional environments.
Whether used for bedside information access, healthcare workstations or medical equipment interfaces, the touchscreen provides a direct and intuitive human-machine interaction method.
Medical EMC Compatibility
The medical touch screen monitor is designed in accordance with YY9706.102 and IEC60601-1-2 electromagnetic compatibility requirements.
Reliable electromagnetic compatibility is an important consideration when integrating display equipment into healthcare environments where multiple electronic devices may operate simultaneously.
This design makes the monitor suitable for integration into medical information systems, healthcare workstations and various professional medical equipment applications.

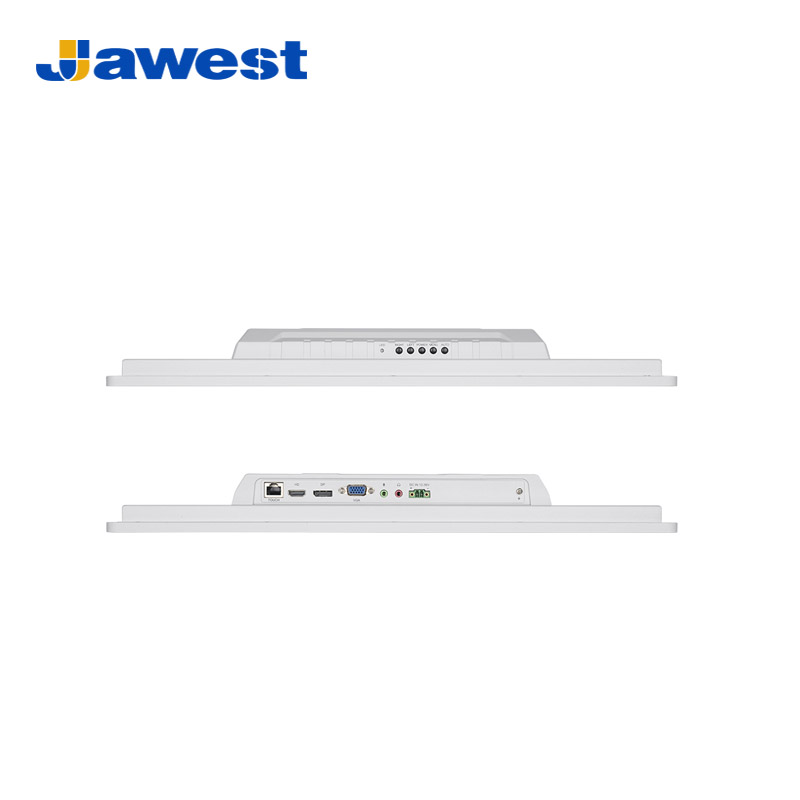

Flexible Video Connectivity
To simplify system integration, the monitor supports VGA, HDMI and DisplayPort video input interfaces.
Automatic signal recognition allows the monitor to detect the connected video source, helping simplify installation and operation when different types of host devices are used.
The flexible interface configuration enables compatibility with industrial computers, medical computers, embedded systems and other display source devices.
Stable RJ45 Touch Data Interface
For applications where connection reliability is important, the monitor uses an RJ45 interface for touch data communication.
The connector structure provides a secure physical connection and helps reduce the risk of accidental disconnection caused by cable movement. This makes it suitable for wall-mounted equipment, medical carts, arm-mounted terminals and other installations where cables may be subject to movement.
Wide Voltage Power Input
The integrated power management design supports a wide DC 12V–36V power input.
This allows the monitor to be integrated with different power systems and healthcare equipment configurations. The industrial-grade power connector is designed to provide a more secure connection for long-term equipment operation.

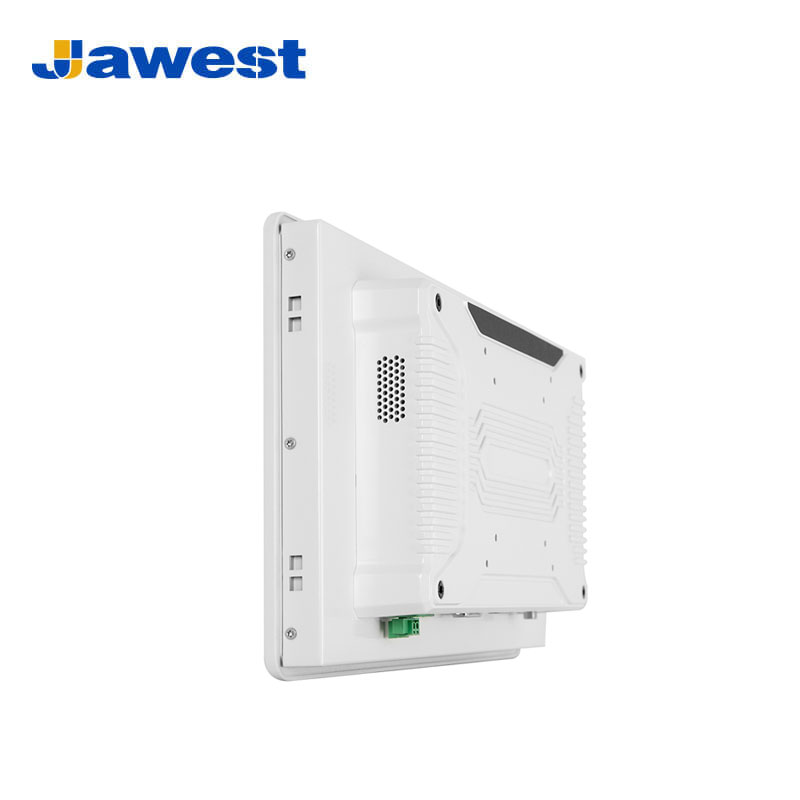

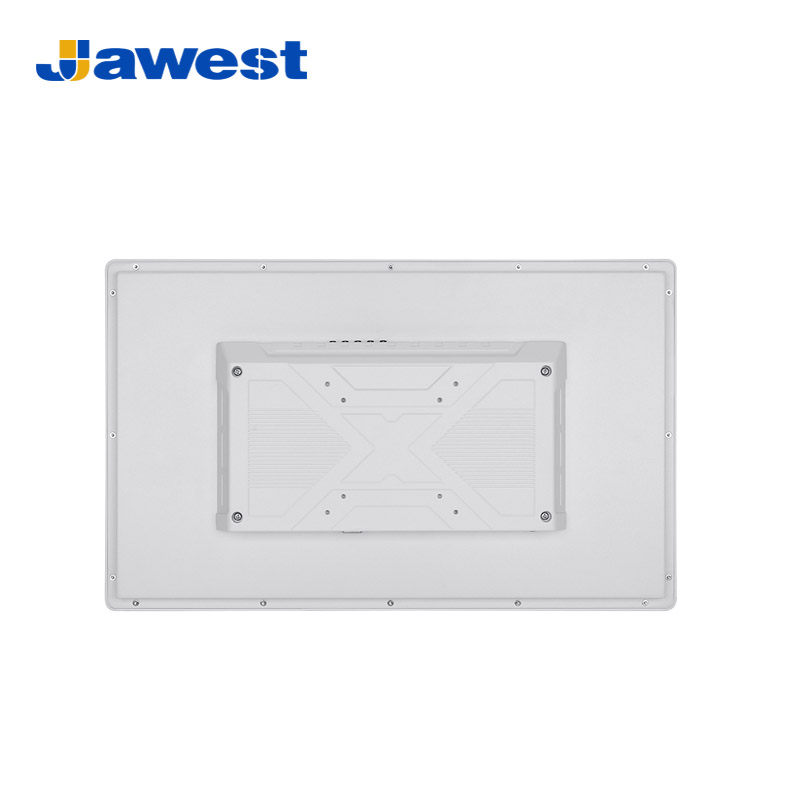

Multiple Installation Methods

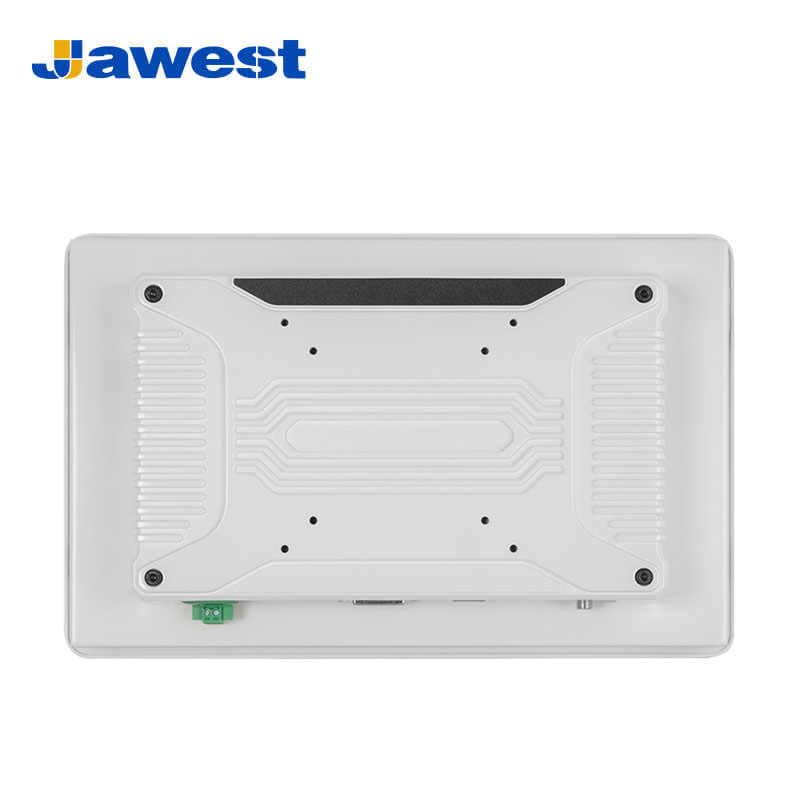

One medical display platform can be adapted to different installation environments. Supported installation options include Wall-mounted installation, Desktop installation, VESA arm mounting, Ceiling or pendant mounting.
This flexibility allows the same display series to be integrated into patient rooms, nursing stations, treatment areas, medical carts and specialized healthcare equipment.
Products Model Fast Guide
| Product Models | LCD Display | Resolution | Aspect Ratio | Get A Quote |
| JWS101-M40 | 10.1" | 1280*800 | 16:10 | Inquiry
|
| JWS104-M40 | 10.4" | 1024*768 | 4:3 | Inquiry |
| JWS116-M40 | 11.6" | 1920*1080 | 16:9 | Inquiry |
| JWS120-M40 | 12" | 1024*768 | 4:3 | Inquiry |
| JWS133-M40 | 13.3" | 1920*1080 | 16:9 | Inquiry |
| JWS150-M40 | 15" | 1024*768 | 4:3 | Inquiry |
| JWS156-M40 | 15.6" | 1920*1080 | 16:9 | Inquiry |
| JWS170-M40 | 17" | 1280*1024 | 5:4 | Inquiry |
JWS173-M40 | 17.3" | 1920*1080 | 16:9 | Inquiry |
| JWS185-M40 | 18.5" | 1920*1080 | 16:9 | Inquiry |
| JWS190-M40 | 19" | 1280*1024 | 5:4 | Inquiry |
| JWS215-M40 | 21.5" | 1920*1080 | 16:9 | Inquiry |
| JWS238-M40 | 23.8" | 1920*1080 | 16:9 | Inquiry |
JWS270-M40 | 27" | 1920*1080 | 16:9 | Inquiry |
Applications
Bedside Display Terminals
The monitor can be installed near hospital beds to provide a visual interface for patient information, care instructions, entertainment systems or hospital information platforms.
Nursing Stations
Used as a touch display terminal for nursing workstations, patient information access and healthcare management systems.
Medical Equipment Displays
The monitor can be integrated with diagnostic equipment, treatment equipment and other medical devices requiring a professional touchscreen display interface.
Patient Information Systems
Suitable for displaying appointment information, treatment instructions, hospital services and other interactive healthcare content.
Healthcare Workstations
The flexible mounting structure allows the display to be installed in space-constrained medical work areas while providing convenient touchscreen interaction.
OEM and Customization Support
JAWEST provides flexible customization services for medical display integration projects.
Customization options may include the following items.
- Display size selection
- Touchscreen configuration
- Interface configuration
- Brightness adjustment
- Mechanical structure customization
- Mounting solution design
- Logo and branding customization
- Housing color customization
- Project-specific cable and connector configuration
Our engineering team can support OEM and ODM projects for healthcare equipment manufacturers, medical system integrators and professional device developers.
Why Choose the JAWEST Medical Touch Screen Monitor?
The JAWEST Wall-Mounted Medical Touch Screen Monitor combines flexible installation, multi-touch interaction, stable connectivity and healthcare-oriented EMC compatibility.
With display sizes ranging from 10.1 inches to 27 inches, multiple video input options and support for various mounting methods, it provides a flexible display solution for different healthcare environments and equipment integration projects.
Whether used as a bedside display terminal, medical equipment interface or healthcare workstation display, the monitor can be configured to support the specific requirements of professional medical applications.
