Android Panel PC With Hot Swappable Batteries For Mobile Medical Carts

Android Panel PC With Hot Swappable Batteries For Mobile Medical Carts

● 7" to 21.5" LCD displays are optional.

● RK3288 Quad-core 1.8GHZ CPU (RK3399 Six-core 2.0GHZ optional).

● Android 7.1, Android 9.0, Android 10.0, or Linux OS.

● WiFi, Bluetooth BT4.2, Gigabit Ethernet, 4G LTE optional.

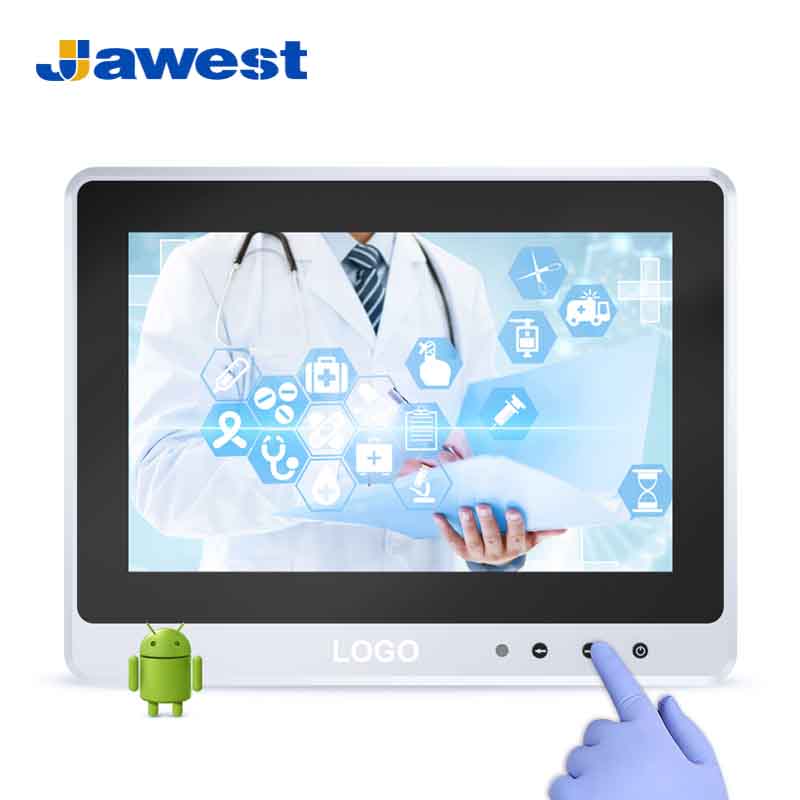

● 10 point PCAP touch and glove operation.

● Supports hot-swappable batteries.

● IP65 dust & water protection.

● Card reader available.

● Aluminum alloy die-casting housing, anti-corrosion.

● Support 24/7 long-time operation.

● OSD on the front/back panels.

● IEC 60601-1 medically certified.

Appearance of the color

Black

Silver

Description
Parameter
Case

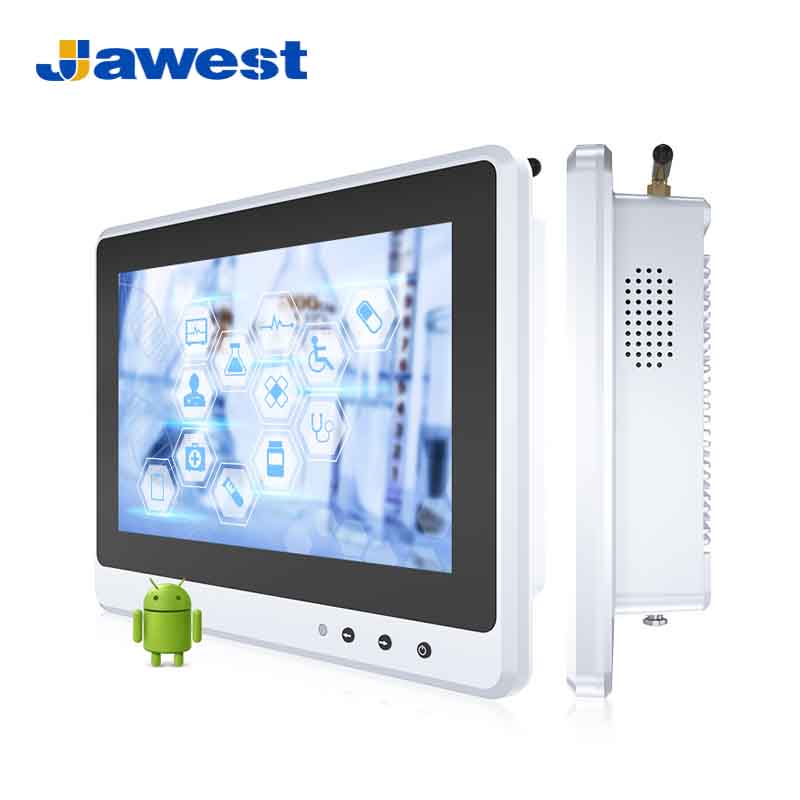

Medical Cart Mount Android All-In-One Panel PC

Jawest medical cart panel PCs based on ARM architecture support Android 7.1 / 9.0 / 10.0. Suitable for the needs of smart hospitals, healthcare facilities, and surgical facilities. This Android all-in-one panel PC can be easily mounted on all types of rolling medical carts, workstations. With an IP65 and OSD front panel in any medical setting. Can be easily cleaned with its anti-microbial chassis and IP65 rated, PCAP capacitive touch screen allowing you to operate it with gloves on.

Product Model Fast Guide

Model	Display	Definition	Aspect Ratio	Touch Screen	Get A Quote Now!
JWS070-AT01	7"	1024*600	16:9	Capacitive	Inquiry
JWS080-AT01	8"	1024*768	4:3	Capacitive	Inquiry
JWS101-AT01	10.1"	1280*800	16:10	Capacitive	Inquiry
JWS104-AT01	10.4"	1024*768	4:3	Capacitive	Inquiry
JWS116-AT01	11.6"	1920*1080	16:9	Capacitive	Inquiry
JWS120-AT01	12"	1024*768	4:3	Capacitive	Inquiry
JWS150-AT01	15"	1024*768	4:3	Capacitive	Inquiry
JWS156-AT01	15.6"	1920*1080	16:9	Capacitive	Inquiry
JWS170-AT01	17"	1280*1024	5:4	Capacitive	Inquiry
JWS190-AT01	19"	1280*1024	5:4	Capacitive	Inquiry
JWS215-AT01	21.5"	1920*1080	16:9	Capacitive	Inquiry

Medical Cart Android Panel PC
Size	7" to 21.5"
Panel Type	Industrial LCD panel A+ grade, TFT panel
Contrast	1000:1
Luminance	300 to 1500 nit option
Response time	5ms
Display colors	16.7M
View angle	85°/85°/85°/85° (L/R/U/D)
PC Configuration
CPU	RK3288, Quad-core, 1.8GHz (RK3399, Six-core, 2.0GHz optional)
Graphics Card	Mali-T764
Chipset	Intel Bay trail SOC
Inner memory	2G DDR3 RAM ( 4G/8G RAM optional)
Storage	16G eMMC (32G/64G optional)
Operating System	Android 7.1
Support multi-language	English/Portuguese/French…etc
Touch Screen	Capacitive
WiFi	2.4G (dual-frequency 2.4/5G optional)
Bluetooth	BT4.0
GPS / MIC	Optional
Wake On LAN / RTC / Plug-n-Play	Support
I/O Ports
DC Port	1*DC2.0
HDMI	Support HDMI data output, maximum support 1080P
USB-OTG	Optional
USB-HOST	1*USB 2.0
RJ45	1000M adaptive Ethernet
SD / TF / SIM	Support
Headphone Jack	3.5mm
Serial interface	7"-10.4": COM1, other sizes: COM2, default with RS232 protocol, 422/485 protocol optional.
Power Input	AC 100-240V, 50/60Hz
Power Output	DC 12V/5A
Environment
Operation Temperature	-10°C~60°C
Storage Temperature	-30°C-60°C
Operation Humidity	10%-80%
Storage Humidity	10%-90%

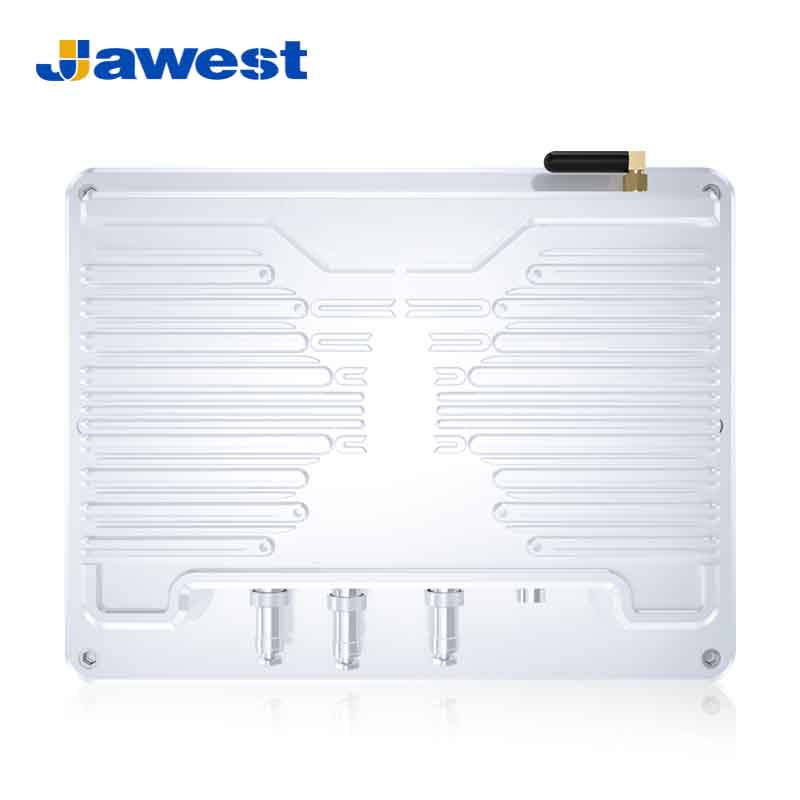

Material	Aluminum alloy enclosure
IP Rating	IP65 standard seamless front
Color	Black, silver
Installation Way	VESA, Embedded, Wall Mount, Desktop optional
Certification	CE,FCC,ROHS,ISO
Packaging	EPE+Carton
