17.3 inch Panel Mount LCD Displays Wide Temperature Support DC Input

17.3 inch Panel Mount LCD Displays Wide Temperature Support DC Input

Model: JWS173-M Series

● Panel mount 17.3″ widescreen LCD monitor

● 16:9 Aspect Ratio; 1920 x 1080 resolution

● Resistive, capacitive, Non-touch optional

● Industrial-grade motherboard

● IP65 rated dustproof & waterproof for the front panel

● 300 nits of brightness, supports adjustable controls

● 3 Year Warranty

Appearance of the color

Black

Silver

Description
Parameter
Case

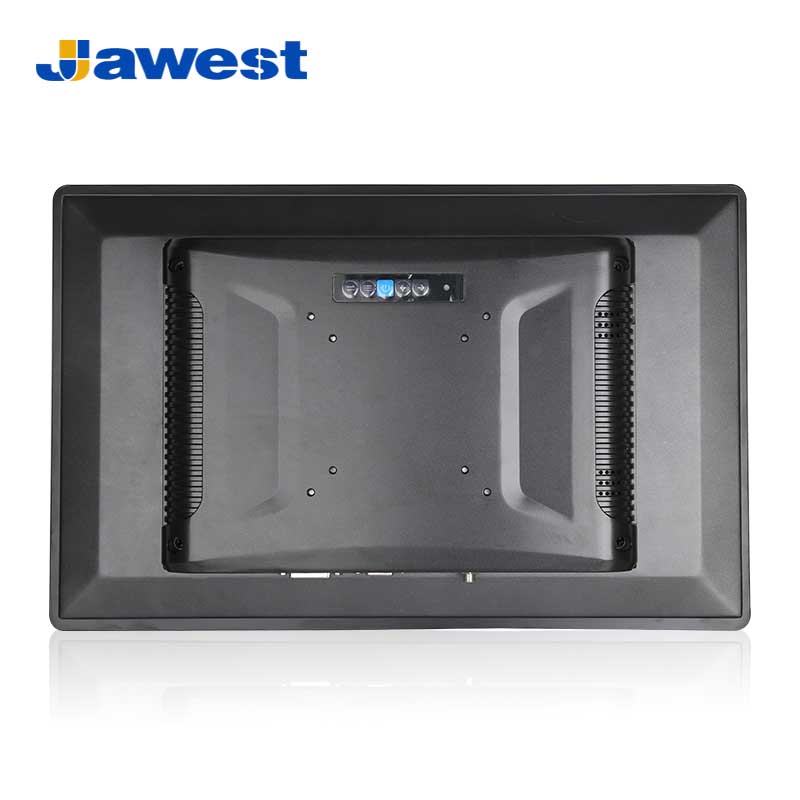

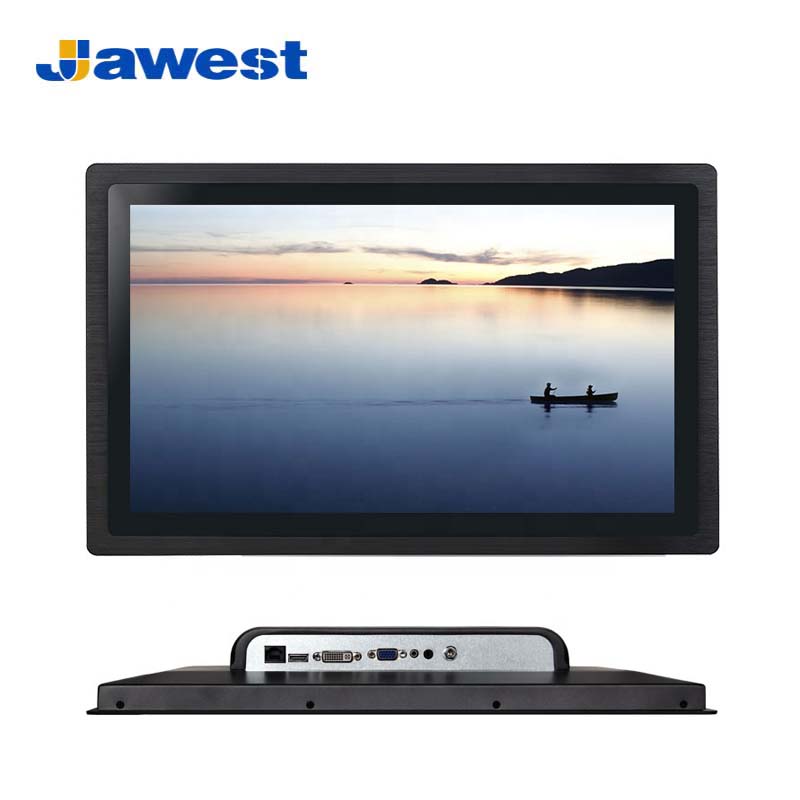

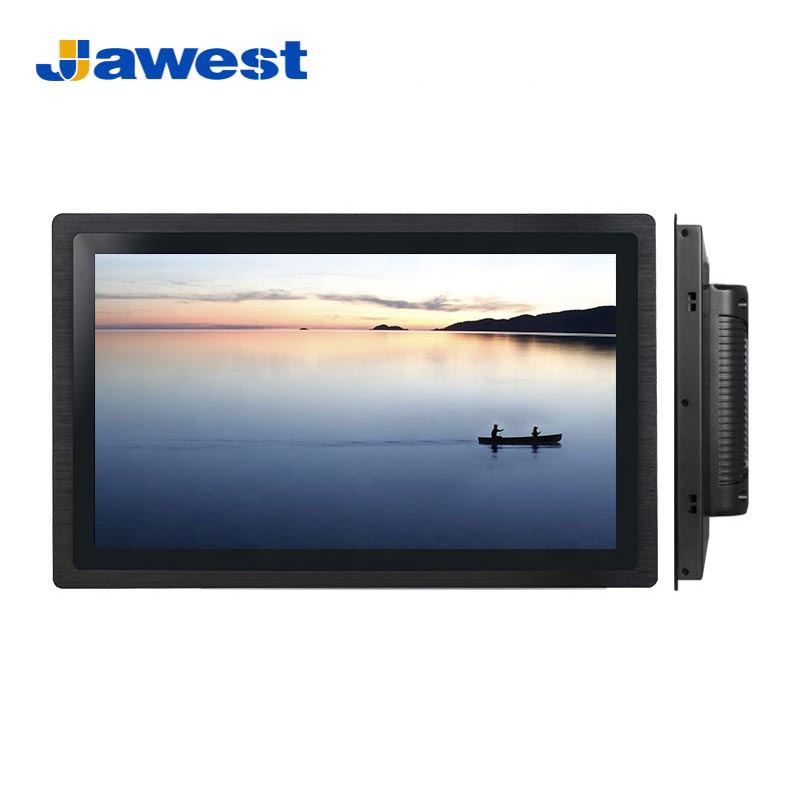

Jawest 17.3" Industrial Panel Mount Monitor

JWS173-M Series

Jawest 17.3-inch panel mount monitors featuring an industrial-grade 16:9 ratio LCD display, designed for industrial, commercial applications, and outdoor environments.

The ultra-thin front bezel allows this industrial monitor suit for a panel mount design and integrates it into an enclosure for different applications such as electrical cabinet displays, kiosks, and machine building. In order to provide excellent operation performance, this panel mount monitor comes with high flexibility and a wide selection of options including sunlight-readable displays, touch screen technology, the thickness of front bezels, wide operating temperatures, and multi-functional modules.

Products Models Fast Guide

Products Models	LCD Display	Resolution	Aspect Ratio	Touch Screen	Remark
JWS173-M2	17.3"	1280*1024	16:9	Capacitive / Resistive / Non-touch	Jawest 2nd-GEN Series / 3mm front bezel
JWS173-M5	17.3"	1280*1024	16:9	Capacitive / Resistive / Non-touch	Jawest 5th-GEN Series / 7mm front bezel

Jawest 17.3 inch Industrial Monitor Datasheet
Size	17.3 inch
Display
Panel Type	Industrial LCD panel A+ grade
Aspect Ratio	16:9
Resolution	1920*1080
Contrast	1000:1
Luminance	350nit-1500nit
Response time	5ms
Active Area (mm)	478*269.24
Display colors	16.7M(8-bit)
View angle	89/89/89/89
Touch Screen	5-wire resistive touch screen/10-point capacitive touch screen/ Non-touch
Interface	HDMI+DVI+VGA+USB/DVI+VGA+USB optional
Power Input	AC 110-240V, 50/60Hz
Power Consumption	≤30W
Power Standby	≤1.5W
Plug&Play	DDC1/2B
Working Life	More than 50,000 hours
Operation Temperature	-10°C-60°C (Support wide temperature customization)
Storage Temperature	-10°C-60°C
Operation Humidity	10%--80%
Storage Humidity	10%-90%
Metal Shell	Aluminum alloy enclosure
Color	Silver, black color optional
Bezel thickness	10mm bezel
IP rating	IP65 dust-proof and water-proof for front Panel
Installation	VESA, Embedded, Wall Mount, Desktop, open frame optional
Certificates	CE, CCC, ISO, FCC, ROHS
Package	EPE+Carton (wooden crate for mass order)
