17 inch Touch Displays With Ultra-thin Bezel Seamless Panel Mount Installation17 inch Touch Displays With Ultra-thin Bezel Seamless Panel Mount Installation17 inch Touch Displays With Ultra-thin Bezel Seamless Panel Mount Installation

17 inch Touch Displays With Ultra-thin Bezel Seamless Panel Mount Installation


Model: JWS170-M Series

● Panel mount 17″ widescreen LCD monitor

● 5:4 Aspect Ratio; 1280 x 1024 resolution

● Resistive, capacitive, Non-touch optional

● Industrial-grade motherboard

● IP65 rated dustproof & waterproof for the front panel

● 300 nits of brightness, supports adjustable controls

● 3 Year Warranty

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter

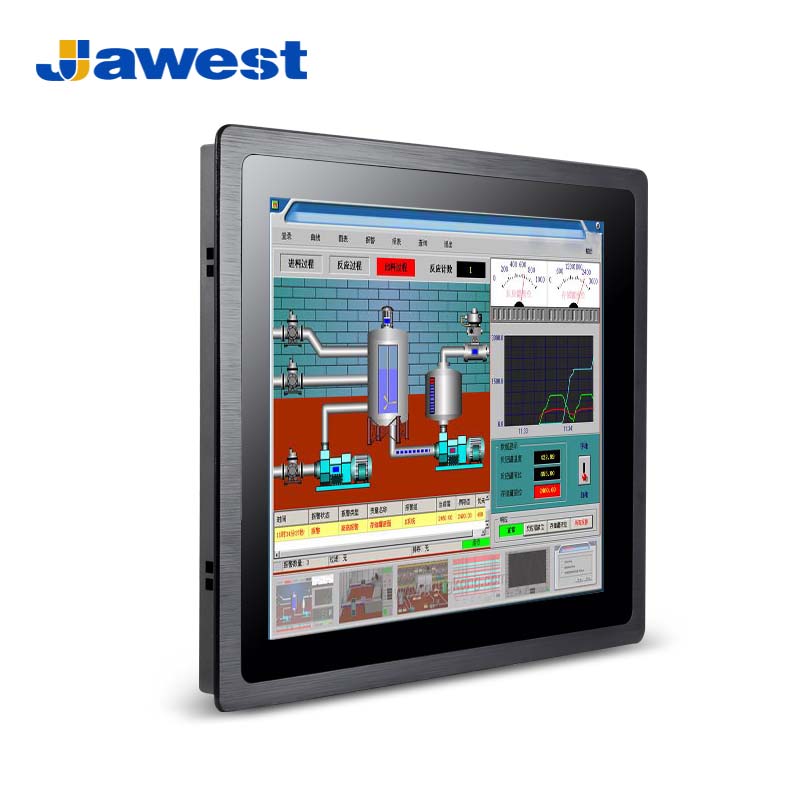

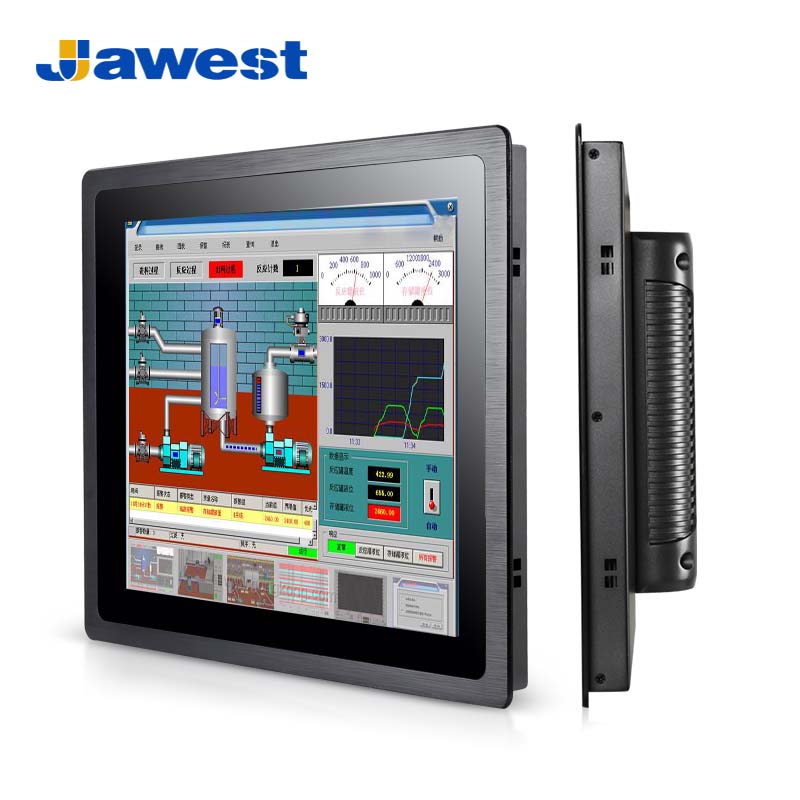

Jawest 17" Industrial Panel Mount Monitor


Model: JWS170-M2


This 17-inch panel mount LCD monitor has a 5:4 widescreen Aspect ratio. The monitor delivers a high image quality with excellent 178° viewing angles. The 17-inch monitor has a robust Aluminum alloy casing, presenting superior heat-dispassion and shockproof performance in heavy-duty conditions.


Industrial panel mount displays are a common and popular option for use in various industries and commercial applications. Compared with regular monitors, this panel mount monitor with high durability offers high performance for harsh industrial use. Widely used in processing, machine vision, industrial process control, medical, smart city, and smart manufacturing, as well as in education or transportation fields.


Jawest industrial touch screen monitors are durable and reliable and built to withstand use in harsh environments without down, malfunctioning, or difficult-to-maintain.


These panel mount monitors support sunlight readable high brightness screens, rugged Aluminum alloy enclosure design, auto-dimming function, long span life LED backlighting, and front IP65-rated dustproof and waterproof protection.


17" industrial panel mount monitors provide superior picture quality and around-the-clock operation for industrial or outdoor applications. Options are available for high nits screen, anti-glare screen, anti-UV screen, touchscreen technology (Capacitive, Resistive, Non-touch), 3G/4G/HD/SDI input for broadcast-grade video, and DC power input.








Product ModelJWS170-M2
Product DescriptionJawest 2nd-GEN Type A Industrial Touch Screen Monitor

CPURTD2513

Screen ParametersDisplay Type17" TFT LCD
Resolution1280*1024(5:4)
Viewing Angle (H/V)85°/85°/80°/70° (L/R/U/D)
Luminance (cd/m²)300 cd/m2
Contrast ratio1000:1
Backlight TypeLED, lifetime ≥ 50000h
Grayscale Response Time5ms
Touch Screen TechnologyCapacitive, resistive, and non-touch options



I/O ParameterTouch interface1*Touch (RJ45)
HDMI1*HDMI data input, maximum support 1080P
VGA1*VGA
DVI1*DVI
DC Port1*DC2.1, support 12V-36V wide voltage power supply
Earphone JackStandard 3.5mm port
Audio Port1* Audio I/O
Power Interface1*Threaded DC connector (Diameter 5.5*2.1mm)
Grounding1*GND
I/O ExpansionSupport I/O customization for various industries

Product ReliabilityWorking Temperature-10°C ~ 60°C
Storage Temperature-20°C ~ 70°C
Relative Humidity95% non-condensing

Power ParametersPower Adapter24V/2.5A
Power Input DC 12V~36V



MechanicalDimensions414*345*63mm (W*H*D)
MaterialAluminum alloy frame, metal case
ColorBlack, optional silver
InstallationPanel mount, Flush mount
