Application:

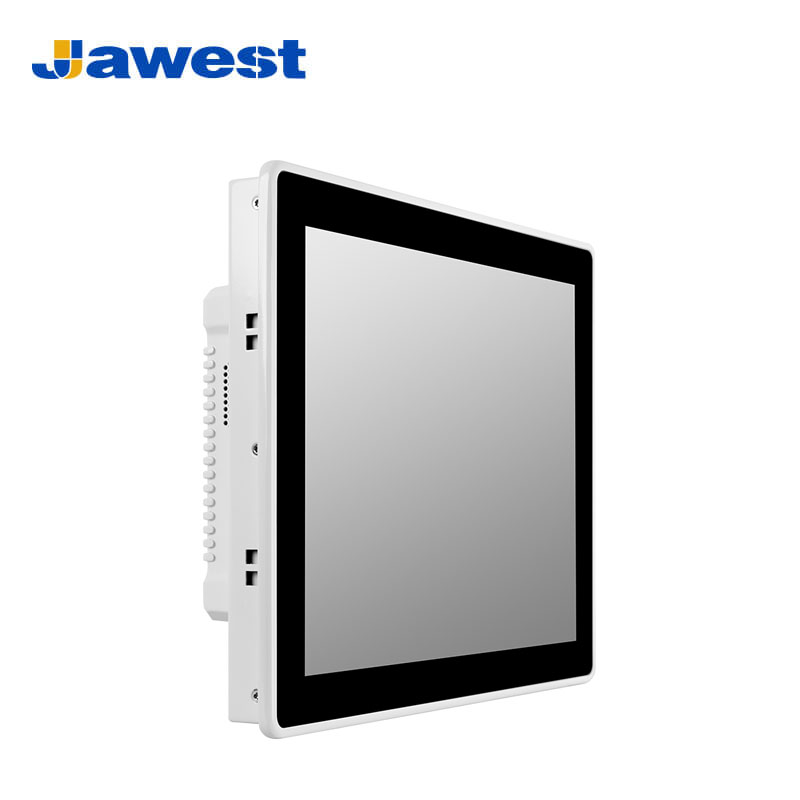

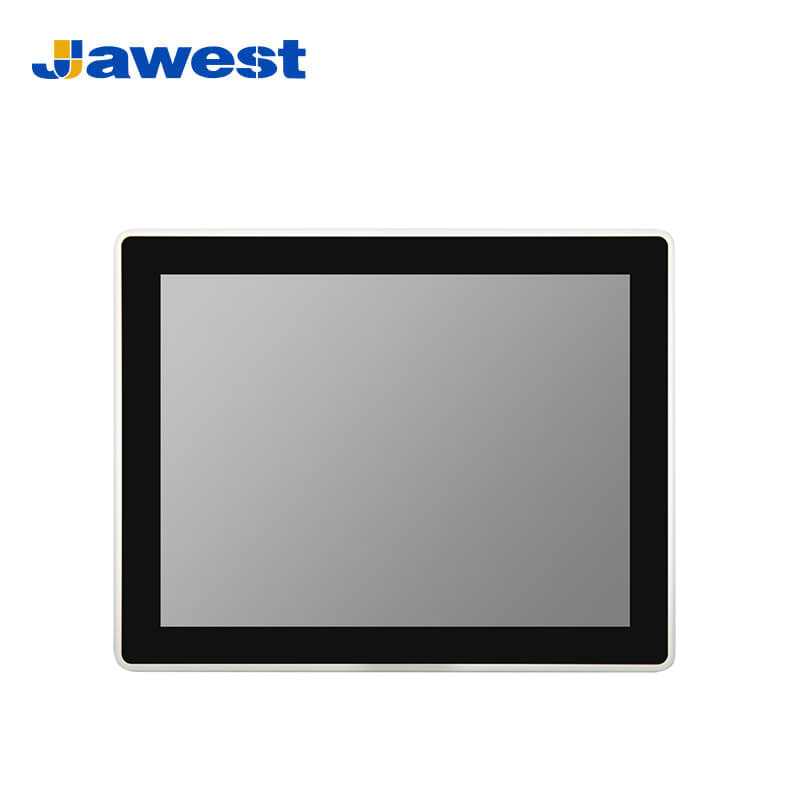

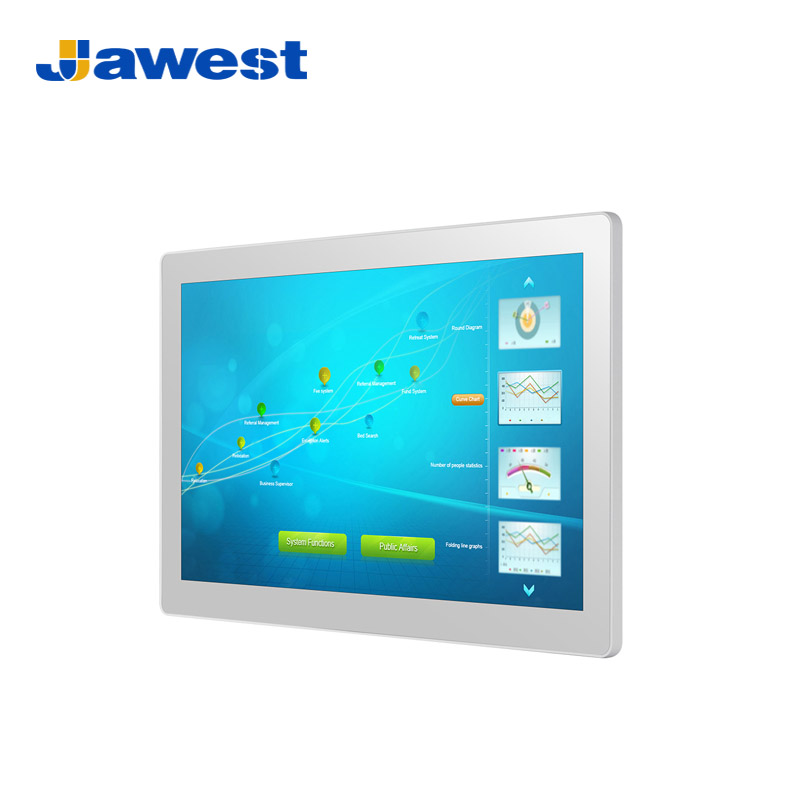

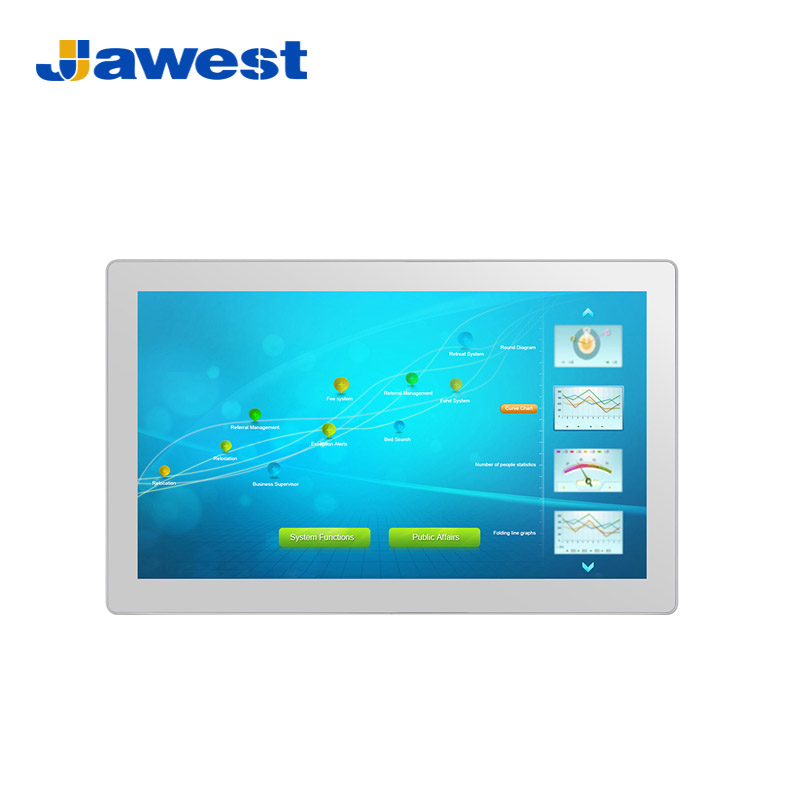

Medical Panel PC Medical Touch Computers With Android System

● 7" to 21.5" optional true flat IP65 protected touchscreen

● RK3288, quad-core CPU

● Anti-static industrial-grade motherboard

● 10 point PCAP touch and glove operation

● Built-in Wi-Fi + BT module

● Optional camera and RFID module

● Working temperature:-10-60°C

● Aluminum alloy die-casting housing, anti-corrosion

● Support 24/7 long-time operation

● OSD on the front/back panel for brightness adjustment

● OEM/ODM custom design by request

Appearance of the color

Black

Silver

Medical Panel PC Medical Touch Computers With Android System

Product Model Fast Guide

Medical Touchscreen Panel PC Android OS
Size	7" to 21.5"
Panel Type	Industrial LCD panel A+ grade, TFT panel
Contrast	1000:1
Luminance	300 to 1500 nit option
Response time	5ms
Display colors	16.7M
View angle	85°/85°/85°/85° (L/R/U/D)
PC Configuration
CPU	RK3288, Quad-core, 1.8GHz (RK3399, Six-core, 2.0GHz optional)
Graphics Card	Mali-T764
Chipset	Intel Bay trail SOC
Inner memory	2G DDR3 RAM ( 4G/8G RAM optional)
Storage	16G eMMC (32G/64G optional)
Operating System	Android 7.1
Support multi-language	English/Portuguese/French…etc
Touch Screen	Capacitive
WiFi	2.4G (dual-frequency 2.4/5G optional)
Bluetooth	BT4.0
GPS / MIC	Optional
Wake On LAN / RTC / Plug-n-Play	Support

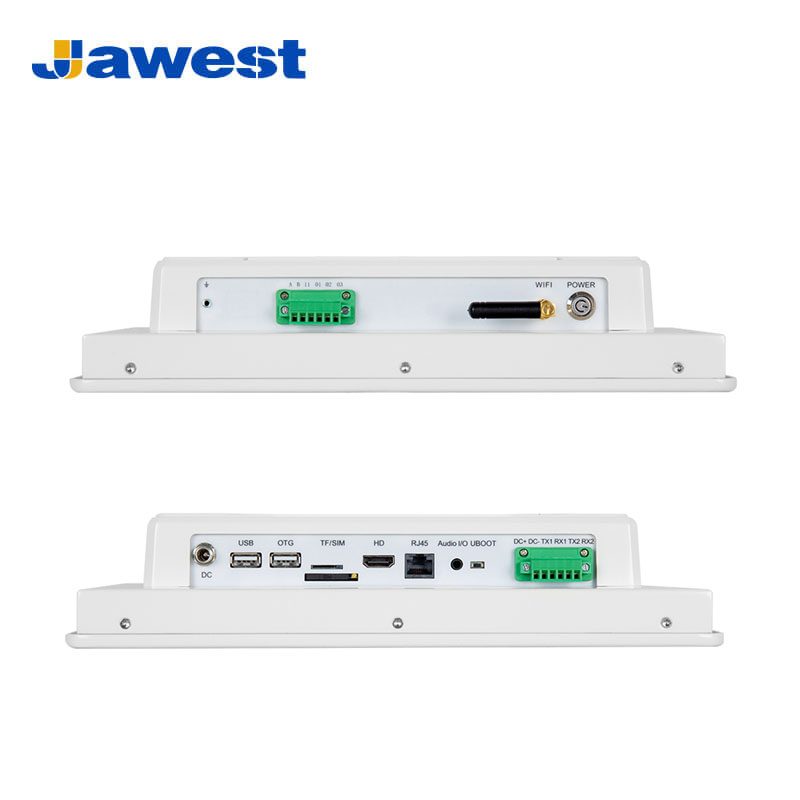

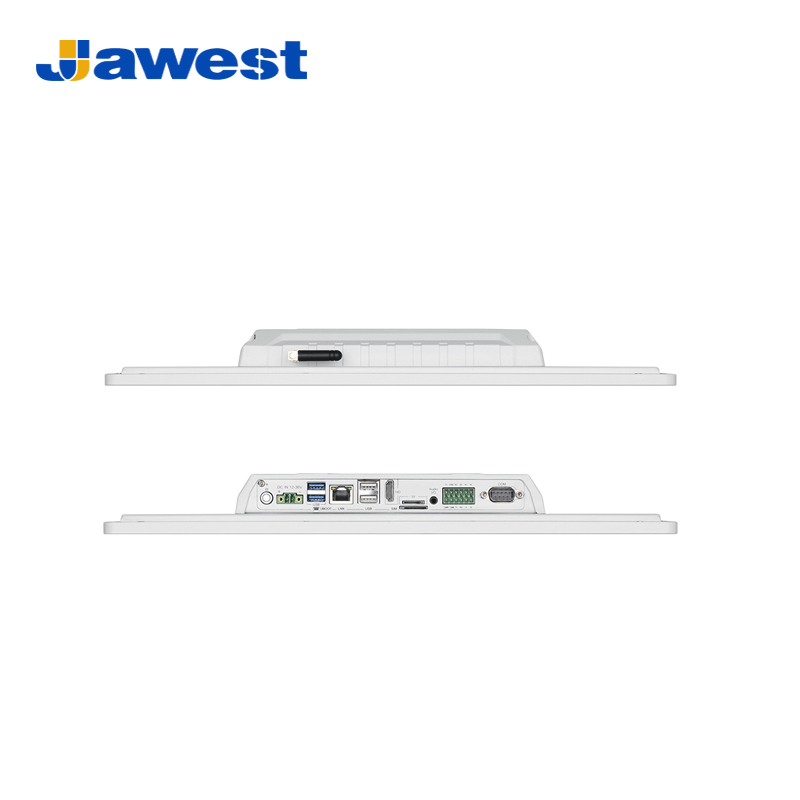

I/O Ports
DC Port	1*DC2.0
HDMI	Support HDMI data output, maximum support 1080P
USB-OTG	Optional
USB-HOST	1*USB 2.0
RJ45	1000M adaptive Ethernet

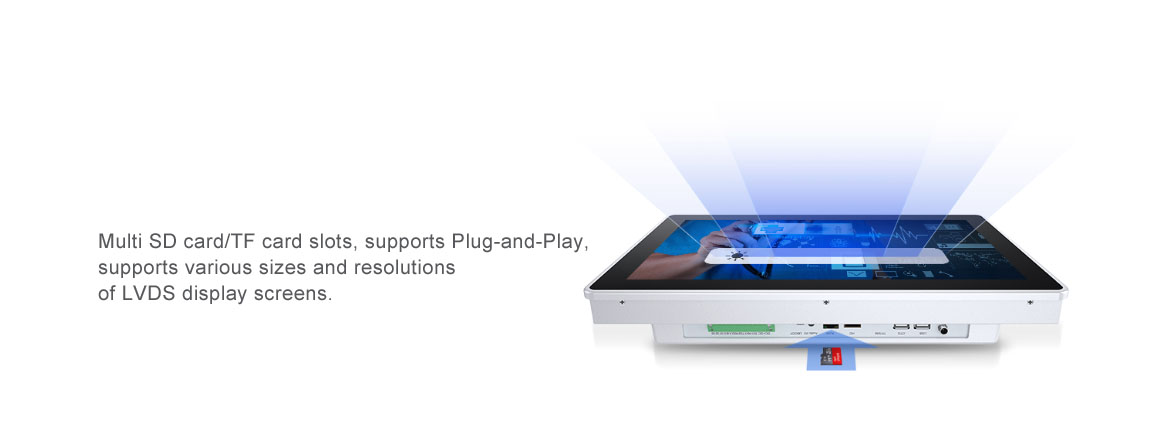

SD / TF / SIM	Support
Headphone Jack	3.5mm
Serial interface	7"-10.4": COM1, other sizes: COM2, default with RS232 protocol, 422/485 protocol optional.
Power Input	AC 100-240V, 50/60Hz
Power Output	DC 12V/5A
Environment
Operation Temperature	-10°C~60°C
Storage Temperature	-30°C-60°C
Operation Humidity	10%-80%
Storage Humidity	10%-90%
Material	Aluminum alloy enclosure
IP Rating	IP65 standard seamless front
Color	Black, silver

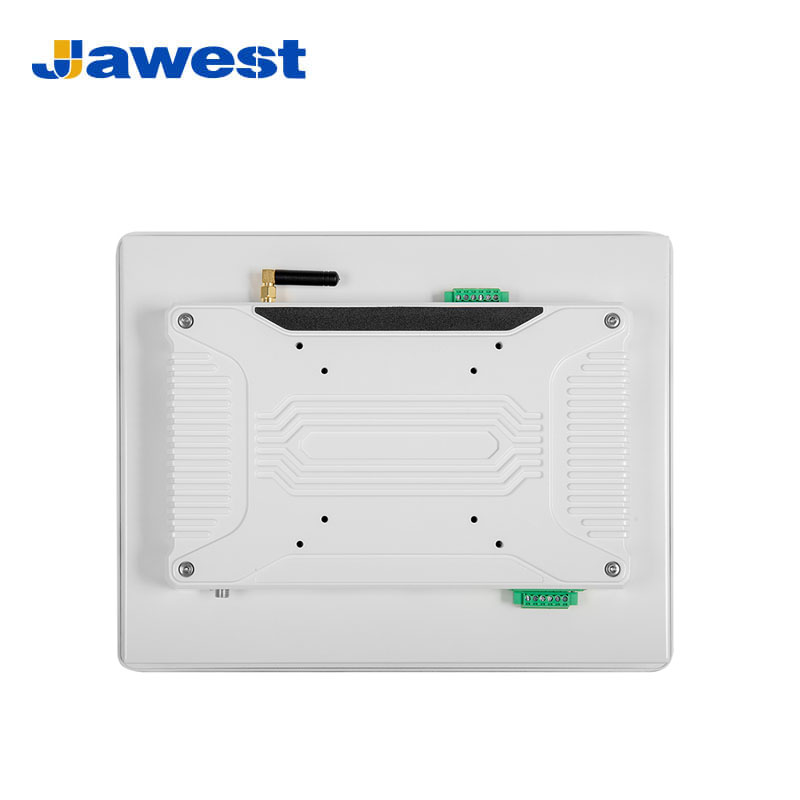

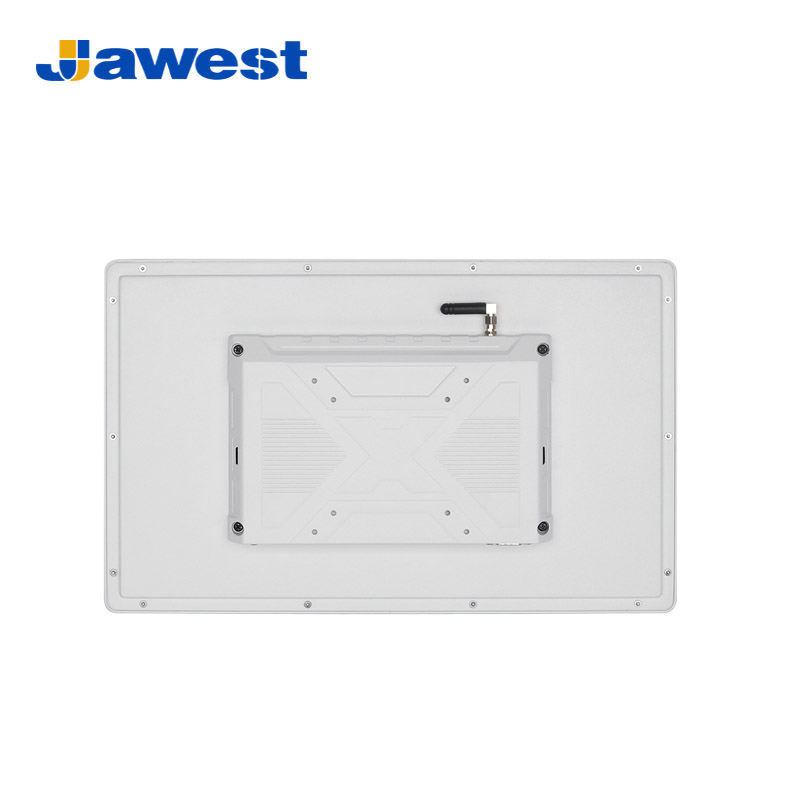

Installation Way	VESA, Embedded, Wall Mount, Desktop optional
Certification	CE,FCC,ROHS,ISO
Packaging	EPE+Carton
