| Jawest 5th-GEN Industrial All-In-One PC with 7mm Front Bezel |
| Screen |
| Size | 10.1 inch to 21.5 inch |
| Display Color | 16.7M |
| Panel Type | Industrial LCD panel A / A+ Grade |
| Contrast Ratio | 1000:1
|
| Luminance | 220nit-1500nit options |
| Response time | 6.5ms |
| Touch Screen | Capacitive touch, and resistive touch, non-touch for optional |
| Display colors | 16.7M(8-bit) |
| View angle | 85°/85°/85°/85° (L/R/U/D) |

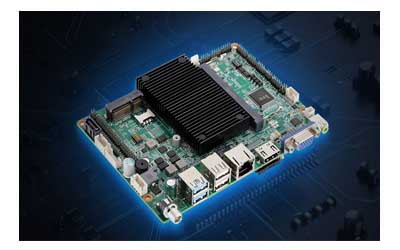

| PC Configuration |
| CPU | Options: Intel Celeron J1900/J4125/J6412, Intel® Core™ i3-1215U / i5-1235U / i7-1255U. |
| Graphics Card | Integrated Intel HD Graphics |
| Inner memory | 4/8/16/32GB options |
| Storage | 16/32/64/128/256/512GB SSD, 1T/2T HDD options |
| Expansion Card Slot | 1xMini-PCIe slot, support SSD, WIFI, 3G/4G module |
| Audio | Realtek ALG662 6 soundtrack audio frequency |
| Internet | 1xRTL811E gigabit network card |
| Operating System | Pre-installed Win7, and offer Win8, 10 for optional |
| Support multi-language | English/Portuguese/French, etc. |
| Touch Screen | 10-point capacitive touchscreen, 5-wire resistive touchscreen, and Non-touch optional |
| I/O Ports |
|
| USB | USB2.0*2, USB3.0*2 |
| DC Port | 1*DC 2.5, supports 12V-36V wide voltage power supply |
| HDMI | Support HDMI data output, up to 1080P |
| VGA | Standard DB15 interface |
| RJ45 Ethernet | 1*Realtek 8111F Gigabit interface, supports wake-on-LAN (dual network ports optional) |
| Earphone Jack | 3.5mm standard interface |
| SIM Card Slot | Standard slots support various formats |
| Serial Interface | RS232(DB9)*1, COM Reserved*1(Optional RS232/422/485), 12P Phoenix Terminal (DC*1+RS232*1+RS485*1+GPIO*5) |
| I/O Expansion | Support
|
| Power |
| Power Input | DC in 12V ~ 36V |
| Adapter | 24V / 2.5A (4A for i3/i5/i7 CPUs) |
| Product Reliability |
| Operation Temperature | -10°C ~ +60°C |
| Storage Temperature | -20°C ~ 70°C |
| Operation Humidity | 10% ~ 80%, No condensation |
| Storage Humidity | 10% ~ 90%, No condensation |

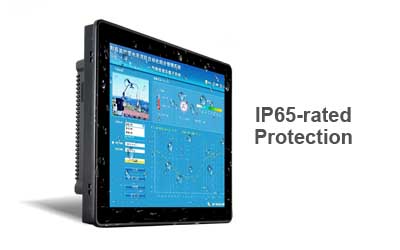

| IP Rating | IP65 standard seamless front |
| Certification | CE, FCC, ROHS, ISO9001 |
| Mechanical |
| Material | Aluminum alloy enclosure+High Strength Cold Rolled Steel |
| Color | Silver, Black |
| Mounting Options | VESA, Embedded, Wall Mount, Desktop, Panel-Mount |
