Application:

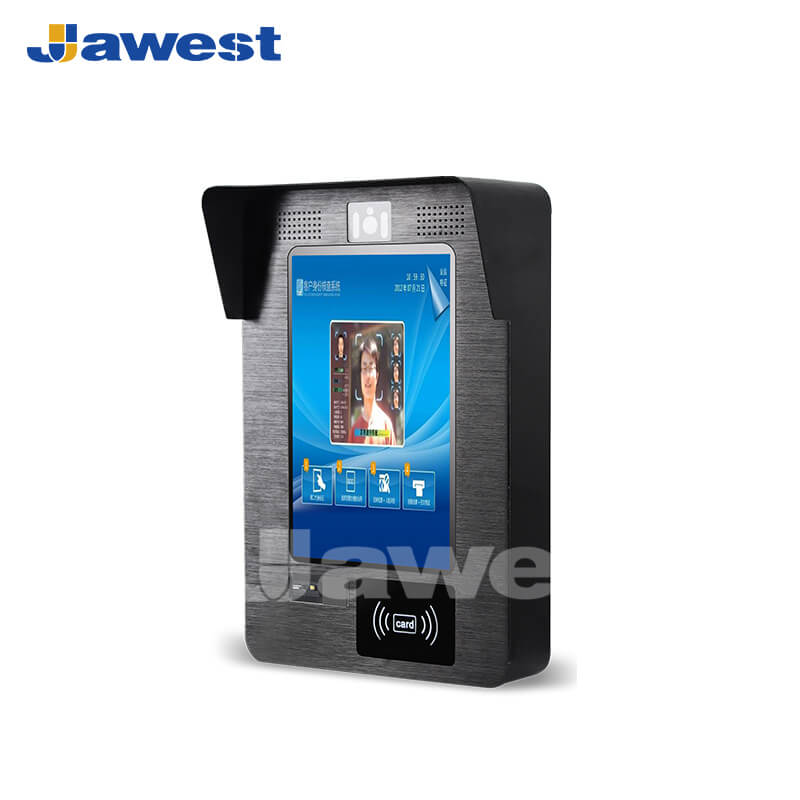

Biometric Hardware Face Recognition Machine Access Control Attendance System

Biometric Hardware Face Recognition Machine Access Control Attendance System


[Customized Product]

● 200W pixel HD camera, wide dynamic liveness detection.

● Hybrid spectrum technology, industrial grade camera, real-time capture without delay.

● Binocular high-definition infrared camera, support accurate identification at night.

● Unique ergonomic design, industrial LED intelligent fill light, controllable switch.


Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case

Customized Industrial Terminals For Facial Recognition Access Control and

Time Attendance Solutions


As one of Jawest's popular customized industrial products, this face recognition access control machine is built for an attendance system, its display size is 7" ~ 23.8" for optional, and also supports other sizes for massive quantity orders. They are widely used in intelligent communities, commercial offices, hospitality and retail chains, crowded public areas, and more.



Product Features


Intelligent Face Recognition for Access Control

It adopts the self-developed core industrial-grade Android RK3288 motherboard, integrating face recognition, card scanning, intelligent photosensitivity, and other technologies. It integrates many advantages such as stable performance, high security, and simple operation, providing residents and visitors with a more comfortable, convenient, and quick operation experience than the traditional access-control systems. And it also promotes the construction of an intelligent community through this face recognition access control system.



Industrial-grade IP65 Dustproof and Waterproof Protection

Independent research and development, unique rain cover design, effective protection of rainwater intrusion into the machine's inner body, suitably used in outdoor and direct sunlight environments.

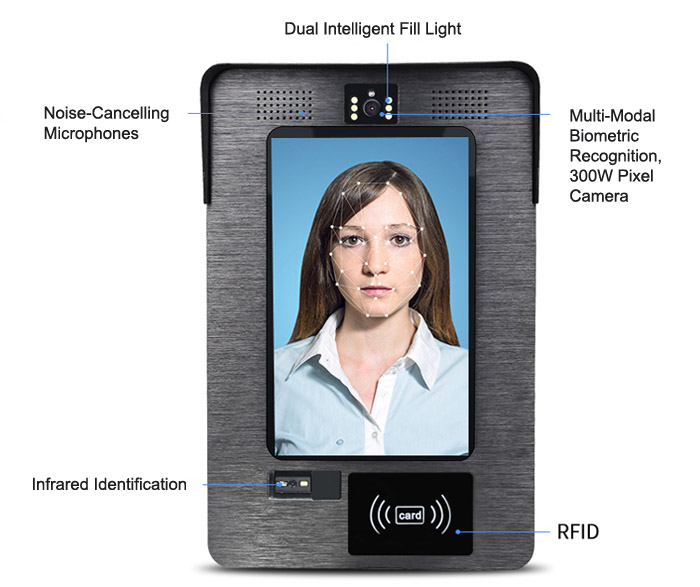

High Definition Camera Accurately Identification

It adopts the binocular 200W wide dynamic camera and supports liveness detection, which can recognize the face of many targets at the same time quickly and accurately. At the same time, it has a built-in automatic photosensitive function, supports automatic brightness adjustment, and can work normally in any light environment.



Industrial-grade Motherboard

Industrial grade motherboard, self-developed RK3288 chipset on-board, stable performance, low power consumption, long-term uninterrupted work, fast face recognition, and detection.



Provide SDK Development Kit and Support Function Expansion

Support open software interface for secondary development of software, and expand functional modules such as face recognition, ID card, IC card, NFC, etc.

Biometric Hardware Face Recognition Machine Access Control Attendance System



Hardware ConfigurationCPUAllwinner A64 cortex-A53 quad-core 64 bit main frequency up to 1.5GHz
Hard diskEMMC 5.0 default 8G (4 / 16 / 32 / 64G optional)
MemoryLPDDR3 default 2G (4G DDR3 optional)
ChipsetIntel Bay trail SOC
OSAndroid 6.0
Graphics cardMali400MP2 dual core ultra-high performance GPU, supporting HDMI 4K output
3G moduleSupport for Mobile, Unicom and Telecom (Options)
4G moduleSupport for Mobile, Unicom and Telecom (Options)
wifi2.4G (dual frequency 2.4/5G optional)
BluetoothBT4.0
GPSOptional
MICOptional
RTC Real-time ClockSupport
Wake-on-LANSupport
Timing SwitchSupport
System UpgradeSupport local SD and USB upgrade
Interface ParametersUSB-OTGOptional
USB-HOST1*USB2.0
DC Port 1*DC 2.0
HDMISupport HDMI data output, maximum support 1080P
SD/TFTF data storage, up to 32G
RJ45 Ethernet10M/100M adaptive Ethernet
Headset3.5mm standard Interface
SIM Card InterfaceStandard interface supports various forms
Serial Interface8"~10.4": COM*1; other sizes: COM*2, default RS232 protocol, 422/485 protocol optional
SIM SIM card interface, standard interface, supporting various customization
Display ParametersColor16.7M
Point Spacing0.264 mm
Screen PanelTFT Panel, industrial control A level screen
Contrast1000:1
Display Brightness400 cd/m2 (high brightness over 400 cd/m2 can be customized)
Visual Angle160° /160°, 178° full view can be customized
Backlight Model LED Backlight Screen Life (>50000h)
Grey Scale Response Time5ms
Touch OptionalResistive/Capacitive/Infrared touch screen
InstallationEmbedded, Desktop, Wall-mounted, Cantilever
Product PerformanceWorking Temperature-10℃~50℃
Storage Temperature-20℃~60℃
Relative Humidity0~65% non-condensable
MTBF7*24H
Power AdapterPower Consumption≤12W
Power InputAC 100-240V 50/60HZ; CCC and CE approved
Power OutputDC12V/5A
Packaging SpecificationWarranty PolicyOne-year warranty of the whole machine
Fuselage ColorBlack/Silver
Packaging ListIndustrial Android all in one PC, power wire, adapter, installation accessories, drive CD, operation manual, warranty card.
