Model: JWS120-M Series
● Panel mount 12″ widescreen LCD monitor
● 4:3 Aspect Ratio; 1024 x 768 resolution
● Resistive, capacitive, Non-touch optional
● Industrial-grade motherboard
● IP65 rated dustproof & waterproof for the front panel
● 300 nits of brightness, supports adjustable controls
● 3 Year Warranty

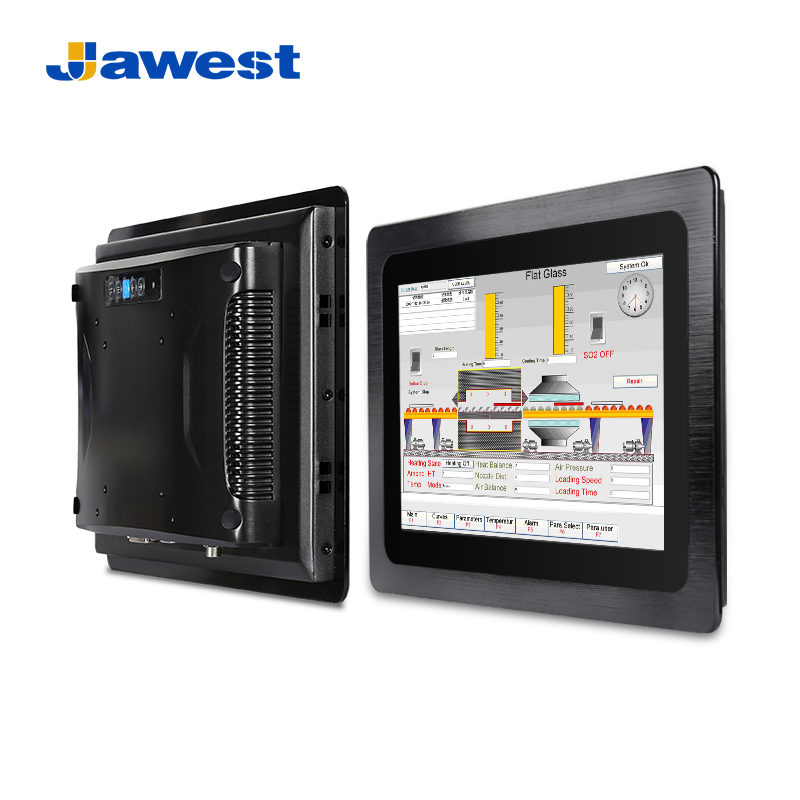

Jawest 12" Industrial Panel Mount Monitor
● JWS120-M Series
● JWS121-M Series
This Jawest 12" display size industrial panel mount monitor with multi options in terms of touch screen technologies, including PCAP touch, resistive touch, or protection glass.
It is built from industrial-grade, robust, reliable, versatile, and maintenance-free components for long-span life running.
Supports anti-glare and scratch-proof screens, IP65-rated dustproof, and waterproof protection in multi-harsh environments. Besides this panel-mount installation, it also supports VESA mount, open frame, desktop, and wall-mounted according to different demands.
Products Models Fast Guide
Model Name | Screen Size | Resolution | Aspect Ratio | Touch Technology | Get A Quote Now |
JWS070-M-QD | 7" | 1024*600 | 16:9 | Capacitive / Resistive / Non-Touchscreen | Inquiry |
JWS080-M-QD | 8" | 1024*768 | 4:3 | Capacitive / Resistive / Non-Touchscreen | Inquiry |
JWS101-M2 | 10.1" | 1280*800 | 16:10 | Capacitive / Resistive / Non-Touchscreen | Inquiry |
JWS104-M2 | 10.4" | 1024*768 | 4:3 | Capacitive / Resistive / Non-Touchscreen | Inquiry |
JWS116-M2 | 11.6" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-Touchscreen | Inquiry |
JWS120-M2 | 12" | 1024*768 | 4:3 | Capacitive / Resistive / Non-Touchscreen | Inquiry |
JWS121-M2 | 12.1" | 1280*800 | 16:10 | Capacitive / Resistive / Non-Touchscreen | Inquiry |
JWS133-M2 | 13.3" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-Touchscreen | Inquiry |
JWS150-M2 | 15" | 1024*768 | 4:3 | Capacitive / Resistive / Non-Touchscreen | Inquiry |
JWS156-M2 | 15.6" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-Touchscreen | Inquiry |
JWS170-M2 | 17" | 1280*1024 | 5:4 | Capacitive / Resistive / Non-Touchscreen | Inquiry |
JWS173-M2 | 17.3" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-Touchscreen | Inquiry |
JWS185-M2 | 18.5" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-Touchscreen | Inquiry |
JWS190-M2 | 19" | 1280*1024 | 5:4 | Capacitive / Resistive / Non-Touchscreen | Inquiry |
JWS191-M2 | 19.1" | 1440*900 | 16:10 | Capacitive / Resistive / Non-Touchscreen | Inquiry |
JWS215-M2 | 21.5" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-Touchscreen | Inquiry |
JWS238-M2 | 23.8" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-Touchscreen | Inquiry |
Jawest 12 inch Industrial Monitor Datasheet | |||||||
Size | 12 inch | ||||||
Display | |||||||
Panel Type | Industrial LCD panel A+ grade | ||||||
Aspect Ratio | 4:3 | ||||||
Resolution | 1024*768 | ||||||
Contrast | 1000:1 | ||||||
Luminance | 350nit-1500nit | ||||||
Response time | 5ms | ||||||
Active Area (mm) | 478*269.24 | ||||||
Display colors | 16.7M(8-bit) | ||||||
View angle | 89/89/89/89 | ||||||
Touch Screen | 5-wire resistive touch screen/10-point capacitive touch screen/ Non-touch | ||||||

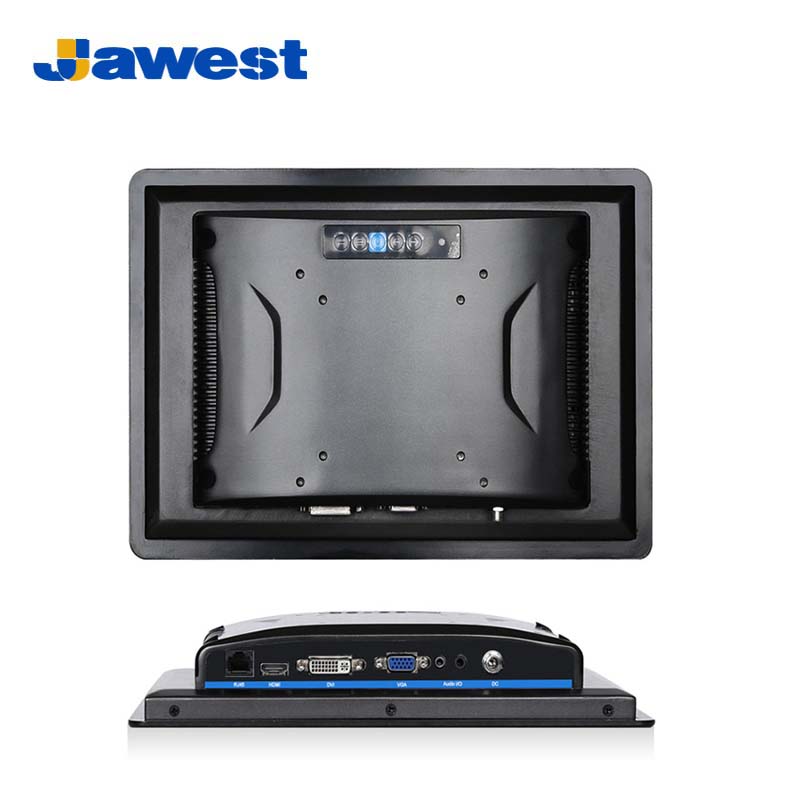

Interface | HDMI+DVI+VGA+USB/DVI+VGA+USB optional | ||||||
Power Input | AC 110-240V, 50/60Hz | ||||||
Power Consumption | ≤30W | ||||||
Power Standby | ≤1.5W | ||||||
Plug&Play | DDC1/2B | ||||||
Working Life | More than 50,000 hours | ||||||
Operation Temperature | -10°C-60°C (Support wide temperature customization) | ||||||
Storage Temperature | -10°C-60°C | ||||||
Operation Humidity | 10%--80% | ||||||
Storage Humidity | 10%-90% | ||||||
Metal Shell | Aluminum alloy enclosure | ||||||
Color | Silver, black color optional | ||||||
Bezel thickness | 10mm bezel | ||||||
IP rating | IP65 dust-proof and water-proof for front Panel | ||||||
Installation | VESA, Embedded, Wall Mount, Desktop, open frame optional | ||||||
Certificates | CE, CCC, ISO, FCC, ROHS | ||||||
Package | EPE+Carton (wooden crate for mass order) |
