● Display size: 19 inch

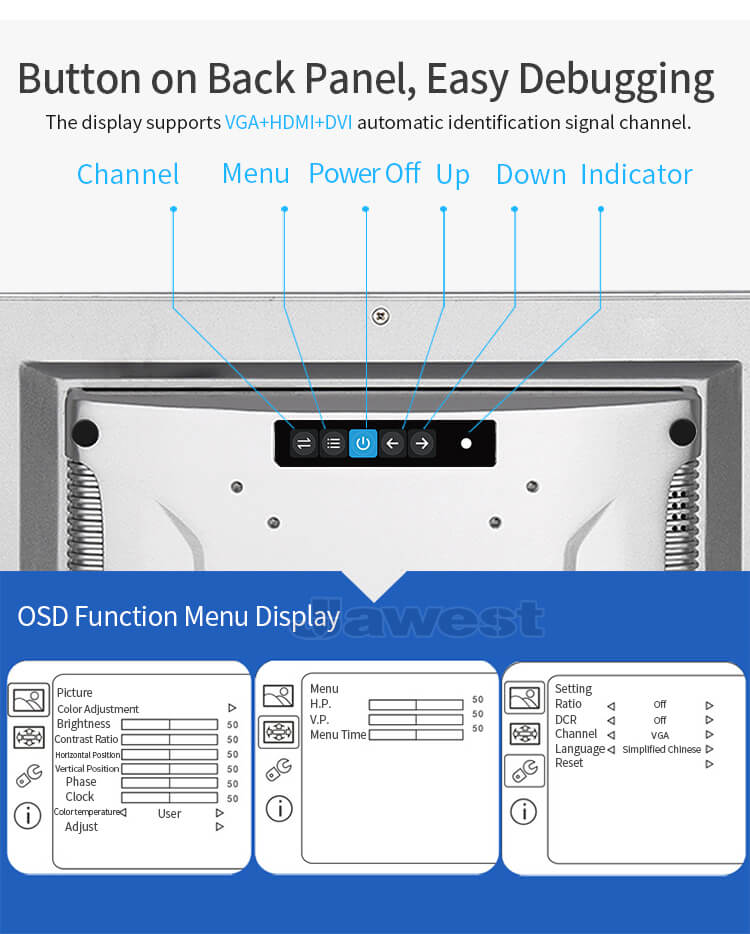

● Rear OSD control
● Resistive or capacitive touch screen, IR for option
● Working temperature:-10-60°C
● Industrial-grade motherbaord
● Aluminum alloy enclosure, IP65 rating for front panel
● IP65 rated dust-proof and water-proof for front panel
● Wall-hanging, embedded, and VESA arm mounting for option
● Fanless heat-dissipation, energy efficient, low power consumption
● 7/24 long-time operation in harsh factory and industrial environment
● Three (3) years warranty
● CE, RoHs approved

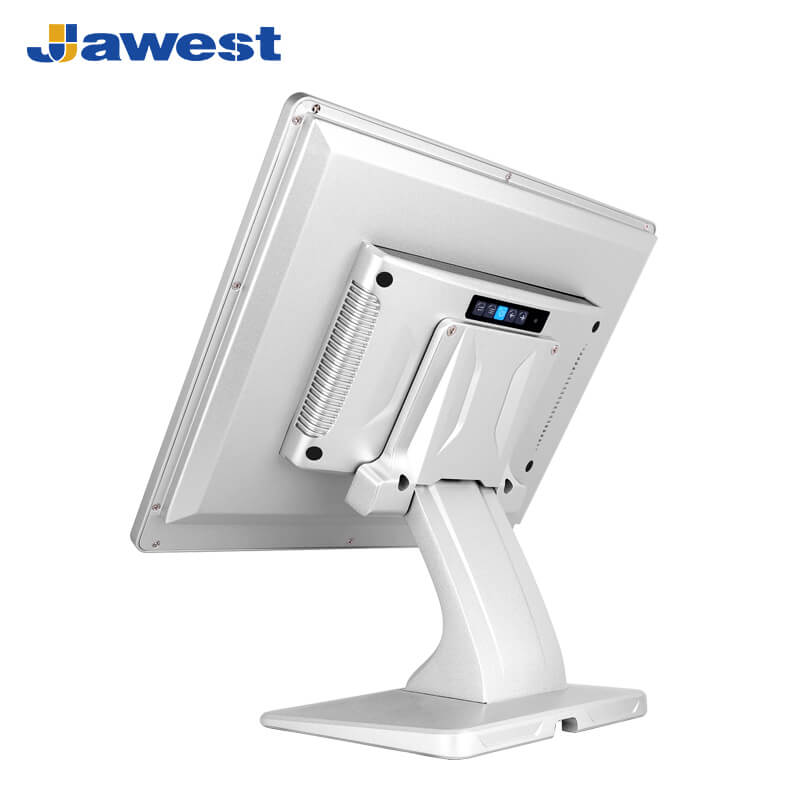

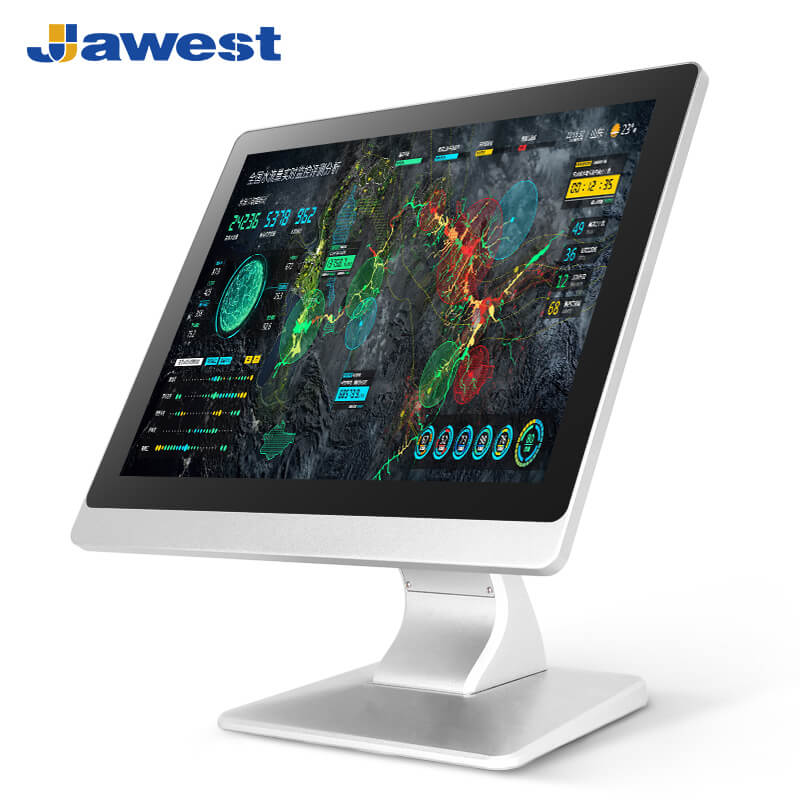

19 Inch Rugged Desktop Industrial LCD Monitor
Jawest’s rugged industrial LCD IP65 display with desktop are designed for a wide range of applications where
it will be exposed to harsh conditions which are common in outdoor & indoor devices and industrial automation
settings. These industrial displays are engineered to withstand the effects of splashes of water, dust and other
elements that might damage the screen. There are various sizes available, from 7” to 21.5” and support wide
voltage and wide temperature operation.
10mm bezel aluminum touch monitor datasheet | |||||||
Size | 19-inch | ||||||
Display | |||||||
Panel Type | Industrial LCD panel A+ grade | ||||||
Aspect Ratio | 4:3 / 5:4 | ||||||
Resolution | 1280*1024 | ||||||
Contrast | 1000:1 | ||||||
Luminance | 250nit-1500nit | ||||||
Response time | 5ms | ||||||
Active Area (mm) | 478*269.24 | ||||||
Display colors | 16.7M(8-bit) | ||||||
View angle | 89/89/89/89 | ||||||

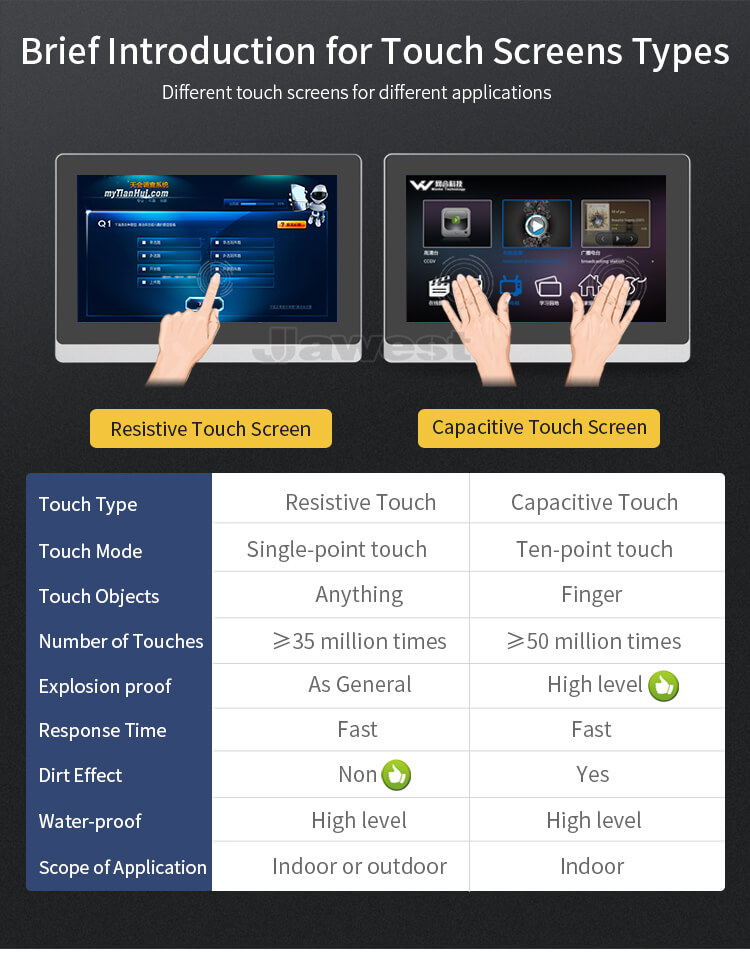

Touch Screen | Capacitive touch screen (5 wire resistive touch screen/dual Infrared touch optional) | ||||||

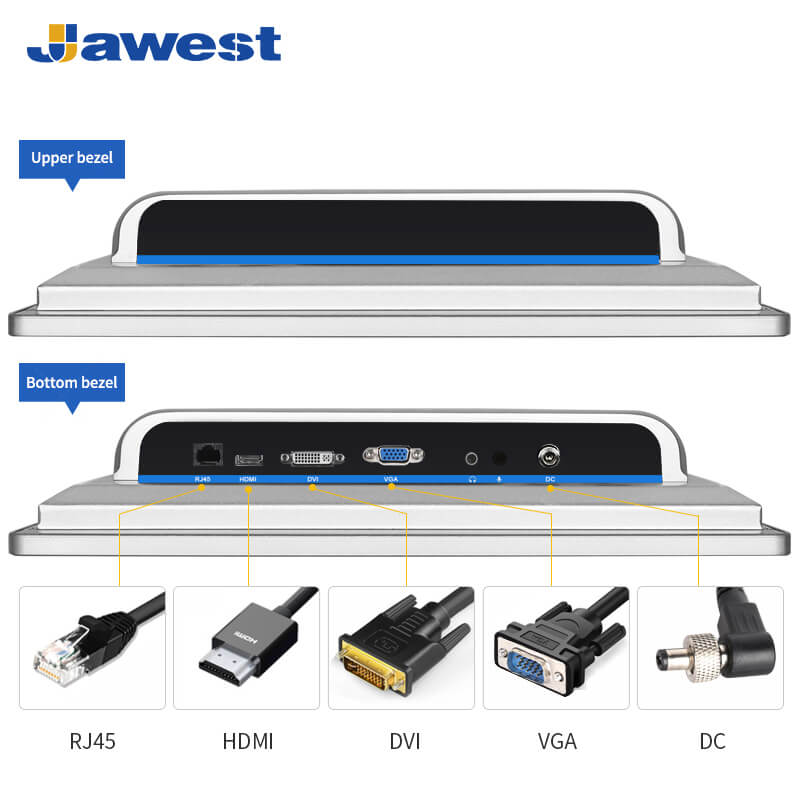

Interface | HDMI+DVI+VGA+USB/DVI+VGA+USB optional | ||||||
Power Input | AC 110-240V, 50/60Hz | ||||||
Power Consumption | ≤30W | ||||||
Power Standby | ≤1.5W | ||||||
Plug&Play | DDC1/2B | ||||||
Working Life | More than 50,000 hours | ||||||
Operation Temperature | -10°C-60°C (Support wide temperature customization) | ||||||
Storage Temperature | -10°C-60°C | ||||||
Operation Humidity | 10%--80% | ||||||
Storage Humidity | 10%-90% | ||||||
Metal Shell | Aluminum alloy enclosure | ||||||
Color | Silver, black color optional | ||||||
Bezel thickness | 10mm bezel | ||||||
IP rating | IP65 dust-proof and water-proof for front Panel | ||||||
Installation | VESA, Embedded, Wall Mount, Desktop, open frame optional | ||||||
Certificates | CE,CCC,ISO,FCC,ROHS | ||||||
Package | EPE+Carton (wooden crate for mass order) |
