Application:
10.1 inch POE Touch Screen Panel PC for Open Platform HMI/SCADA10.1 inch POE Touch Screen Panel PC for Open Platform HMI/SCADA10.1 inch POE Touch Screen Panel PC for Open Platform HMI/SCADA10.1 inch POE Touch Screen Panel PC for Open Platform HMI/SCADA

10.1 inch POE Touch Screen Panel PC for Open Platform HMI/SCADA


● Model: JWS101-W19

● Display size: 10.1 inch

● Configuration Options: 4/8/16/32GB for RAM, 64/128/256/512GB SSD, 1T/2T HDD options.

● Multiple Processors Options: Intel Celeron J1900/J4125/J6412, Intel® Core™ i3-1215U/i5-1235U/i7-1255U options.

● The PoE capability ensures both data and power are delivered over a single Ethernet cable, contributing to a cleaner and more organized workspace.

● Designed for HMI/SCADA applications, supports a variety of industrial protocols.

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 10.1 inch POE Touch Screen Panel PC for Open Platform HMI/SCADA


    Model: JWS101-W19



    Overview


    This 10.1-inch Power over Ethernet (PoE) Touch Screen Panel PC is designed for Open Platform HMI/SCADA applications, a versatile and efficient solution for industrial control and monitoring systems. This compact panel PC seamlessly integrates a responsive touchscreen with Power over Ethernet capabilities, offering a reliable and streamlined platform for Human-Machine Interface (HMI) and Supervisory Control and Data Acquisition (SCADA) applications.



    The 10.1-inch touchscreen display provides a clear and intuitive interface, allowing users to interact seamlessly with the system. The responsive touch capability enhances the user experience, facilitating efficient navigation through HMI/SCADA applications. The compact size of the panel PC is ideal for installations where space optimization is crucial.



    Built for durability, the 10.1-inch PoE Touch Screen Panel PC for Open Platform HMI/SCADA is engineered to withstand the rigors of industrial environments. Its rugged construction ensures resistance to environmental factors such as dust, moisture, and vibrations, ensuring reliable performance in manufacturing floors, control rooms, and other demanding settings.






  • Motherboard Model SelectionCL-J1900BCX-J4125-ACX-J6412CX-12U01
    Hardware ConfigurationCPUIntel Celeron J1900 Quad-Core 2.0GHzIntel Celeron J4125 Quad-Core 2.0GHzIntel Celeron J6412 Quad-Core 2.0GHzi3-1215Ui5-1235Ui7-1255U
    Inner Memory4/8GB options4/8GB options8/16GB optionsDDR4 32GB
    Storage16/32/64/128/256/512GB SSD options32/64/128/256/512GB SSD, 1T/2T HDD options32/64/128/256/512GB SSD, 1T/2T HDD options64/128GB (256GB/512GB SSD, 1T/2T HDD options)
    GPUIntel HD GraphicsIntel UHD Graphics 600Intel UHD Graphics 16 EUsIntel Iris Xe Graphics 64Intel Iris Xe Graphics 80Intel Iris Xe Graphics 96
    Operating SystemWin 7 / Win 10

    Win 10  / Win 11

    Win 10 / Win 11

    Win 10 / Win 11
    Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04/
    Centos7.4/7.8/7.9; Redhat7.4; Debian11.6Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6/
    3G/4G/5G Module

    Support (Optional)

    WIFIDual-band 2.4/5GHzDual-band 2.4/5GHzDual-band 2.4/5GHzDual-band 2.4/5GHz
    BluetoothBT4.0BT4.0BT5.2BT4.0
    GPSOptionalOptionalOptionalOptional
    MIC

    Optional

    OptionalOptionalOptional
    RTC, real-time clockSupportSupportSupportSupport
    Timing Turn On/OffSupportSupportSupportSupport
    Wake On LANSupportSupportSupportSupport
    Plug-n-PlaySupportSupportSupportSupport

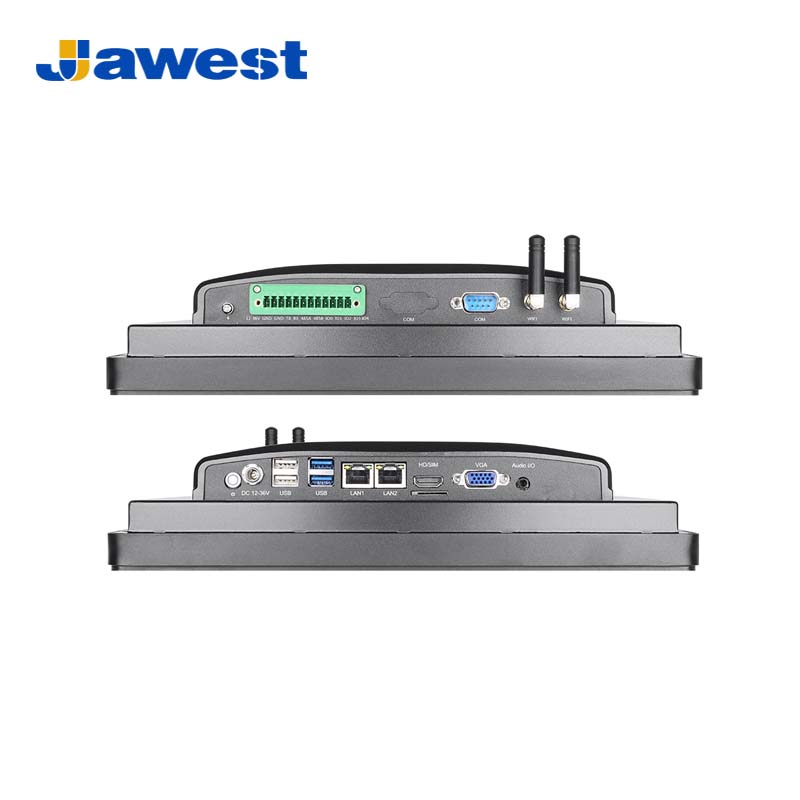

    I/O PortsUSB USB2.0*2, USB3.0*1
    COM Serial Ports RS232(DB9)*1, COM Reserved*1(Optional RS232/422/485), 12P Phoenix Terminal (DC*1+RS232*1+RS485*1+GPIO*5)
    WIFI connector WIFI antenna *2
    Power 1*DC, support 12V ~36V wide voltage power input
    HDMI 1*HDMI, supports HDMI data output, 1080P
    VGA Standard DB15 interface
    RJ45 Ethernet 1*Realtek 8111F Gigabit interface, support wake-on-LAN
    Speaker Jack Standard 3.5mm
    SIM Slot Standard SIM slot supports various customization
    Audio Audio I/O
    I/O expansion Available

    Screen ParametersColor16.7M
    Pixel Pitch0.264mm
    Screen PanelIndustrial control screen
    Contrast1000:1
    Brightness300cd/m2 (support high brightness)
    Viewing angle85°/85°/85°/85° (L/R/U/D)
    Backlight typeLED backlight screen, service life ≥ 50000H
    Gray-scale response time5ms
    Touch ScreenCapacitive touchscreen, resistive touchscreen, and Non-touch options
    Installation typesPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

    Power AdapterPower Input DC in 12V ~ 36V
    Adapter24V / 2.5A; (24V / 4A for i3/i5/i7 CPUs)

    Product

    Reliability

    Working Temp -10°C ~ 60°C
    Storage Temp -20°C ~ 70°C
    Ambient humidity 20% - 95% (relative humidity non-condensing)
