Application:
10.4 inch Industrial Panel Computer Intel Bay Trail Processor Mini- PCIe Expansion10.4 inch Industrial Panel Computer Intel Bay Trail Processor Mini- PCIe Expansion10.4 inch Industrial Panel Computer Intel Bay Trail Processor Mini- PCIe Expansion10.4 inch Industrial Panel Computer Intel Bay Trail Processor Mini- PCIe Expansion

10.4 inch Industrial Panel Computer Intel Bay Trail Processor Mini- PCIe Expansion


● Model: JWS104-W19

● Display size: 10.4 inch

● Configuration Options: 4/8/16/32GB for RAM, 64/128/256/512GB SSD, 1T/2T HDD options.

● Multiple Processors Options: Intel Celeron J1900/J4125/J6412, Intel® Core™ i3-1215U/i5-1235U/i7-1255U options.

● Powered by an Intel Bay Trail Processor, this industrial panel computer delivers efficient and reliable performance for a range of industrial applications. The architecture's balance between power efficiency and processing capability makes it suitable for tasks such as real-time monitoring and control in industrial automation.

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 10.4-inch Industrial Panel Computer Intel Bay Trail Processor Mini- PCIe Expansion


    Model: JWS104-W19



    Overview



    This 10.4-inch Industrial Panel Computer from Jawest features an Intel Bay Trail Processor and Mini-PCIe Expansion, a compact and robust computing solution designed for industrial applications that demand efficiency and versatility. This industrial panel computer seamlessly integrates a responsive touchscreen with the processing power of the Intel Bay Trail architecture, providing a reliable platform for control systems, automation, and monitoring in diverse industrial settings.



    The 10.4-inch display offers a clear and interactive visual interface, making it ideal for applications where space efficiency is critical. The responsive touchscreen enhances user interaction, enabling intuitive control and efficient navigation through applications. The compact size of the panel computer is well-suited for installations where space optimization is essential.



    Equipped with Mini-PCIe Expansion, this industrial panel computer provides versatility in connectivity options. Users can easily integrate additional peripherals or expansion cards, adapting the system to specific industrial requirements. This feature enhances the overall functionality and customization potential of the panel computer.










  • Motherboard Model SelectionCL-J1900BCX-J4125-ACX-J6412CX-12U01
    Hardware ConfigurationCPUIntel Celeron J1900 Quad-Core 2.0GHzIntel Celeron J4125 Quad-Core 2.0GHzIntel Celeron J6412 Quad-Core 2.0GHzi3-1215Ui5-1235Ui7-1255U
    Inner Memory4/8GB options4/8GB options8/16GB optionsDDR4 32GB
    Storage16/32/64/128/256/512GB SSD options32/64/128/256/512GB SSD, 1T/2T HDD options32/64/128/256/512GB SSD, 1T/2T HDD options64/128GB (256GB/512GB SSD, 1T/2T HDD options)
    GPUIntel HD GraphicsIntel UHD Graphics 600Intel UHD Graphics 16 EUsIntel Iris Xe Graphics 64Intel Iris Xe Graphics 80Intel Iris Xe Graphics 96
    Operating SystemWin 7 / Win 10Win 10  / Win 11Win 10 / Win 11Win 10 / Win 11
    Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04/
    Centos7.4/7.8/7.9; Redhat7.4; Debian11.6Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6/
    3G/4G/5G ModuleSupport (Optional)
    WIFIDual-band 2.4/5GHzDual-band 2.4/5GHzDual-band 2.4/5GHzDual-band 2.4/5GHz
    BluetoothBT4.0BT4.0BT5.2BT4.0
    GPSOptionalOptionalOptionalOptional
    MICOptionalOptionalOptionalOptional
    RTCSupportSupportSupportSupport
    Timing Turn On/OffSupportSupportSupportSupport
    Wake On LANSupportSupportSupportSupport
    Plug-n-PlaySupportSupportSupportSupport

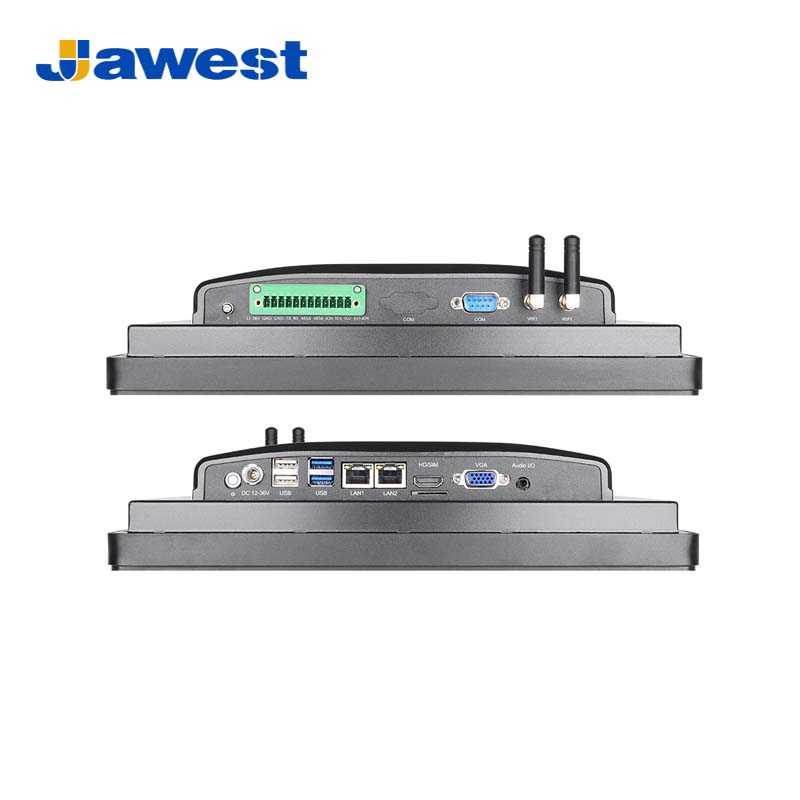

    I/O PortsUSB USB2.0*2, USB3.0*1
    COM Serial Ports RS232(DB9)*1, COM Reserved*1(Optional RS232/422/485), 12P Phoenix Terminal (DC*1+RS232*1+RS485*1+GPIO*5)
    WIFI connector WIFI antenna *2
    Power 1*DC, support 12V ~36V wide voltage power input
    HDMI 1*HDMI, supports HDMI data output, 1080P
    VGA Standard DB15 interface
    RJ45 Ethernet 1*Realtek 8111F Gigabit interface, support wake-on-LAN
    Speaker Jack Standard 3.5mm
    SIM Slot Standard SIM slot supports various customization
    Audio Audio I/O
    I/O expansion Available

    Screen ParametersColor16.7M
    Pixel Pitch0.264mm
    Screen PanelIndustrial control screen
    Contrast1000:1
    Brightness400cd/m2 (support high brightness)
    Viewing angle80°/80°/80°/80° (L/R/U/D)
    Backlight typeLED backlight screen, service life ≥ 50000H
    Gray-scale response time5ms
    Touch ScreenCapacitive touchscreen, resistive touchscreen, and Non-touch options
    Installation typesPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

    Power AdapterPower Input DC in 12V ~ 36V
    Adapter24V / 2.5A; (24V / 4A for i3/i5/i7 CPUs)

    Product ReliabilityWorking Temp -10°C ~ 60°C
    Storage Temp -20°C ~ 70°C
    Ambient humidity 20% - 95% (relative humidity non-condensing)
