12 inch TFT Touch Screen Industrial Panel PC With Dual Gigabit Ethernet

12 inch TFT Touch Screen Industrial Panel PC With Dual Gigabit Ethernet

● Model: JWS120-W19

● Display size: 12 inch

● Configuration Options: 4/8/16/32GB for RAM, 64/128/256/512GB SSD, 1T/2T HDD options.

● Multiple Processors Options: Intel Celeron J1900/J4125/J6412, Intel® Core™ i3-1215U/i5-1235U/i7-1255U options.

● Support dual Gigabit Ethernet ports, this industrial panel PC ensures robust and high-speed connectivity. The dual Ethernet capability supports efficient communication and data transfer, making it suitable for applications that demand reliable and responsive networking, such as industrial automation and control systems.

Appearance of the color

Black

Silver

Description
Parameter
Case

12-inch TFT Touch Screen Industrial Panel PC With Dual Gigabit Ethernet

Model: JWS120-W19

Overview

Jawest panel-mount 12-inch TFT Touch Screen Industrial Panel PC with Dual Gigabit Ethernet, a compact and powerful solution designed to meet the demands of industrial applications. This industrial panel PC seamlessly combines a responsive TFT touchscreen with the efficiency of dual Gigabit Ethernet connectivity, offering a reliable platform for control systems, automation, and monitoring in diverse industrial settings.

The 12-inch TFT touchscreen provides a clear and interactive visual interface, making it ideal for applications that require precision and ease of use. The touchscreen functionality enhances user interaction, allowing for intuitive control and efficient navigation through applications. The compact size of the panel PC makes it versatile for installations where space is at a premium.

Equipped with dual Gigabit Ethernet ports, this industrial panel PC ensures robust and high-speed connectivity. The dual Ethernet capability supports efficient communication and data transfer, making it suitable for applications that demand reliable and responsive networking, such as industrial automation and control systems.


Motherboard Model Selection		CL-J1900B	CX-J4125-A	CX-J6412	CX-12U01
Hardware Configuration	CPU	Intel Celeron J1900 Quad-Core 2.0GHz	Intel Celeron J4125 Quad-Core 2.0GHz	Intel Celeron J6412 Quad-Core 2.0GHz	i3-1215U	i5-1235U	i7-1255U
	Inner Memory	4/8GB options	4/8GB options	8/16GB options	DDR4 32GB
	Storage	16/32/64/128/256/512GB SSD options	32/64/128/256/512GB SSD, 1T/2T HDD options	32/64/128/256/512GB SSD, 1T/2T HDD options	64/128GB (256GB/512GB SSD, 1T/2T HDD options)
	GPU	Intel HD Graphics	Intel UHD Graphics 600	Intel UHD Graphics 16 EUs	Intel Iris Xe Graphics 64	Intel Iris Xe Graphics 80	Intel Iris Xe Graphics 96
	Operating System	Win 7 / Win 10	Win 10 / Win 11	Win 10 / Win 11	Win 10 / Win 11
		Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04			/
		Centos7.4/7.8/7.9; Redhat7.4; Debian11.6	Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6		/
	3G/4G/5G Module	Support (Optional)
	WIFI	Dual-band 2.4/5GHz	Dual-band 2.4/5GHz	Dual-band 2.4/5GHz	Dual-band 2.4/5GHz
	Bluetooth	BT4.0	BT4.0	BT5.2	BT4.0
	GPS	Optional	Optional	Optional	Optional
	MIC	Optional	Optional	Optional	Optional
	RTC	Support	Support	Support	Support
	Timing Turn On/Off	Support	Support	Support	Support
	Wake On LAN	Support	Support	Support	Support
	Plug-n-Play	Support	Support	Support	Support

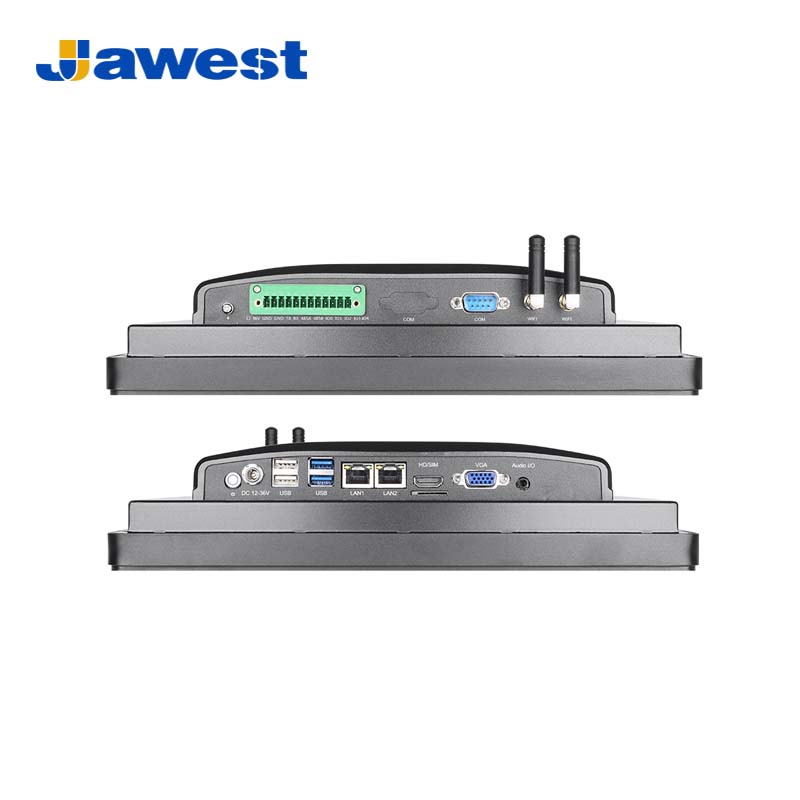

I/O Ports	USB Ports	USB2.02, USB3.01
	COM Serial Ports	RS232(DB9)1, COM Reserved1(Optional RS232/422/485), 12P Phoenix Terminal (DC1+RS2321+RS4851+GPIO5)
	WIFI connector	WIFI antenna *2
	Power interface	1*DC, support 12V ~36V wide voltage power input
	HDMI Interface	1*HDMI, supports HDMI data output, 1080P
	VGA	Standard DB15 interface
	RJ45 Ethernet	1*Realtek 8111F Gigabit interface, support wake-on-LAN
	Speaker Jack	Standard 3.5mm
	SIM Slot	Standard SIM slot supports various customization
	Audio interface	Audio I/O
	I/O expansion	Available

Screen Parameters	Color	16.7M
	Pixel Pitch	0.264mm
	Screen Panel	Industrial control screen
	Contrast	1000:1
	Brightness	500cd/m2 (support high brightness)
	Viewing angle	85°/85°/85°/85° (L/R/U/D)
	Backlight type	LED backlight screen, service life ≥ 50000H
	Gray-scale response time	5ms
	Touch Screen	Capacitive touchscreen, resistive touchscreen, and Non-touch options
	Installation types	Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

Power Adapter	Power Input	DC in 12V ~ 36V
	Adapter	24V / 2.5A; (24V / 4A for i3/i5/i7 CPUs)

Product Reliability	Working Temp	-10°C ~ 60°C
	Storage Temp	-20°C ~ 70°C
	Ambient humidity	20% - 95% (relative humidity non-condensing)
