Application:
15 inch Industrial All-in-One Computer Support 9 to 36V Wide Voltage Operation15 inch Industrial All-in-One Computer Support 9 to 36V Wide Voltage Operation15 inch Industrial All-in-One Computer Support 9 to 36V Wide Voltage Operation15 inch Industrial All-in-One Computer Support 9 to 36V Wide Voltage Operation

15 inch Industrial All-in-One Computer Support 9 to 36V Wide Voltage Operation


● Model: JWS150-W19

● Display size: 15 inch

● Configuration Options: 4/8/16/32GB for RAM, 64/128/256/512GB SSD, 1T/2T HDD options.

● Multiple Processors Options: Intel Celeron J1900/J4125/J6412, Intel® Core™ i3-1215U/i5-1235U/i7-1255U options.

● Support upgrade 9 to 36V wide voltage operation, offers flexibility and reliability for diverse applications, ensuring optimal performance in challenging conditions.

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case

15 inch Industrial All-in-One Computer Support 9 to 36V Wide Voltage Operation


Model: JWS150-W19



Overview



Introducing the 15-inch Industrial All-in-One Computer with panel-mount, a powerful and versatile computing solution designed to excel in industrial environments. With support for wide voltage operation ranging from 9 to 36V, this all-in-one computer offers flexibility and reliability for diverse applications, ensuring optimal performance in challenging conditions.



The 15-inch display provides a compact yet spacious visual interface, making it suitable for industrial control systems, automation, and monitoring applications. The all-in-one design minimizes clutter, making it an efficient and space-saving solution for industrial setups where streamlined configurations are crucial.



One standout feature of this industrial all-in-one computer is its support for wide voltage operation (9 to 36V). This capability ensures adaptability to varying power inputs, making it suitable for applications in environments where voltage fluctuations are common. This feature enhances the computer's reliability and stability, contributing to uninterrupted operation in industrial settings.










Motherboard Model SelectionCL-J1900BCX-J4125-ACX-J6412CX-12U01
Hardware ConfigurationCPUIntel Celeron J1900 Quad-Core 2.0GHzIntel Celeron J4125 Quad-Core 2.0GHzIntel Celeron J6412 Quad-Core 2.0GHzi3-1215Ui5-1235Ui7-1255U
Inner Memory4/8GB options4/8GB options8/16GB optionsDDR4 32GB
Storage16/32/64/128/256/512GB SSD options32/64/128/256/512GB SSD, 1T/2T HDD options32/64/128/256/512GB SSD, 1T/2T HDD options64/128GB (256GB/512GB SSD, 1T/2T HDD options)
GPUIntel HD GraphicsIntel UHD Graphics 600Intel UHD Graphics 16 EUsIntel Iris Xe Graphics 64Intel Iris Xe Graphics 80Intel Iris Xe Graphics 96
Operating SystemWin 7 / Win 10Win 10  / Win 11Win 10 / Win 11Win 10 / Win 11
Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04/
Centos7.4/7.8/7.9; Redhat7.4; Debian11.6Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6/
3G/4G/5G ModuleSupport (Optional)
WIFIDual-band 2.4/5GHzDual-band 2.4/5GHzDual-band 2.4/5GHzDual-band 2.4/5GHz
BluetoothBT4.0BT4.0BT5.2BT4.0
GPSOptionalOptionalOptionalOptional
MICOptionalOptionalOptionalOptional
RTCSupportSupportSupportSupport
Timing Turn On/OffSupportSupportSupportSupport
Wake On LANSupportSupportSupportSupport
Plug-n-PlaySupportSupportSupportSupport

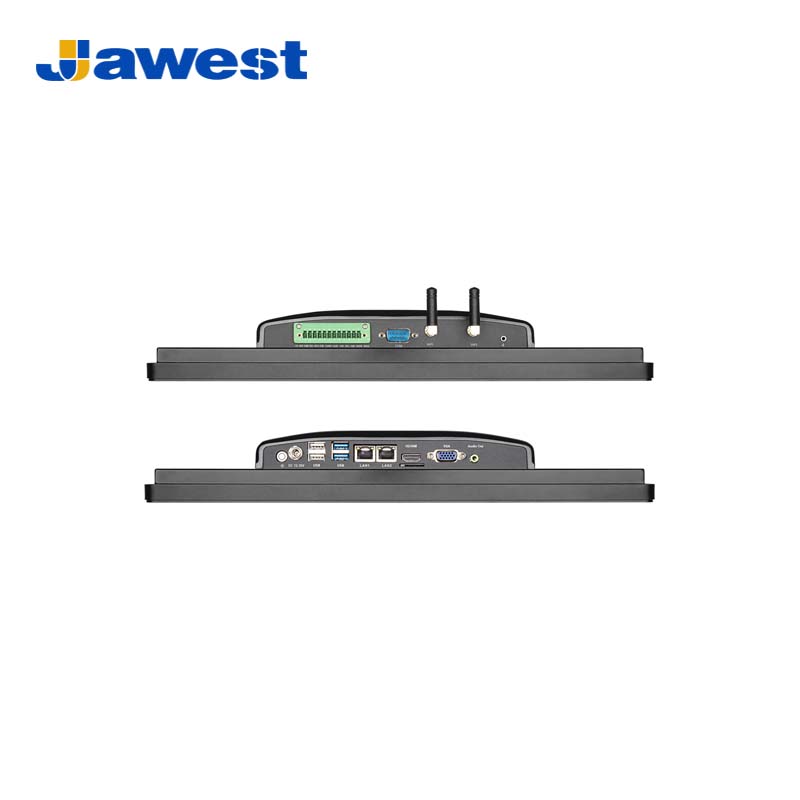

I/O PortsUSB Ports USB2.0*2, USB3.0*1
COM Serial Ports RS232(DB9)*1, COM Reserved*1(Optional RS232/422/485), 12P Phoenix Terminal (DC*1+RS232*1+RS485*1+GPIO*5)
WIFI connector WIFI antenna *2
Power interface 1*DC, support 12V ~36V wide voltage power input
HDMI Interface 1*HDMI, supports HDMI data output, 1080P
VGA Standard DB15 interface
RJ45 Ethernet 1*Realtek 8111F Gigabit interface, support wake-on-LAN
Speaker Jack Standard 3.5mm
SIM Slot Standard SIM slot supports various customization
Audio interface Audio I/O
I/O expansion Available

Screen ParametersColor16.7M
Pixel Pitch0.264mm
Screen PanelIndustrial control screen
Contrast1000:1
Brightness350cd/m2 (support high brightness)
Viewing angle89°/89°/89°/89° (L/R/U/D)
Backlight typeLED backlight screen, service life ≥ 50000H
Gray-scale response time5ms
Touch ScreenCapacitive touchscreen, resistive touchscreen, and Non-touch options
Installation typesPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

Power AdapterPower Input DC in 12V ~ 36V
Adapter24V / 2.5A; (24V / 4A for i3/i5/i7 CPUs)

Product ReliabilityWorking Temp -10°C ~ 60°C
Storage Temp -20°C ~ 70°C
Ambient humidity 20% - 95% (relative humidity non-condensing)
