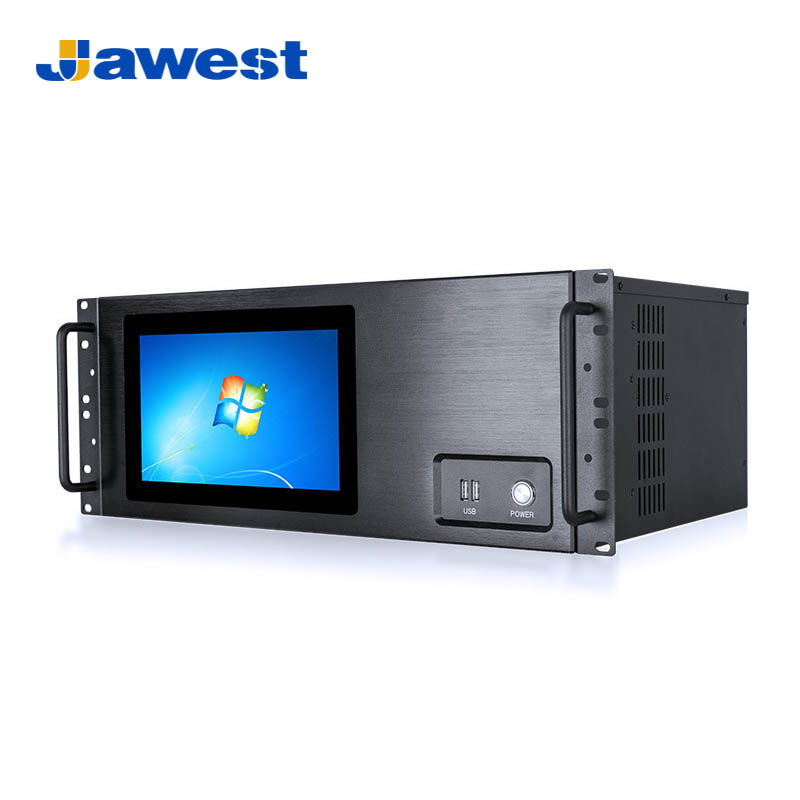

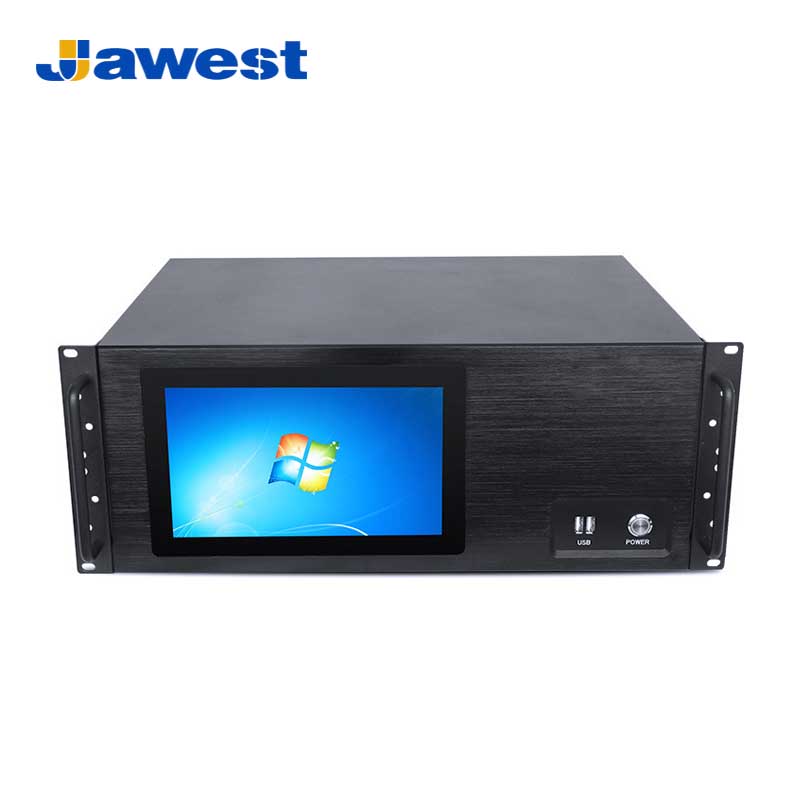

Industrial 4U Rackmount Computer with 9″ LCD Monitor

Industrial 4U Rackmount Computer with 9″ LCD Monitor

● Built-in 9″ LCD Monitor

● Powerful Intel Core i5-6500 independent CPU, quad-core, and four threads

● The main frequency is 3.2GHz. Remax is 3. 6GHz, and memory is 32G

● Video output interfaces such as HDMI/DVI/VGA

● Support dual gigabit network interface, USB3. 0 * 4, USB2. 0 * 4, 232 * 1, PCI*4, PCIE 1X*1, PCIE 4X*1, PCIE 16X*1

● External video capture cards, visual motion control cards, light source brightness control cards, etc. can be connected via the PCI/PCIe interfaces.

● Widely used for AI edge computing servers, machine vision, robots, intelligent patrol inspection, industrial control & detection, and more.

Appearance of the color

Black

Silver

Description
Parameter
Case

Industrial 4U Rack Mount Computer

Model: JWSWIPC-200

The Jawest JWSWIPC-200 series is a 4U rackmount PC designed with a simple appearance and high performance to meet various application requirements.

It has strong computing and graphics processing performance and is specially designed for the rack mounting environment of the computer rooms, which can ensure long-term stable operation in harsh environments. It has a built-in 9-inch LCD ideal for performance or application monitoring and can be applied to cloud platform computing, edge computing, big data processing, real-time control, and other application environments.

The chassis design accommodates high-performance processors from powerful Intel Core with a 3.2GHz main frequency. And features Aluminum alloy housing presenting rugged quality in harsh environments. It is highly configurable to meet any of your needs. Available with many mainboard options, slot configurations, CPU, and memory support. Widely used in industrial control, military, communication, power, network, and other high-end automation fields.

Industrial 4U Rackmount Computer Datasheet
	Default	Option 1	Option 2
CPU	Intel Core i5-6500 independent CPU, quad-core, main frequency 3.2GHz	Intel Pentium/Celeron/6-7th GEN Core i3/i5/i7 CPU	Intel Core/Pentium/Celeron/8-9th GEN CPU
Hard Disk	4SATA3.0+1mSATA [3], 1T mechanical hard disk	4SATA3.0+1mSATA [3], 1T mechanical hard disk	4SATA3.0+1mSATA [3], 1T mechanical hard disk
Memory	8G DDR4 (16G/32G optional)	8G DDR4 (16G/32G optional)	8G DDR4 (16G/32G optional)
Chipset	Intel® H110, TDP 6 W & Intel® H310, TDP 6W	Intel® H110, TDP 6 W & Intel® H310, TDP 6W	Intel® H110, TDP 6 W & Intel® H310, TDP 6W
Operating System	Win 7/8/10, Server 2008 / 2012, Linux	Win 7/8/10, Server 2008 / 2012, Linux	Win 7/8/10, Server 2008 / 2012, Linux
Display	1 * 9-inch 1024 * 600 LCD screen, 1 * VGA DB15 port, 1 * DVI port, 1 * HDMI port	1 * 9-inch 1024 * 600 LCD screen, 1 * VGA DB15 port, 1 * DVI port, 1 * HDMI port	1 * 9-inch 1024 * 600 LCD screen, 1 * VGA DB15 port, 1 * DVI port, 1 * HDMI port

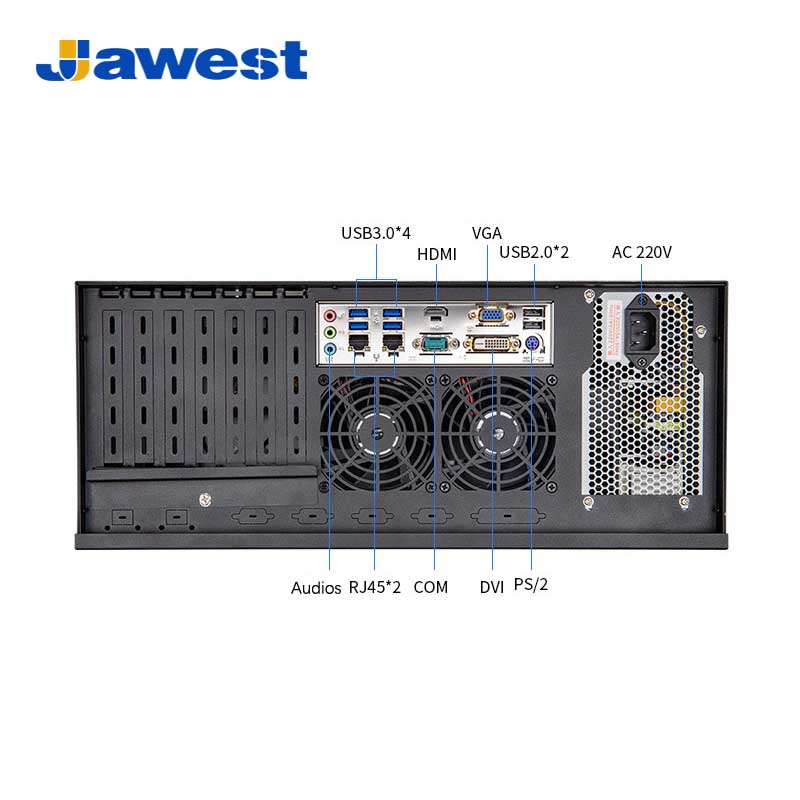

USB Interface	9 * USB: 4 * USB3.0 (Rear I/O)+2 * USB2.0 (Rear I/O)+3 * USB2.0 (Header)
Serial Interface	Support 4 * RS232 + 2 * RS232/RS485 [4]
PS/2	1 * PS/2
Ethernet	RJ45*2 1000Mbps
Audios	Realtek ALC662 5.1 Channel HD Audio Codec, Support 1* MIC + 1 * Line-out + 1 * Line-in
Expansion Card Slot	9 * USB: 4 * USB3.0 (Rear I/O) + 2 * USB2.0 (Rear I/O) + 3 * USB2.0(Header), 8 * GPIO, 1 * LPT Header 1 * SMB Header, 1 * PCIe 16X Slot 1 * PCIe 4X Slot 1 * PCIe 1X Slot 4 * PCI Slot, 2 * Mini PCI-E [3], 1 * SIM Card Slot
Operating Temperature	-15 ~ +60°C
Storage Temperature	-20 ~ +75°C
Power Supply	ATX AC 220V input
Chassis Material	SGCC galvanized sheet / Surface Processing: Injection processing
Color	Black
Size	299mm * 428.4mm * 176mm
Installation	Rackmount, Desktop
Cooling System	Intelligent fan cooling
