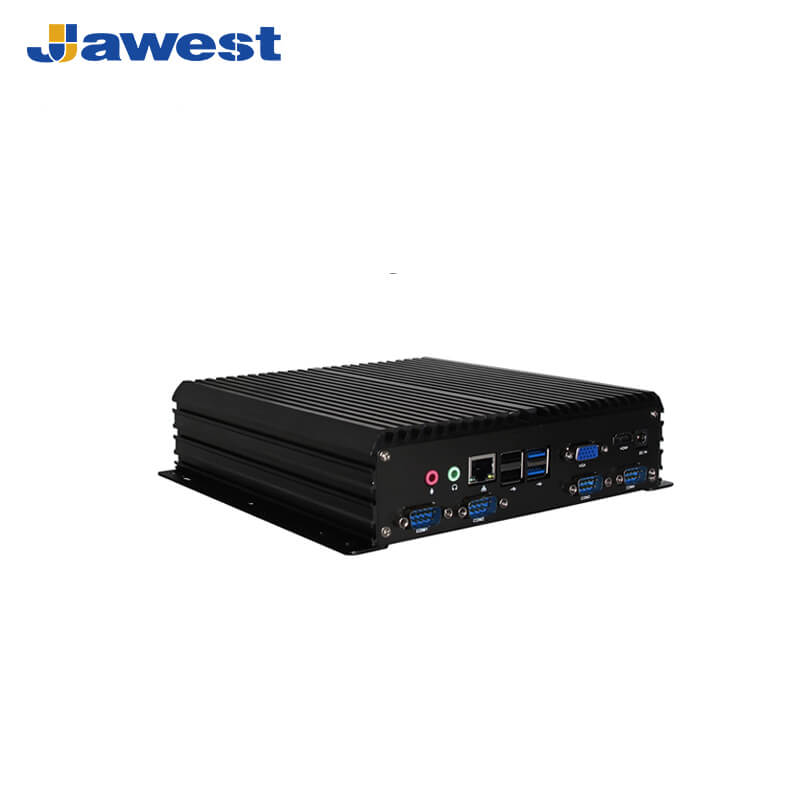

| Jawest B Serirs Industrial Computer Datasheet |
| Model | JWS01-WIPC |
| CPU | Intel Celeron J1900 | Intel Celeron J4125 | Intel Celeron J6412 | Intel Core i3-1215U | Intel Core i5-1235U | Intel Core i7-1255U |
| Memory | DDR3 4GB (8GB Options) | DDR3 8GB | DDR3 8GB (4GB Options) | DDR4 8GB (16/32GB Options) |
| Storage | SSD 64GB (128/256/512GB; HDD 500GB~1T Options) | SSD 128GB (256/512GB; HDD 1T/2T Options) | SSD 256GB (512GB; HDD 1T/2T Options) | SSD 256GB (128~512GB; HDD 500GB~1T Options) |
| GPU | lntel HD Graphics | Intel UHD Graphics 600 | Intel UHD Graphics 16 EUs | Intel Iris Xe Graphics 64 | Intel Iris Xe Graphics 80 | Intel Iris Xe Graphics 96 |
| Operating System |
| Operating System | Win 7/10 | Win 10/11 | Win 10/11 |
| Ubuntu 14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04 | Ubuntu 14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04 | Ubuntu 20.04/22.04 |
| CentOS 7.4/7.8/7.9 | CentOS 7.8/8.4/7.9 | / |
| Redhat 7.4 | Redhat 7.4 | Redhat 8.7 |
| Debian 11.6 | Debian 10/11.6 | Debian 12.2 |
| Display Functions |
| LVDS | Support 1920*1080 60Hz output |
| EDP | Max. resolution: 3840*2160 60Hz output | Max. resolution: 4096*2160 60Hz output | Max. resolution: 4096*2304 120Hz output |
| VGA | Support 1920*1080 60Hz output |
| HDMI | Max. resolution: 3840*2160 30Hz output | Max. resolution: 4096*2160 30Hz output | Max. resolution: 4096*2304 60Hz output |
| Touch Function |
| Touch Port | USB |
| Networking |
| LAN | Single-LAN/Dual-LAN optional, 10M/100M/1000M adaptive Ethernet | 2*10M/100M/1000M adaptive Ethernets |
| WIFI | 1*MINI PCIE, support WIFI/3G/4G/Bluetooth module | 1*M.2, support Key-E port for WiFi/BT module |
| Bluetooth |
| 4G | 1*M.2, support Key-B port for M.2 5G (3052/3042) module or M.2 4G (3042) module |
| 5G | / |
| Multimedia Ports |
| Speaker | 8Ω, 5W | Dual-channel 4Ω/10W or 8Ω/5W dual channel amplifier |
| MIC | Support |
| Audio Port | 1*Audio supports audio output |
| USB Ports |
| USB2.0 | 2*USB2.0 + 4*USB2.0 onboard | 2*USB2.0 + 2*USB2.0 onboard | 2*USB2.0 + 4*USB2.0 onboard |
| USB3.0 | 2*USB3.0 onboard
| 2*USB3.0 + 2*USB3.0 onboard | 2*USB3.0 + 2*USB3.0 onboard | 3*USB3.0 (One of which is realized by Type-C port) |
| Type-C | / | 1*Type-C
|
| Serial Ports |
| RS232 | 6*RS232 (one of which is for mutual conversion among RS232/RS422/RS485) |
| RS485 | 1, RS232/RS422/RS485 mutual conversion |
| RS422 | 1, RS232/RS422/RS485 mutual conversion |
| TTL | / |
| Other I/O Ports |
| GPIO | 8*GPIO
|
| SIM Slots | 1*Slot+1*Slot onboard |
| PCIE | / | 1*PCIE 4X
|
| Power Supply |
| Power Input | DC 12~36V |
| Standby | 15W |
| Reliability Performance |
| Operating Temp | -10°C ~ +60°C (Wide temperature operation is customizable ) |
| Storage Temp | -20°C ~ +70°C |
| Operating Humidity | 95%, non condensing |
| Mechanical |
| Color | Black |
| Material | Aluminum Alloy |
Dimension | 213.1*200*58.3mm |
| Weight | 1.9KG |
| Installation | Desktop and rack-mount |
