Industrial Touch Screen PC with Alder Lake-N CPU Options | N97, N100, N150, N200, N355 | 7”–23.8” Display Size Options
Product Model Fast Guide
| Product Models | LCD Displays | Resolution | Aspect Ratio | Brightness | Dimension (L*W*D) | Get A Quote Now! |
JWS070-W28 | 7" | 1024*600 | 16:9 | 500cd/㎡ | 233.56*154.56*40.5mm | Inquiry |
JWS080-W28 | 8" | 1024*768 | 4:3 | 250~300cd/㎡ | 233.56*174.56*44.5mm | Inquiry |
| JWS101-W28 | 10.1"
| 800*1280 | 10:16 | 300cd/㎡ | 293.6*193.6*46mm | Inquiry |
| JWS104-W28 | 10.4" | 1024*768 | 4:3 | 400cd/㎡ | 288*231*49mm | Inquiry |
| JWS116-W28 | 11.6" | 1920*1080 | 16:9 | 250~300cd/㎡ | 323.7*218.5*46mm | Inquiry |
| JWS120-W28 | 12" | 1024*768 | 4:3 | 500cd/㎡ | 319*257*52mm | Inquiry |
| JWS121-W28 | 12.1" | 1280*800 | 16:10 | 350cd/㎡ | 330*227.34*52mm | Inquiry |
| JWS133-W28 | 13.3" | 1920*1080 | 4:3 | 400cd/㎡ | 373.62*245.17*46mm | Inquiry |
| JWS150-W28 | 15" | 1024*768
| 4:3 | 350cd/㎡ | 379*300*52.5mm | Inquiry |
| JWS156-W28 | 15.6" | 1920*1080 | 16:9 | 300cd/㎡ | 420*269*50mm | Inquiry |
| JWS170-W28 | 17" | 1280*1024 | 5:4 | 250~300cd/㎡ | 414*345*55.5mm | Inquiry |
| JWS173-W28 | 17.3" | 1920*1080 | 16:9 | 400cd/㎡ | 458*291*52mm | Inquiry |
| JWS185-W28 | 18.5" | 1920*1080 | 16:9 | 270cd/㎡ | 486.5*307.4*58mm | Inquiry |
| JWS190-W28 | 19" | 1280*1024 | 5:4 | 250~300cd/㎡ | 451*380*55mm | Inquiry |
| JWS191-W28 | 19.1" | 1440*900 | 16:10 | 250~300cd/㎡ | 486*332*56mm | Inquiry |
| JWS215-W28 | 21.5" | 1920*1080 | 16:9 | 250~300cd/㎡ | 557*345*53mm | Inquiry
|
| JWS238-W28 | 23.8" | 1920*1080 | 16:9 | 250~300cd/㎡ | 606*376*61mm | Inquiry |
Note: High-brightness screen optional.
Key Features of Alder Lake-N Industrial Touch Screen PCs
1. Intel® Alder Lake-N CPU Performance
Equipped with the latest Intel Alder Lake-N processors, including N97, N100, N150, N200, and N355, this series delivers exceptional computing performance with low power consumption. These CPUs provide faster response, higher graphics capability, and excellent stability for industrial workloads — ideal for HMI interfaces, data acquisition, and machine vision.

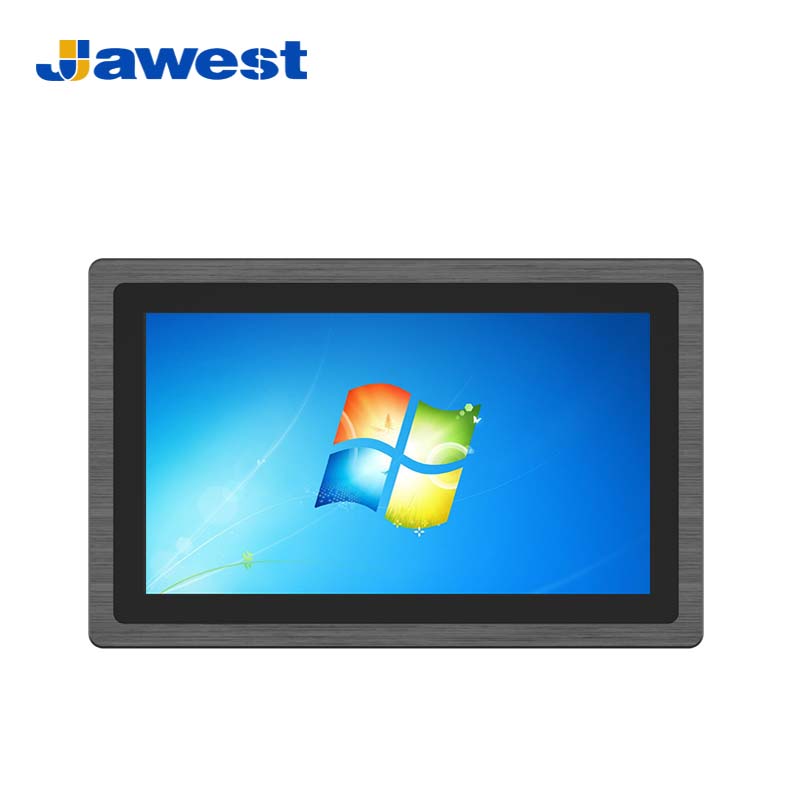

2. Wide Range of Display Sizes: 7” to 23.8”
Choose from a variety of industrial-grade touch screens, including 7", 10.1", 15.6", 17.3", 21.5", and 23.8" options. Each panel features P-CAP multi-touch technology, wide viewing angles, and high brightness, ensuring clear and responsive operation even in harsh industrial conditions.

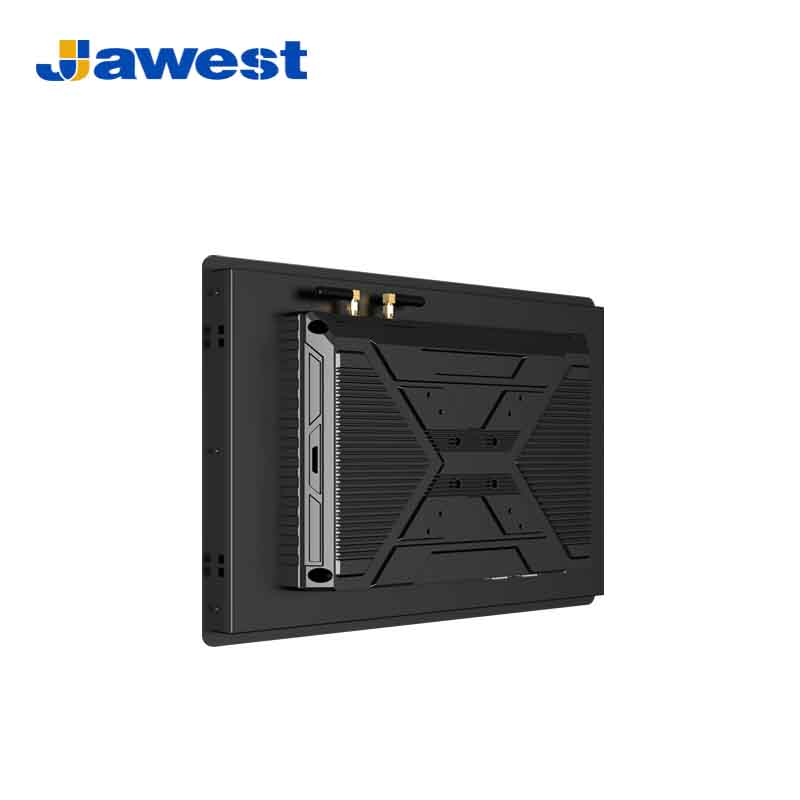

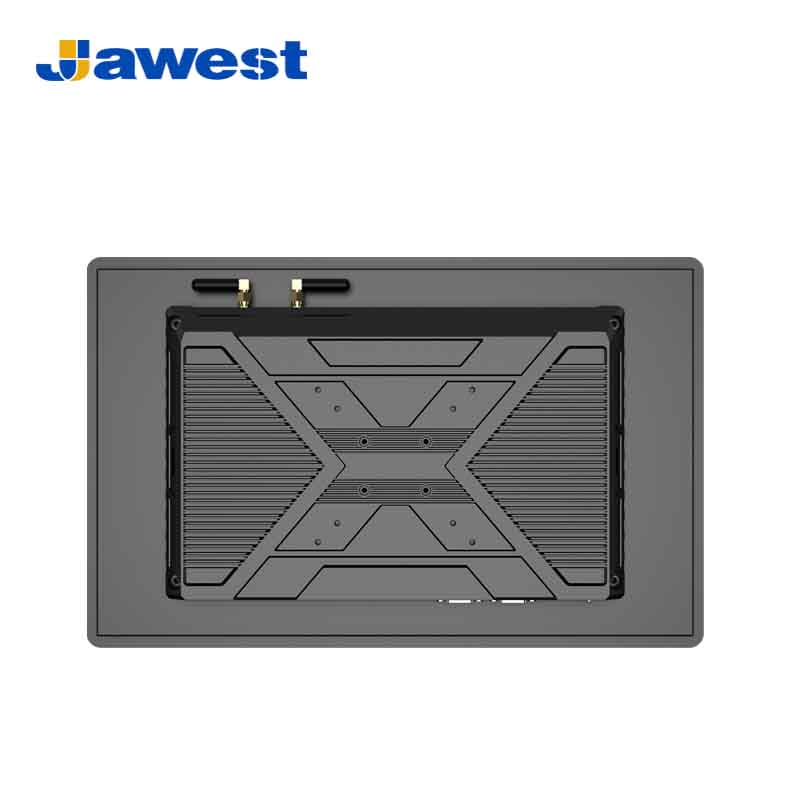

3. Panel Mount and Flush Mount Installation
Engineered for easy integration, this series supports panel mount and flush mount installation options. Whether built into control cabinets, production machinery, or operator consoles, the installation remains sleek, secure, and space-saving.
4. Fanless, Rugged Design
The fanless aluminum housing provides excellent heat dissipation, dust protection, and resistance to vibration. This ensures silent operation and long-term reliability for continuous 24/7 operation in industrial automation, manufacturing, and energy management systems.
5. Comprehensive Connectivity
Equipped with a wide selection of I/O interfaces, including USB, LAN, RS232/RS485, HDMI, and optional Wi-Fi or 4G/5G, these industrial touch screen PCs connect effortlessly to PLCs, sensors, and cloud platforms for real-time data exchange.
6. OS Compatibility and Customization
Compatible with Windows 10/11, Linux, and other embedded operating systems, these panel PCs offer software flexibility for industrial control, monitoring, and IoT applications. Custom boot logos, BIOS settings, and I/O configurations are also available upon request.
Applications of Alder Lake-N Industrial Touch Screen PCs
- Smart Factory and Process Control Systems
- Human-Machine Interface (HMI) Panels
- Manufacturing Equipment Control
- Energy Monitoring and Building Automation
- Industrial Data Acquisition Terminals
- Transportation and Kiosk Applications
With their compact form, robust design, and high computing efficiency, these PCs are suitable for both industrial edge computing and centralized monitoring systems.
