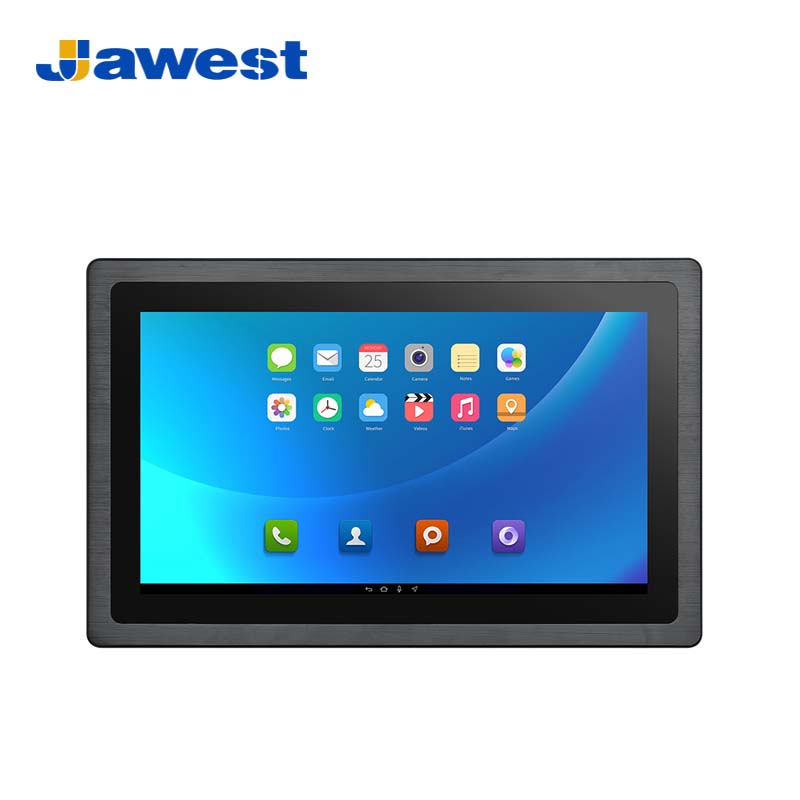

Industrial Panel PC with ARM-Based Architecture | Panel Mount & Flush Mount Options from 7” to 23.8”
Product Model Fast Guide
| Product Models | LCD Displays | Resolution | Aspect Ratio | Brightness | Dimension (L*W*D) | Get A Quote Now! |
JWS070-A28 | 7" | 1024*600 | 16:9 | 500cd/㎡ | 233.56*154.56*40.5mm | Inquiry |
JWS080-A28 | 8" | 1024*768 | 4:3 | 250~300cd/㎡ | 233.56*174.56*44.5mm | Inquiry |
| JWS101-A28 | 10.1"
| 800*1280 | 10:16 | 300cd/㎡ | 293.6*193.6*46mm | Inquiry |
| JWS104-A28 | 10.4" | 1024*768 | 4:3 | 400cd/㎡ | 288*231*49mm | Inquiry |
| JWS116-A28 | 11.6" | 1920*1080 | 16:9 | 250~300cd/㎡ | 323.7*218.5*46mm | Inquiry |
| JWS120-A28 | 12" | 1024*768 | 4:3 | 500cd/㎡ | 319*257*52mm | Inquiry |
| JWS121-A28 | 12.1" | 1280*800 | 16:10 | 350cd/㎡ | 330*227.34*52mm | Inquiry |
| JWS133-A28 | 13.3" | 1920*1080 | 4:3 | 400cd/㎡ | 373.62*245.17*46mm | Inquiry |
| JWS150-A28 | 15" | 1024*768
| 4:3 | 350cd/㎡ | 379*300*52.5mm | Inquiry |
| JWS156-A28 | 15.6" | 1920*1080 | 16:9 | 300cd/㎡ | 420*269*50mm | Inquiry |
| JWS170-A28 | 17" | 1280*1024 | 5:4 | 250~300cd/㎡ | 414*345*55.5mm | Inquiry |
| JWS173-A28 | 17.3" | 1920*1080 | 16:9 | 400cd/㎡ | 458*291*52mm | Inquiry |
| JWS185-A28 | 18.5" | 1920*1080 | 16:9 | 270cd/㎡ | 486.5*307.4*58mm | Inquiry |
| JWS190-A28 | 19" | 1280*1024 | 5:4 | 250~300cd/㎡ | 451*380*55mm | Inquiry |
| JWS191-A28 | 19.1" | 1440*900 | 16:10 | 250~300cd/㎡ | 486*332*56mm | Inquiry |
| JWS215-A28 | 21.5" | 1920*1080 | 16:9 | 250~300cd/㎡ | 557*345*53mm | Inquiry
|
| JWS238-A28 | 23.8" | 1920*1080 | 16:9 | 250~300cd/㎡ | 606*376*61mm | Inquiry |
Note: High-brightness screen optional.
Key Features of ARM-Based Industrial Panel PCs
1. High-Efficiency ARM Architecture
Powered by advanced ARM processors (such as Rockchip RK3568 or RK3588), these panel PCs deliver reliable computing performance with minimal heat generation. ARM architecture ensures fanless operation, lower power consumption, and stable performance — perfect for 24/7 industrial use.
2. Multiple Display Sizes: 7” to 23.8”
The series provides various display options including 7-inch, 8-inch, 10.1-inch, 10.4-inch, 11.6-inch, 12-inch, 12.1-inch, 13.3-inch, 15-inch, 15.6-inch, 17-inch, 18.5-inch, 19-inch, 21.5-inch, and 23.8-inch screens. Each size supports P-CAP multi-touch, or resistive touch technology, ot Non-touch (mouse-control) technology for precise and responsive control in industrial automation and HMI systems.

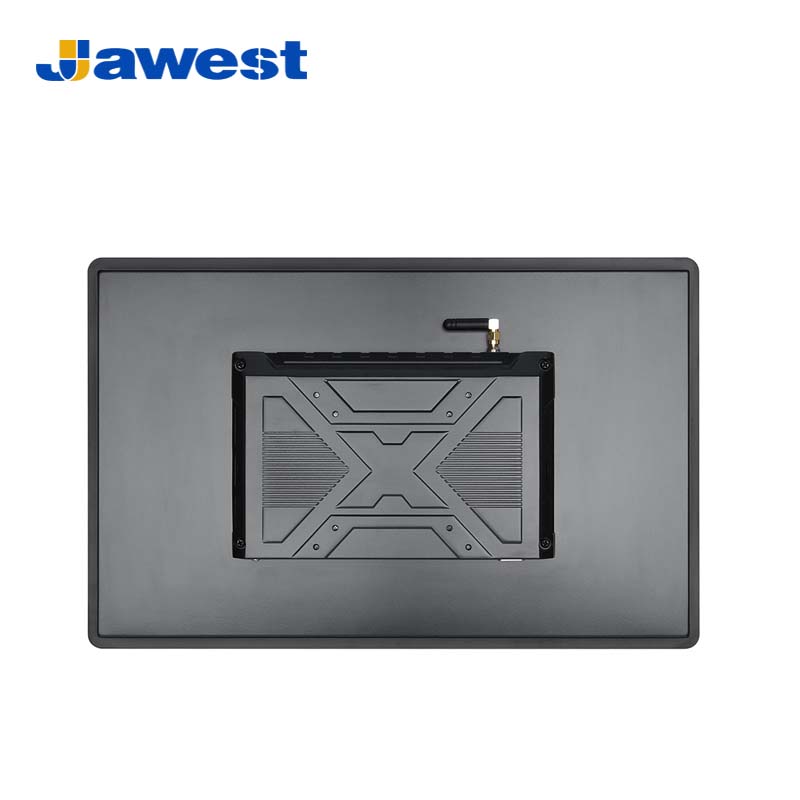

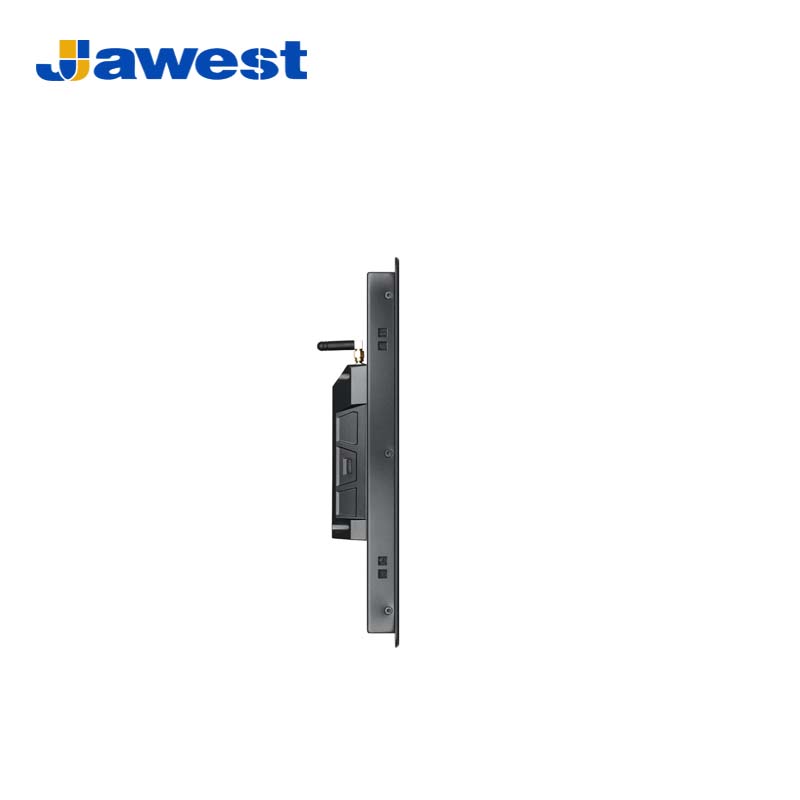

3. Flexible Installation: Panel Mount & Flush Mount
To suit different installation environments, these panel PCs support both panel mount and flush mount methods. Whether integrated into machine enclosures, control cabinets, or production lines, installation is easy, clean, and space-efficient.
4. Fanless and Durable Design
The fanless aluminum chassis ensures silent operation and enhanced durability against dust, vibration, and temperature variations. This makes the device suitable for industrial control, factory automation, and energy management applications.

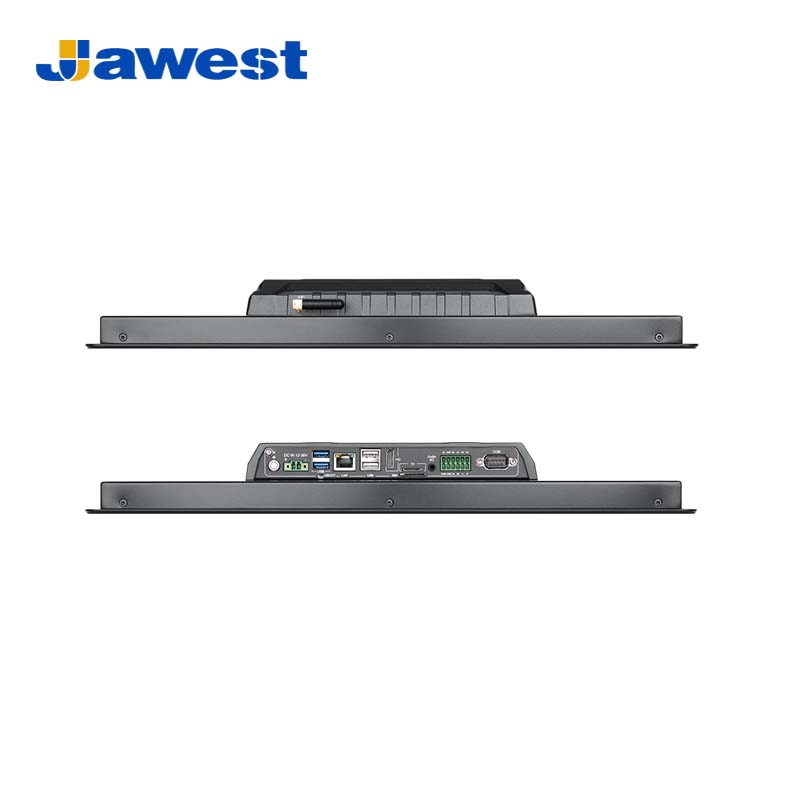

5. Rich I/O Interfaces and Connectivity
Equipped with multiple I/O ports (USB, LAN, RS232/485, HDMI, GPIO, and optional Wi-Fi/4G), the ARM-based panel PC easily connects with PLCs, sensors, and other industrial devices. This supports real-time communication and reliable data transmission in production environments.
6. Wide OS Compatibility
Compatible with Android and Linux operating systems, users can select the platform that best matches their application needs. These open systems allow easy customization for various HMI and IoT applications.
Why Choose an ARM-Based Industrial Panel PC?
The ARM platform provides the perfect balance between performance and energy efficiency, making it ideal for embedded and industrial applications. With customizable display sizes, multiple mounting options, and robust fanless design, these panel PCs are a future-ready solution for industrial environments seeking reliable and flexible HMI computing.
