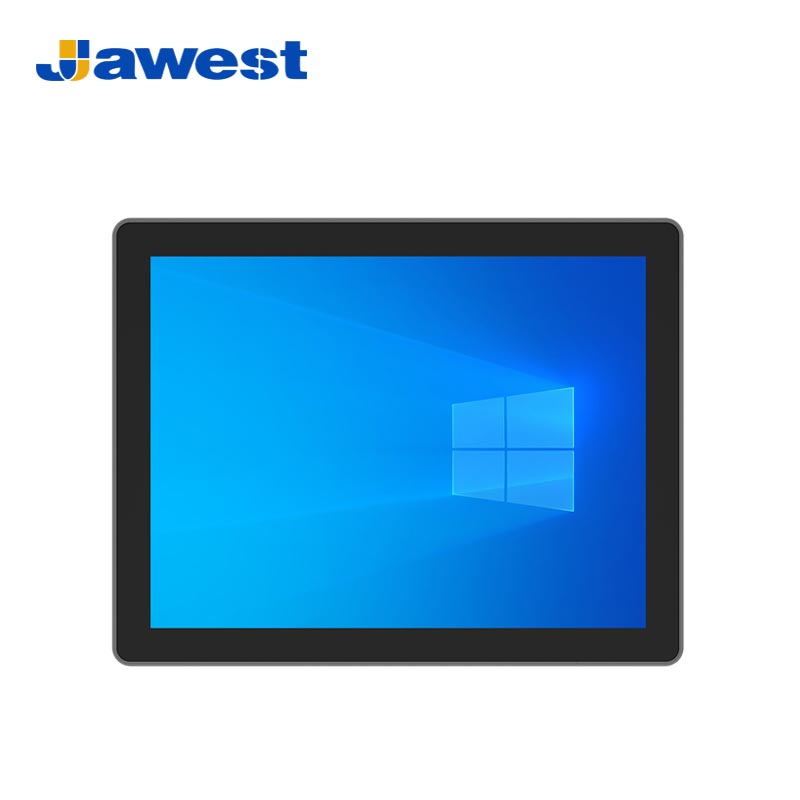

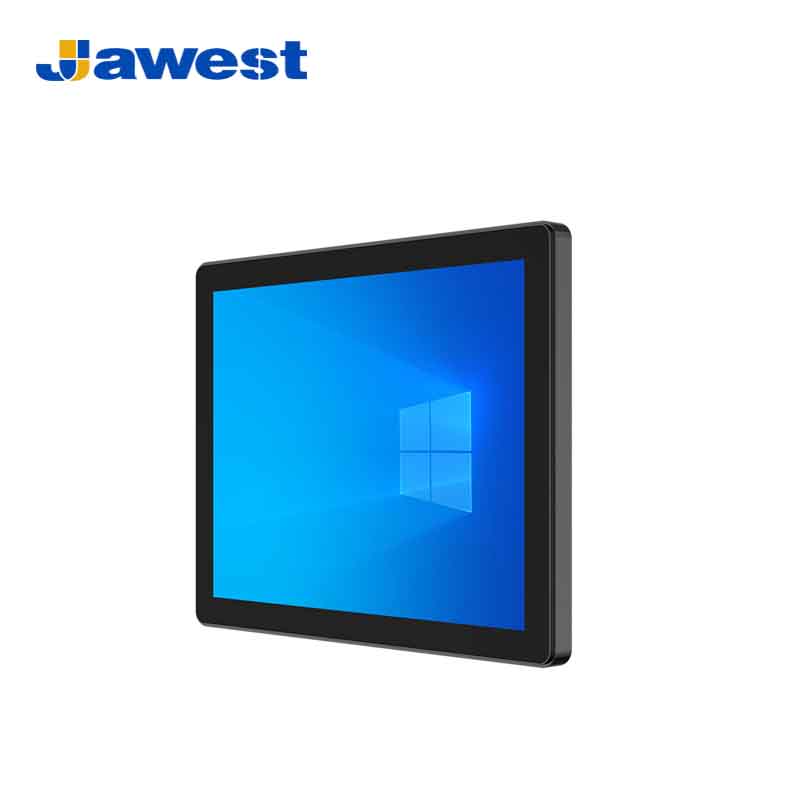

Industrial Touch Screen Computer with Alder Lake-N & Intel Core i3/i5/i7 Options | 7”–32” Display | Rear Mount Support
Product Model Fast Guide
| Product Models | LCD Displays | Resolution | Aspect Ratio | Brightness | Dimension (L*W*D) | Get A Quote Now! |
JWS070-W30 | 7" | 1024*600 | 16:9 | 500cd/㎡ | 233.56*154.56*40.5mm | Inquiry |
JWS080-W30 | 8" | 1024*768 | 4:3 | 250~300cd/㎡ | 233.56*174.56*44.5mm | Inquiry |
| JWS101-W30 | 10.1"
| 800*1280 | 10:16 | 300cd/㎡ | 293.6*193.6*46mm | Inquiry |
| JWS104-W30 | 10.4" | 1024*768 | 4:3 | 400cd/㎡ | 288*231*49mm | Inquiry |
| JWS116-W30 | 11.6" | 1920*1080 | 16:9 | 250~300cd/㎡ | 323.7*218.5*46mm | Inquiry |
| JWS120-W30 | 12" | 1024*768 | 4:3 | 500cd/㎡ | 319*257*52mm | Inquiry |
| JWS133-W30 | 13.3" | 1920*1080 | 4:3 | 400cd/㎡ | 373.62*245.17*46mm | Inquiry |
| JWS150-W30 | 15" | 1024*768
| 4:3 | 350cd/㎡ | 379*300*52.5mm | Inquiry |
| JWS156-W30 | 15.6" | 1920*1080 | 16:9 | 300cd/㎡ | 420*269*50mm | Inquiry |
| JWS170-W30 | 17" | 1280*1024 | 5:4 | 250~300cd/㎡ | 414*345*55.5mm | Inquiry |
| JWS173-W30 | 17.3" | 1920*1080 | 16:9 | 400cd/㎡ | 458*291*52mm | Inquiry |
| JWS185-W30 | 18.5" | 1920*1080 | 16:9 | 270cd/㎡ | 486.5*307.4*58mm | Inquiry |
| JWS190-W30 | 19" | 1280*1024 | 5:4 | 250~300cd/㎡ | 451*380*55mm | Inquiry |
| JWS215-W30 | 21.5" | 1920*1080 | 16:9 | 250~300cd/㎡ | 557*345*53mm | Inquiry
|
| JWS238-W30 | 23.8" | 1920*1080 | 16:9 | 250~300cd/㎡ | 606*376*61mm | Inquiry |
| JWS270-W30 | 27" | 1920*1080 | 16:9 | 250~300cd/㎡ | 664.5*401.5*72.5mm | Inquiry |
| JWS320-W30 | 32" | 1920*1080 | 16:9 | 300cd/㎡ | 763.6*457.1*74.5mm | Inquiry |
Note: High-brightness screen optional.
Key Features of the Industrial Touch Screen Computer
1. Powerful CPU Options: Alder Lake-N & Intel Core Series
Choose from a wide range of processors:
- Alder Lake-N Series — N97, N100, N150, N200, N355 for energy-efficient performance
- Intel Core i3/i5/i7 Series — for advanced computing, multi-tasking, and data-intensive industrial operations
This combination allows users to tailor the computing power to their specific application needs, from HMI control terminals to AI-driven edge computing.
2. Wide Display Range: 7” to 32” Touch Screen
Available in 7-inch to 32-inch touch screen sizes, the series covers everything from compact embedded terminals to large-format industrial displays.
Each model features industrial-grade P-CAP multi-touch panels, high brightness, and wide viewing angles, ensuring precise touch control and excellent visual performance in all lighting conditions.

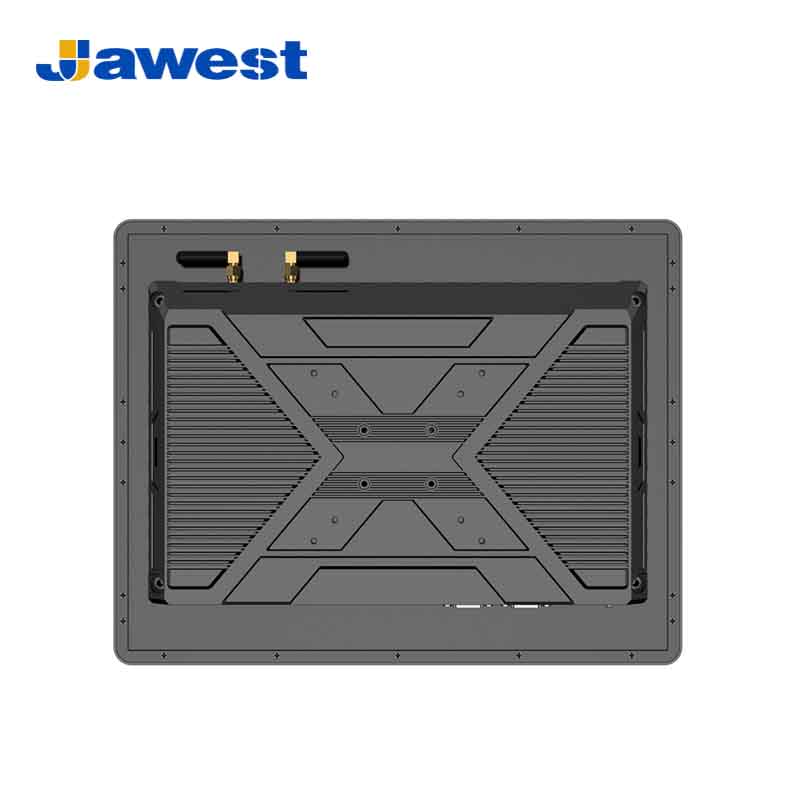

3. Rear Mount Installation
The rear mount design allows for clean, flush integration into machinery, production lines, and control panels. This mounting method enhances safety, accessibility, and aesthetic integration while ensuring the device remains firmly fixed in industrial setups.
4. Fanless and Durable Structure
Built with a fanless aluminum alloy chassis, the industrial touch screen computer offers dust resistance, vibration protection, and superior heat dissipation.
This rugged design ensures reliable 24/7 operation in harsh industrial conditions, such as factories, warehouses, and outdoor equipment enclosures.
5. Rich I/O Interfaces and Expandability
Equipped with comprehensive connectivity including USB, COM, LAN, HDMI, and optional Wi-Fi/4G/5G, this industrial PC easily connects to PLCs, sensors, cameras, and other control systems.
Expansion slots for PCIe, GPIO, or M.2 are available on select models for advanced customization.
6. Broad System Compatibility
Compatible with Windows 10/11, Linux, and other industrial OS platforms, the system supports diverse industrial control software and SCADA systems.
Custom BIOS, startup logos, and firmware configurations can be tailored for enterprise or OEM deployment.
Applications of Industrial Touch Screen Computers
- Smart Manufacturing and Process Control
- Human-Machine Interface (HMI) Terminals
- Energy and Environmental Monitoring Systems
- Machine Vision and Industrial Robotics
- Industrial IoT Gateways and Edge Computing Nodes
- Medical and Laboratory Equipment Control Panels
- Transportation, Kiosk, and Retail Systems
With scalable CPU choices, multiple screen sizes, and flexible mounting, this series meets the needs of both performance-critical and cost-sensitive industrial projects.
