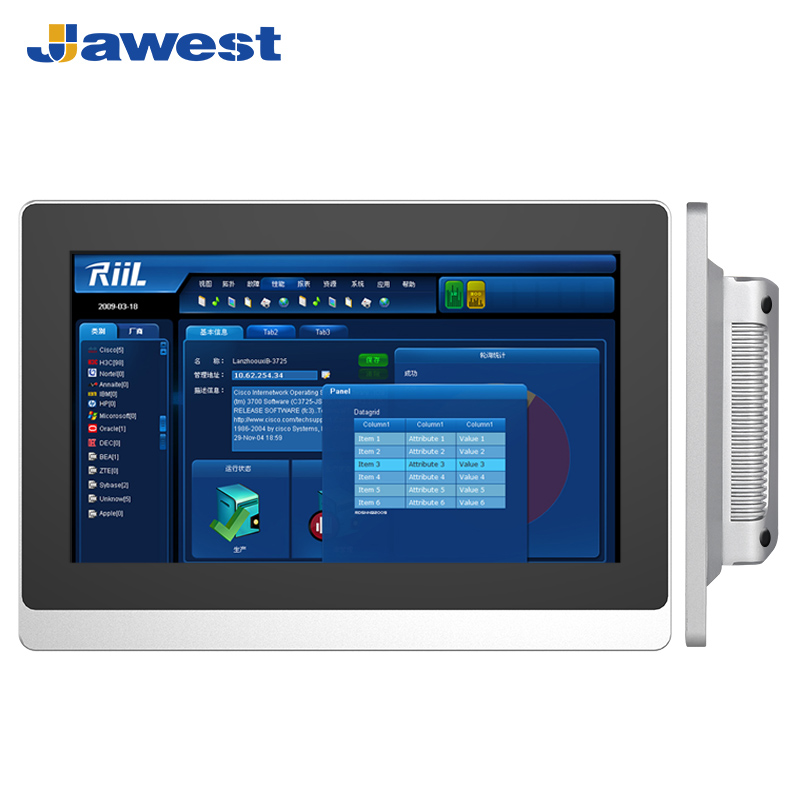

21.5" Industrial LCD Display Monitor With Touch Screen Sunlight Outdoor Monitor


Model: JWS215-M41

● Display size: 21.5-inch high-quality industrial LCD panel

● High contrast color TFT-LCD offers high resolution 1920 x 1080

● Durable and rugged monitor with an aluminum alloy frame

● Universal power adapter

● Working temperature: -10°C ~ 60°C

● Industrial-grade motherboard, anti-static

● 10mm front bezel with Aluminum alloy enclosure

● Support 24/7 long-time operation

● OSD on the front/back panel for brightness adjustment

● IP65 rated dust-proof and water-proof for the front panel

● Support plug-and-play function

● OEM/ODM custom design by request

● Multi-installation methods: VESA arm, desktop, wall-mounted, and ceiling-mounted


Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case

Jawest Industrial-grade LCD Display Monitor With Touch Screen

Model: JWS215-M41


Jawest 21.5″ industrial LCD monitor is designed to provide superior high-resolution image quality and is equipped with strong anti-oxidation aluminum alloy material rugged full-enclosure and industrial-grade motherboard, which ensures long-term reliable and stable operation under harsh industrial and factory environments. They are fitted with universal usage of DC or AC power input making these touchscreen monitors highly versatile. Backed by industrial certifications (including 3rd-party environmental testing) and an industry-leading 3-year warranty.




Jawest Industrial Touch Screen Monitor Features


21.5" Industrial LCD Display Monitor With Touch Screen

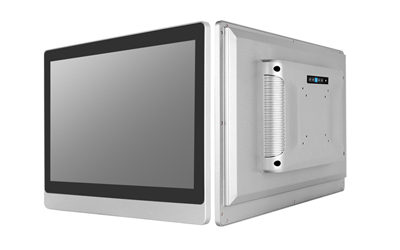

21.5-inch Industrial LCD Display


It is used in all kinds of complex and harsh environments. The appearance and structure of the whole monitor and the industrial driving board are self-designed and developed by Jawest.

Beautiful and fashionable appearance, suitably used in the smart city, commercial terminal, industrial automation, military industry, electric monitoring, etc.


21.5" Industrial LCD Display Monitor With Touch Screen


Front IP65 Protection For Various Complex Environments


The true-flat panel industrial-grade IP65 dustproof and waterproof protection can effectively prevent water splashing, rainwater, and dust from invading the display, and can easily be used in outdoor, indoor, and manufacturing environments.


 21.5" Industrial LCD Display Monitor With Touch Screen

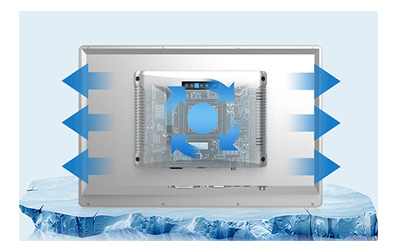

Fanless Structure Design For Mute Heat-dissipation


This industrial touch screen LCD display is fully enclosed and dust-proof, and the internal core components are compact in structure, with an efficient heat dissipation layout, anti-static reasonable wiring, and aluminum alloy housing, so as to realize high-efficiency heat dissipation without holes.










Product ModelJWS215-M41
Product DescriptionJawest 4th-GEN Type A 21.5" Industrial Monitor with Capacitive Touchscreen

CPURTD2513

Screen ParametersDisplay Type21.5" TFT LCD
Resolution1820*1080 (16:9)
Viewing Angle (H/V)89°/89°/89°/89° (L/R/U/D)
Luminance (cd/m²)300 cd/m2
Contrast ratio1000:1
Backlight TypeLED, lifetime ≥ 50000h
Grayscale Response Time5ms
Touch Screen TechnologyCapacitive, resistive, and non-touch options



I/O ParameterTouch interface1*Touch (RJ45)
HDMI1*HDMI data input, maximum support 1080P
VGA1*VGA
DVI1*DVI
Earphone JackStandard 3.5mm port
Audio Port1* Audio I/O
Power Interface1*Threaded DC connector (Diameter 5.5*2.1mm)
Grounding1*GND
I/O ExpansionSupport I/O customization for various industries

Product ReliabilityWorking Temperature-10°C ~ 60°C
Storage Temperature-20°C ~ 70°C
Relative Humidity95% non-condensing

Power ParametersPower Adapter24V/1.5A
Power Input DC 12V~36V



MechanicalDimensions522.04*338.5*62.8mm (W*H*D)
MaterialAluminum alloy frame, metal case
ColorSilver, optional Black
InstallationVESA arm, desktop, wall-mounted, and ceiling-mounted
