Industrial Touchscreen Computer with Intel® Core™ i5-10210U / i5-1235U CPU | 7” to 23.8” Waterproof Panel PCs for Industrial Applications
In modern industrial automation, the demand for high-performance, rugged, and intelligent human–machine interfaces (HMIs) continues to grow. Businesses are increasingly adopting industrial touchscreen computers that combine reliable computing power, durable construction, and flexible installation options. The series of waterproof panel PCs with 7-inch to 23.8-inch display options and the latest Intel® Core™ i5-10210U and i5-1235U processors offers a superior solution for manufacturing, automation, and mission-critical industrial applications.
Product Model Fast Guide
| Product Models | LCD Displays | Resolution | Aspect Ratio | Brightness | Dimension (L*W*D) | Get A Quote Now! |
| JWS070-W31 | 7" | 1024*600 | 16:9 | 300cd/㎡ | 233.56*154.56*52mm | Inquiry |
JWS080-W31
| 8" | 1024*768 | 4:3 | 250~300cd/㎡ | 233.56*174.56*56mm | Inquiry |
| JWS101-W31 | 10.1"
| 800*1280 | 10:16 | 300cd/㎡ | 293.6*193.3*56.53mm | Inquiry |
| JWS104-W31 | 10.4" | 1024*768 | 4:3 | 400cd/㎡ | 288*231*60.5mm | Inquiry |
| JWS116-W31 | 11.6" | 1920*1080 | 16:9 | 250~300cd/㎡ | 323.7*218.5*57.5mm | Inquiry |
| JWS120-W31 | 12" | 1024*768 | 4:3 | 500cd/㎡ | 319*257*63.5mm | Inquiry |
| JWS121-W31 | 12.1" | 1280*800 | 16:10 | 350cd/㎡ | 330*227.34*62mm | Inquiry |
| JWS133-W31 | 13.3" | 1920*1080 | 4:3 | 400cd/㎡ | 373.62*245.17*57mm | Inquiry |
| JWS150-W31 | 15" | 1024*768
| 4:3 | 350cd/㎡ | 379.81*300*64mm | Inquiry |
| JWS156-W31 | 15.6" | 1920*1080 | 16:9 | 300cd/㎡ | 420*269*60mm | Inquiry |
| JWS170-W31 | 17" | 1280*1024 | 5:4 | 250~300cd/㎡ | 414*345*67mm | Inquiry |
| JWS173-W31 | 17.3" | 1920*1080 | 16:9 | 400cd/㎡ | 458*291*62mm | Inquiry |
| JWS185-W31 | 18.5" | 1920*1080 | 16:9 | 270cd/㎡ | 486.5*307.4*69.5mm | Inquiry |
| JWS190-W31 | 19" | 1280*1024 | 5:4 | 250~300cd/㎡ | 451*380*66.5mm | Inquiry |
| JWS191-W31 | 19.1" | 1440*900 | 16:10 | 250~300cd/㎡ | 486*332*67.5mm | Inquiry
|
| JWS215-W31 | 21.5" | 1920*1080 | 16:9 | 250~300cd/㎡ | 557*345*64.5mm | Inquiry
|
| JWS238-W31 | 23.8" | 1920*1080 | 16:9 | 250~300cd/㎡ | 606*376*61mm | Inquiry |
Note: High-brightness screen optional.
1. Wide Range of Display Sizes: 7” to 23.8” for Versatile Deployment
To meet various scenarios and installation requirements, this industrial touch panel PC series offers a full selection of screen sizes:
- 7” to 23.8” options
- Capacitive 10-point multitouch, resistive touch, or Mouse-contrl options
- High-brightness versions for outdoor or semi-outdoor applications
From compact machine-mounted HMIs to large operator control panels, these size options ensure optimal usability and visibility across all industries.
2. Powered by Intel® Core™ i5-10210U / i5-1235U for High-Performance Computing
At the heart of these industrial touchscreen computers are two powerful processor options:
Intel® Core™ i5-10210U
Quad-core, eight-thread processor
Energy-efficient and reliable for multi-tasking
Excellent performance for MES, SCADA, and production management systems
Intel® Core™ i5-1235U (12th Gen)
Hybrid architecture with performance and efficiency cores
Ideal for edge computing, real-time data analysis, and industrial AI
Improved graphics for data visualization and advanced HMI interfaces
These CPU options provide robust processing capability for applications requiring stability, speed, and long-term reliability.
Other CPU for optional: Intel® Core™ i5-4200U, i5-6200U, Intel® Celeron® J1900.
3. Waterproof & Dustproof Construction for Harsh Industrial Environments
Engineered for demanding working conditions, this industrial touchscreen computer offers an IP65 waterproof front panel, a Rust-resistant aluminum alloy housing, and a wide operating temperature range. Shock and vibration-resistant design, a Fanless structure for dust-free, maintenance-free operation.
This rugged construction ensures reliable performance in environments such as food and beverage production, chemical facilities, outdoor kiosks, oil, gas, and mining fields, automotive workshops, and factory automation lines.

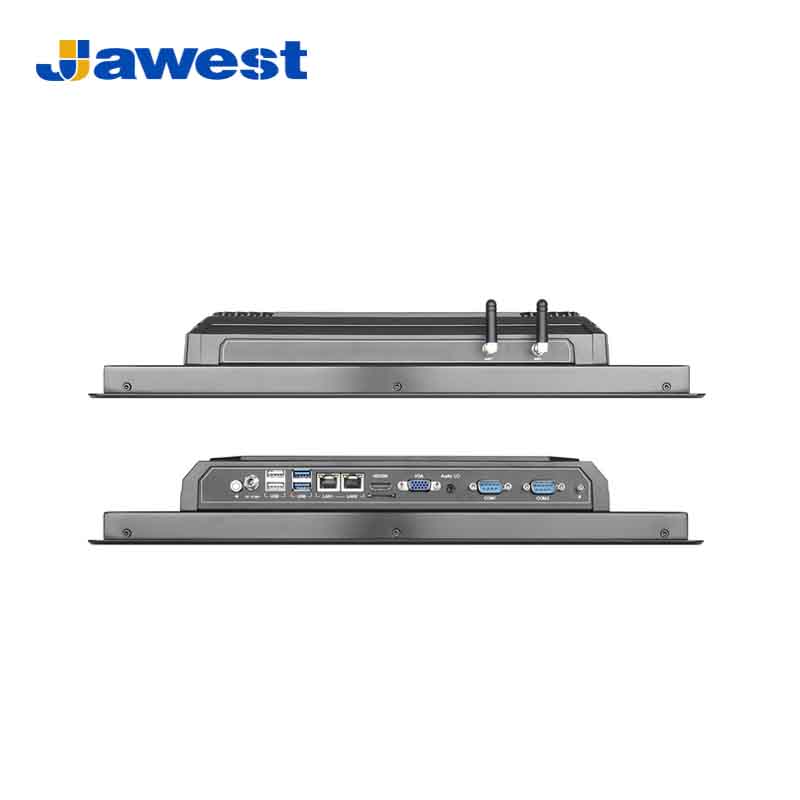

4. Industrial I/O Interfaces Designed for System Integration
To support seamless communication with industrial equipment, each waterproof panel PC is equipped with rich expandability:
- Multiple RS-232/RS-485/RS-422 COM ports
- USB 2.0/3.0, HDMI, and GPIO interfaces
- Dual LAN
- Optional 4G, WiFi, and Bluetooth
- Support for various sensors, PLCs, and automation equipment
These connectivity options make the system ideal for SCADA terminals, smart kiosks, industrial robots, and production monitoring solutions.
5. Fanless Cooling for Long-Term Reliability
A completely fanless structure significantly increases product durability by minimizing moving parts and avoiding dust accumulation. It offers silent operation, Reduced maintenance costs, and Extended lifespan. Improving reliability in harsh, dusty, or oily environments. This design is ideal for continuous, 24/7 industrial operation.
