Home >> Products >> Industrial Android Tablet PC >> Android All-in-one Touch PC | Thin Front Bezel
Application:
10.1 inch Industrial Fanless Touch Panel PC with Android 10.110.1 inch Industrial Fanless Touch Panel PC with Android 10.110.1 inch Industrial Fanless Touch Panel PC with Android 10.110.1 inch Industrial Fanless Touch Panel PC with Android 10.1

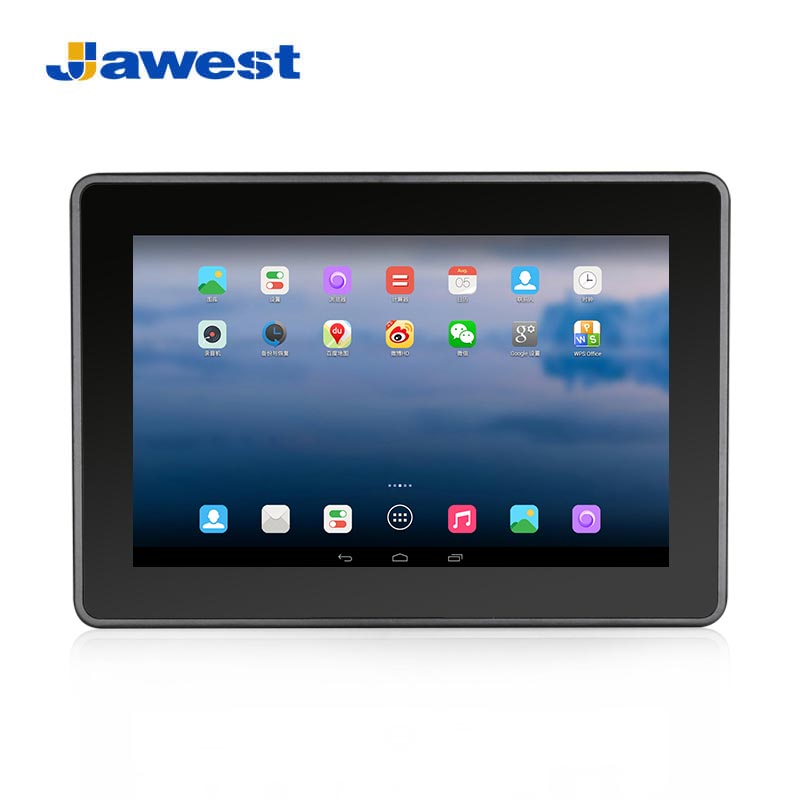

10.1 inch Industrial Fanless Touch Panel PC with Android 10.1


● Display size: 10.1 inch, 800*1280/1280*800 resolution.

● 10:16/16:10 display with LED backlight.

● Processor: Rockchip RK3568, Cortex-A55 Quad-Core, 64 bits, 2.0GHz. (RK3288/RK3399/RK3588 options).

● Memory: 2GB (4/8GB options).

● Storage: 32GB (64/128/256GB options).

● OS: Android12 / Linux 5.10 / Ubuntu 20.04 / Debian 11 options.

● Resistive, Projected Capacitive, or Non-touch screen options.

● IP65 Front.

● 12V ~ 36V DC power input.

● Operating Temperature: -10°C to 60°C .

● Mounting: embedded, wall, desktop, VESA.

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case

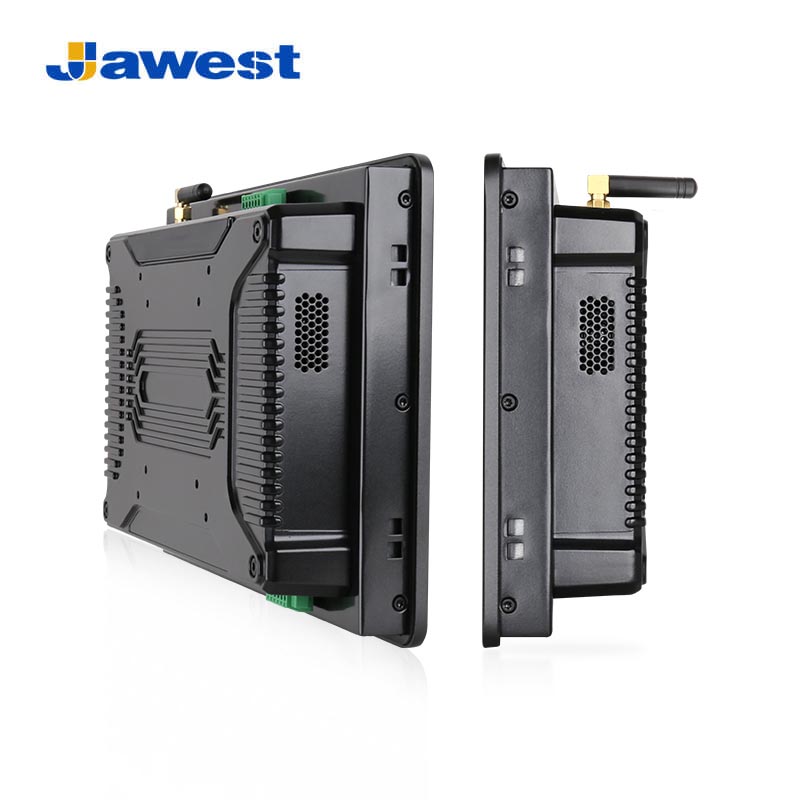

  • 10.1-inch Android System Industrial Panel PC with Rugged Casing


    Model: JWS101-A5


    Industrial Panel PCs


    JWS101-A5 series are Jawest's 5th-GEN industrial-grade Panel PCs that come with a rugged Aluminum alloy casing to meet harsh industrial environments, with a fanless design for excellent heat-dissipation and low-power consumption to suit different applications. From IoT terminals in smart cities and building automation to a variety of self-service kiosks such as HMI panels, these 10.1-inch industrial panel PCs can deal with it.






  • Display Parameters
    Size10.1"
    Resolution800*1280/1280*800
    Screen Ratio10:16/16:10
    Brightness300 nits (Optional high brightness)
    Contrast Ratio1000:1
    Viewing Angle85°/85°/85°/85° (L/R/U/D)
    Backlight typeLED backlight screen, service life ≥ 50000H
    Touch ScreenCapacitive, Resistive, or Non-touch options









    Motherboard Model SelectionJWS64
    JWS3288-IJWS3399-MAIN-LCX3399-ACX3568-ACX3588-ACX-3588-G
    System ArchitectureCPUA64 Quad-Core 1.5GHzRK3288 Quad-Core 1.8GHzRK3399 Six-Core 2.0GHzRK3399 Six-Core 2.0GHzRK3568 Quad-Core 2.0GHzRK3588 Octa-Core 2.1GHzRK3588 Octa-Core 2.1GHz
    Core Architecture Cortex-A53Cortex-A17Dual-Core Cortex-A72 + Quad-Core Cortex-A53Dual-Core Cortex-A72 + Quad-Core Cortex-A53Cortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55
    GPUMali-T764Mali-T764Mali-T860 MP4Mali-T860 MP4Mali-G52 2EEMali G610 MP4Mali G610 MP4
    Memory (DDR)2GB (8GB optional)2GB (4GB optional)4GB2/4GB2GB (4/8GB optional)4GB (8/32GB optional)8GB (16/32GB optional)
    Storage (eMMC)16GB (32/64GB optional)16GB (32/64/128/256GB optional)32GB (64GB optional)32/64GB (256GB optional)32GB (64/128/256GB optional)64GB (128/256GB optional)64GB (128/256GB optional)
    SATA////Support/1*SATA hard drive port
    Operating SystemAndroid 6.0Android 7.1 / 10.0Android 7.1 / 9.0 / 11 Android 7.1 / 9.0 / 11Android 12Android 13.0Android 12
    /Linux 4.4Linux 4.4Linux 4.4Linux 5.10/Linux 5.10
    /Ubuntu 18.04Ubuntu 18.04Ubuntu 18.04Ubuntu 20.04/Ubuntu 20.04
    /Debian10.0Debian10.0Debian 10Debian 11/Debian 11









    NetworkingEthernet1*10M/100M/1000M adaptive Ethernet1*Gigabit Ethernet + 1*100 Mbit Ethernet2*10M/100M/1000M adaptive Ethernet
    4GOptional. Based on the 4G module selection
    5G//////Support M.2 5G module interface
    WIFI2.4GDual-band 2.4/5GDual-band 2.4/5GDual-band 2.4/5GWIFI6, 2.4GWIFI6, Dual-band 2.4/5GWIFI5/WIFI6 (optional), dual-band 2.4/5G
    BluetoothBT5.0BT5.0BT5.0BT5.0BT5.2BT5.0BT4.2 (WIFI 5) / BT5.0 (WIFI 6)









    Touch FunctionTouch InterfaceUSB/IICUSBUSB/IIC

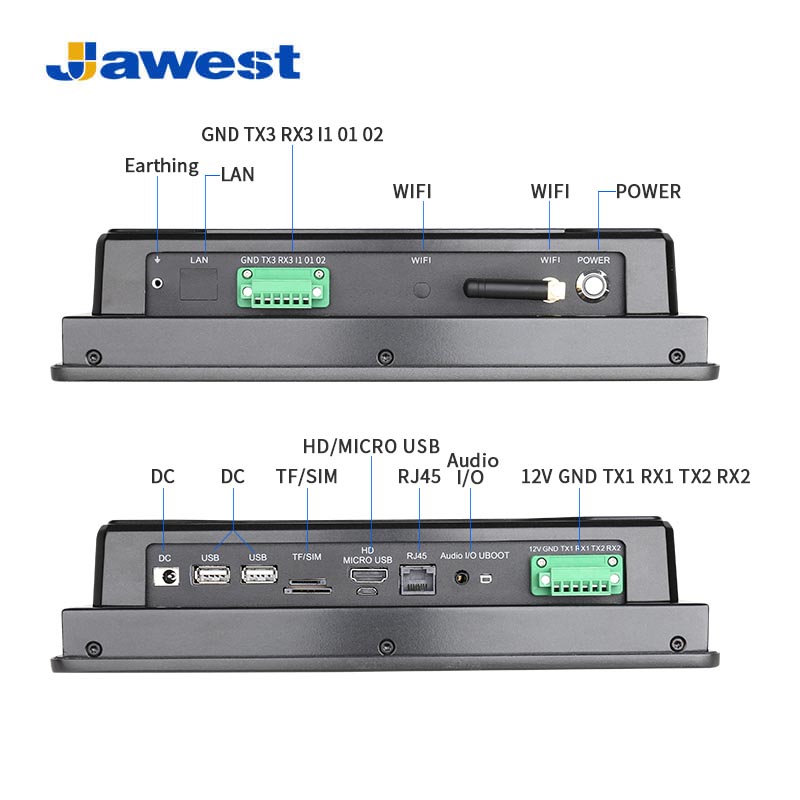

    I/O PortsUSB1*USB HOST, 1*USB OTG1*USB HOST, 1*USB OTG1*USB HOST, 1*USB OTG1*USB, 1*OTG2*USB3.01*USB, 1*OTG4*USB3.0
    HDMI1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI In+1*HDMI Out, 8K
    LAN1*LAN1*LAN1*LAN1*LAN1*LAN2*LAN2*LAN
    DC1*DC2.11*DC2.11*DC2.11*DC2.11*DC2.11*DC2.11*DC2.1
    COM2*RS232+2*Reserved holes1*RS232+1*Reserved hole
    TF/SIM1* TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot
    WiFi Antenna1*WiFi Antenna1*WiFi Antenna1*WiFi Antenna+1*Reserved hole
    Audio I/O1*3.5mm Earphone Jack
    Reset Button1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT
    GND1*GND1*GND1*GND1*GND1*GND1*GND1*GND
    MICRO OTG1*MICRO OTG//////
    1*12P Phoenix Terminal ///1*DC1*DC1*DC1*DC
    ///1*RS2321*RS2321*RS2321*RS232
    ///1*RS4851*RS4851*RS4851*RS485
    ///1*TTL1*CAN1*CAN1*CAN
    ///3*GPIO3*GPIO3*GPIO3*GPIO
    I/O Expansion Support









    PowerPower Input12V DC12V DC12-36V DC12-36V DC12-36V DC12-36V DC12-36V DC
    Adapter12V / 4A12V / 4A24V / 2.5A24V / 2.5A24V / 2.5A24V / 2.5A24V / 2.5A



    MechanicalDimension267.5*186.3*61mm
    EnclosureAluminum alloy housing

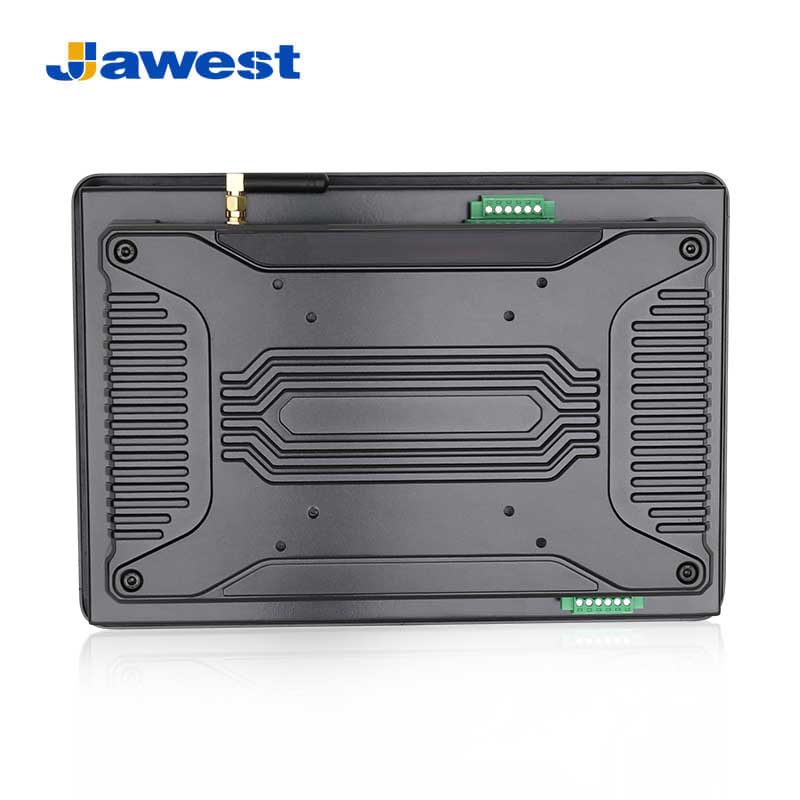

    Cooling SystemFanless
    MountingPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.



    Product ReliabilityWorking Temp-10°C ~ 60°C
    Storage Temp-20°C ~ 70°C
    Ambient Humidity5% - 95% (relative humidity non-condensing)
    IP ratingFront IP65
