Model: JWS120-W42
• Display size: 12 inch.
• Working temperature: -10~ +60°C.
• Support 365days*24hours operation.
• 10mm enhanced display panel, stronger impact resistance.
• IP65-rated dust-proof and water-proof for the front panel.
• Support embedded, wall-mounted, rack-mounted, desktop, cantilever support.

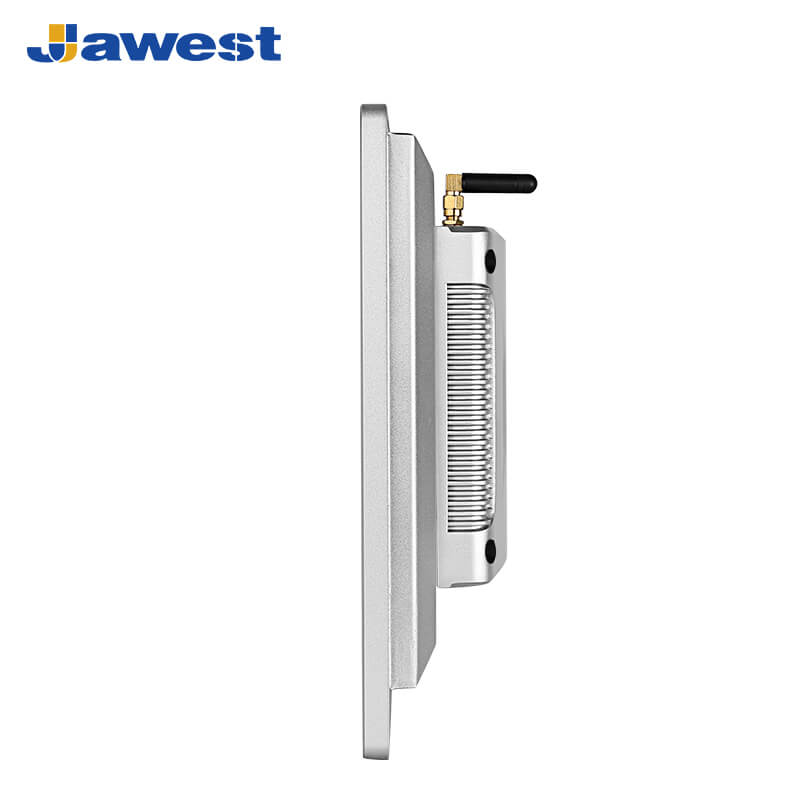

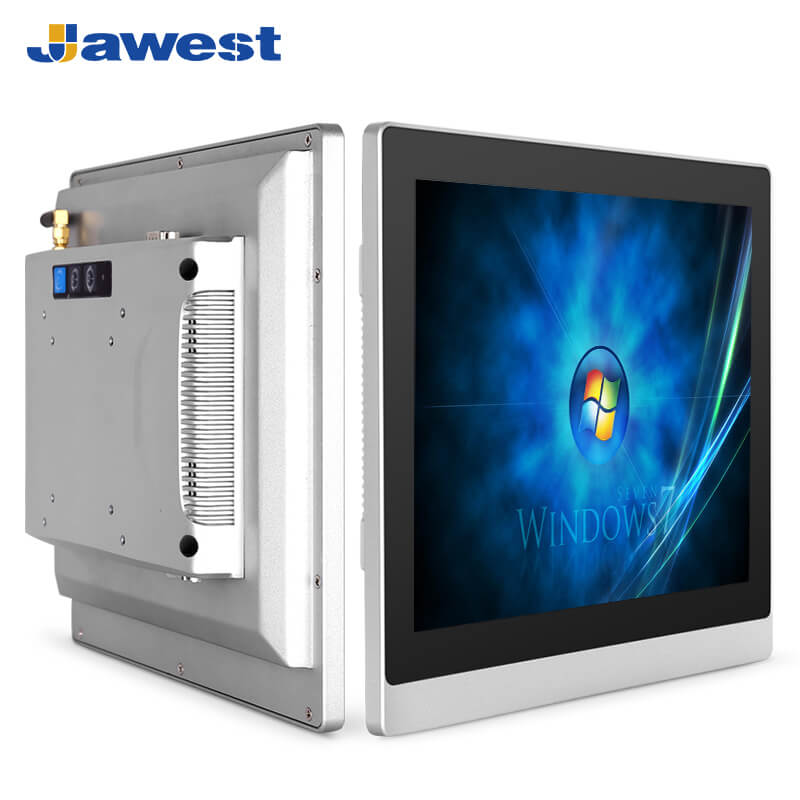

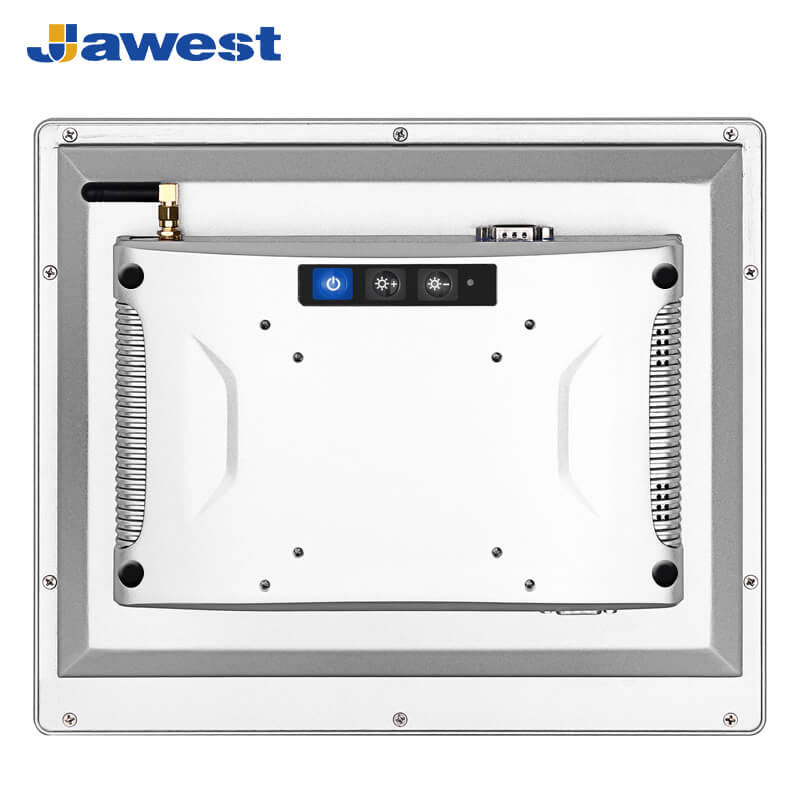

12" Industrial Touch Panel PC with Anti Interference Waterproof & Dustproof
Model: JWS120-W42
Jawest offers a wide range of specialized industrial-grade all-in-one multi-touch tablet PCs, they are widely used in applications such as the Internet of Things (IoT), AI, HMI, M2M, HMI, production automation, industrial control, check-in systems, visitor authorization, and some tough environments applications. We produce industrial-grade display sizes from 7" to 21.5". This AIO panel PC can be customized to support OEM specialized sunlight readable high brightness screens and is designed to operate under wide temperature and wide voltage ranges. Variety of mounting types including desktop, embedded, open frame, VESA, and wall-mounted.
Jawest Industrial All-in-one Panel PC Features
● 12-inch 1024x768 resolution screen.
● Operation System: Windows, Linux, or Android.
● Chassis material: Aluminum alloy for the whole casing.
● Appearance: Black or Silver color.
● Five-wire resistive or ten-point PCAP touch control screen.
● 2GB DDR3 RAM expandable to 4G/8G; 32G SSD, expandable to 64G/256G/512G.
● Default configuration: J1900 2GHz quad-core CPU (expandable to higher configuration).
● 10mm front bezel and aluminum enclosure, strong impact resistance in harsh environments.
● Jawest IPC mounting options: Vesa, open frame, desktop, embedded, panel mount, and wall-mounted.
● Fingerprint Scanner for optional.
● NFC, RFID, IC card, and ID card reader modules are optional.
● Sunlight readable screen (up to 1500 nits).
Product Model Fast Guide
Product Models | LCD Displays | Resolution | Aspect Ratio | Get A Request |
JWS070-W42 | 7" | 1024*600 | 16:9 | Inquiry |
JWS080-W42 | 8" | 1024*768 | 4:3 | Inquiry |
JWS101-W42 | 10.1" | 1280*800 | 16:10 | |
JWS104-W42 | 10.4" | 1024*768 | 4:3 | |
JWS116-W42 | 11.6" | 1920*1080 | 16:9 | |
JWS120-W42 | 12" | 1024*768 | 4:3 | |
JWS133-W42 | 13.3" | 1920*1080 | 16:9 | |
JWS150-W42 | 15" | 1024*768 | 4:3 | |
JWS156-W42 | 15.6" | 1920*1080 | 16:9 | |
JWS170-W42 | 17" | 1280*1024 | 5:4 | |
JWS173-W42 | 17.3" | 1920*1080 | 16:9 | |
JWS190-W42 | 19" | 1280*1024 | 5:4 | |
JWS191-W42 | 19.1" | 1440*900 | 16:10 | |
JWS215-W42 | 21.5" | 1920*1080 | 16:9 | |
JWS238-W42 | 23.8" | 1920*1080 | 16:9 |
Jawest 12 inch Industrial All In One PC | ||||||||
Size | 12 inch | |||||||
Display | ||||||||
Panel Type | Industrial LCD panel A, A+grade | |||||||
Aspect Ratio | 4 : 3 | |||||||
Resolution | 1024*768 | |||||||
Contrast | 800:1 | |||||||
Luminance | 300nit-1500nit | |||||||
Response time | 5ms | |||||||
Active Area (mm) | 245.76*184.32 | |||||||
Display colors | 16.7M(8-bit) | |||||||
View angle | 85/85/85/85 | |||||||
PC Configuration | ||||||||
CPU | Intel Celeron J1900 fanless, Intel i3/i5/i7 can be customized | |||||||
Graphics Card | Integrated Intel HD Graphics | |||||||
Inner memory | 2G DDR3 RAM ( 4G/8G RAM can be customized) | |||||||
Storage | 32G SSD (64G/128G/256G SSD, 500G HDD can be customized) | |||||||
Expansion Card Slot | 2xMini-PCIE slot, support SSD, WIFI, 3G module | |||||||
Audio | Realtek ALG662 6 soundtrack audio frequency | |||||||
Internet | 1xRTL811E gigabit network card | |||||||
Operating System | Pre-installed Win7, and offer Win8, 10 for optional | |||||||
Support multi-language | English/Portuguese/French…etc | |||||||
Touch Screen | 5 wire resistive touchscreen (10-point capacitive touchscreen, or Non-touch for option) | |||||||
I/O Ports | 1*12V DC_JACK input (ATX is optional) , 1*VGA,1*HDMI, 4*USB port | |||||||
1*RJ-45 network interface, 1*Audio I/O interface, 2*COM (can be customized, up to 4*COM) | ||||||||
Power Input | AC 110-240V, 50/60Hz | |||||||
Operation Temperature | -10°C-60°C | |||||||
Storage Temperature | -30°C-60°C | |||||||
Operation Humidity | 10%--80% | |||||||
Storage Humidity | 10%-90% | |||||||
Material | Aluminum alloy enclosure+High Strength Cold Rolled Steel | |||||||
Bezel Thickness | 10mm bezel | |||||||
IP Rating | IP65 standard seamless front | |||||||
Color | Silver, Black | |||||||
Installation Way | VESA, Embedded, Wall Mount, Desktop optional | |||||||
Certification | CE,FCC,ROHS,ISO | |||||||
Packaging | EPE+Carton (wooden crate for mass order) |
