Application:
Industrial Panel Computer X86 Fanless Touch Panel PC China 19 Inch Wide Input PowerIndustrial Panel Computer X86 Fanless Touch Panel PC China 19 Inch Wide Input PowerIndustrial Panel Computer X86 Fanless Touch Panel PC China 19 Inch Wide Input PowerIndustrial Panel Computer X86 Fanless Touch Panel PC China 19 Inch Wide Input Power

Industrial Panel Computer X86 Fanless Touch Panel PC China 19 Inch Wide Input Power


Model: JWS190-W2

● Display size: 19 inch

● Working temperature: -10°C ~ +60°C

● Anti-vibration standard is up to GB2423

● Resistive & Capacitive touch screen & mouse control

● Anti-surge, Anti-interference, and high-level anti-static industrial motherboard

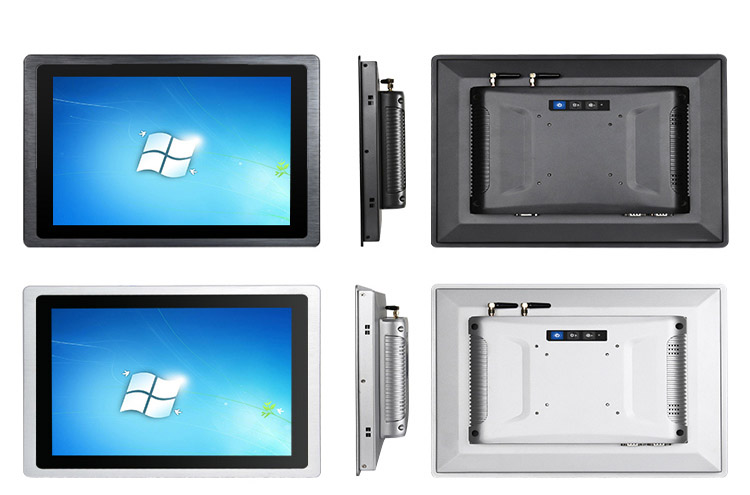

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 19" Industrial Panel Computer Based On X86 Platform Fanless Panel PC


    Model: JWS190-W2


    ● LCD display: 19" TFT monitor, 1280*1024, 5:4 ratio.

    ● Touch screen: Capacitive, resistive, or Non-touch screen.

    ● Processor: Intel J1900/J4125/J6412 Quad-core, and i3/i5/i7 Dual-Core options, 64-Bit, 2.0GHz main frequency,

    ● RAM: 4GB / 8GB DDR3L; 4GB / 8GB /16GB DDR4 options.

    ● Storage: 64GB SSD, 128GB / 1T options.

    OS: Windows 7, Win 8 /10 / 10 Pro, Windows 10 IoT Enterprise, Linux, Ubuntu for optional.

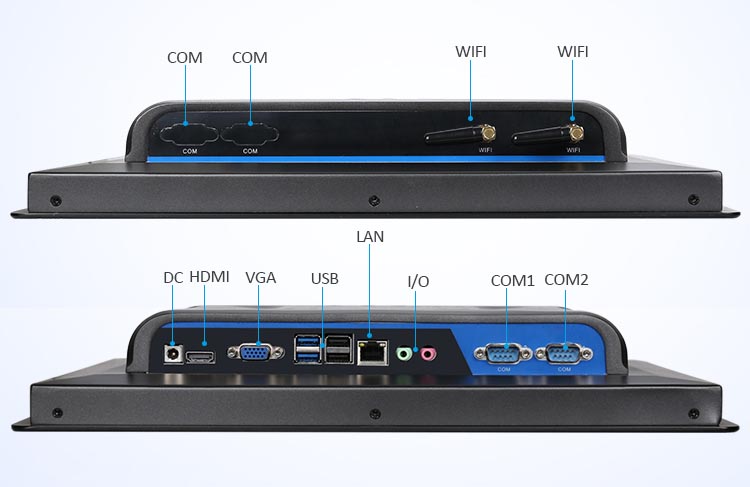

    ● I/O Ports: USB2.0*2, USB3.0*2, LAN*2, VGA*1, HDMI*1, SIM Slot*1, Audio I/O*1,  DC*1, WIFI Antenna*2, GND*1, RS232(DB9)*1, COM Reserved*1(Optional RS232/422/485), 12P Phoenix Terminal (DC*1+RS232*1+RS485*1+GPIO*5), Power Button*1.


    The JWS190-W2 series touch panel PCs are designed for indoor & outdoor applications in hazardous environments. It features an Intel Celeron J1900/J4125/J6412 quad-core, or i3/i5/i7 Core, 2GHz processor to deliver high processing performance. This industrial panel PC also offers flexible and extensible interface options to meet your application demands.


    It supports wide-temperature (-10 to +60°C/-20 to +70°C) operation and comes with a fully seamless, all-in-one, and fanless aluminum alloy enclosure produced for excellent heat dissipation, making it one of the most reliable industrial computers suitable for harsh environments, such as industrial sites, factory production line, outdoor payment & information kiosk and workstations where full of dust and fog, etc.



    Industrial Panel Computer X86 Fanless Touch Panel PC China 19 Inch

    Industrial Panel Computer X86 Fanless Touch Panel PC China 19 Inch

    Industrial Panel Computer X86 Fanless Touch Panel PC China 19 Inch

    Industrial Panel Computer X86 Fanless Touch Panel PC China 19 Inch






  • Display ParametersSize19"
    Resolution1280*1024
    Screen Ratio5:4
    Brightness350 nits (Optional high brightness)
    Contrast Ratio1000:1
    Viewing Angle85°/85°/80°/80° (L/R/U/D)
    Backlight typeLED backlight screen, service life ≥ 50000H
    Touch ScreenCapacitive, Resistive, or Non-touch options






    Motherboard Model SelectionCL-J1900B
    CX-J4125-ACX-J6412CX-12U01
    i3-1215Ui5-1235Ui7-1255U
    System ArchitectureCPUIntel Celeron J1900 Quad-Core 2.0GHzIntel Celeron J4125 Quad-Core 2.0GHzIntel Celeron J6412 Quad-Core 2.0GHzIntel Core i3 1215U 1.2GHzIntel Core i5 1235U 1.3GHzIntel Core i7 1255U 1.7GHz
    ArchitectureIntel Bay TrailIntel Gemini Lake RefreshIntel Elkhart LakeIntel Alder Lake
    GPUIntel HD GraphicsIntel UHD Graphics 600Intel UHD Graphics 16 EUsIntel Iris Xe Graphics 64Intel Iris Xe Graphics 80 Intel Iris Xe Graphics 96
    MemoryDDR3 8GBDDR4 4/8GBDDR4 8/16GBDDR4 32GB
    Storage16GB (optional: 32/64/128/256/512GB)32GB (optional: 64/128/256/512GB, 1T/2T HDD)32GB (optional: 64/128/256/512GB, 1T/2T HDD)64/128GB (optional: 256GB/512GB SSD, 1T/2T HDD)
    SATA1*SATA3.01*SATA3.01*SATA3.01*SATA3.0
    MSATA1*MSATA1*MSATA1*MSATA/
    M.2//1*M.21*M.2
    Operating SystemWin 7/10Win 10/11Win 10/11Win 10/11
    Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04/
    Centos7.4/7.8/7.9; Redhat7.4; Debian11.6Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6/

    NetworkingEthernet2*10M/100M/1000M adaptive Ethernet
    4GSupport
    5G///M.2 5G
    WIFIDual-band 2.4/5GHz
    BluetoothBT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)

    Display FunctionLVDSSupports 1920*1080 60Hz output
    EDPSupports 3840*2160 60Hz outputSupports 4096*2160 60Hz outputSupports 4096*2304 120Hz output
    VGASupports 1920*1080 60Hz output
    HDMISupports 3840*2160 30Hz outputSupports 4096*2160 30Hz outputSupports 4096*2304 60Hz output
    Touch FunctionTouch InterfaceUSBUSBUSBUSB
    I/O PortsUSB 2.0USB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*2 on boardUSB2.0*2 + USB2.0*4 on board
    Type-C///2*type-c
    USB 3.0USB3.0*2USB3.0*2USB3.0*2USB3.0*2 + USB3.0*2 on board (converted by 2*Type-C)
    RS2326*RS232 (one of which is for RS232/RS422/RS485 mutual conversion)
    RS4851*RS232/RS422/RS485 mutual conversion
    RS4221*RS232/RS422/RS485 mutual conversion
    TTL////
    GPIOGPIO*8 (input/output)
    SIM Slot1*SIM Slot + 1*SIM Slot on board
    MINI PCIE1*MINI PCIE1*MINI PCIE1*MINI PCIE/
    Speaker4PIN on board supports 8Ω5WBuilt-in dual-channel 4R/10W or 8R/5W dual-channel power amplifier
    MICSupportSupportSupportSupport
    Audio Port3.5mm earphone jack, support input/output
    I/O Expansion Support






    PowerPower Input12-36V DC12-36V DC12-36V DC12-36V DC
    Adapter24V / 2.5A24V / 2.5A24V / 2.5A24V / 4A

    MechanicalDimension451*380*63mm
    EnclosureAluminum alloy housing
    Cooling SystemFanlessFanlessFanlessFanless

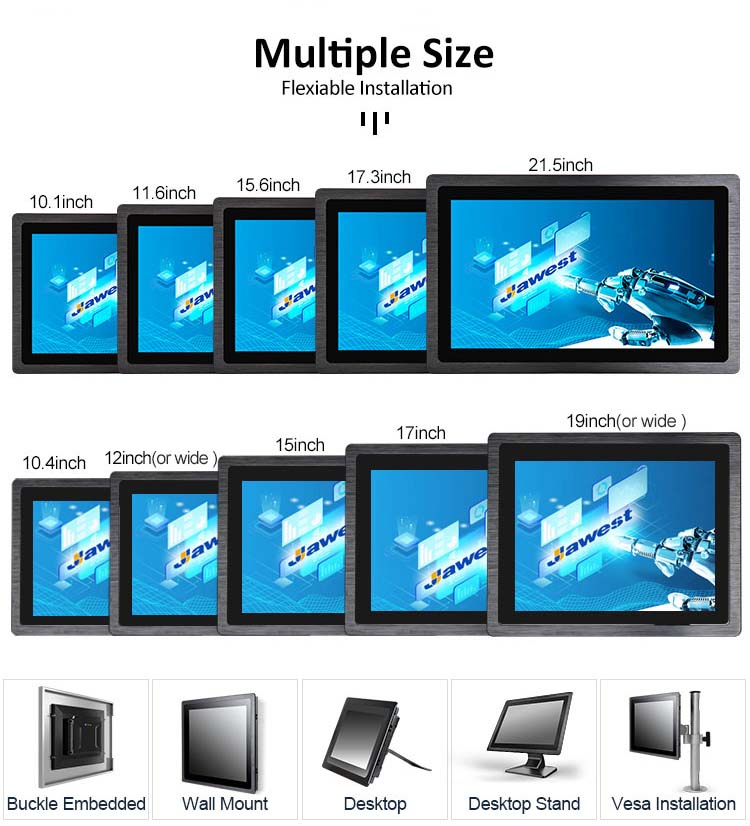

    MountingPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

    Product ReliabilityWorking Temp -10°C ~ 60°C
    Storage Temp -20°C ~ 70°C
    Ambient Humidity 5% - 95% (relative humidity non-condensing)
    IP ratingFront IP65
