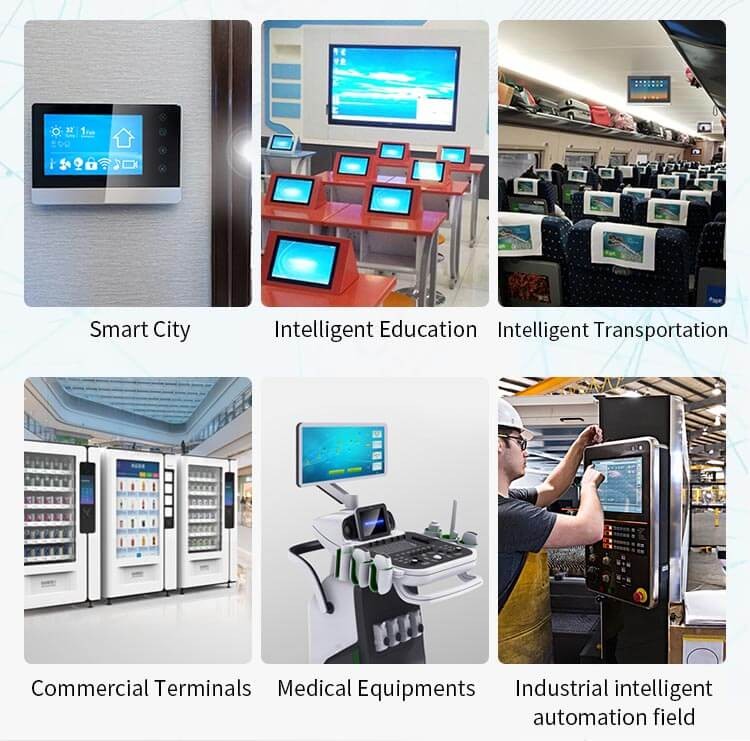

Application:

15 inch Industrial Panel PC With Five Wire Resistive For Dust Workshop

15 inch Industrial Panel PC With Five Wire Resistive For Dust Workshop

Model: JWS150-W42

● Display size: 15-inch, aspect ratio: 4:3, definition: 1024*768

● Windows 7 / 10 / 11 versions optional

● 4/5-wire single-finger resistive touchscreen panel

● IP65-rated dust-proof and water-proof for the front panel

● Working temperature: -10~60°C (14~140°F)

● Fanless design, aluminum alloy housing with anti-corrosion treatment

● Support 7/24 operation in all-weather conditions

● Sunlight readable screen for outdoor devices (up to 1500 nits)

● Thick front bezel, excellent impact resistance in harsh environments

● Functional module customization available: NFC, RFID, IC card, ID card reader optional

● Multi-mounting options: VESA 75/100mm, desktop stand, wall-mounted, and ceiling-mounted.

Appearance of the color

Black

Silver

Description
Parameter
Case

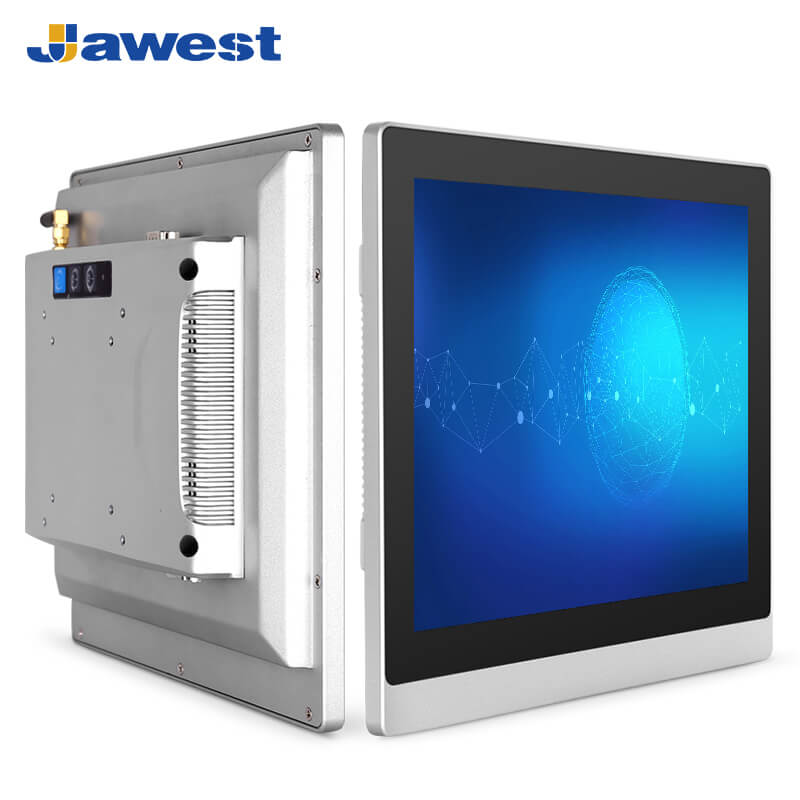

15" Industrial Panel PC with Five Wire Resistive Screen for Dust Workshop

Model: JWS150-W42

Jawest 15-inch industrial fanless panel PCs are equipped with an industrial-grade motherboard, IP65-compliant dust-proof, and water-proof for the front panel. Integrated with J1900, J4125, or J6412 processors. This industrial panel PC comes standard with Windows embedded standard 7 / 10 /11 and an X86 PC-based platform. It is easy to maintain and service, rugged and fanless. It is able to withstand high electromagnetic environments with its standard anti-interference performance, as well as shock resistance and anti-vibration during manufacturing or delivery. Both single-touch and multi-touch screens are available.

Industrial All-in-one Panel PC Features

15" Industrial Panel PC With Five Wire Resistive For Dust Workshop

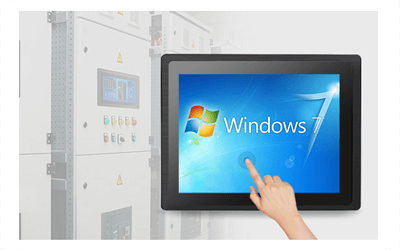

Resistive Touch Screen Panel PC

This industrial panel PC is designed with a single-point resistive touch screen, and is highly resistant to cold temperatures, wet fingers, and dusty conditions, providing excellent reliable performance in harsh environments.

15" Industrial Panel PC With Five Wire Resistive For Dust Workshop

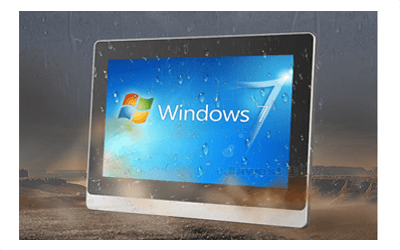

IP65-rating Dustproof & Waterproof True-Flat Panel PC

Seamless front frame design, meet wet and dusty harsh industrial environments.

15" Industrial Panel PC With Five Wire Resistive For Dust Workshop

Meet Industrial-grade Voltage Requirements

High-performance TI power supply management chips designed on the mainboard to meet wide voltage operation requirements.

Resistive Touch Panel PC - Product Model Fast Guide

Product Models	LCD Displays	Resolution	Aspect Ratio	Touch Screens Types	Get A Quote Now
JWS070-W-QD	7"	1024*600	16:9	Capacitive / Resistive / Non-touch	Inquiry
JWS080-W-QD	8"	1024*768	4:3	Capacitive / Resistive / Non-touch	Inquiry
JWS101-W4	10.1"	1280*800	16:10	Capacitive / Resistive / Non-touch	Inquiry
JWS104-W4	10.4"	1024*768	4:3	Capacitive / Resistive / Non-touch	Inquiry
JWS116-W4	11.6"	1920*1080	16:9	Capacitive / Resistive / Non-touch	Inquiry
JWS120-W4	12"	1024*768	4:3	Capacitive / Resistive / Non-touch	Inquiry
JWS150-W4	15"	1024*768	4:3	Capacitive / Resistive / Non-touch	Inquiry
JWS156-W4	15.6"	1920*1080	16:9	Capacitive / Resistive / Non-touch	Inquiry
JWS170-W4	17"	1280*1024	5:4	Capacitive / Resistive / Non-touch	Inquiry
JWS173-W4	17.3"	1920*1080	16:9	Capacitive / Resistive / Non-touch	Inquiry
JWS190-W4	19"	1280*1024	5:4	Capacitive / Resistive / Non-touch	Inquiry
JWS191-W4	19.1"	1440*900	16:10	Capacitive / Resistive / Non-touch	Inquiry
JWS215-W4	21.5"	1920*1080	16:9	Capacitive / Resistive / Non-touch	Inquiry
JWS238-W2	23.8"	1920*1080	16:9	Capacitive / Resistive / Non-touch	Inquiry

Screen
Model	JWS150-W42
Size	15 inch
Aspect Ratio	4:3
Resolution	1024*768
Contrast	1000:1
Luminance	350 Nits (High brightness screen for optional)
Display Colors	16.7M
Response Time	5ms
View Angle	89/89/89/89
Touch Screen	4/5 wire resistive touchscreen (10-point capacitive touchscreen, and Non-touch for optional)
Panel Type	Industrial LCD panel A, A+ Grade quality
Motherboard Configuration Options	CX-J1900	CX-J4125-A	CX-J6412
CPU	Intel Celeron J1900	Intel Celeron J4125	Intel Celeron J6412
GPU	Intel HD Graphics	Intel UHD Graphics 600	Intel UHD Graphics 16 EUs
Architecture	Intel Bay Trail	Intel Gemini Lake Refresh	Intel Elkhart Lake
Inner memory	4GB DDR3 RAM ( 8GB options)	8GB LPDDR4 (16GB options)	8GB LPDDR4 (16GB options)
Storage	64GB SSD (128/256GB SSD, 500G HDD options)	256GB SSD (512GB SSD, 1T/2T HDD options)	128GB SSD (256/512 GB SSD, 1T/2T HDD options)
Operating System	Windows 7/10	Windows 10/11	Windows 10/11
	Ubuntu 14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04	Ubuntu 14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04	Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04
	CentOS 7.4/7.8/7.9	CentOS 7.8/8.4/7.9	CentOS 7.8/8.4/7.9
	Redhat 7.4	Redhat 7.4	Redhat 7.4
	Debian 11.6	Debian 10.0/11.6	Debian 10.0/11.6

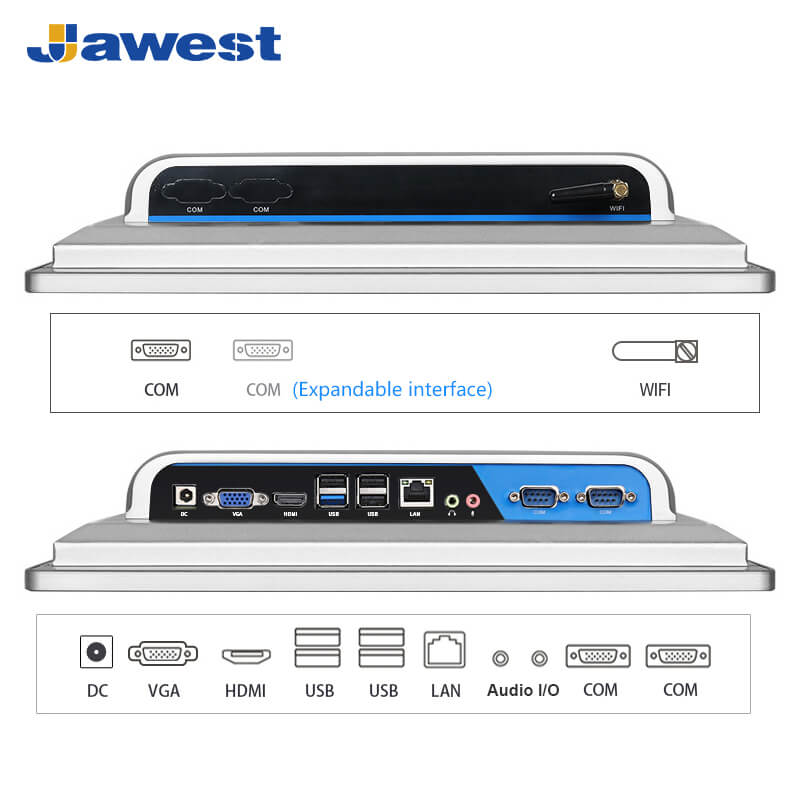

I/O Ports
Power Port	1*DC port, support 12V-36V wide voltage operation	1*DC port, support 12V-36V wide voltage operation	1*DC port, support 12V-36V wide voltage operation
USB Port	2USB2.0, 2USB3.0	2USB2.0, 2USB3.0	2USB2.0, 2USB3.0
Network Port	1*LAN, 10M/100M/1000M adaptive Ethernet	2*LAN, 10M/100M/1000M adaptive Ethernet	2*LAN, 10M/100M/1000M adaptive Ethernet
HDMI	1*HDMI, support HDMI data output, up to 4K	1*HDMI, support HDMI data output, up to 4K	1*HDMI, support HDMI data output, up to 4K
VGA	1*VGA	1*VGA	1*VGA
Serial Port	2*RS232	2*RS232	1*RS232
WiFi Antenna	2*WiFi Antenna	2*WiFi Antenna	2*WiFi Antenna
SIM Slot	1*SIM Slot	1*SIM Slot	1*SIM Slot
Audio I/O	1*Audio I/O	1*Audio I/O	1*Audio I/O
Phoenix Terminal	/	/	112P Phoenix Terminal ((Power supply/1RS232/1RS485/5GPIO)
Power Button	1*Power Button	1*Power Button	1*Power Button
Grounding	1*GND	1*GND	1*GND
Power
Power Input	DC 12~36V	DC 12~36V	DC 12~36V
Standby Power	18W	18W	18W
Reliability
Operation Temperature	-10°C~60°C
Storage Temperature	-20°C~70°C
Operation Humidity	10%~80%
Storage Humidity	10%~90%
Material	Aluminum alloy enclosure+High Strength Cold Rolled Steel
Bezel Thickness	10mm bezel
IP Rating	IP65 standard seamless front
Certification	CE, FCC, ROHS, ISO9001

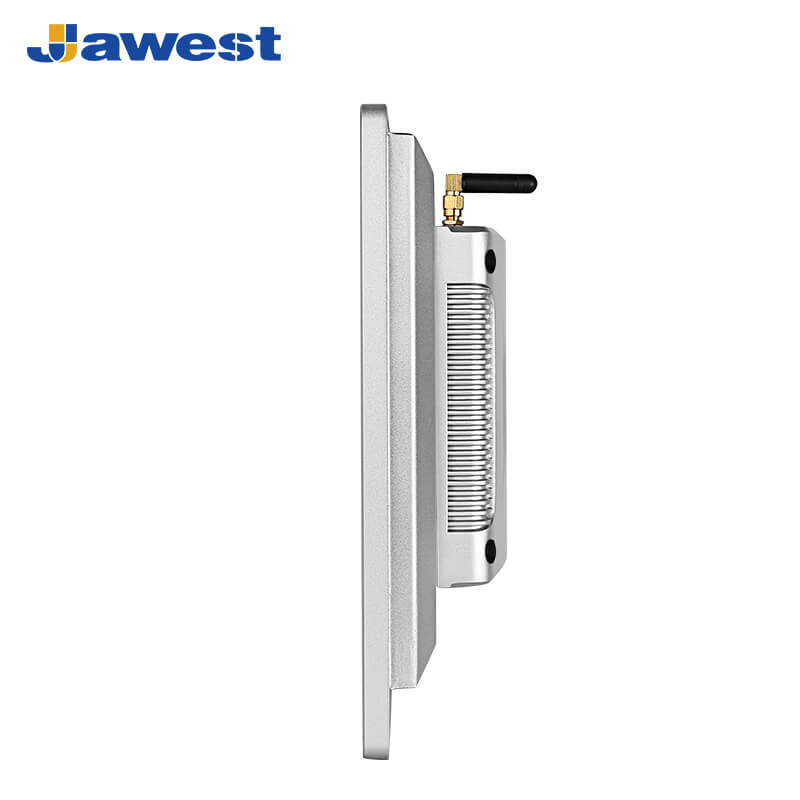

Mechanical
Dimension	350.5296.459.7mm
Color	Silver, Black

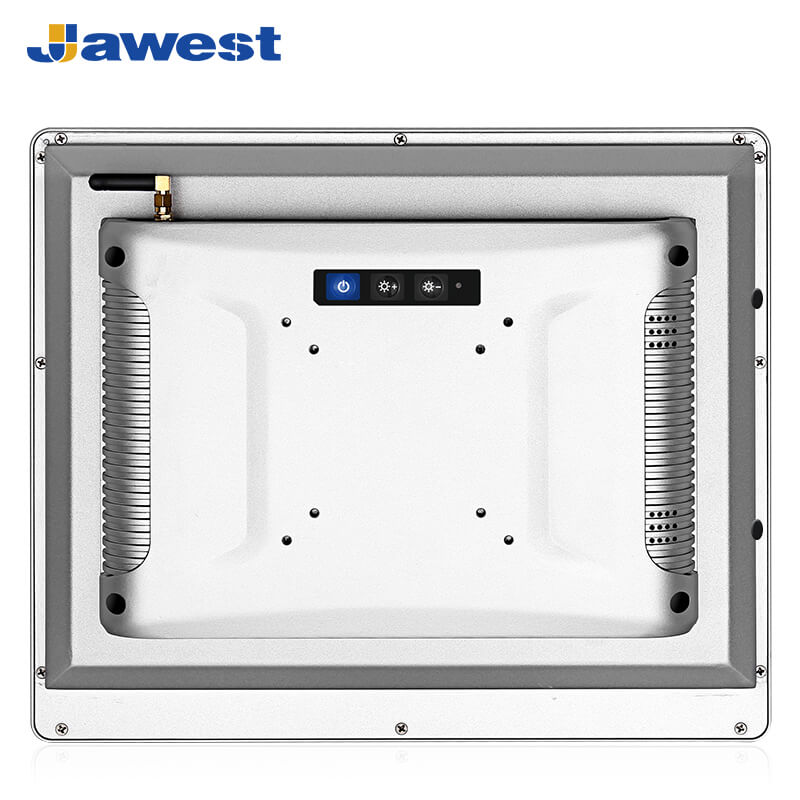

Installation Options	VESA, Wall-mounted, Desktop stand, ceiling-mounted.
Packaging	EPE+Carton (wooden crate for mass order)
