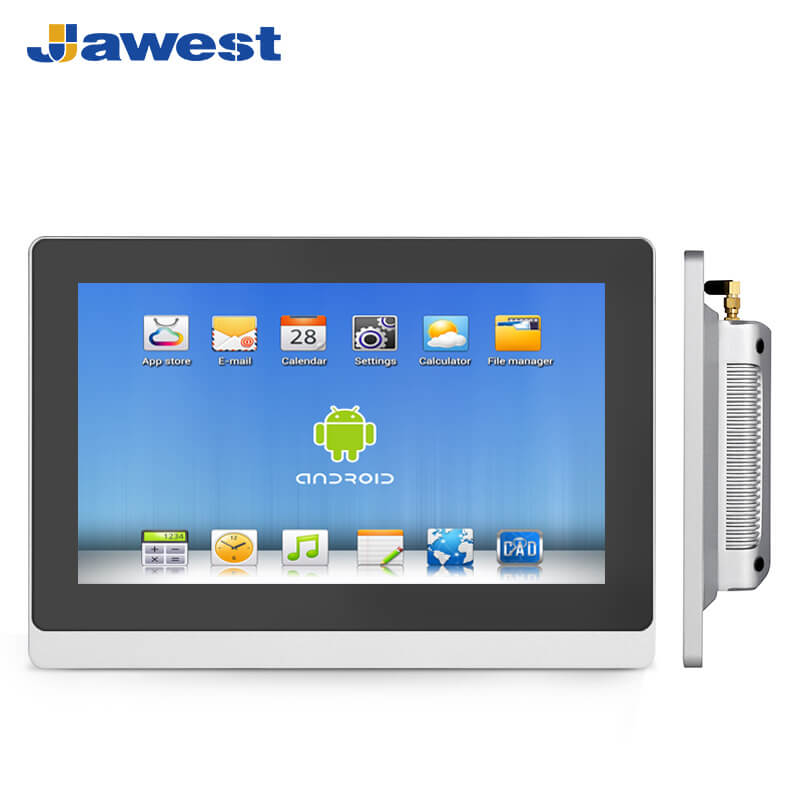

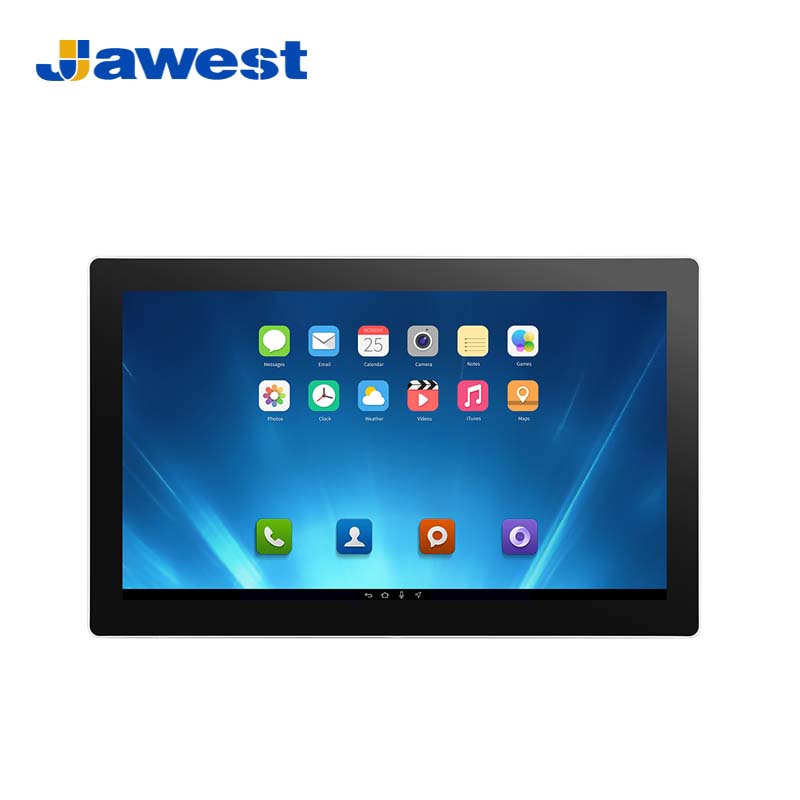

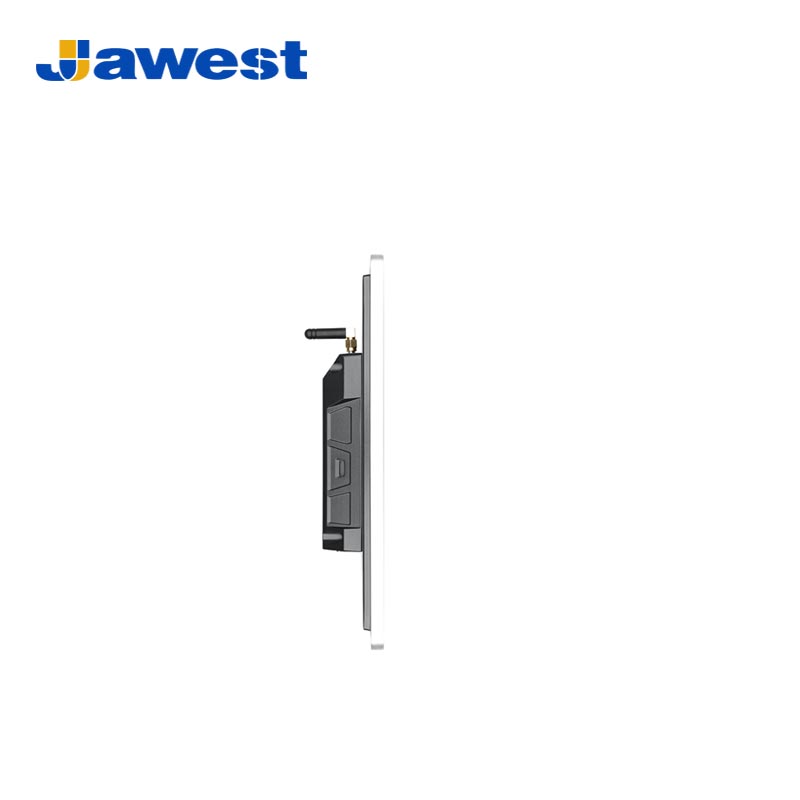

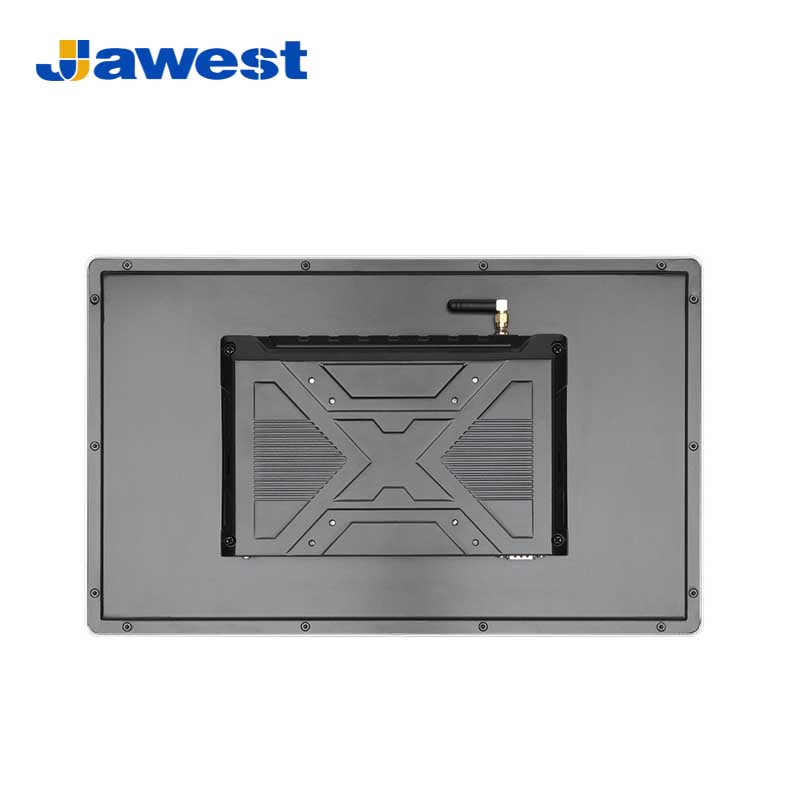

15.6 Inch Android Panel PC 1080P HD Durable Fanless Design with VESA Wall Mount

15.6 Inch Android Panel PC 1080P HD Durable Fanless Design with VESA Wall Mount

Model: JWS156-A29

● Display size: 15.6 inch.

● Flat design, elegant appearance.

● IP65 rating of dustproof and waterproof.

● Processors options: RK3288, RK3399, RK3568, RK3588 for optional.

● Multiple installation: desktop / wall-hanging / VESA / ceiling-mounted.

● Sensitive touch screen, precise positioning, free control.

Appearance of the color

Black

Silver

Description
Parameter
Case

15.6 Inch Android Panel PC 1080P HD Durable Fanless Design with VESA Wall Mount

Model: JWS156-A29

The 15.6 Inch Android Panel PC combines a 1080P Full HD display with a durable, fanless design to deliver reliable performance in industrial, commercial, and public environments. Powered by the Android operating system, this all-in-one touchscreen computer offers smooth operation and easy integration with automation software, kiosks, and IoT platforms. Its VESA wall-mount compatibility provides flexible installation for factories, retail spaces, control rooms, and interactive digital signage. Built with industrial-grade components, multiple I/O ports, and wide operating temperature support, this Android panel PC ensures long-term stability and efficient operation for demanding 24/7 applications.


Display Parameters	Size	15.6"
	Resolution	1920*1080
	Screen Ratio	16:9
	Brightness	300 nits (Optional high brightness)
	Contrast Ratio	800:1
	Viewing Angle	85°/85°/85°/85° (L/R/U/D)
	Backlight type	LED backlight screen, service life ≥ 50000H
	Touch Screen	Capacitive (Resistive, or Non-touch options)

Motherboard Model Selection		JWS64	JWS3288-I	JWS3399-MAIN-L	CX3399-A	CX3568-A	CX3588-A
System Architecture	CPU	A64 Quad-Core 1.5GHz	RK3288 Quad-Core 1.8GHz	RK3399 Six-Core 2.0GHz	RK3399 Six-Core 2.0GHz	RK3568 Quad-Core 2.0GHz	RK3588 Octa-Core 2.1GHz
	Core Architecture	Cortex-A53	Cortex-A17	Dual-Core Cortex-A72 + Quad-Core Cortex-A53	Dual-Core Cortex-A72 + Quad-Core Cortex-A53	Cortex-A55	Quad-Core Cortex-A76 + Quad-Core Cortex-A55
	GPU	Mali-T764	Mali-T764	Mali-T860 MP4	Mali-T860 MP4	Mali-G52 2EE	Mali G610 MP4
	Memory (DDR)	2GB (8GB optional)	2GB (4GB optional)	4GB	2/4GB	2GB (4/8GB optional)	4GB (8/32GB optional)
	Storage (eMMC)	16GB (32/64GB optional)	16GB (32/64/128/256GB optional)	32GB (64GB optional)	32/64GB (256GB optional)	32GB (64/128/256GB optional)	64GB (128/256GB optional)
	SATA	/	/	/	/	Support	/
	Operating System	Android 6.0	Android 7.1 / 10.0	Android 7.1 / 9.0 / 11	Android 7.1 / 9.0 / 11	Android 12/14	Android 13.0
		/	Linux 4.4	Linux 4.4	Linux 4.4	Linux 5.10	Linux 5.10
		/	Ubuntu 18.04	Ubuntu 18.04	Ubuntu 18.04	Ubuntu 20.04	Ubuntu 20.04
		/	Debian 10.0	Debian 10.0	Debian 10.0	Debian 11.0	Debian 11.0

Networking	Ethernet	1*10M/100M/1000M adaptive Ethernet					1Gigabit Ethernet + 1100 Mbit Ethernet
	4G	Optional. Based on the 4G module selection
	5G	/	/	/	/	/	/
	WIFI	2.4G	Dual-band 2.4/5G	Dual-band 2.4/5G	Dual-band 2.4/5G	WIFI6, 2.4G	WIFI6, Dual-band 2.4/5G
	Bluetooth	BT5.0	BT5.0	BT5.0	BT5.0	BT5.2	BT5.0

Touch Function	Touch Interface	USB/IIC	USB	USB/IIC

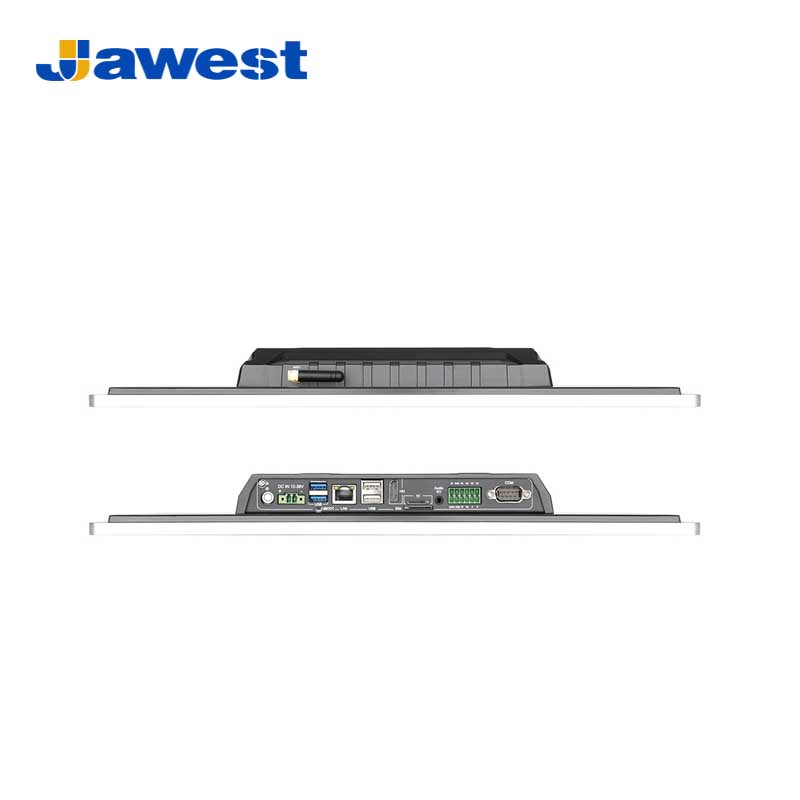

I/O Ports	USB	1USB HOST, 1USB OTG	1USB HOST, 1USB OTG	1USB HOST, 1USB OTG	1USB, 1OTG	2*USB3.0	1USB, 1OTG
	HDMI	1*HDMI, up to 4K	1*HDMI, up to 4K	1*HDMI, up to 4K	1*HDMI, up to 4K	1*HDMI, up to 4K	1*HDMI, up to 4K
	LAN	1*LAN	1*LAN	1*LAN	1*LAN	1*LAN	2*LAN
	DC	1*DC2.1	1*DC2.1	1*DC2.1	1*DC2.1	1*DC2.1	1*DC2.1
	COM	2RS232+2Reserved holes			1RS232+1Reserved hole
	TF/SIM	1* TF/SIM slot	1*TF/SIM slot	1*TF/SIM slot	1*TF/SIM slot	1*TF/SIM slot	1*TF/SIM slot
	WiFi Antenna	1*WiFi Antenna	1*WiFi Antenna	1WiFi Antenna+1Reserved hole
	Audio I/O	1*3.5mm Earphone Jack
	Reset Button	1*UBOOT	1*UBOOT	1*UBOOT	1*UBOOT	1*UBOOT	1*UBOOT
	GND	1*GND	1*GND	1*GND	1*GND	1*GND	1*GND
	MICRO OTG	1*MICRO OTG	/	/	/	/	/
	1*12P Phoenix Terminal	/	/	/	1*DC	1*DC	1*DC
		/	/	/	1*RS232	1*RS232	1*RS232
		/	/	/	1*RS485	1*RS485	1*RS485
		/	/	/	1*TTL	1*CAN	1*CAN
		/	/	/	3*GPIO	3*GPIO	3*GPIO
	I/O Expansion	Support

Power	Power Input	12V DC	12V DC	12-36V DC	12-36V DC	12-36V DC	12-36V DC
Power	Adapter	12V / 4A	12V / 4A	24V / 2.5A	24V / 2.5A	24V / 2.5A	24V / 2.5A

Mechanical	Enclosure	Aluminum alloy housing

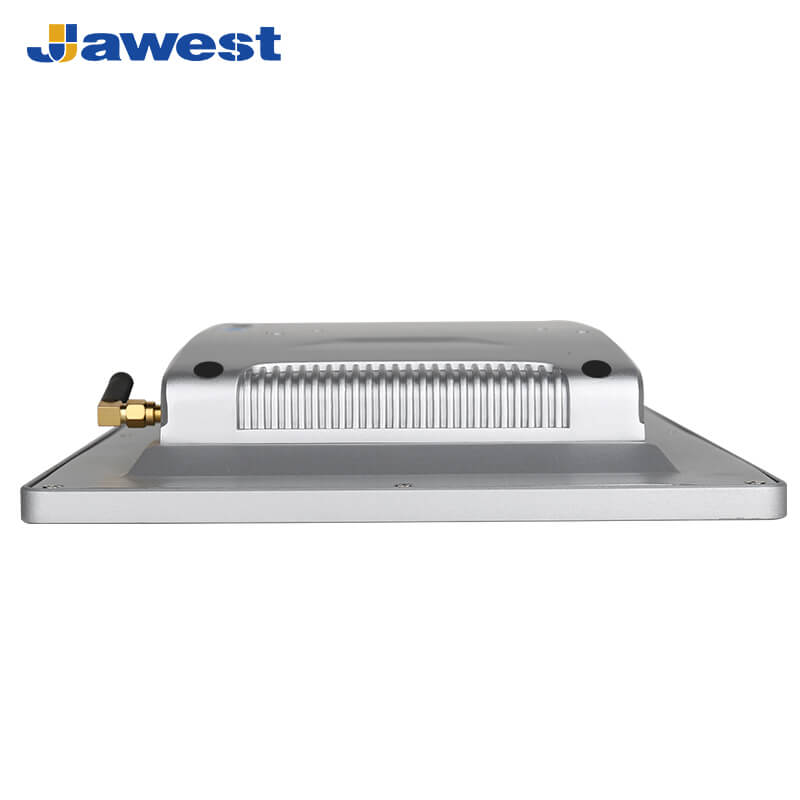

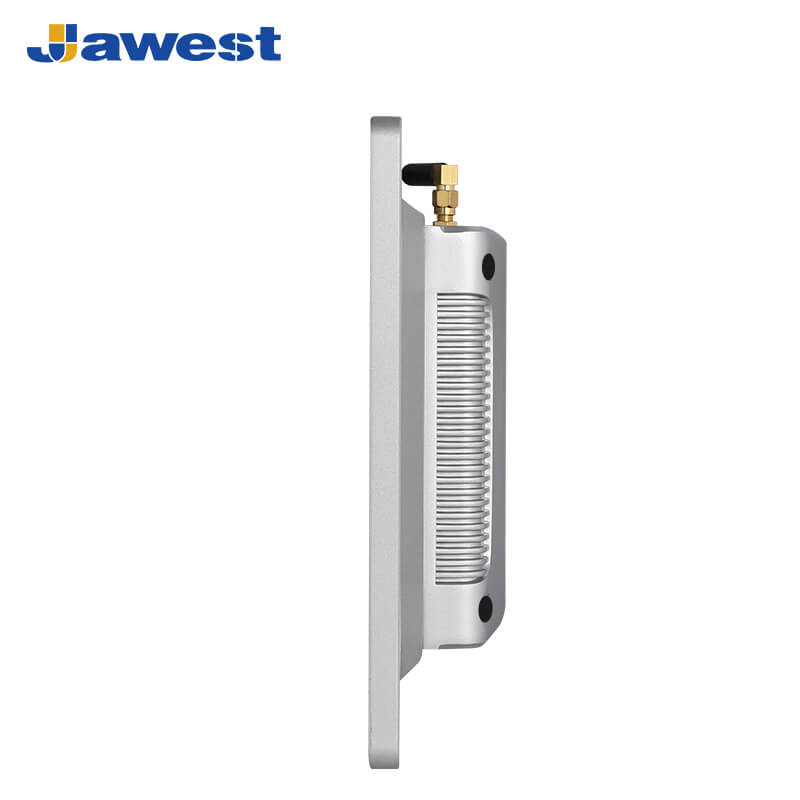

	Cooling System	Fanless

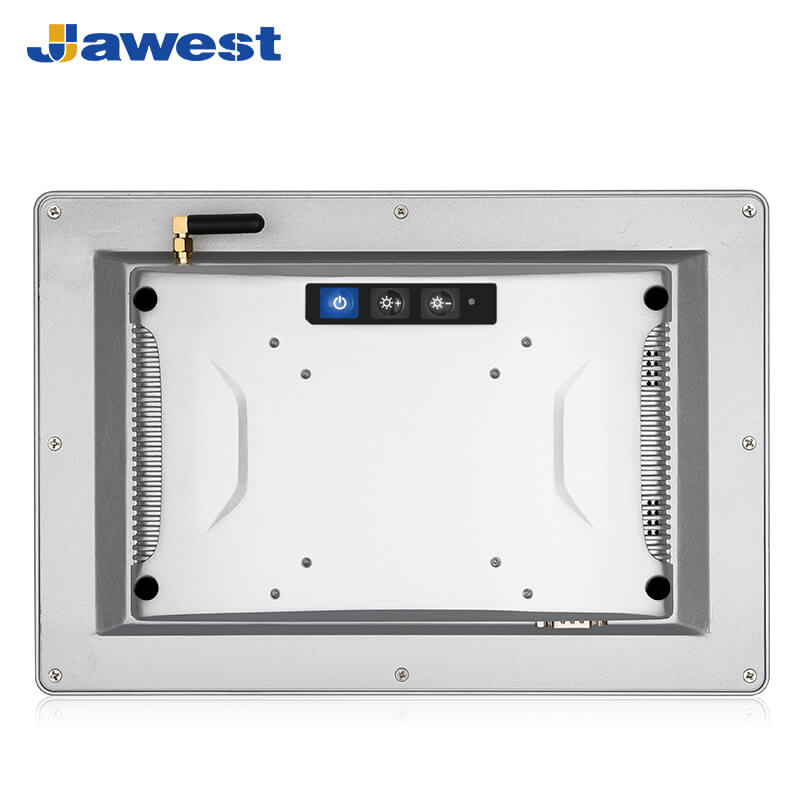

	Mounting	Desk stand, wall-hanging, VESA75/100mm, etc.

Product Reliability	Working Temp	-10°C ~ 60°C
	Storage Temp	-20°C ~ 70°C
	Ambient Humidity	5% - 95% (relative humidity non-condensing)
	IP rating	Front IP65
