● Display size: 17 inch
● Flat design, elegant appearance
● IP65 rating of dust-proof and waterproof for front panel
● Multiple installation: desktop / wall / fold / embedded / open frame
All aluminum alloy material drawing process shows elegant look
● Ultra-sensitive touch screen, precise positioning, free control
● 365 * 24hr uninterrupted operation
● Aluminum alloy with good electrical conductivity, corrosion resistance
● Support external interfaces expansion for applying to multiple applications
● Support customization service

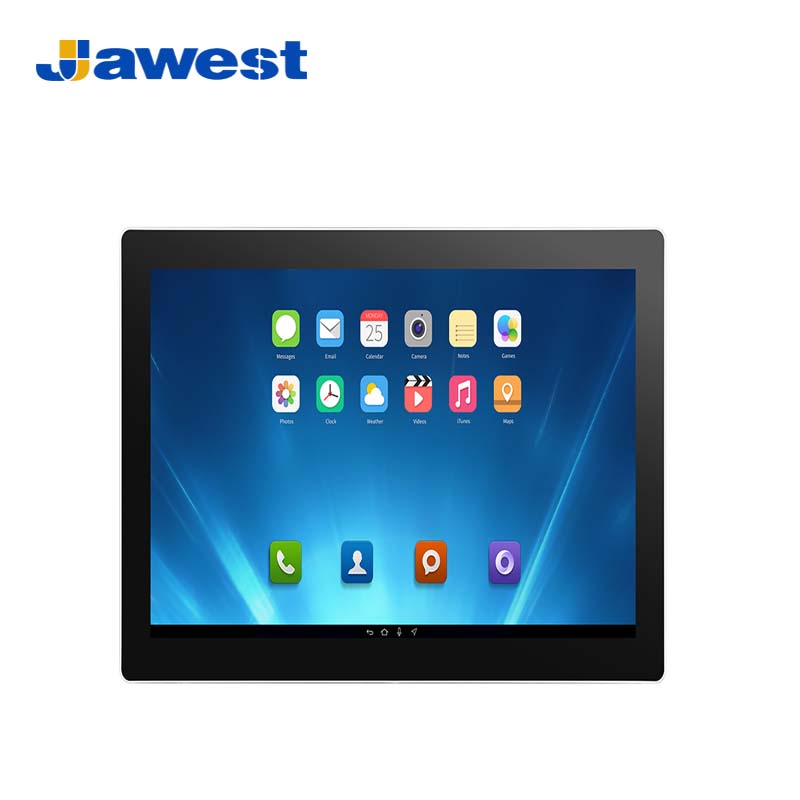

17 Inch PCAP Touch Panel PC with RFID or NFC Reader
Jawest introduces a serie of industrial Android all-in-one tablet PCs with multiple functional module such as built-in
card readers like ID card, RFID, IC card, NFC, face recognition, fingerprint collection. These aspects of functional
modules makes the all-in-one panel PCs series applys to access control and security system for residential, indus-
trial, financial, commercial, educational and government institutions. With fanless heating-dissipation design, all in-
ner components are well-protected during long-time operation. It offer PCAP touch panel PC or resistive touch
screen.
10mm bezel aluminum Android Panel PC datasheet | |||||||
Size | 17 inch | ||||||
Display | |||||||
Panel Type | Industrial LCD panel A, A+ grade | ||||||
Aspect Ratio | 4:3 | ||||||
Resolution | 1280*1024 | ||||||
Contrast | 1000:1 | ||||||
Luminance | 300 ~ 1500 nit | ||||||
Response time | 5ms | ||||||
Active Area (mm) | 337.92*270.336 | ||||||
Display colors | 16.7M(8-bit) | ||||||
View angle | 80/80/80/80 | ||||||
PC Configuration | |||||||
CPU | Android Rockchip RK3188 SOC Quad-core ARM Cortex-A9 1.6GHz | ||||||
GPU | Mail-400 533MHz | ||||||
Inner memory | 2G DDR3 RAM | ||||||
Storage | eMMC 8G,can expandable to 32G by TF/SD card | ||||||
WIFI | Built-in wifi module, 802.11a/b/g/n | ||||||
Bluetooth | Built-in bluetooth module | ||||||
Functions requirements | Built-in 3G/4G/GPS/USB Camera (optional) | ||||||
Touch Screen | 10-point capacitive touch screen, and non-touch for optional | ||||||
Operating System | Pre-installed Android 6.0 OS | ||||||
Support multi-language | English,French,Spanish,Portuguese,Russian,Arabic,Chinese,etc | ||||||
Google play service | Support Google play service | ||||||
Pre-installed App | Google market,Email,Gmail,Google talk | ||||||

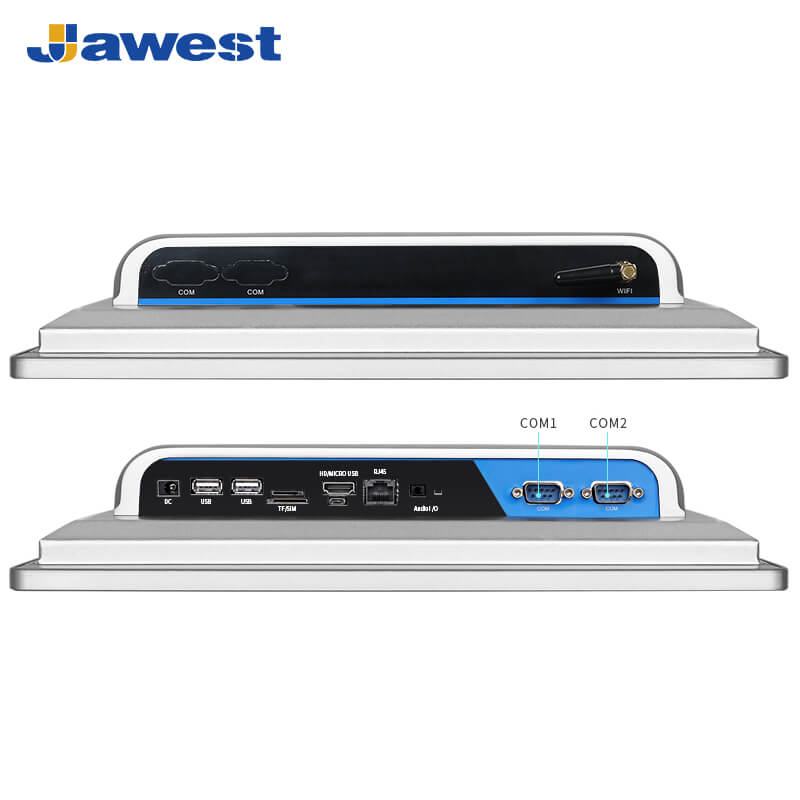

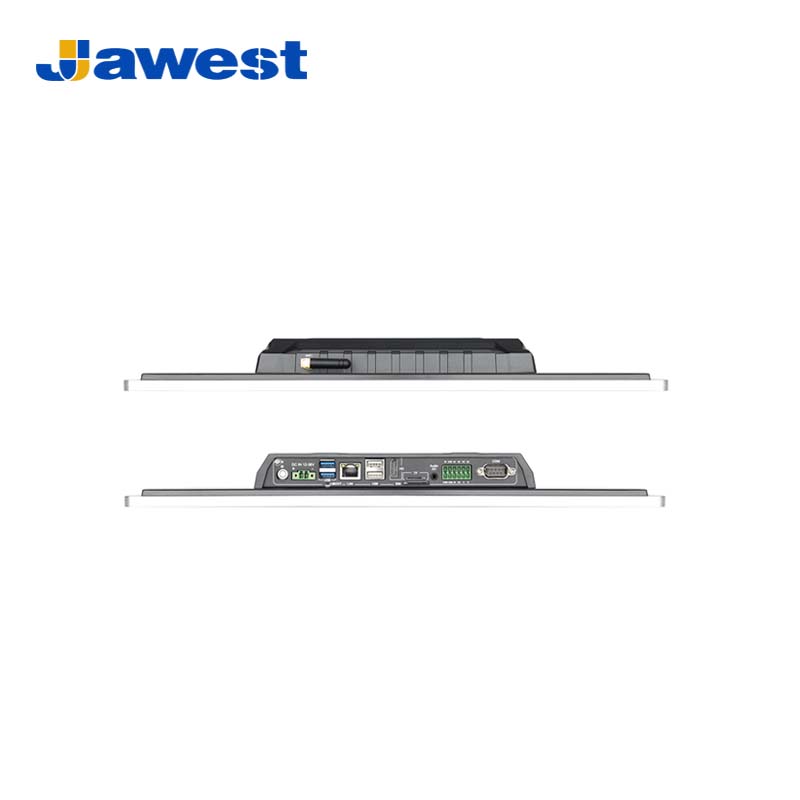

I/O ports | 1*12V ATX input, 1*SIM card slot, 1*TF/SD card slot, 1*HDMI, 2*USB port, 1*RJ-45 network interface, 1*3.5mm Audio output interface, 2*com (Serial port), 1*mini USB port for re-flash/upgrading firmware | ||||||
Material | Aluminum alloy enclosure | ||||||

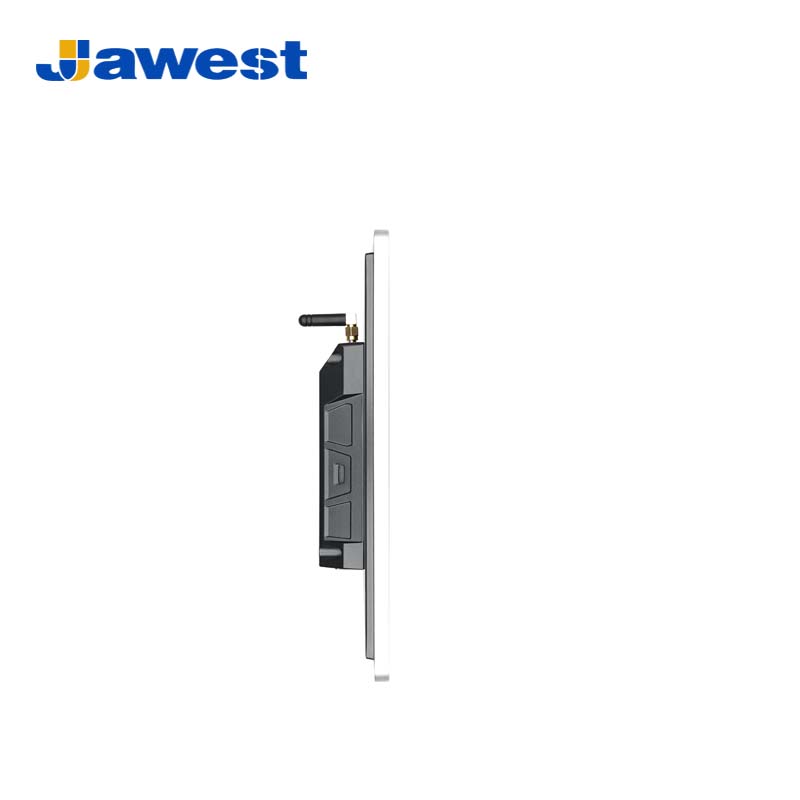

Bezel thickness | 10mm bezel | ||||||
IP rating | IP65 for front panel | ||||||
Color | Silver, black , other colors can be customized | ||||||

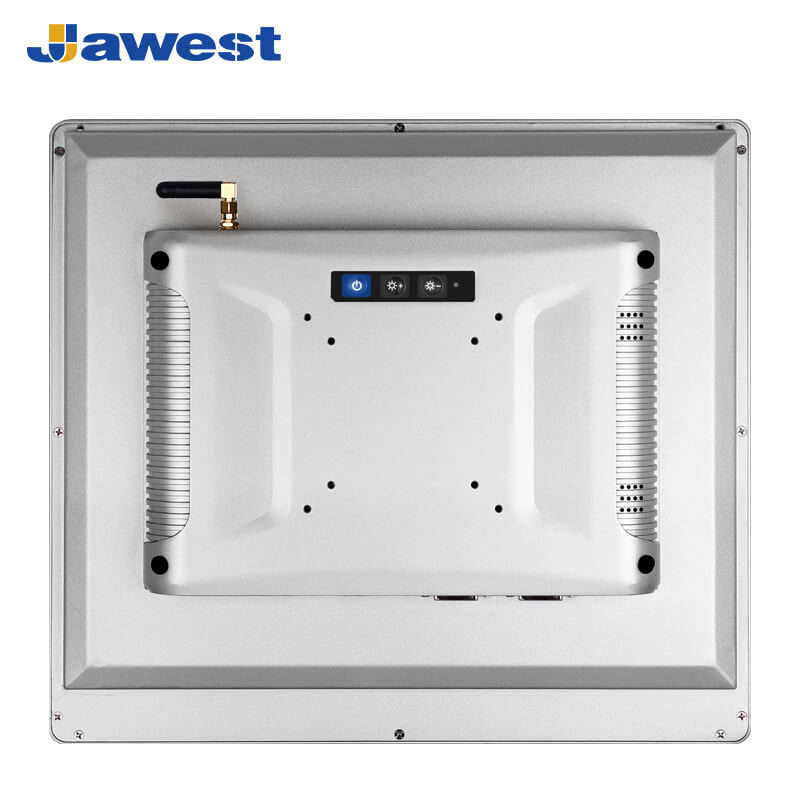

Installation method | VESA, Embedded, Wall Mount, Desktop optional | ||||||
Certificates | CE,CCC,ISO,FCC,ROHS | ||||||
Packaging | EPE+Carton (wooden crate for mass order) |
