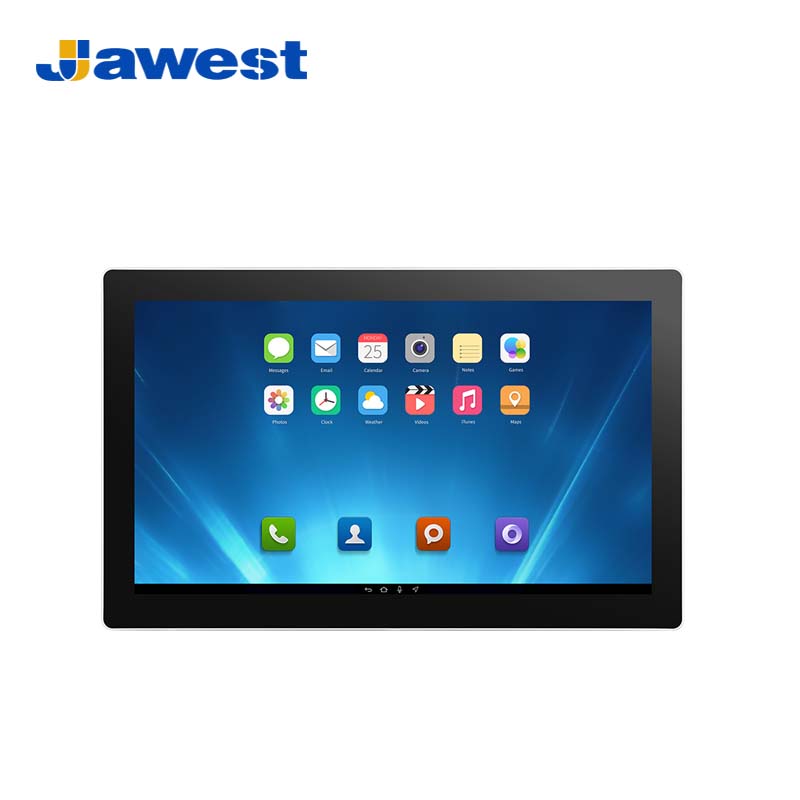

17.3 Inch RFID Touch Screen Panel PC with Camera

17.3 Inch RFID Touch Screen Panel PC with Camera

Model: JWS173-A41

● Display size: 17.3 inch.

● Full-seamless panel design with IP65 grade dust-proof and waterproof.

● Rugged Aluminum alloy housing, perfect efficiency for heat-dissipation.

● Supports high nit, sunlight readable screen.

● Supports Google Play service.

● Supports wall-mounted, desktop mount, VESA, etc.

● Supports functional modules custom: NFC, IC card reader, RFID, Camera, etc.

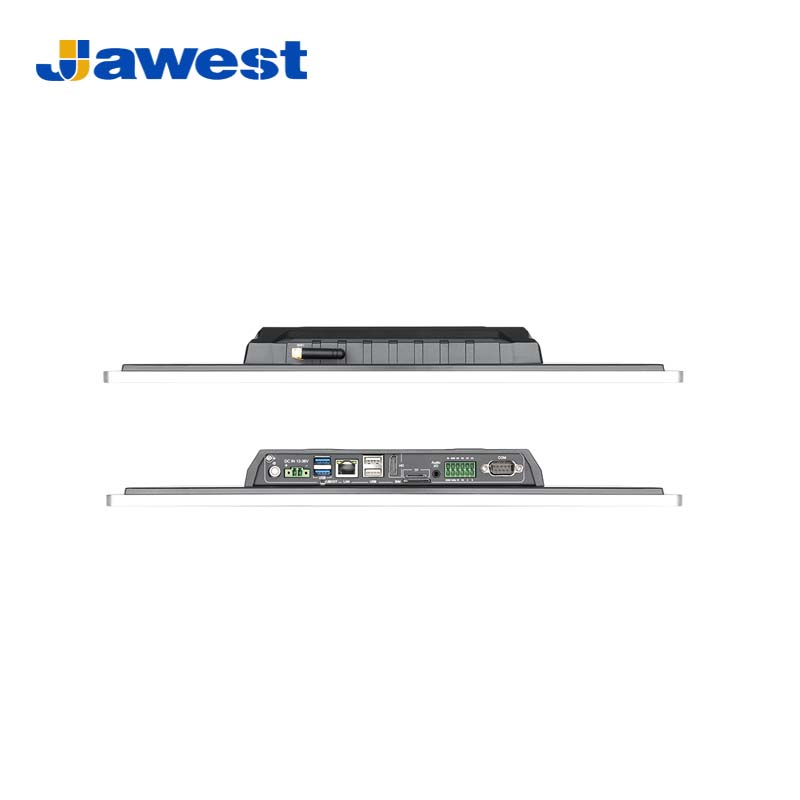

● Standard ports: DC 12~36V, HDMI*1, USB3.0*2, LAN*1, SIM/TF slots, Audio I/O, COM*1, WIFI antenna connector*1, 12P Phoenix Terminal*1, GND*1.

Appearance of the color

Black

Silver

Description
Parameter
Case

17.3 Inch RFID Touch Screen Panel PC with Camera

Model: JWS173-A41

Jawest 17.3 inch Android all-in-one tablet PCs are designed to provide high-quality images, pictures, and advanced features for reliable operation in any commercial self-service vending equipment, community access control, and security for many years. The unique streamlined design with a 10mm bezel makes installation a snap. Options like types of touch screens and AC or DC or power input make these all-in-one PCs highly versatile.

Backed by standard industrial certifications, 3rd-party environmental testing, and a trustworthy before and after-sales service system. Jawest is the most reliable cooperator and supplier for your business of industrial automation, artificial intelligence, commercial terminal devices, and medical projects.

17.3 Inch RFID Touch Screen Panel PC with Camera

10mm bezel aluminum Android Panel PC datasheet
Display
Display Size	17.3 inch
Panel Type	Industrial LCD panel A, A+ grade
Aspect Ratio	16:9
Resolution	1920*1080
Contrast	800:1
Luminance	400 Nits, support upgrade to high brightness screen
Response time	5ms
Active Area (mm)	381.888*214.812
Display colors	16.7M(8-bit)
View angle	85°/85°/60°/80° (L/R/U/D)
Configuration
Motherboard Model Selection	JWS64	JWS3288-I	JWS3399-MAIN-L	CX3399-A	CX3568-A	CX3588-A
CPU	A64 Quad-Core 1.5GHz	RK3288 Quad-Core 1.8GHz	RK3399 Six-Core 2.0GHz	RK3399 Six-Core 2.0GHz	RK3568 Quad-Core 2.0GHz	RK3588 Octa-Core 2.1GHz
Core Architecture	Cortex-A53	Cortex-A17	Dual-Core Cortex-A72 + Quad-Core Cortex-A53	Dual-Core Cortex-A72 + Quad-Core Cortex-A53	Cortex-A55	Quad-Core Cortex-A76 + Quad-Core Cortex-A55
GPU	Mali-T764	Mali-T764	Mali-T860	Mali-T860	Mali-G52 2EE	Mali G610 MP4
Inner Memory	2GB (8GB optional)	2GB (4GB optional)	4GB	2/4GB	2GB (4/8GB optional)	4GB (8/32GB optional)
Storage	16GB (32/64GB optional)	16GB (32/64/128/256GB optional)	32GB (64GB optional)	32/64GB (256GB optional)	32GB (64/128/256GB optional)	64GB (128/256GB optional)
WIFI	2.4G	Dual-band 2.4/5G	Dual-band 2.4/5G	Dual-band 2.4/5G	WIFI6, 2.4G	WIFI6, Dual-band 2.4/5G
Bluetooth	BT5.0	BT5.0	BT5.0	BT5.0	BT5.2	BT5.0
Functions requirements	Built-in 3G/4G/GPS/USB Camera (optional)

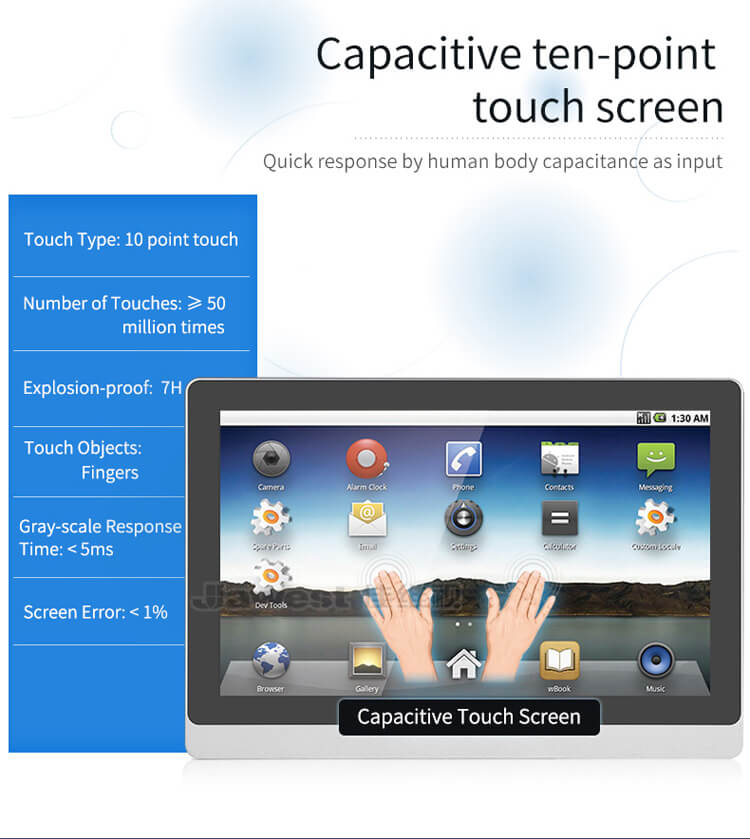

Touch Screen	10-point capacitive touchscreen
Operating System	Pre-installed Android OS
Support multi-language	English, French, Spanish, Portuguese, Russian, Arabic, Chinese, etc
Google Play service	Support Google Play service
Pre-installed App	Google Market, Email, Gmail, Google Talk, etc.
I/O ports	112V ATX input, 1SIM card slot, 1TF/SD card slot, 1HDMI, 2USB port, 1RJ-45 network interface, 13.5mm Audio output interface, 2com (Serial port), 1*mini USB port for re-flash/upgrading firmware
Material	Aluminum alloy enclosure
Bezel thickness	10mm bezel
IP rating	IP65 for the front panel
Color	Silver, black, and other colors can be customized

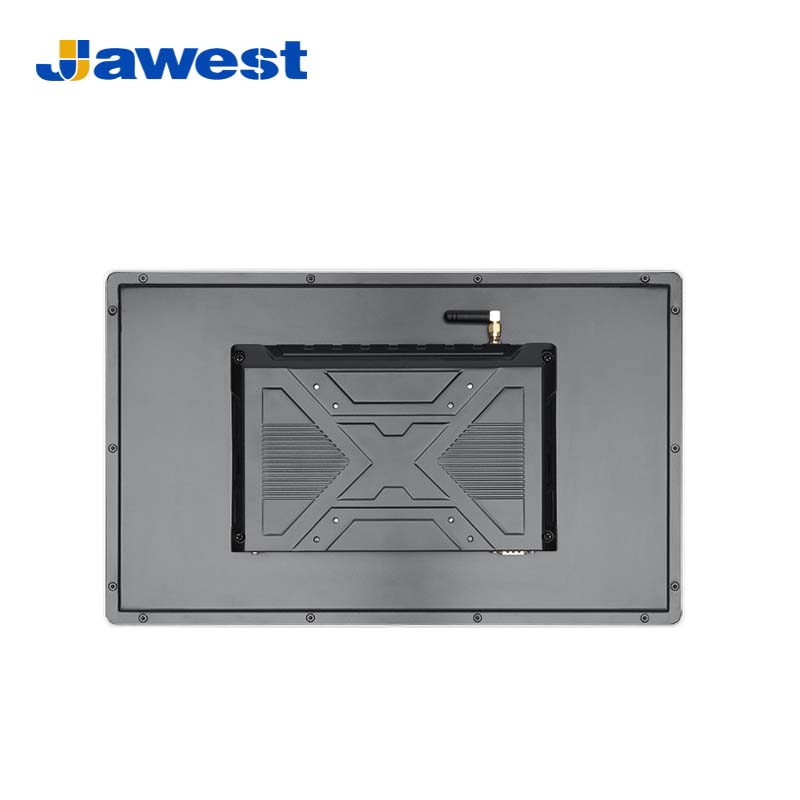

Installation method	VESA, Wall Mount, Desktop optional
Certificates	CE, CCC, ISO, FCC, ROHS
Packaging	EPE+Carton (wooden crate for mass order)
