● Display size: 10.1-inch.
● High level anti-static.
● High quality industrial LCD panel.
● Working temperature:-10-60°C.
● Industrial grade display chip.
● 10mm bezel Aluminum touch monitor.
● 365 days*24 hours all-weather running.
● IP65 grade dust-proof and water proof.

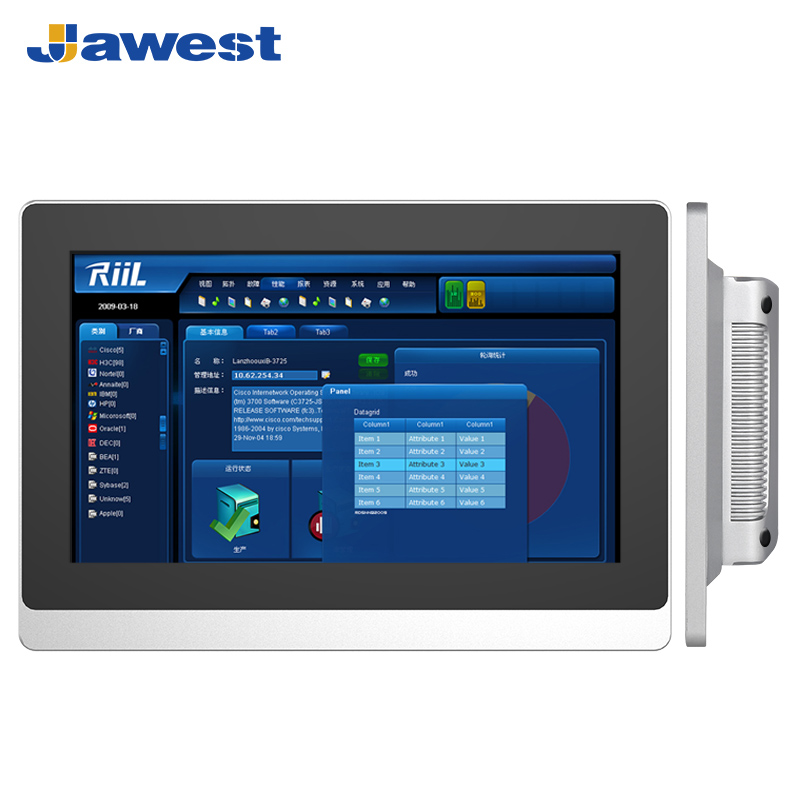

Resistive Touch Monitor Sunlight Readable 10.1 Inch
It is the Jawest 4th edition of touch screen monitor features a zero-bezel design, eliminating
the frame found on the traditional monitor and creating a smooth, seamless, and easy-to-clean
screen. sets industrial all-aluminum alloy housing true-flat touch screen technology. Offer larger
screen size from 10.1" to 21.5" and higher resolution is available, this industrial-grade monitor
is the perfect choice for your touchscreen needs with great durable resistive touch technology.
Jawest Industrial Monitor Features

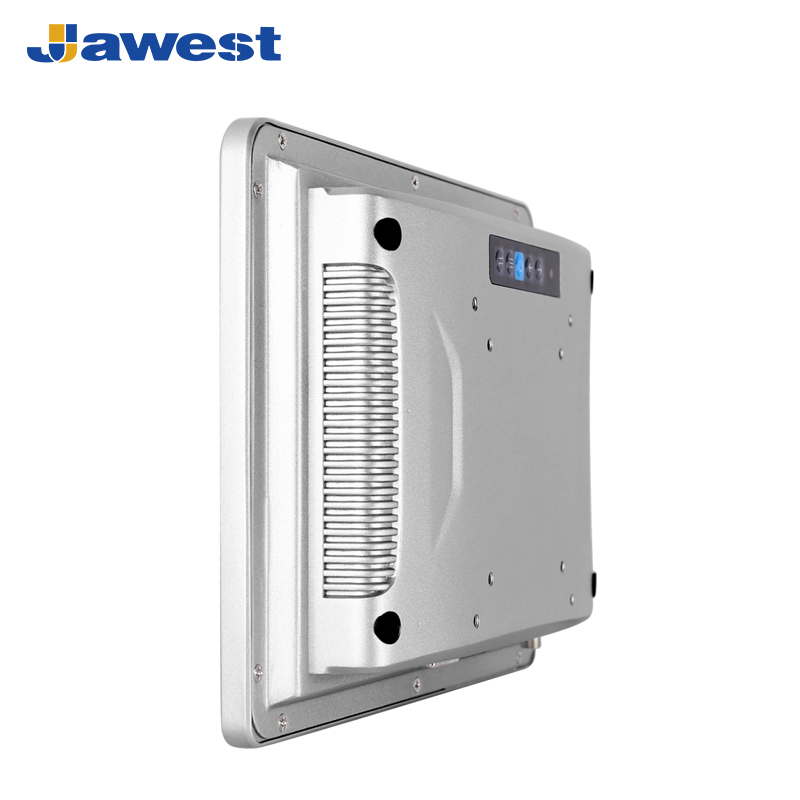

1. Aluminum alloy shell, good mechanical properties, better performance for heat dissipation.
2. Adopt industrial control LCD screen +LED backlight screen, highlight picture, perfect color.
3. Compatible with the various operating systems for industrial conditions and applications.
4. Supporting non-touchscreen, resistive touch display, capacitive touch display, IR touch.
5. The industrial monitor supporting multi-functional module customization service.
6. Triple protection for self-developed motherboard: explosion-proof, flameproof, moisture-proof.
7. Shock resistance standard reached GB2423, well-protected during transportation.
8. Anti-static level of contact is 4KV (supporting max level is 6KV), air contact up to 8KV.
9. Anti-surge design, support work as normal during instantaneous voltage rising into 280V.
10. PCB design: Anti combustion, explosion-proof and moisture-proof
11. Power supply management: TI chipset, a wide range of 12-24V input
12. Pressure resistance design: Pressure resistance of solid-state capacitance in board 36V/105
13. Built-in automatic photosensitive interface, using the luminance automatic regulation of the photosensitive module.

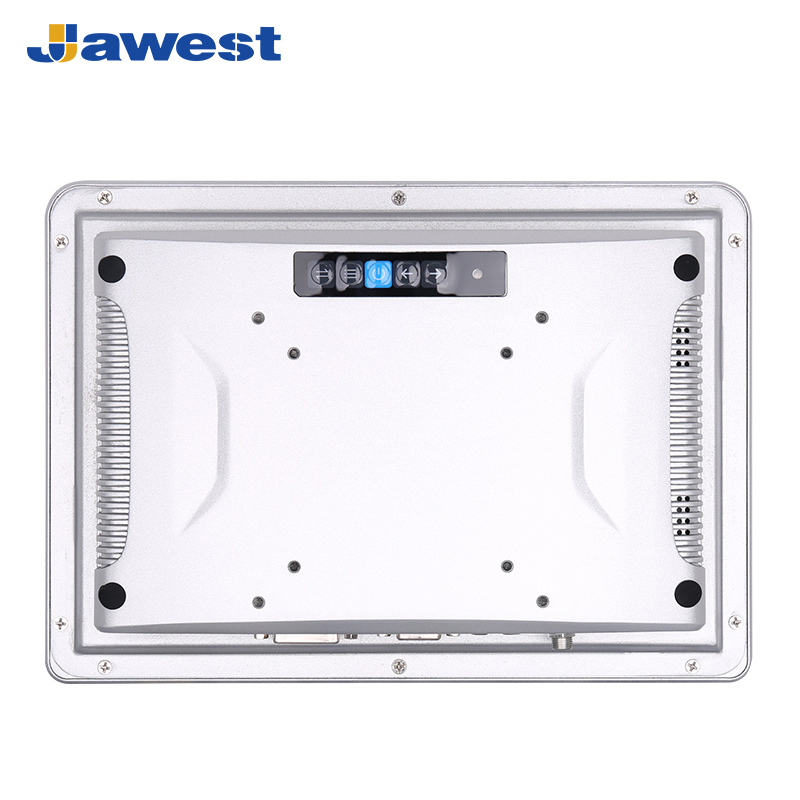

14. Support wall-mounted, desktop mount, embedded, and VESA, etc.
10mm bezel aluminum touch monitor datasheet | |||||||
Size | 10.1 inch | ||||||
Display | |||||||
Panel Type | Industrial LCD panel A, A+ grade | ||||||
Aspect Ratio | 16 : 10 | ||||||
Resolution | 1280*800 | ||||||
Contrast | 800:1 | ||||||
Luminance | 300nit-1500nit | ||||||
Response time | 5ms | ||||||
Active Area (mm) | 135.36*216.576 | ||||||
Display colors | 16.7M(8-bit) | ||||||
View angle | 85/85/85/85 | ||||||
Touch Screen | Resistive touch screen (10-point capacitive and Infrared touch for optional) | ||||||

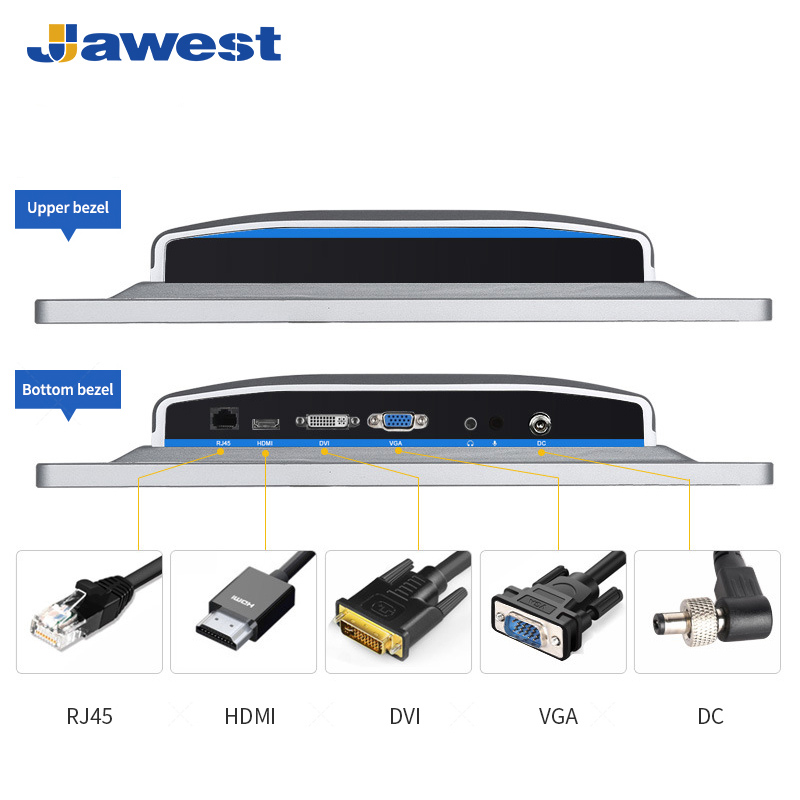

Interface | HDMI+DVI+VGA+USB/DVI+VGA+USB optional | ||||||
Power Input | AC 110-240V, 50/60Hz | ||||||
Power Consumption | ≤30W | ||||||
Power Standby | ≤2W | ||||||
Plug&Play | DDC1/2B | ||||||
Working Life | More than 50,000 hours | ||||||
Operation Temperature | -10°C-60°C | ||||||
Storage Temperature | -10°C-60°C | ||||||
Operation Humidity | 10%--80% | ||||||
Storage Humidity | 10%-90% | ||||||
Metal Shell | Aluminum alloy enclosure | ||||||
Color | Silver, black color optional | ||||||
Bezel thickness | 10mm bezel (3mm bezel for optional) | ||||||
IP rating | IP65 for front Panel | ||||||
Installation | VESA, Embedded, Wall Mount, Desktop optional | ||||||
Certificates | CE,CCC,ISO,FCC,ROHS | ||||||
Package | EPE+Carton (wooden crate for mass order) |
