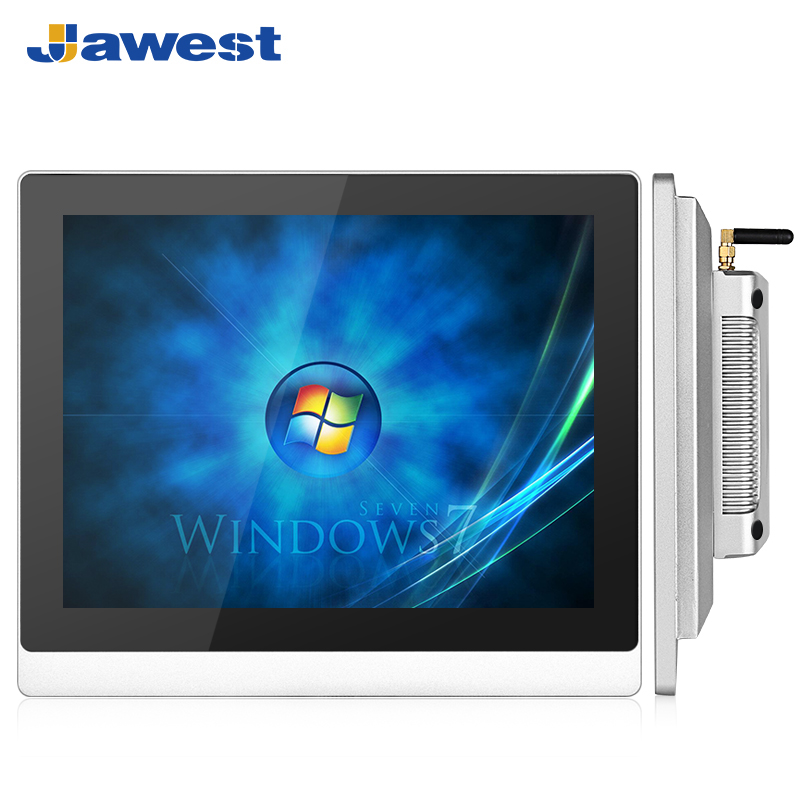

12" Windows Flat Panel PC VESA Mounted CE Approved
Model: JWS120-W4
Jawest offers a wide range of specialized industrial-grade all-in-one multi-touch tablet PCs, they are widely used in applications such as the Internet of Things (IoT), AI, HMI, M2M, HMI, production automation, industrial control, check-in systems, visitor authorization and some tough environments applications. We produce industrial-grade display sizes from 7" to 21.5". This AIO panel PC can be customized to support OEM specialized sunlight readable high brightness screens and is designed to operate under wide temperatures and wide voltage ranges. Variety of mounting types including desktop, embedded, open frame, VESA, and wall-mounted.
Jawest Industrial All-in-one Panel PC Features
● 12-inch 1024x768 resolution screen.
● Chassis material: Aluminum alloy for the whole casing.
● Sunlight readable screen (up to 1500 nits).
● Five-wire resistive or ten-point PCAP touch control screen.
● Processors Options: Intel Celeron J1900/J4125/J6412, Intel® Core™ i3-1215U/i5-1235U/i7-1255U.
● Configuration options: 4/8/16/32GB RAM; 16/32/64/128/256/512GB SSD, 1T/2T HDD.
● Operation System: Win 7/10/11; Ubuntu 20.04.1/20.04.3/20.04.4/22.04; Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6, etc.

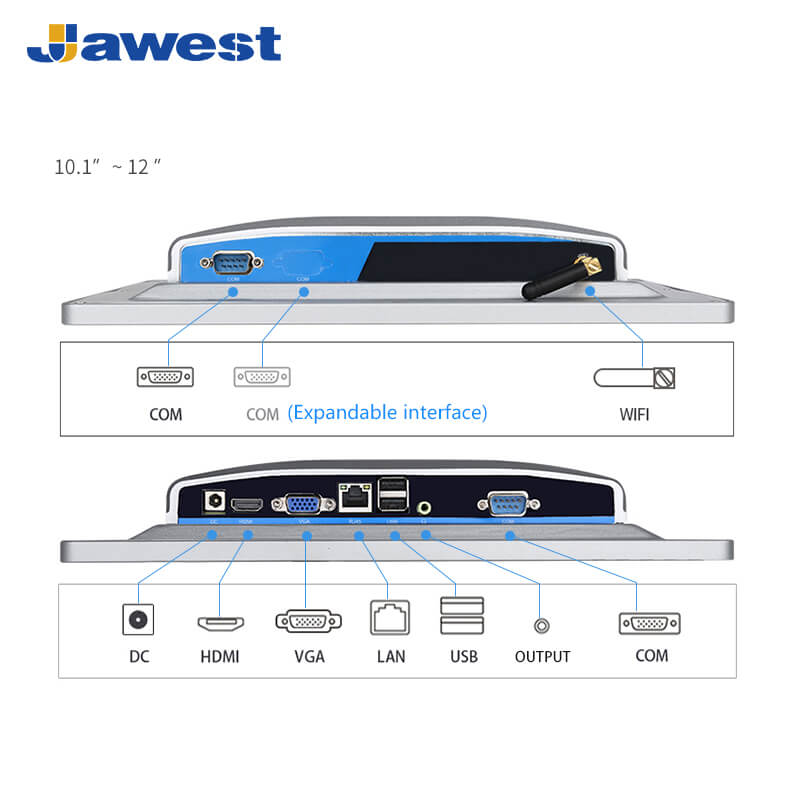

● I/O Ports: USB2.0*2, USB3.0*2, LAN*2, VGA*1, HDMI*1, SIM Slot*1, Audio I/O*1, DC*1, WIFI Antenna*2, GND*1, RS232(DB9)*1, COM Reserved*1(Optional RS232/422/485), 12P Phoenix Terminal (DC*1+RS232*1+RS485*1+GPIO*5), Power Button*1.
● 10mm front bezel and aluminum enclosure, excellent impact resistance in harsh environments.

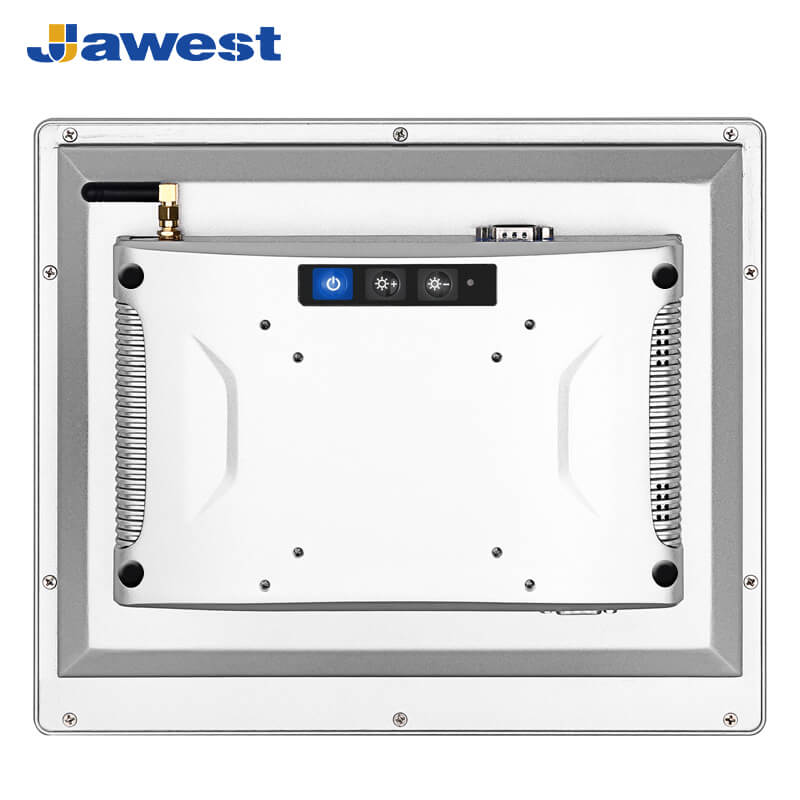

● Jawest IPC mounting options: Vesa, desktop, and wall-mounted.
● Functional custom: Fingerprint Scanner, NFC, RFID, IC card, and ID card readers are optional.
● Appearance: Black or Silver color.
