17" Embedded Monitor For CNC Industrial Automation


● Display size: 17 inch

● Working temperature: -10°C ~ 60°C

● Industrial-grade motherboard

● 24/7 operation

● IP65-rated protection

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case

17" Industrial Monitor For CNC and Industrial Automation


Model: JWS170-M19


Jawest’s rugged industrial LCD IP65 displays are designed for a wide range of applications where it will be exposed to harsh conditions which are common in outdoor & indoor devices and industrial automation settings. These industrial LCD displays are engineered to withstand the effects of splashes of water, dust, and other elements that might damage the screen. There are various sizes available, from 10.1” to 23.8”, and support wide voltage and wide temperature operation.



Jawest Industrial Monitor Features

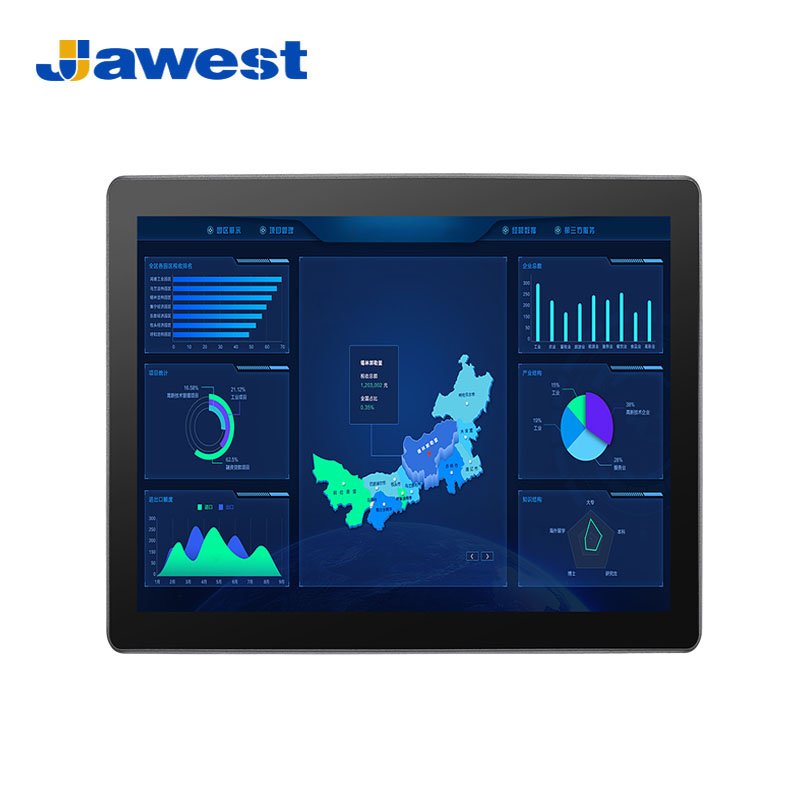

• 17" LCD display with a resolution of 1280x1024 resolution.

• Aluminum alloy enclosure, IP65 rating for front panel.

• Support rear OSD control.

• Capacitive touchscreen panel, resistive touchscreen for option.

• Wide-range power input.

• Fanless heat-dissipation, energy efficient, low power consumption.

• 7/24 long-time operation in harsh factory and industrial environments.

• Wide operational temperature range: -10°C to +60°C (offer extended temperature ranges).

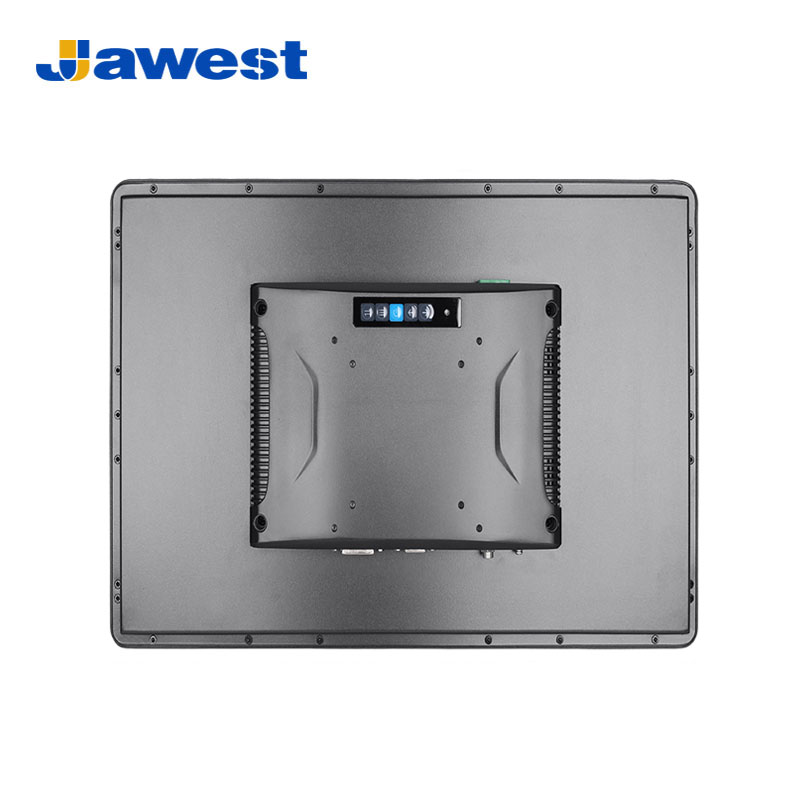

• Multi-installation options: desktop, wall, embedded, and VESA arm mounting.






Aluminum Housing Rugged Touchscreen Monitor Datasheet
Size17-inch
Display
Panel TypeIndustrial LCD panel A, A+ grade
Aspect Ratio4:3
Resolution1280*1024
Contrast1000:1
Luminance250nit-1500nit
Response time5ms
Active Area (mm)478*269.24
Display colors16.7M(8-bit)
View angle89/89/89/89
Touch ScreenCapacitive touch screen (5-wire resistive touch screen/dual Infrared touch optional)

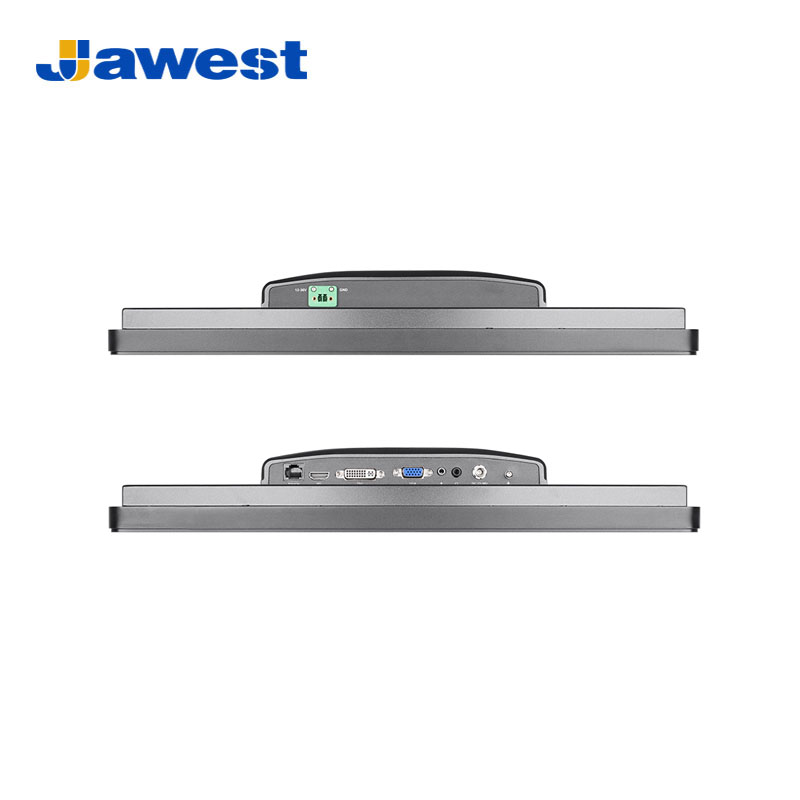

InterfaceHDMI+DVI+VGA+USB/DVI+VGA+USB optional
Power InputAC 110-240V, 50/60Hz
Power Consumption≤30W
Power Standby≤1.5W
Plug&PlayDDC1/2B
Working LifeMore than 50,000 hours
Operation Temperature-10°C ~ 60°C
Storage Temperature-20°C ~ 70°C
Operation Humidity10%-80%
Storage Humidity10%-90%
Metal ShellAluminum alloy enclosure
ColorSilver, black color optional
IP ratingFront IP65
InstallationVESA, Embedded, Wall Mount, Desktop, open frame optional
CertificatesCE, CCC, ISO, FCC, ROHS
PackageCarton
