Application:
15.615.615.615.6

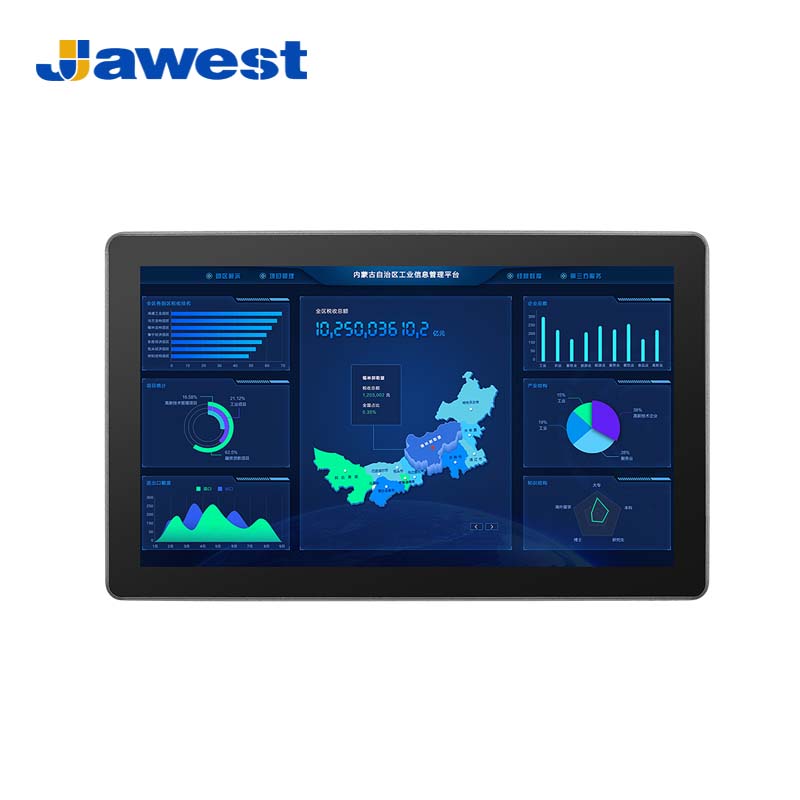

15.6" Touchscreen Industrial Flat Panel Display Monitors


Model: JWS156-M4

● Display size: 15.6-inch.

● High level anti-static.

● High-quality industrial LCD panel.

● Working temperature:-10-60°C.

● Industrial grade display chip.

● 10mm bezel Aluminum touch monitor.

● 365 days*24 hours long time running.

● IP65 grade dust-proof and waterproof.

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 15.6" Touchscreen Industrial Flat Panel Display


    Model: JWS156-M4


    Jawest is pleased to announce the launch of its new generation of industrial monitors, which support wide temperature, wide voltage, sunlight readable, multi-touch capacitive touch, or single touch resistive monitor. Designed and made by Jawest, one of the leading manufacturers of industrial monitors, industrial panel PC, Android tablet PCs, and industrial mini PCs in China, which possess decades of experience, reliability, timely deliveries, and warranty support.



    Jawest Industrial Monitor Features


    15.6" Touchscreen Industrial Flat Panel Display Monitors● 15.6 inch LCD display with long service life Solid State LED Backlight

    ● High Bright TFT display; 1920 x 1080 resolution

    ● 300~1500 nits, High Contrast: 1000:1

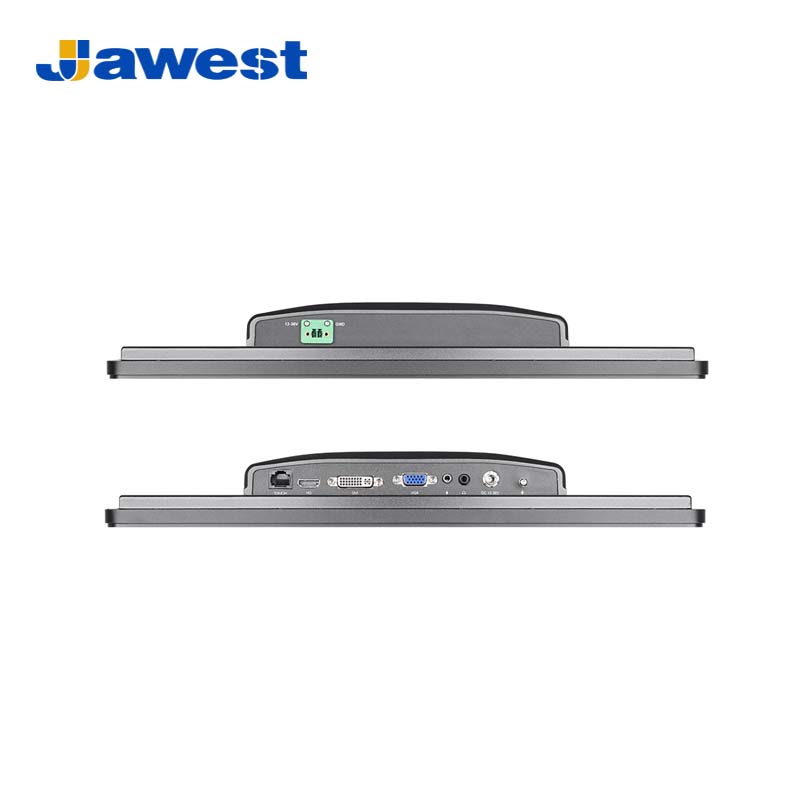

    ● VGA + DVI Video Inputs

    ● Composite Video (NTSC/PAL) – RCA Jack

    ● Extended operating temperature rating: -10°C to +60°C

    ● Support image size and position adjustment

    ● Rugged industrial-grade chassis; Aluminum alloy rugged construction






  • 10mm bezel aluminum touch monitor datasheet
    Size15.6 inch
    Display
    Panel TypeIndustrial LCD panel A, A+ grade
    Aspect Ratio16:9
    Resolution1920*1080
    Contrast1000:1
    Luminance250nit-1500nit
    Response time5ms
    Active Area (mm)341.5*274
    Display colors16.7M(8-bit)
    View angle75/75/75/75
    Touch Screen10-point capacitive (Resistive touch screenand Infrared touch for optional)
    InterfaceHDMI+DVI+VGA+USB/DVI+VGA+USB optional
    Power InputAC 110-240V, 50/60Hz
    Power Consumption≤30W
    Power Standby≤1.5W
    Plug&PlayDDC1/2B
    Working LifeMore than 50,000 hours
    Operation Temperature-10°C-60°C
    Storage Temperature-10°C-60°C
    Operation Humidity10%--80%
    Storage Humidity10%-90%
    Metal ShellAluminum alloy enclosure
    ColorSilver, black color optional
    Bezel thickness10mm bezel (3mm bezel for optional)
    IP ratingIP65 for front Panel

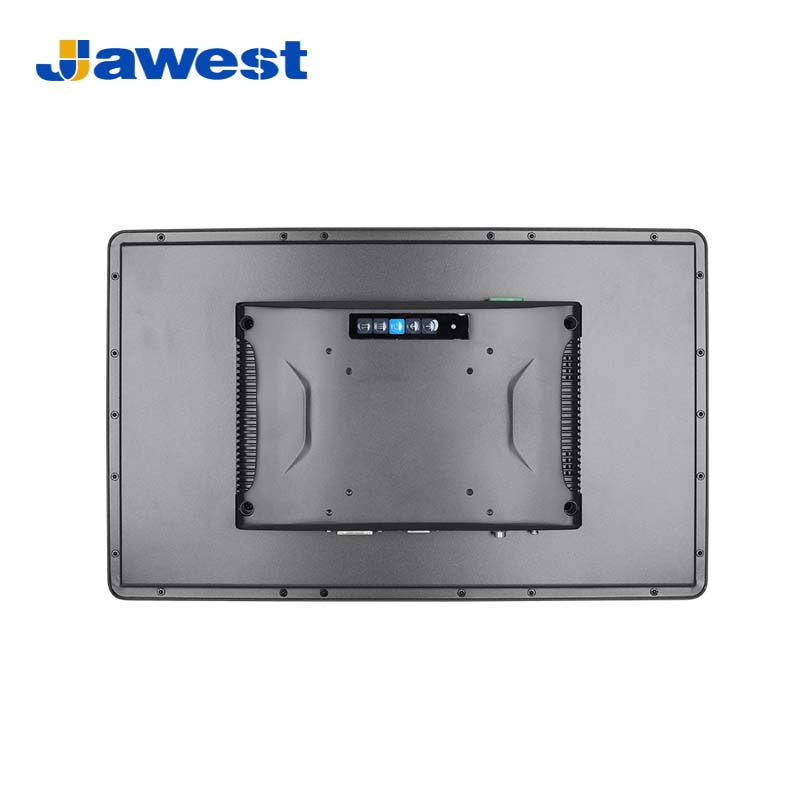

    InstallationVESA, Embedded, Wall Mount, Desktop optional
    CertificatesCE,CCC,ISO,FCC,ROHS
    PackageEPE+Carton  (wooden crate for mass order)
