Application:
15151515

15" Industrial LCD Monitor Touchscreen with Sunlight Readable Displays Waterproof Monitor


● Display size: 15 inch

● High-level anti-static

● High-quality industrial LCD panel

● Working temperature: -10°C to 60°C

● Industrial-grade motherboard

● RobusAluminum Touch Monitor

● 7/24 running on harsh sites

● IP65-rated dust-proof and water-proof for front panel

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 15" Industrial LCD Monitor Touchscreen


    Model: JWS150-M2


    Jawest 15" touch screen monitor. Durable and rugged design for harsh environments or retail systems, industrial touch screen monitors have what it takes to perform in demanding point-of-sale, point-of-purchase, industrial automation, industrial production control, and public environments. Jawest brings years of extreme application display experience to industrial-grade touchscreen LCD monitors, making them the most reliable and well-performing on the market.



    Jawest Industrial Touchscreen Monitor Features


    ● 15-inch screen supports bright active matrix TFT display.

    ● Definition is 1024x768, aspect ratio is 4:3, providing excellent vivid image and color quality.

    ● Fanless heat-dissipation, aluminum alloy housing, energy efficient, low power consumption.

    ● Industrial grade electronic components and motherboard, vibration/shock resistance.

    ● Support plug and play by BIOS, which is suitable for the continuous boot-up environment.

    ● 7*24 unattended high-load running.

    ● Support gigabit network card RJ45, and WIFI, providing a faster and more stable network experience.

    ● Watchdog function to ensure stable operation.

    ● Remote wake-up and automatic reset function.

    ● Wide operational temperature range: -10°C to +60°C (support extended temperature).

    ● Offer multi-installation methods, desktop, wall, embedded, and VESA arm mounting.

    ● CE, RoHS compliant.

    ● Three (3) years warranty.



    Applications


    ● Smart factory

    ● Process control

    ● Production facilities

    ● Control rooms

    ● Automation systems

    ● Smart city

    ● Outdoor kiosks

    ● Robots

    ● IoT






  • Waterproof Touch Screen Monitor Datasheet

    Model: JWS150-M2

    Display Parameters
    Size15-inch
    Panel TypeIndustrial LCD panel A+ grade
    Aspect Ratio4:3
    Resolution1024*768
    Contrast1000:1
    Luminance400 Nits (High nits can be customized)
    Response time5ms
    Dot Pitch0.264mm
    Display colors16.7M
    Viewing Angle160°/160° (178°/178° can be customized)
    Touch ScreenCapacitive touch screen (5-wire resistive touch screen/Non-touch options)

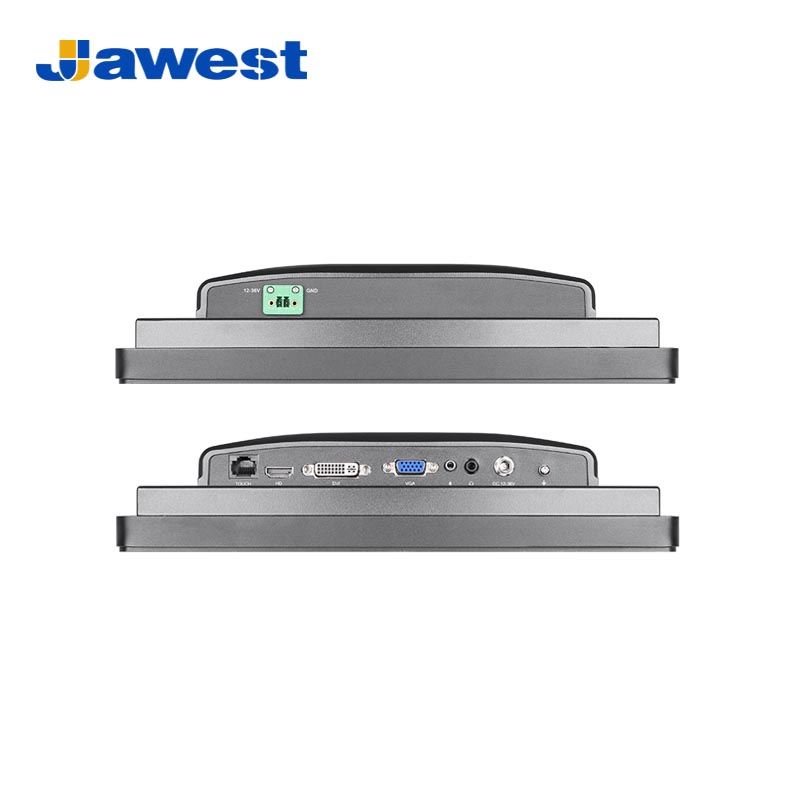

    Interface Parameters
    HDMISupport HDMI data input, up to 1080P
    VGASupport
    DVISupport
    Touch InterfaceRJ45 interface (defined as USB)
    Earphone JackStandard 3.5mm
    DC1*DC2.1, support 12V-36V wide voltage power supply
    Audio PortAudio I/O
    I/O ExpansionSupport
    Power Adapter
    Power InputAC 100-240V, 50/60Hz
    Power OutputDC 12V / 4A
    Power Consumption≤35W
    Product Reliability
    Operation Temperature-10°C to +60°C (Wide temperature ranges can be customized)
    Storage Temperature-40°C to +85°C
    Operation Humidity10%-80%, non-condensing
    Storage Humidity10%-90%, non-condensing
    Mechanical
    Metal ShellAluminum alloy enclosure
    ColorSilver, black color optional
    Bezel thickness3mm bezel
    Weight3.9Kg
    MountingVESA, Embedded, Wall Mount, Desktop, open frame optional
