11.6 inch Android Industrial Panel PC 1920X1080 For Industrial Computing Embedded Systems

11.6 inch Android Industrial Panel PC 1920X1080 For Industrial Computing Embedded Systems

● Display size: 11.6 inch.

● Industrial LED panel with 50000-lifetime backlight.

● Fanless design with rugged Aluminum alloy enclosure.

● Projected capacitive multi-touch screen, single-point resistive touch.

● True-flat with IP65 certified front panel protection.

● Multiple installation: desktop / wall / VESA 75*75 /100*100.

● Ultra-sensitive touch screen, precise positioning, free control.

● Fanless design with low-power, perfectly suited for industrial applications.

Appearance of the color

Black

Silver

Description
Parameter
Case

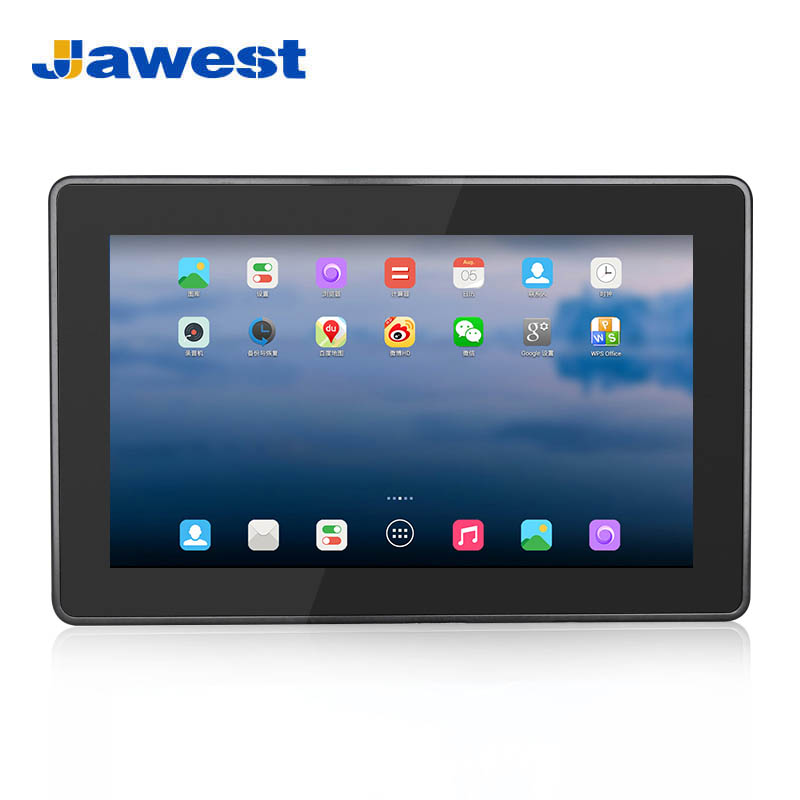

11.6-inch Android Industrial Panel PC

Model: JWS116-A5

JWS116-A5 is an 11.6" fanless industrial tablet PC for VESA mount, embedded mount, and wall-mounted, extremely compact, 11.6” LCD display, long span life LED backlight, available with a 16:9 widescreen of 1920x1080 high resolution. Ideally suited for industrial equipment and kiosks' touch control and display solutions.

This 11.6-inch panel PC is engineered with a capacitive touch screen and with multiple expansion slots for different Peripheral equipment. And making it is compatible with the majority of industrial applications and operating systems.

Products Model Fast Guide

Model Name	Screen Size	Resolution	Aspect Ratio	Touch Technology	Get A Quote Now!
JWS070-A-QD	7"	1024*600	16:9	Capacitive / Non-Touchscreen	Inquiry
JWS080-A-QD	8"	1024*768	4:3	Capacitive / Non-Touchscreen	Inquiry
JWS101-A5	10.1"	1280*800	16:10	Capacitive / Non-Touchscreen	Inquiry
JWS104-A5	10.4"	1024*768	4:3	Capacitive / Non-Touchscreen	Inquiry
JWS116-A5	11.6"	1920*1080	16:9	Capacitive / Non-Touchscreen	Inquiry
JWS120-A5	12"	1024*768	4:3	Capacitive / Non-Touchscreen	Inquiry
JWS150-A5	15"	1024*768	4:3	Capacitive / Non-Touchscreen	Inquiry
JWS156-A5	15.6"	1920*1080	16:9	Capacitive / Non-Touchscreen	Inquiry
JWS170-A5	17"	1280*1024	5:4	Capacitive / Non-Touchscreen	Inquiry
JWS173-A5	17.3"	1920*1080	16:9	Capacitive / Non-Touchscreen	Inquiry
JWS190-A5	19"	1280*1024	5:4	Capacitive / Non-Touchscreen	Inquiry
JWS191-A5	19.1"	1440*900	16:10	Capacitive / Non-Touchscreen	Inquiry
JWS215-A5	21.5"	1920*1080	16:9	Capacitive / Non-Touchscreen	Inquiry


Display Parameters	Size	11.6"
	Resolution	1920*1080
	Screen Ratio	16:9
	Brightness	220~300 nits (Optional high brightness)
	Contrast Ratio	1000:1
	Viewing Angle	85°/85°/85°/85° (L/R/U/D)
	Backlight type	LED backlight screen, service life ≥ 50000H
	Touch Screen	Capacitive, Resistive, or Non-touch options

Motherboard Model Selection		JWS64	JWS3288-I	JWS3399-MAIN-L	CX3399-A	CX3568-A	CX3588-A	CX-3588-G
System Architecture	CPU	A64 Quad-Core 1.5GHz	RK3288 Quad-Core 1.8GHz	RK3399 Six-Core 2.0GHz	RK3399 Six-Core 2.0GHz	RK3568 Quad-Core 2.0GHz	RK3588 Octa-Core 2.1GHz	RK3588 Octa-Core 2.1GHz
	Core Architecture	Cortex-A53	Cortex-A17	Dual-Core Cortex-A72 + Quad-Core Cortex-A53	Dual-Core Cortex-A72 + Quad-Core Cortex-A53	Cortex-A55	Quad-Core Cortex-A76 + Quad-Core Cortex-A55	Quad-Core Cortex-A76 + Quad-Core Cortex-A55
	GPU	Mali-T764	Mali-T764	Mali-T860 MP4	Mali-T860 MP4	Mali-G52 2EE	Mali G610 MP4	Mali G610 MP4
	Memory (DDR)	2GB (8GB optional)	2GB (4GB optional)	4GB	2/4GB	2GB (4/8GB optional)	4GB (8/32GB optional)	8GB (16/32GB optional)
	Storage (eMMC)	16GB (32/64GB optional)	16GB (32/64/128/256GB optional)	32GB (64GB optional)	32/64GB (256GB optional)	32GB (64/128/256GB optional)	64GB (128/256GB optional)	64GB (128/256GB optional)
	SATA	/	/	/	/	Support	/	1*SATA hard drive port
	Operating System	Android 6.0	Android 7.1 / 10.0	Android 7.1 / 9.0 / 11	Android 7.1 / 9.0 / 11	Android 12	Android 13.0	Android 12
		/	Linux 4.4	Linux 4.4	Linux 4.4	Linux 5.10	/	Linux 5.10
		/	Ubuntu 18.04	Ubuntu 18.04	Ubuntu 18.04	Ubuntu 20.04	/	Ubuntu 20.04
		/	Debian10.0	Debian10.0	Debian 10	Debian 11	/	Debian 11

Networking	Ethernet	1*10M/100M/1000M adaptive Ethernet					1Gigabit Ethernet + 1100 Mbit Ethernet	2*10M/100M/1000M adaptive Ethernet
	4G	Optional. Based on the 4G module selection
	5G	/	/	/	/	/	/	Support M.2 5G module interface
	WIFI	2.4G	Dual-band 2.4/5G	Dual-band 2.4/5G	Dual-band 2.4/5G	WIFI6, 2.4G	WIFI6, Dual-band 2.4/5G	WIFI5/WIFI6 (optional), dual-band 2.4/5G
	Bluetooth	BT5.0	BT5.0	BT5.0	BT5.0	BT5.2	BT5.0	BT4.2 (WIFI 5) / BT5.0 (WIFI 6)

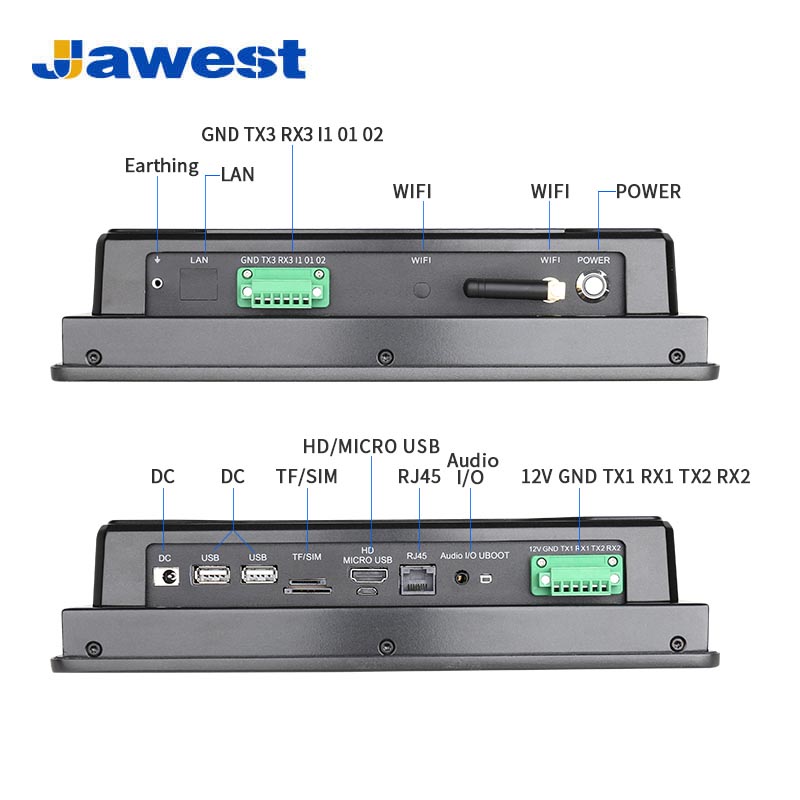

Touch Function	Touch Interface	USB/IIC	USB	USB/IIC
I/O Ports	USB	1USB HOST, 1USB OTG	1USB HOST, 1USB OTG	1USB HOST, 1USB OTG	1USB, 1OTG	2*USB3.0	1USB, 1OTG	4*USB3.0
	HDMI	1*HDMI, up to 4K	1*HDMI, up to 4K	1*HDMI, up to 4K	1*HDMI, up to 4K	1*HDMI, up to 4K	1*HDMI, up to 4K	1HDMI In+1HDMI Out, 8K
	LAN	1*LAN	1*LAN	1*LAN	1*LAN	1*LAN	2*LAN	2*LAN
	DC	1*DC2.1	1*DC2.1	1*DC2.1	1*DC2.1	1*DC2.1	1*DC2.1	1*DC2.1
	COM	2RS232+2Reserved holes			1RS232+1Reserved hole
	TF/SIM	1* TF/SIM slot	1*TF/SIM slot	1*TF/SIM slot	1*TF/SIM slot	1*TF/SIM slot	1*TF/SIM slot	1*TF/SIM slot
	WiFi Antenna	1*WiFi Antenna	1*WiFi Antenna	1WiFi Antenna+1Reserved hole
	Audio I/O	1*3.5mm Earphone Jack
	Reset Button	1*UBOOT	1*UBOOT	1*UBOOT	1*UBOOT	1*UBOOT	1*UBOOT	1*UBOOT
	GND	1*GND	1*GND	1*GND	1*GND	1*GND	1*GND	1*GND
	MICRO OTG	1*MICRO OTG	/	/	/	/	/	/
	1*12P Phoenix Terminal	/	/	/	1*DC	1*DC	1*DC	1*DC
		/	/	/	1*RS232	1*RS232	1*RS232	1*RS232
		/	/	/	1*RS485	1*RS485	1*RS485	1*RS485
		/	/	/	1*TTL	1*CAN	1*CAN	1*CAN
		/	/	/	3*GPIO	3*GPIO	3*GPIO	3*GPIO
	I/O Expansion	Support

Power	Power Input	12V DC	12V DC	12-36V DC	12-36V DC	12-36V DC	12-36V DC	12-36V DC
Power	Adapter	12V / 4A	12V / 4A	24V / 2.5A	24V / 2.5A	24V / 2.5A	24V / 2.5A	24V / 2.5A

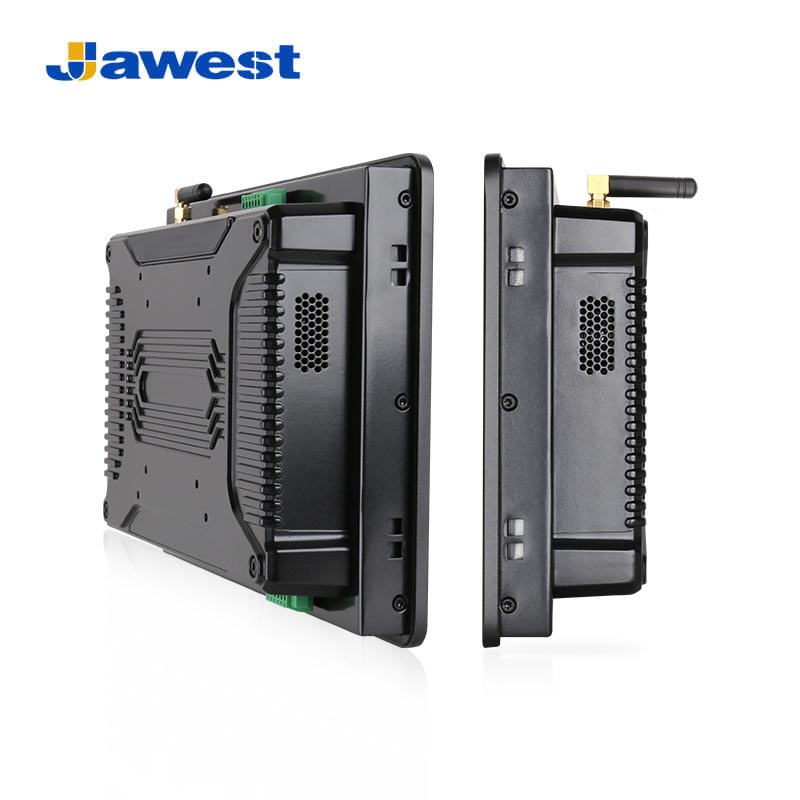

Mechanical	Dimension	31220059mm
	Enclosure	Aluminum alloy housing
	Cooling System	Fanless

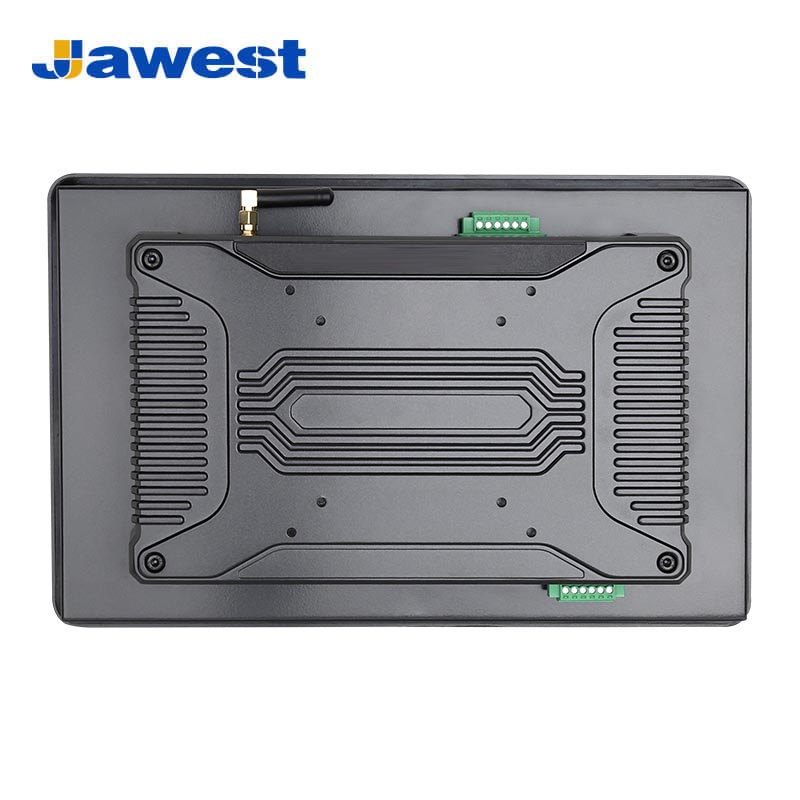

	Mounting	Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

Product Reliability	Working Temp	-10°C ~ 60°C
	Storage Temp	-20°C ~ 70°C
	Ambient Humidity	5% - 95% (relative humidity non-condensing)
	IP rating	Front IP65
