i5 6200U Industrial Fanless Computers 128GB SSD


The Jawest 5th-GEN industrial PC series, equipped with Intel® Core™ processors, delivers exceptional computing performance. Its modular design allows for flexible configuration options and customized I/O, easily accommodating specific specification requirements. This series is well-suited for AIoT applications such as smart factory automation, machine vision, and motion control systems.

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case

Jawest 5th-GEN Rugged Industrial Computers Equipped with Intel Core Processor


The rugged embedded computer of Jawest's 5th-GEN series is built on the Intel® platform. The processor provides two CPU options: the i5-6200U Dual-Core 2.3GHz with up to 16GB RAM and a 128GB SSD, as well as the Intel Celeron J4125 Quad-Core 2.0GHz. It delivers robust, enduring, and consistent performance.


Jawest's 5th-GEN series maintains the fanless, sturdy, and compact design characteristic of the brand, enabling I/O expansion. It comes equipped with default features, including 2*USB3.0, 2*USB2.0, 2*RJ45 Ethernet ports, 4*RS232, and additional options.


Leveraging its well-established thermal design, substantial CPU and I/O advancements, along diverse expansion capabilities, the latest 5th-GEN series industrial fanless computer is tailored to meet your requirements for durability, dependability, and adaptability across various applications.



Features


● Supports I5-6200U, and Intel® Celeron J4125 CPU

● Fanless, Aluminum alloy housing for excellent heat dissipation

● Supports -10°C to 60°C operation indoor or outdoor

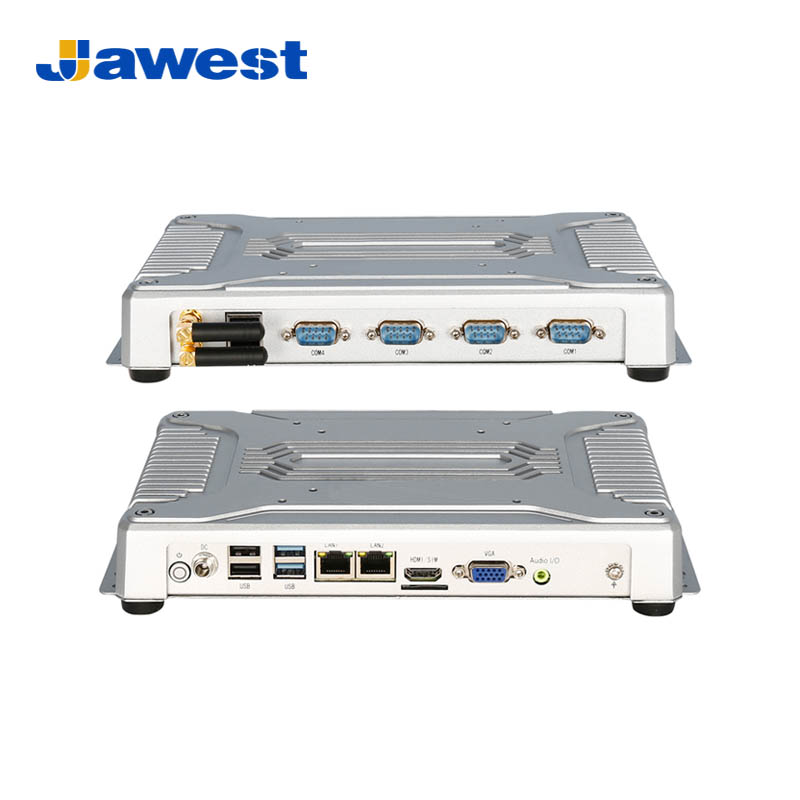

● 2 x USB 3.0,  2 x USB 2.0, 1 x HDMI, 2 x RJ45, 4 x RS232, 1x RS232/422/485, 4 x GPIO

● VGA/ DVI/ DP triple independent display, supporting 4K resolution







Hardware ConfigurationModel
JWS02-301WIPCJWS02-200WIPC
CPUi5-6200U Dual-Core 2.3GHzIntel Celeron J4125 Quad-Core 2.0GHz
Hard disk128GB SSD 128GB SSD
RAMDDR4 4GB (Max.16GB)DDR4 4GB (Max.8GB)
ChipsetIntel Bay Trail SOCIntel Bay Trail SOC
Operating SystemWin7 / Win10 / Win11 / Ubuntu (16.04.7/18.04.5/20.04.3) / Centos (7.6/7.8)Win10 / Win11/ Ubuntu (16.04.7/18.04.6) / Centos (7.8/8.4)
4G/5G Module

Support

WIFIDual-band 2.4/5G
BluetoothBT4.0BT4.0
GPSOptionalOptional
MIC

Optional

Optional
RTC, real-time clock / Timing Ture On/OffSupportSupport
System UpgradeSupport SD, and USB upgrade
Here take the i5-6200U for reference
InterfacesUSB interfaceUSB-OTG: 2*USB3.0; USB-HOST: 2*USB3.0+2*USB2.0
COM Serial Ports4*RS232, 4*GPIO, 1*sockets for RS232, RS422 and RS485 to switch; Supports expansion.
WIFI connectorWIFI antenna *1
Power interface1*DC2.5, supports 12V-36V wide voltage operation
HD InterfaceHDMI*1
Earphone Jack3.5mm standard interface
RJ45 Ethernet2*10M/100M/1000M adaptive Ethernet
Audio interfaceAudio I/O
I/O expansionAvailable

ReliabilityWorking temperature-10°C ~ 60°C
Storage temperature-20°C ~ 70°C
Ambient humidity20% - 95% (relative humidity non-condensing)

Power AdapterPower consumption≤24W
Power inputAC 100-240V 50/60Hz; CCC/CE/FCC/EMC/CB/ROHS certification Passed
Power outputDC12V/4A
