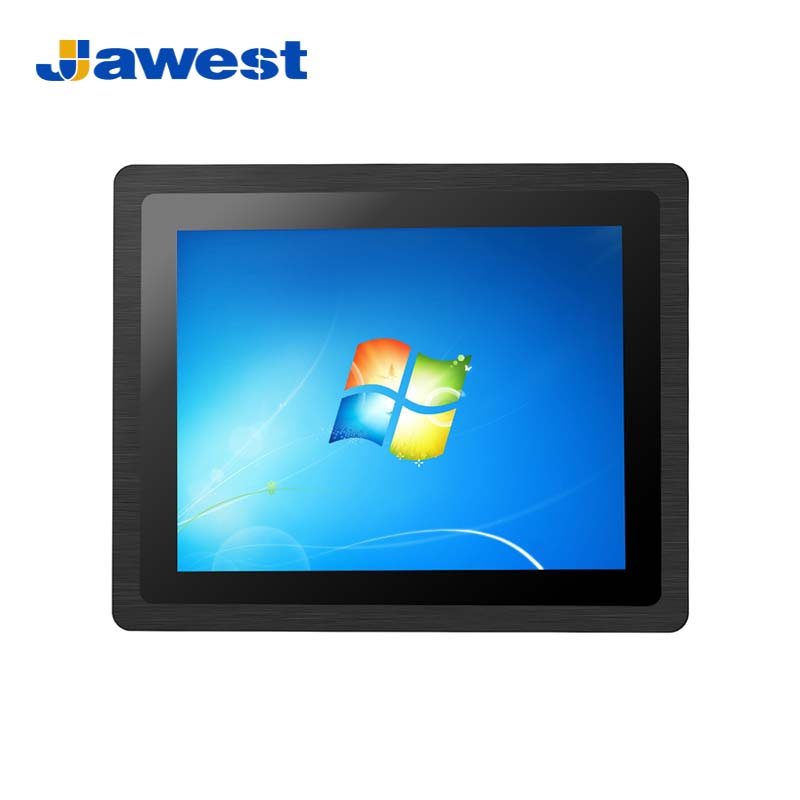

Industrial Panel PC Windows 10 i5-6200U i7-6500U Panel Mount PC

Industrial Panel PC Windows 10 i5-6200U i7-6500U Panel Mount PC

This panel mount i3/i5/i7 Intel Core series industrial touch panel PC is a high-quality unit that is extremely scalable and customizable. Made with industrial-grade components and a robust aluminum alloy enclosure, ideal for demanding environments. The ultra-thin front bezel is perfect for panel mount.

Appearance of the color

Black

Silver

Description
Parameter
Case

Overview

This All-in-One Computer series features a sleek, modern look. And has expansion options in terms of CPU versions, I/O ports, operating systems, and more. Easy maintenance and upgrades. Ideal for integrating seamlessly with embedded systems, industrial equipment, and IoT systems.

Features

● 10.1" to 23.8“ industrial LCD displays

● Equipped with up to 10th generation Intel® Core™ i7 processor

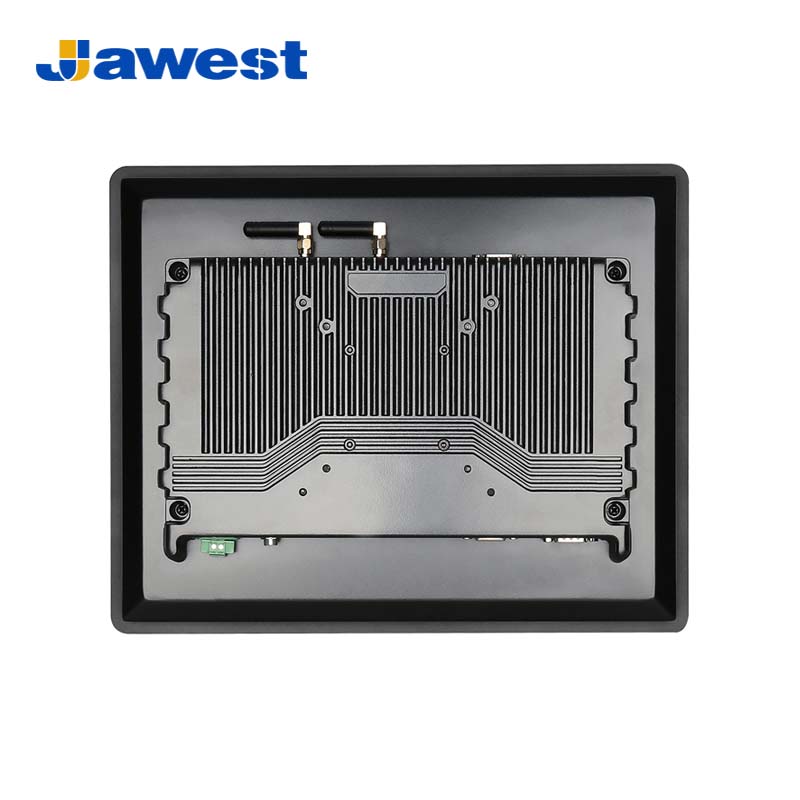

● Silent fanless design provides a long-lasting and stable cooling effect

● Abundant interfaces offer unlimited possibilities for panel PCs' expansion applications.

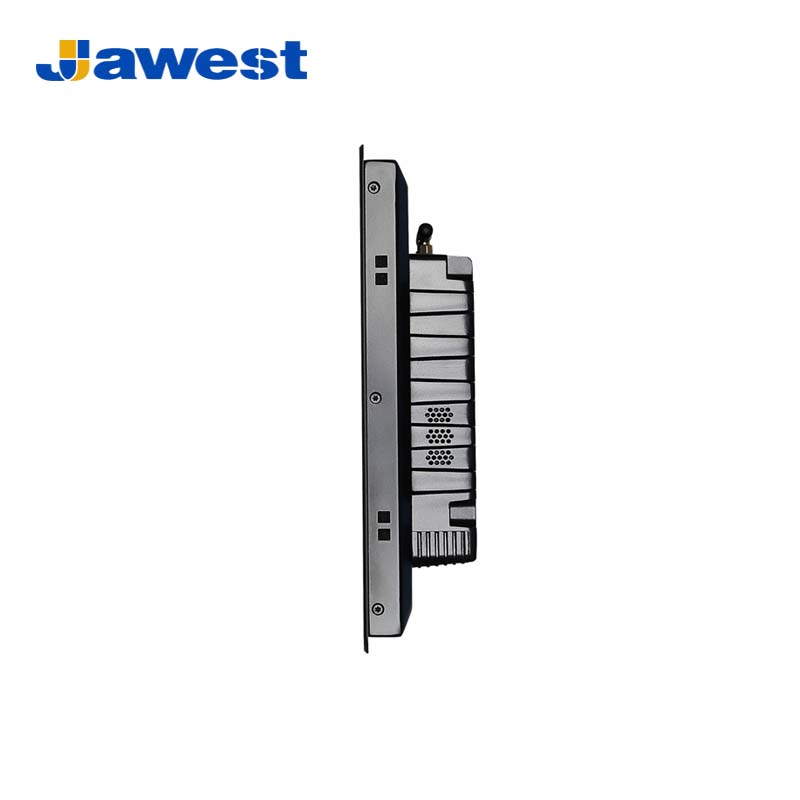

● Ultra-thin 3mm front panel with robust aluminum alloy enclosure, ideal for panel mount embedded installation

Model Name	Screen Size	Resolution	Aspect Ratio	Get A Quote
JWS070-W10	7"	1024*600	16:9	Inquiry Now
JWS080-W10	8"	1024*768	4:3	Inquiry Now
JWS101-W10	10.1"	1280*800	16:10	Inquiry Now
JWS104-W10	10.4"	1024*768	4:3	Inquiry Now
JWS116-W10	11.6"	1920*1080	16:9	Inquiry Now
JWS120-W10	12"	1024*768	4:3	Inquiry Now
JWS121-W10	12.1"	1280*800	16:10	Inquiry Now
JWS133-W10	13.3"	1920*1080	16:9	Inquiry Now
JWS150-W10	15"	1024*768	4:3	Inquiry Now
JWS156-W10	15.6"	1920*1080	16:9	Inquiry Now
JWS170-W10	17"	1280*1024	5:4	Inquiry Now
JWS173-W10	17.3"	1920*1080	16:9	Inquiry Now
JWS185-W10	18.5"	1920*1080	16:9	Inquiry Now
JWS190-W10	19"	1280*1024	5:4	Inquiry Now
JWS191-W10	19.1"	1440*900	16:10	Inquiry Now
JWS215-W10	21.5"	1920*1080	16:9	Inquiry Now
JWS238-W10	23.8"	1920*1080	16:9	Inquiry Now

Hardware Configuration	CPU i3	i3-6100U 2.3GHz	4GB DDR4 (8/16/32GB)	128GB SSD (256/512GB)
		i3-8145U 2.1GHz	4GB DDR4 (8/16/32GB)	128GB SSD (256/512GB)
		i3-10110U 2.1GHz	8GB DDR4 (16/32/64GB)	128GB SSD (256/512GB)
	CPU i5	i5-6200U 2.3GHz	4GB DDR4 (8/16/32GB)	128GB SSD (256/512GB)
		i5-7200U 2.5GHz	4GB DDR4 (8/16/32GB)	128GB SSD (256/512GB)
		i5-8265U 1.6GHz	4GB DDR4 (8/16/32GB)	128GB SSD (256/512GB)
		i5-10210U 1.6GHz	8GB DDR4 (16/32/64GB)	128GB SSD (256/512GB)
	CPU i7	i7-6500U 2.5GHz	4GB DDR4 (8/16/32GB)	128GB SSD (256/512GB)
		i7-7500U 2.7GHz	4GB DDR4 (8/16/32GB)	128GB SSD (256/512GB)
		i7-8565U 1.8GHz	4GB DDR4 (8/16/32GB)	128GB SSD (256/512GB)
		i7-10510U 1.8GHz	8GB DDR4 (16/32/64GB)	128GB SSD (256/512GB)
	Graphics Card	Intel HD Graphics 520, Intel HD Graphics 620, Intel HD Graphics 630
	OS	Windows 7 (Professional/Ultimate) / Windows 10 (Professional/Enterprise/Home) / Windows 11 (Professional) / Ubuntu (16.04.7/18.04.5/20.04.3) / Centos (7.6/7.8)
	3G/4G Module	Support
	WiFi	Dual-band 2.4/5G
	Bluetooth	BT4.2
	GPS	Optional
	MIC	Optional
	RTC	Support
	Timer Switch	Optional
	Wake on LAN	Support
The following interface parameters are only for the i3-6100U, for other configuration options, please contact us for details.

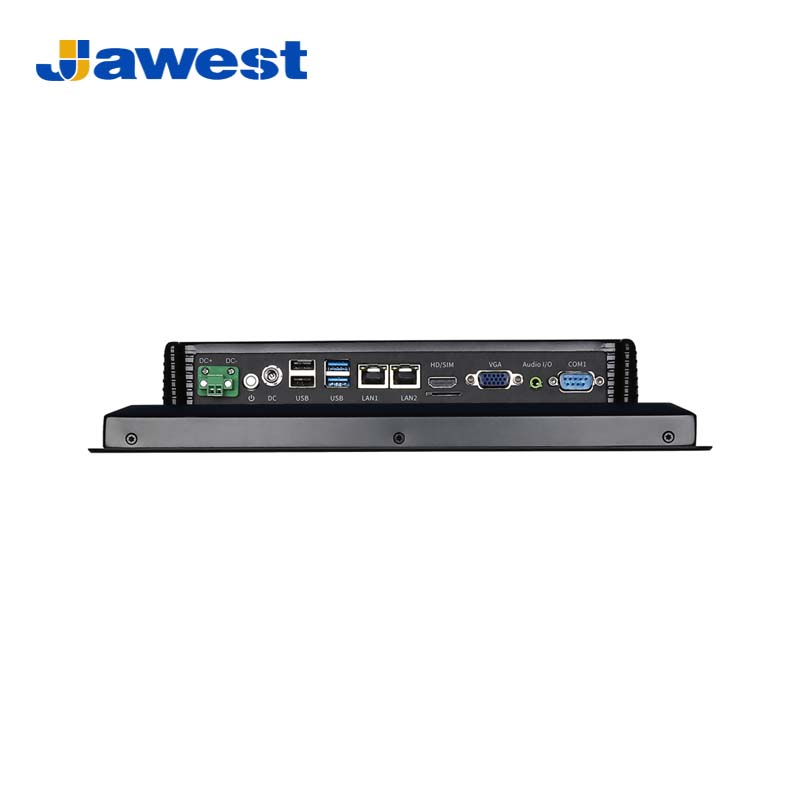

Interface Parameter	USB	8"~10.4": 2USB2.0, Other size: 3USB2.03+1USB3.0
	DC	1*DC 2.5; Support wide voltage 12V~36V power supply
	HDMI	Support HDMI data output, maximum support 1080P
	VGA	Standard DB15 interface
	RJ45	1*Realtek 8111F Gigabit interface, support wake-on-LAN
	Earphone Jack	3.5mm standard interface
	SIM Card	Standard interface supports various formats
	Serial Interface	7"~10.4": 1COM; other sizes: 2COM; Default with RS232 protocol, RS422/RS485 protocol optional.

Screen Parameters	Color	16.7M
	Pixel Pitch	0.264mm
	Screen Panel	Industrial control screen
	Contrast	800:1
	Display Brightness	300cd/m2 (high brightness above 400cd/m2 can be customized)
	Viewing Angle	85/85/85/85 (L/R/U/D)
	Backlight Type	LED backlight, screen life ≥ 50000h
	Response Time	6.5ms
	Touchscreen Type	Non-touch, capacitive touchscreen, and resistive touchscreen for optional
	Installation Method	Panel mount, embedded mount, wall-hanging, desktop, VESA

Product Reliability	Operating Temperature	-10°C ~ 60°C
	Storage Temperature	-20°C ~ 70°C
	Humidity	10% to 95% (non-condensing)

Power Adapter	Power Consumption	≤48W
	Power Input	DC 12-36V
