Rugged Industrial Embedded Computer with Android System

Rugged Industrial Embedded Computer with Android System

● High-Performance processor: RK3588/RK3568/RK3399/RK3288 options.

● Multiple operating systems: Android / Linux / Ubuntu / Debian options.

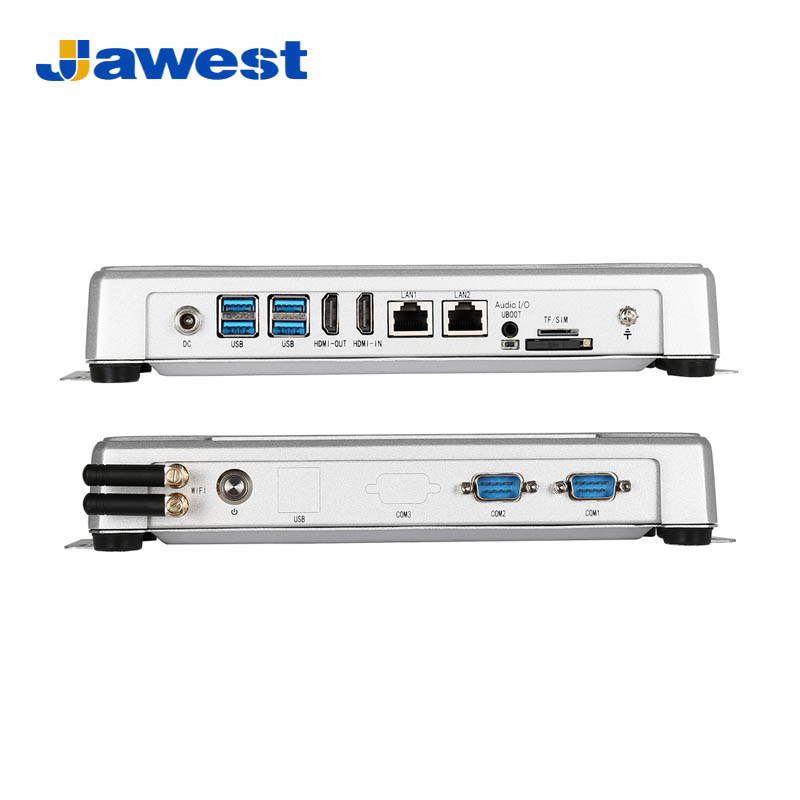

● Abundant expansion I/Os: USB 2.0/3.0, HDMI, LAN, RS232, RS485, TTL, etc.

● Faster and more stable transmission performance: Dual Gigabit Ethernet, supports 4G/5G Internet access.

● Powerful open source attributes: Provide API reference code and technical support.

● ESD anti-static performance: Contact 4KV, air 8KV.

● Support wide voltage operation: Support 12V-36V wide voltage power supply.

● High-quality guarantee: Reliable industrial-grade components.

Appearance of the color

Black

Silver

Description
Parameter
Case

Upgrade 5th-GEN Rugged Industrial Computers Equipped with RK3588 Processor

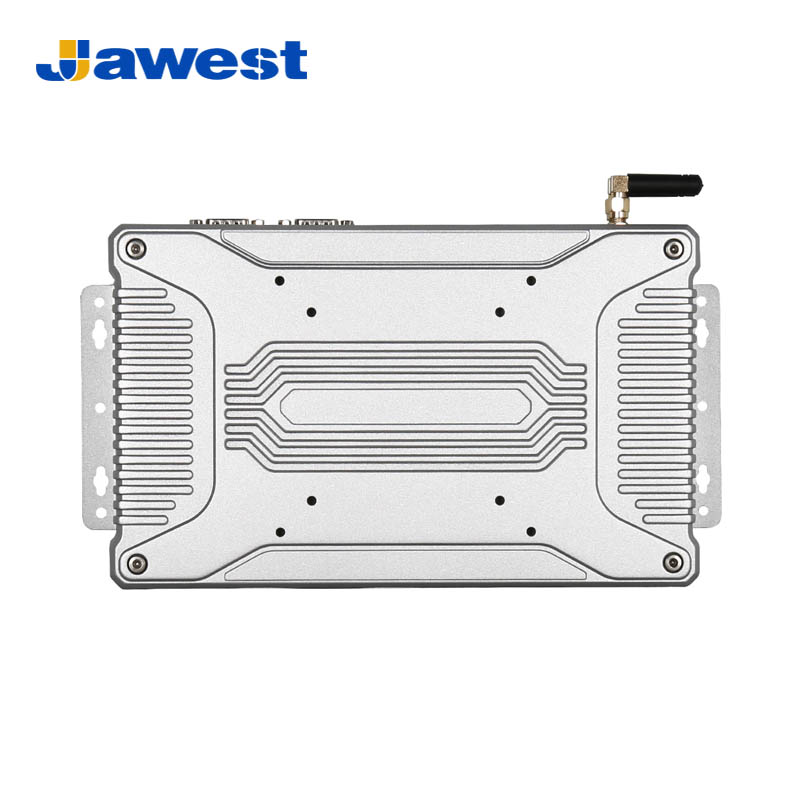

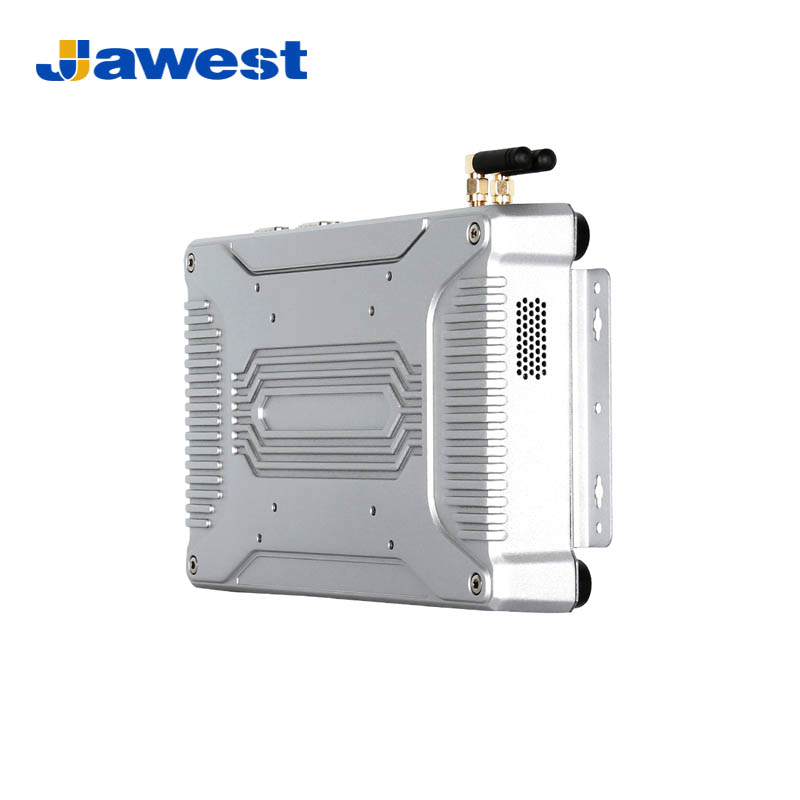

Jawest's newly upgraded 5th-GEN Android-based industrial computer with a more rugged housing design, its 1.9-Liter body is thinner and more powerful. Specially designed for high-end automation fields. Built with an all-aluminum alloy structure and with multiple industrial-grade protection, fits with various harsh environments. The high-end version is equipped with an octa-core 64-bit RK3588 high-performance processor and offers powerful open-source attributes to support higher-level expansion and upgrade of applications.

Perfect for industrial control, military industry, communication, electric power, Networks, etc.

Jawest C Serirs ARM-Based Industrial Computer Datasheet
Model	JWS02-AIOT
Motherboard Model	JWS3288-i	JWS3399-L	CX3399-A	CX3568-A	CX3588-A	CX3588-G
CPU	RK3288	RK3399	RK3399	RK3568	RK3588	RK3588
Memory	2GB (4GB Options)	4GB	4GB	2GB (4/8GB Options)	8GB (16/32GB Options)	8GB (16/32GB Options)
Storage	16GB (128/256GB; HDD 500GB~1T Options)	32GB (64/128/256/512GB; HDD 1T/2T Options)	64GB (128/256/512GB; HDD 1T/2T Options)	32GB (64/128/256/512GB; HDD 500GB~1T Options)	64GB (128/256/512GB; HDD 500GB~1T Options)	64GB (128/256/512GB; HDD 500GB~1T Options)
GPU	ARM Mali-T764	ARM Mali-T860 MP4	ARM Mali-T860 MP4	ARM Mali-G52 MP2	ARM Mali G610 MP4, 6TOPS NPU
Operating System
Operating System	Android 7.1/10.0/12	Android 7.1/9.0/11/13	Android 7.1/9.0/11/13	Android 12/14	Android 13.0	Android 12
	Linux 4.4; Linux 4.4+QT	Linux 4.4	Linux 4.4	Linux 5.10	Linux 5.10	Linux 5.10
	Ubuntu 18.04/20.04	Ubuntu 18.04	Ubuntu 18.04	Ubuntu 20.04/22.04	Ubuntu 20.04/22.04	Ubuntu 20.04/22.04
	Debian 10.0	Debian 10	Debian 10	Debian 11	Debian 11	Debian11
Display Functions
LVDS	1920*1080 60Hz output
EDP	1920*1080 60Hz output	1920*1080 60Hz output				4K resolution 3840*2160 output
HDMI Output	HDMI2.0, supports 4K resolution 3840*2160 60Hz output				HDMI2.1, supports 8K resolution 7680*4320 60Hz output
Touch Function
Touch Port	USB	USB/IIC
Networking
LAN	1*LAN, 10M/100M/1000M adaptive Ethernet				2LAN, 1100M+1*1000M Ethernet	2LAN, 10M/100M/1000M adaptive Ethernets
WIFI	2.4/5GHz Dual-Band	2.4/5GHz Dual-Band	WIFI 6, 2.4/5GHz Dual-Band	WIFI 6, 2.4GHz	WIFI 6, 2.4/5GHz Dual-Band	WIFI 5/WIFI 6 (optional), 2.4/5GHz Dual-Band
Bluetooth	BT5.0	BT5.0	BT5.0	BT5.2	BT5.0	BT4.2 (WIFI 5) / 5.0 (WIFI 6)
4G	Optional	Optional	Optional	Optional	Optional	Optional
5G	/	/	/	/	/	Support M.2 5G module interface
Multimedia Ports
Speaker	Dual-channel 4Ω/2W, 8Ω/5W amplifier	Dual-channel 4R/10W/per channel, 8R/5W/per channel amplifier
MIC	Support
Audio Port	1*Audio supports audio output
USB Ports
USB2.0	2USB2.0 + 6USB2.0 onboard	5*USB2.0 onboard	1USB2.0 + 5USB2.0 onboard	4*USB2.0 onboard	1USB2.0 + 4USB2.0 onboard	5*USB2.0 onboard
USB3.0	/	2*USB3.0	1*USB3.0	2*USB3.0	1*USB3.0	4*USB3.0
Serial Ports
RS232	1RS232, 2TTL/RS232 optional	2*RS232	2*RS232	2*RS232	2*RS232	1RS232, 2TTL/RS232 optional
RS485	None (Need to add an RS232 to RS485 adapter board if needed)	1*RS485	1*RS485	1*RS485	1*RS485	1*RS485
TTL	1RS232, 2TTL/RS232 optional	2*TTL	2*TTL	2*TTL	2*TTL	1TTL，2RS232/TTL(optional）
Other I/O Ports
GPIO	7*GPIO	8*GPIO	8*GPIO	12*GPIO	6*GPIO	6*GPIO
SIM Slots	Support
Power Supply
Power Input	DC 12~36V
Standby	15W
Reliability Performance
Operating Temp	-10°C ~ +60°C (Wide temperature operation is customizable )
Storage Temp	-20°C ~ +70°C
Operating Humidity	95%, non condensing
Mechanical
Color	Silver
Material	Aluminum Alloy
Dimension	239.5148.542.8mm

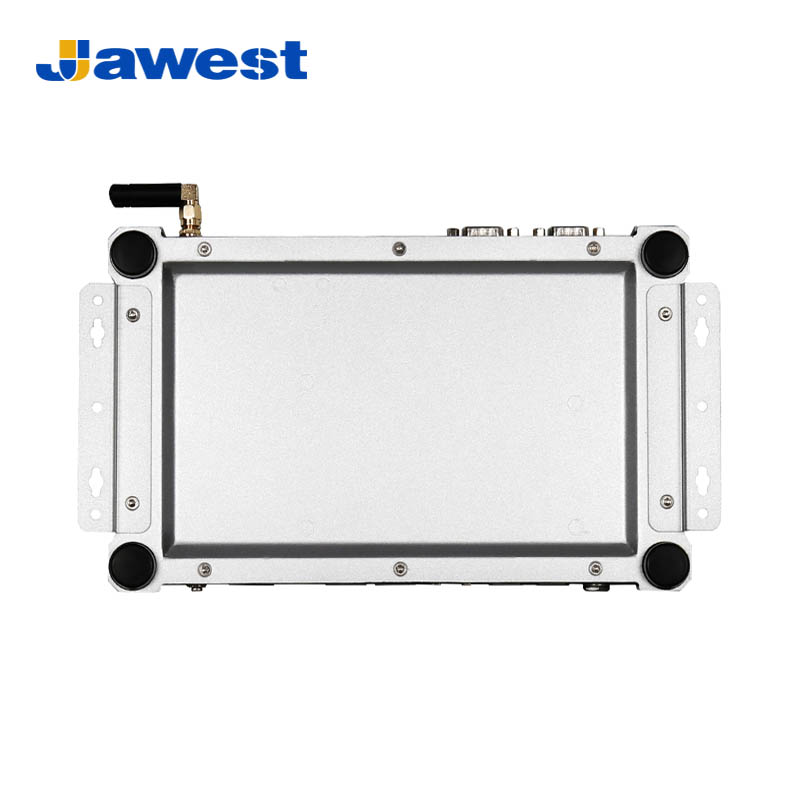

Installation	Desktop and rack-mount
