Open Frame Android Screen 7 inch 8 inch 10 inch Open Frame Android Touch Panel

Open Frame Android Screen 7 inch 8 inch 10 inch Open Frame Android Touch Panel

● Android screen: 7" / 8" / 10.1" / 11.6" options

● CPU: Rockchip RK3568, Cortex-A55 Quad-Core, 64 bits, 2.0GHz. (RK3288/RK3399/RK3588 options).

● OS: Android12 / Linux 5.10 / Ubuntu 20.04 / Debian 11 options.

● Anti-electromagnetic interference design, suitable for stable operation in multi-device environments.

● Supports 12V~36V wide voltage operation.

● HD industrial control touch screen.

● Support high-definition display interface HDMI and multiple COM, USB, Gigabit network transmission, and serial port interfaces. Support I/O customization.

Appearance of the color

Black

Silver

Description
Parameter
Case

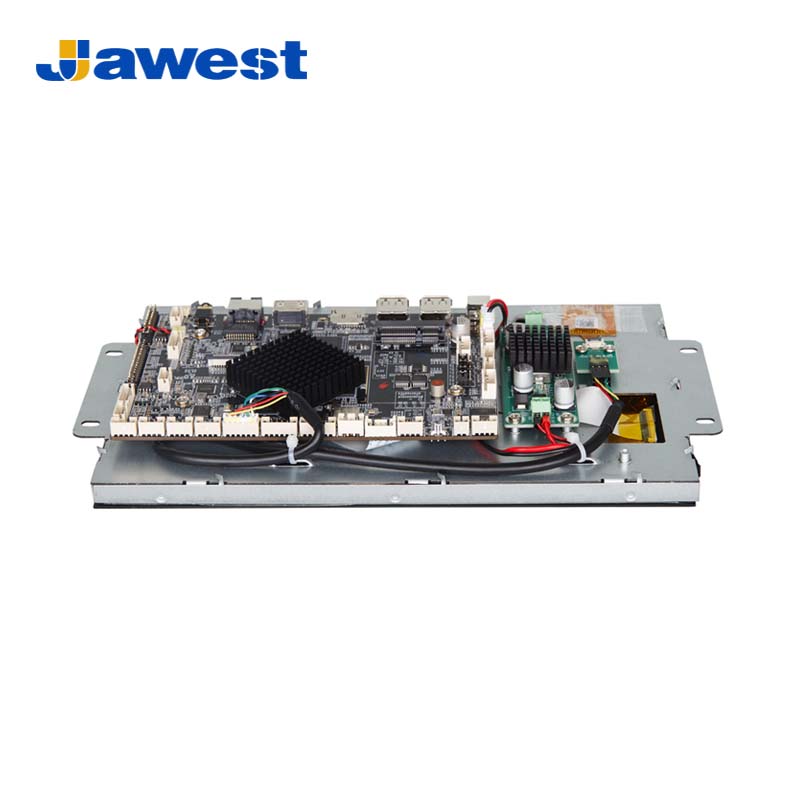

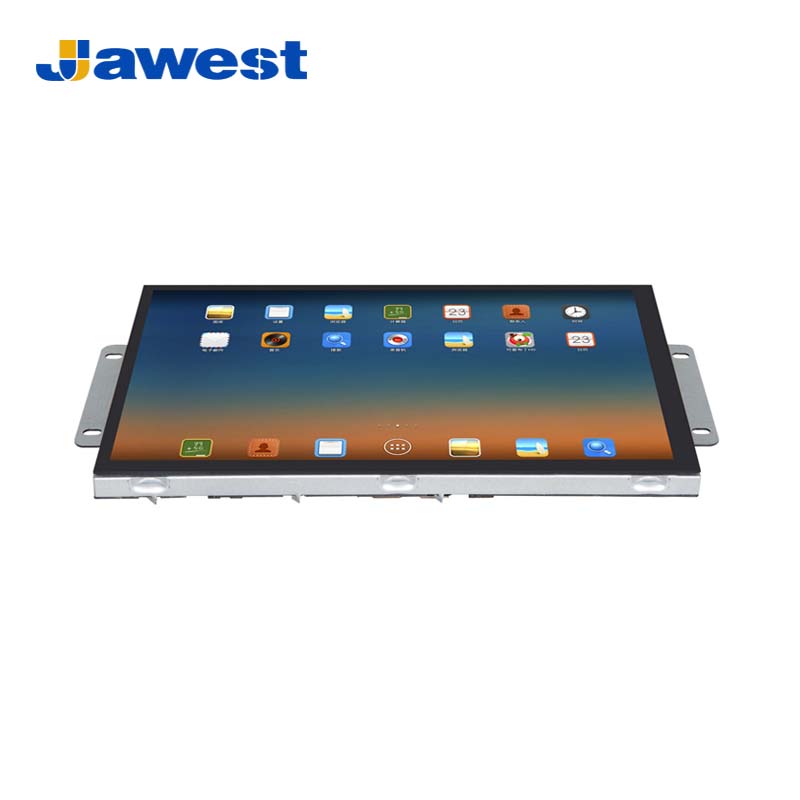

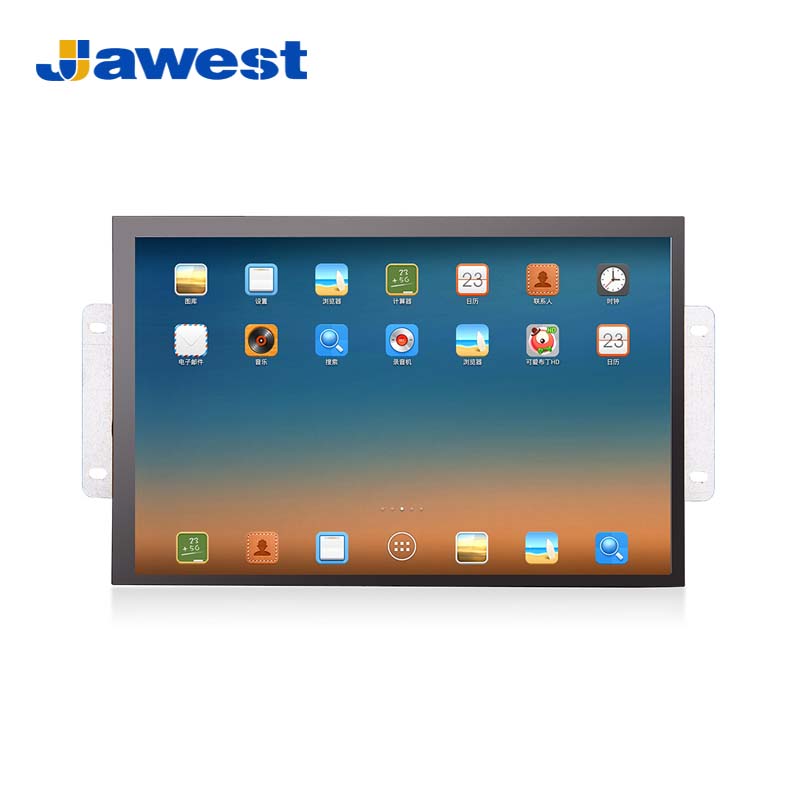

Open Frame Android Touchscreen

The Jawest open-frame Android touchscreen delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability and scalability from the start, Jawest's open-frame Android screens deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. This series of product lines is available in four sizes, 7-inch, 8-inch, 10.1-inch, and 11.6-inch.

They are designed with a simple appearance and 24/7 stable, high-performance operation to meet a variety of application needs and can be used in Cloud Platform computing, edge computing, Big Data processing, real-time control, and other application environments. With powerful computing capacity and graphics processing performance, it is suitable for rack-mounted installation in data centers and is also widely used in high-end automation fields such as industrial control, military industry, communications, electric power, and networks.

Product Model Fast Guide

Product Models	LCD Displays	Resolution	Aspect Ratio	Get A Quote Now!
JWS070-A16	7"	1024*600	16:9	Inquiry
JWS080-A16	8"	1024*768	4:3	Inquiry
JWS101-A16	10.1"	1280*800	16:10	Inquiry
JWS116-A16	11.6"	1980*1080	16:9	Inquiry


Display Parameters	Size	7"	8"	10.1"	11.6"
	Resolution	1024*600	1024*768	8001280/1280800	1366*768
	Screen Ratio	16:9	4:3	10:16/16:10	16:9
	Brightness	330 nits (Optional high brightness)	250~300 nits (Optional high brightness)	300 nits (Optional high brightness)	250~300 nits (Optional high brightness)
	Contrast Ratio	500:1	800:1	1000:1	1000:1
	Viewing Angle	75°/75°/70°/75° (L/R/U/D)	85°/85°/85°/85° (L/R/U/D)	85°/85°/85°/85° (L/R/U/D)	85°/85°/85°/85° (L/R/U/D)
	Backlight type	LED backlight screen, service life ≥ 50000H
	Touch Screen	Capacitive, Resistive, or Non-touch options

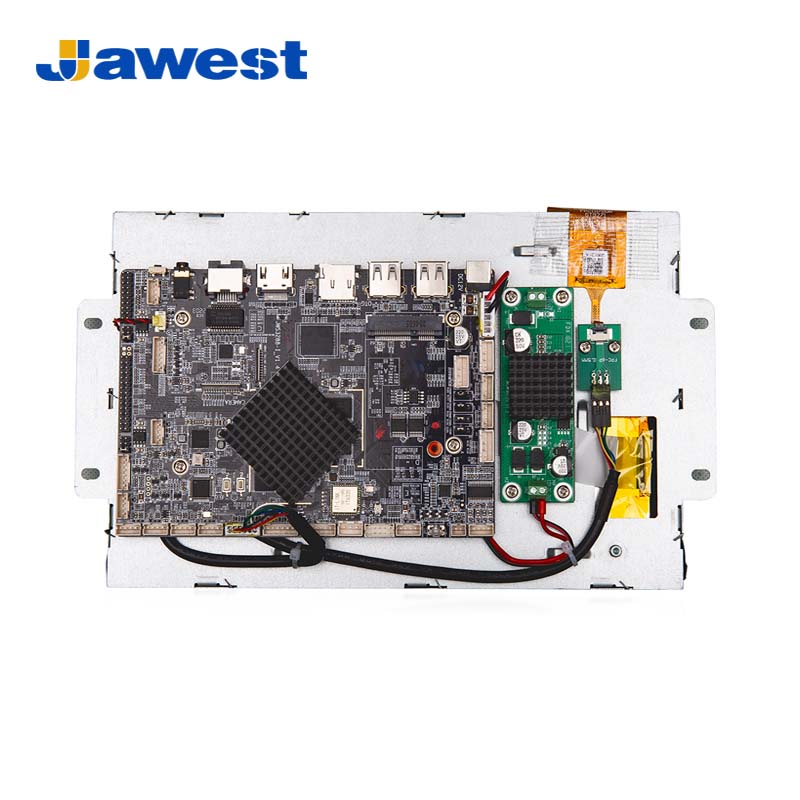

Motherboard Model Selection		JWS3288-I	CX3399-A	CX3568-A	CX3588-A
System Architecture	CPU	RK3288 Quad-Core 1.8GHz	RK3399 Six-Core 2.0GHz	RK3568 Quad-Core 2.0GHz	RK3588 Octa-Core 2.1GHz
	Core Architecture	Cortex-A17	Dual-Core Cortex-A72 + Quad-Core Cortex-A53	Cortex-A55	Quad-Core Cortex-A76 + Quad-Core Cortex-A55
	GPU	Mali-T764	Mali-T860 MP4	Mali-G52 2EE	Mali G610 MP4
	Memory (DDR)	2GB (4GB optional)	2/4GB	2GB (4/8GB optional)	4GB (8/32GB optional)
	Storage (eMMC)	16GB (32/64/128/256GB optional)	32/64GB (256GB optional)	32GB (64/128/256GB optional)	64GB (128/256GB optional)
	SATA	/	/	Support	/
	Operating System	Android 7.1 / 10.0 / Linux4.4 / Ubuntu18.04 / Debian10.0	Android 7.1/9.0/11, Linux 4.4 / Ubuntu 18.04 / Debian 10	Android 12 / Linux5.10 / Ubuntu 20.04 / Debian 11	Android 13.0 / Linux5.10 / Ubuntu 20.04 / Debian 11

Networking	Ethernet	1*10M/100M/1000M adaptive Ethernet	1*10M/100M/1000M adaptive Ethernet	1*10M/100M/1000M adaptive Ethernet	1Gigabit Ethernet + 1100 Mbit Ethernet
	4G	Optional. Based on the 4G module selection
	5G	/	/	/	/
	WIFI	Dual-band 2.4/5G	Dual-band 2.4/5G	WIFI6, 2.4G	WIFI6, Dual-band 2.4/5G
	Bluetooth	BT5.0	BT5.0	BT5.2	BT5.0

Display Function	LVDS	Support 1920*1080 60Hz output
	EDP	1920*1080 60Hz output
	MIPI	Support 1920*1080 60Hz output
	Mipi Camera	30pin FPC interface, support 1300W Camera
	HDMI Output	HDMI 2.0, supports 4K 3840*2160 60Hz output			HDMI 2.1, supports 8K 7680*4320 60Hz output
	HDMI Input	HDMI Input, 24-pin FPC custom interface	HDMI Input, 24-pin FPC custom interface	/	/
Touch Function	Touch Interface	USB	USB/IIC
I/O Ports	MICRO USB	/	/	/	/
	USB 2.0	USB2.02 (including OTG1) + USB2.0*6 on board	USB2.01 + USB2.05 on board	USB2.0*4 on board	USB2.01 + USB2.04 on board
	USB 3.0	/	USB3.0*1（OTG)	USB3.02 (including OTG1)	USB3.0*1（OTG)
	RS232	1RS232, 2TTL/RS232 optional	RS232*2	RS232*2	RS232*2
	RS485	/ (Unless install RS232 to RS485 converter)	RS485*1	RS485*1	RS485*1
	TTL	1RS232, 2TTL/RS232 optional	TTL*2	TTL*2	TTL*2
	GPIO	GPIO*7 (input/output)	GPIO*8 (input/output)	GPIO*12 (input/output)	GPIO*6 (input/output)
	SIM Slot	Support	Support	Support	Support
	TF Slot	Support	Support	Support	Support
	CAN	/	/	Support	Support
	Speaker	3.5mm standard Jack
	MIC	Support	Support	Support	Support
	Audio Port	3.5mm earphone jack, support input/output
	I/O Expansion	Available

Power	Power Input	12V DC	12-36V DC	12-36V DC	12-36V DC
Power	Adapter	12V / 4A	24V / 2.5A	24V / 2.5A	24V / 2.5A

Mechanical	Dimension	22511637.03mm	225126.237.03mm	260150.532.6mm	289171.3330.5mm
	Enclosure	Aluminum alloy housing
	Cooling System	Fanless
	Mounting	Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

Product Reliability	Working Temp	-20°C ~ 70°C
	Storage Temp	-30°C ~ 80°C
	Ambient Humidity	5% - 95% (relative humidity non-condensing)
	IP rating	Front IP65
