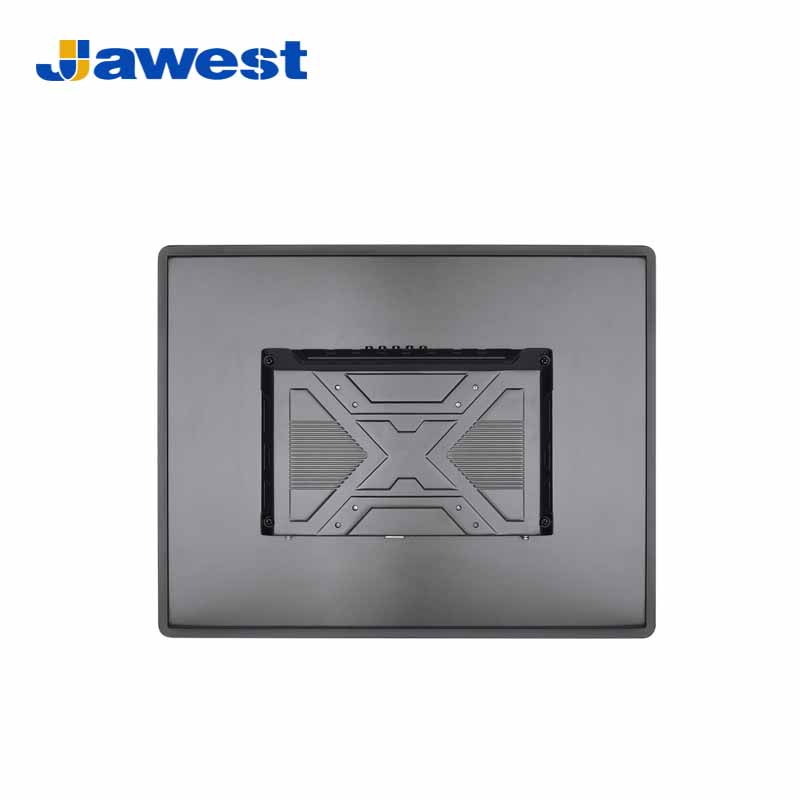

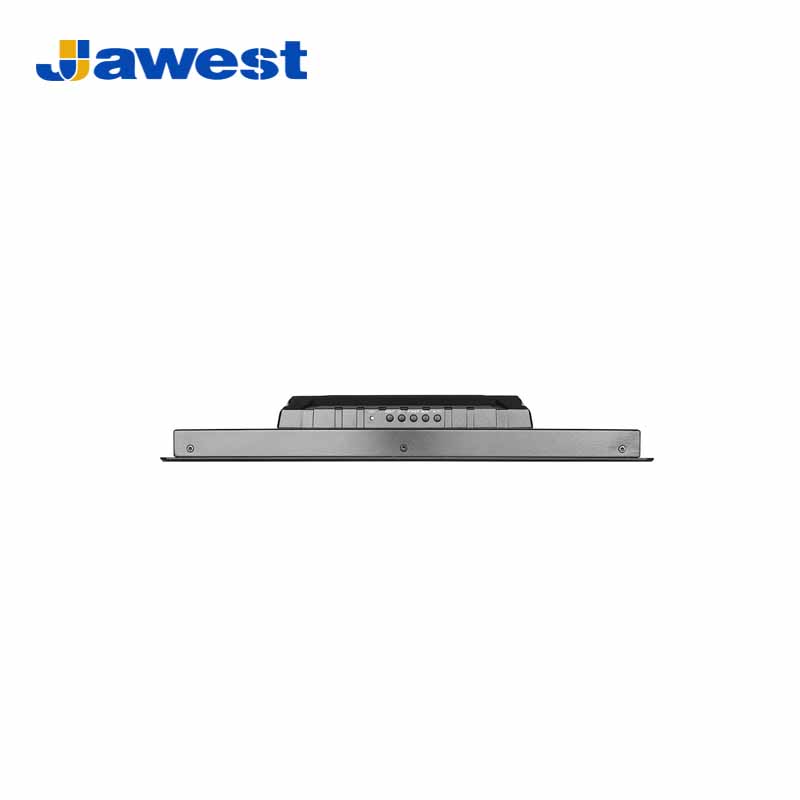

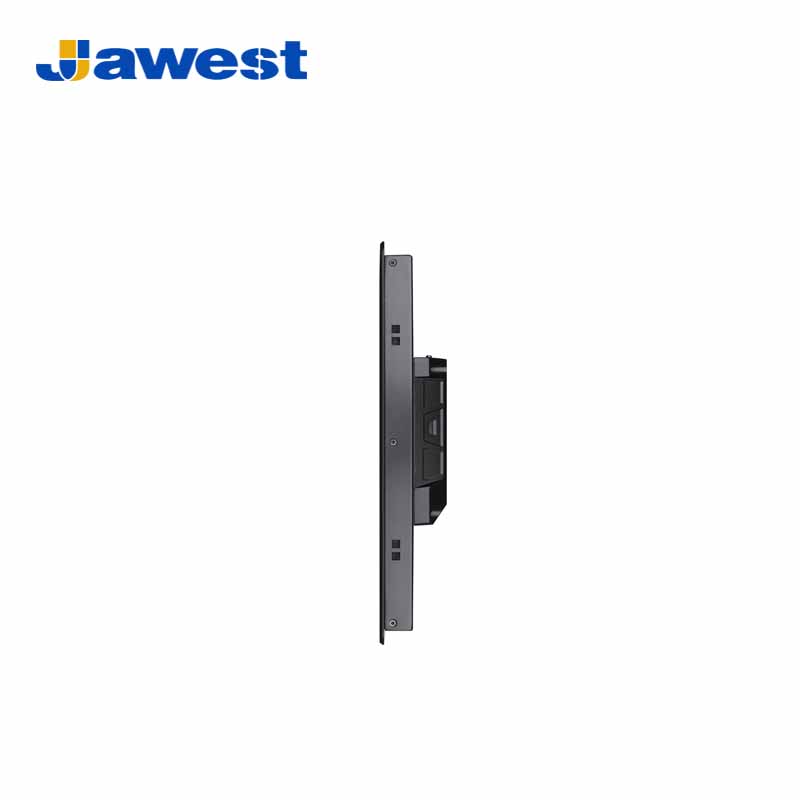

7-23.8" External-embedded Industrial Touchscreen Monitor

● 3mm ultra-thin IP65 front panel bezel.

● 7-23.8" display size available.

● Specially designed for cabinet-type equipment.

● Automatically identify signal source, HDMI/DP/VGA input.

● Wide working temperature range -10℃~60℃.

● Wide voltage input DC 12V-36V

● Industrial grade protection ESD/EMI/Anti-vibration

Appearance of the color

Black

Silver

Description
Parameter
Case

Z Series Model A Recessed Industrial Displays

TPC-M28 is an embedded industrial monitor with a flat front panel, slim and compact, an IP65 dustproof and waterproof enclosure, which is the preferred model for cabinet equipment embedded installation. Support 7''-23.8'' capacitive/resistive touch screen and non-touch options, with VGA + HDMI + DP signal interface. An aluminum die-casting shell to enhance the mechanical rigidity of the machine, anti-interference and heat dissipation performance, fearless of high and low temperatures, oil, dust, vibration, and other harsh conditions, is the ideal choice for industrial control, terminal support, and human-computer interaction.

7-23.8" External-embedded Industrial Touchscreen Monitor

Installation Preference Cabinet-type equipment	10-point Touch Capacitive/resistive/non-touch option	Modular Structure Flexible installation	Signal Auto-Recognition Support VGA+HDMI+DP display
Dustproof & Waterproof IP65 front panel protection	Wide Temperature -10°C ~ +60°C	Wide Voltage DC 12V-36V	Industrial Grade Protection EMC/ESD/vibration protection

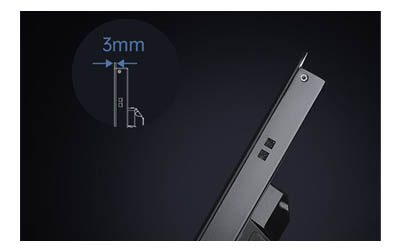

3mm Slim Panel Cabinet Versatility

Continuing the classic 3mm flat front panel design, slim and compact, suitable for cabinet equipment embedded installation needs, integration, and solid.

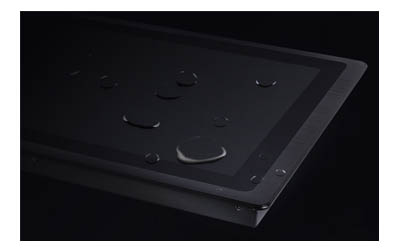

IP65 Screen, Special Waterproof Fog Process

The front panel adopts an IP65-rated dustproof and waterproof design, and a special waterproof fog process is added in the manufacturing process to avoid water vapor condensation and maintain a clear display for a long time.

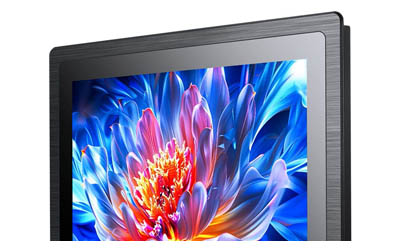

High Definition Display, High Flexibility Touchscreen

Offer 10.1-27 inch series of screen ratios and resolution specifications. Capacitive/resistive touch screen and non-touch solutions for optional. The screen features high resolution, high brightness, and full viewing angle, and also supports other valuable features custom to create a professional-grade image presentation.

7-23.8" External-embedded Industrial Touchscreen Monitor

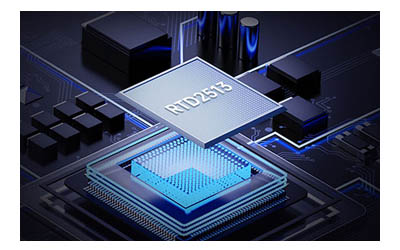

Professional Driver Board, Fast And Stable Signal Transmission

Adopting self-developed display driver boards, with excellent signal processing, image transmission, and functionality, consume less power and are especially suitable for industrial 24/7 non-stop applications.

7-23.8" External-embedded Industrial Touchscreen Monitor

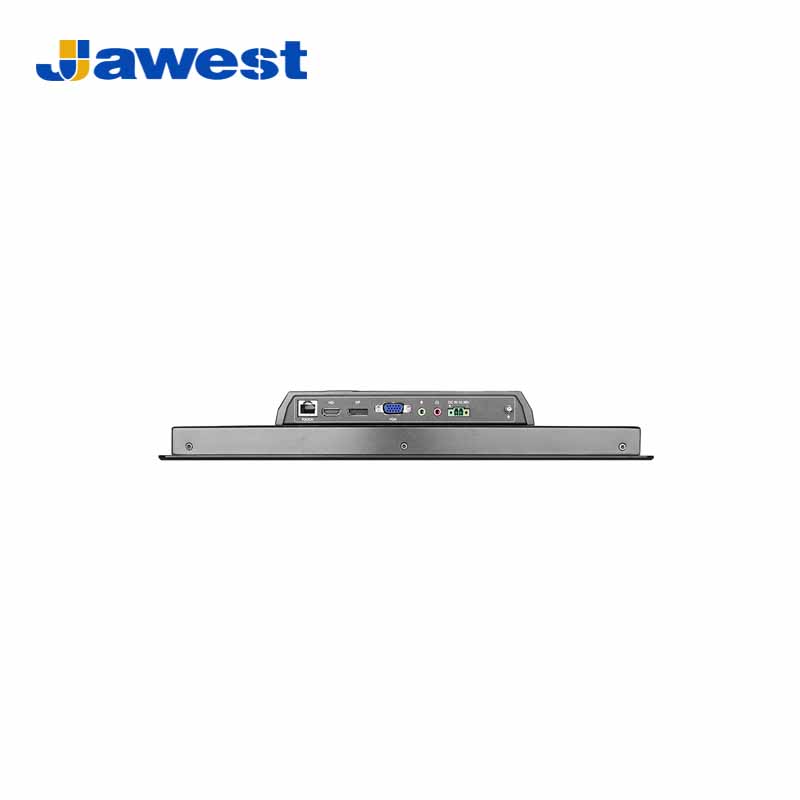

Abundant Ports Support Seamless Switching Among Multiple Devices

With VGA+HDMI+DP multiple universal signal interfaces, it can automatically identify the signal source, support for multi-device seamless switching, efficient and easy to use.

Port Parameters	DC port	1*DC port, supporting a wide voltage 12V-36V power supply
	HDMI	Supports HDMI data input, with a maximum support of 1080P
	VGA	Supports VGA (resolution corresponding to the size of the optimal resolution)
	DP	1*DP signal (resolution corresponding to the size of the optimal resolution)
	Touchscreen port	RJ45 port (defined as USB)
	Headphone jack	3.5mm standard port
	Audio interface	Audio I/O
	Expansion support	Supports various industry ports customization


Screen Parameters	Color	16.7M
	Dot pitch	0.297(H) X 0.297(V)
	Screen panel	Industrial control screen
	Contrast ratio	700:1
	Display brightness	300cd/㎡
	Viewing angle	80/80/70/70 (L/R/U/D), support full viewing angle
	Backlight type	LED backlight screen, service life ≥50000h
	Grayscale response time	6.5ms
	Touch methods	Non-touch, capacitive touch, and resistive touch for optional
	Installation methods	External embedded, wall-mounted, desktop, wall-hanging, VESA installation


Product Reliability	Operating temperature	-10 °C ~ 60°C
	Storage temperature	-20 °C ~ 70°C
	Relative humidity	20%-95%(no condensation)
	Mean Time Between Failures (MTBF)	7*24H


Power Parameters	Power consumption	20W
	Power input	AC 100-240V 50/60Hz
	Power output	DC24V / 1.5A

Screen size datasheet

Model	Size	Resolution	Screen Ratio
JWS080-M28	8"	1024*768	4:3 standard screen
JWS101-M28	10.1"	1280*800	16:10 widescreen
JWS104-M28	10.4"	1024*768	4:3 standard screen
JWS116-M28	11.6"	1920*1080	16:9 widescreen
JWS120-M28	12"	1024*768	4:3 standard screen
JWS133-M28	13.3"	1920*1080	16:9 widescreen
JWS150-M28	15"	1024*768	4:3 standard screen
JWS156-M28	15.6"	1920*1080	16:9 widescreen
JWS170-M28	17"	1280*1024	5:4 standard screen
JWS173-M28	17.3"	1920*1080	16:9 widescreen
JWS185-M28	18.5"	1920*1080	16:9 widescreen
JWS190-M28	19"	1280*1024	5:4 standard screen
JWS215-M28	21.5"	1920*1080	16:9 widescreen
JWS238-M28	23.8"	1920*1080	16:9 widescreen
More size can be customized
