This panel mount i3/i5/i7 Intel Core series industrial touch panel PC is a high-quality unit that is extremely scalable and customizable. Made with industrial-grade components and a robust aluminum alloy enclosure, ideal for demanding environments. The ultra-thin front bezel is perfect for panel mount.


Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • Overview


    Designed for continuous 24/7 operation in challenging environments, this industrial touchscreen PC ensures high performance and durability, powered by an Intel Core i3/i5/i7 processor. Jawest's industrial panel PCs effortlessly withstand dust, vibration, moisture, water, and shock due to their impact-resistant panels.



    The unit is versatile, and suitable for VESA mount, desktop stands, and wall-hanging mounts, making it ideal for integration into smart factory production lines. Each industrial touchscreen PC is internally equipped with high-quality, industrial-grade components crafted to endure harsh conditions over time.



    The touchscreens and front bezels are IP65-rated, and screen sizes ranging from 7 inches to 23.8 inches are available, with options for projected capacitive, resistive touchscreen, or Non-touch screen configurations. This unit is particularly well-suited for rugged manufacturing applications where dust and dirt are prevalent.



    Features


    ● 7" to 23.8“ industrial LCD displays

    ● Equipped with up to 10th generation Intel® Core™ i7 processor

    ● Silent fanless design provides a long-lasting and stable cooling effect

    ● Abundant interfaces offer unlimited possibilities for panel PCs' expansion applications.

    ● Impact-resistant front panel with robust aluminum alloy enclosure, ideal for VESA mount, wall-hanging.





    Model NameScreen SizeResolution Aspect Ratio
    Get A Quote
    JWS070-W117"1024*60016:9Inquiry Now
    JWS080-W118"1024*7684:3Inquiry Now
    JWS101-W1110.1"1280*80016:10Inquiry Now
    JWS104-W1110.4"1024*7684:3Inquiry Now
    JWS116-W1111.6"1920*108016:9
    Inquiry Now
    JWS120-W1112"1024*7684:3Inquiry Now
    JWS121-W1112.1"1280*80016:10Inquiry Now
    JWS133-W1113.3"1920*108016:9Inquiry Now
    JWS150-W1115"1024*7684:3Inquiry Now
    JWS156-W1115.6"1920*108016:9Inquiry Now
    JWS170-W1117"1280*10245:4Inquiry Now
    JWS173-W1117.3"1920*108016:9Inquiry Now
    JWS185-W1118.5"1920*108016:9Inquiry Now
    JWS190-W1119"1280*10245:4Inquiry Now
    JWS191-W1119.1"1440*900
    16:10Inquiry Now
    JWS215-W1121.5"1920*108016:9
    Inquiry Now
    JWS238-W1123.8"1920*108016:9Inquiry Now






  • Hardware ConfigurationCPU i3i3-6100U 2.3GHz4GB DDR4 (8/16/32GB)128GB SSD (256/512GB)
    i3-8145U 2.1GHz4GB DDR4 (8/16/32GB)128GB SSD (256/512GB)
    i3-10110U 2.1GHz8GB DDR4 (16/32/64GB)128GB SSD (256/512GB)
    CPU i5i5-6200U 2.3GHz4GB DDR4 (8/16/32GB)128GB SSD (256/512GB)
    i5-7200U 2.5GHz4GB DDR4 (8/16/32GB)128GB SSD (256/512GB)
    i5-8265U 1.6GHz4GB DDR4 (8/16/32GB)128GB SSD (256/512GB)
    i5-10210U 1.6GHz8GB DDR4 (16/32/64GB)128GB SSD (256/512GB)
    CPU i7i7-6500U 2.5GHz4GB DDR4 (8/16/32GB)128GB SSD (256/512GB)
    i7-7500U 2.7GHz4GB DDR4 (8/16/32GB)128GB SSD (256/512GB)
    i7-8565U 1.8GHz4GB DDR4 (8/16/32GB)128GB SSD (256/512GB)
    i7-10510U 1.8GHz8GB DDR4 (16/32/64GB)
    128GB SSD (256/512GB)
    Graphics CardIntel HD Graphics 520, Intel HD Graphics 620, Intel HD Graphics 630
    OSWindows 7 (Professional/Ultimate) / Windows 10 (Professional/Enterprise/Home) / Windows 11 (Professional) / Ubuntu (16.04.7/18.04.5/20.04.3) / Centos (7.6/7.8)
    3G/4G ModuleSupport
    WiFiDual-band 2.4/5G
    BluetoothBT4.2
    GPSOptional
    MICOptional
    RTCSupport
    Timer SwitchOptional
    Wake on LANSupport
    The following interface parameters are only for the i3-6100U, for other configuration options, please contact us for details.

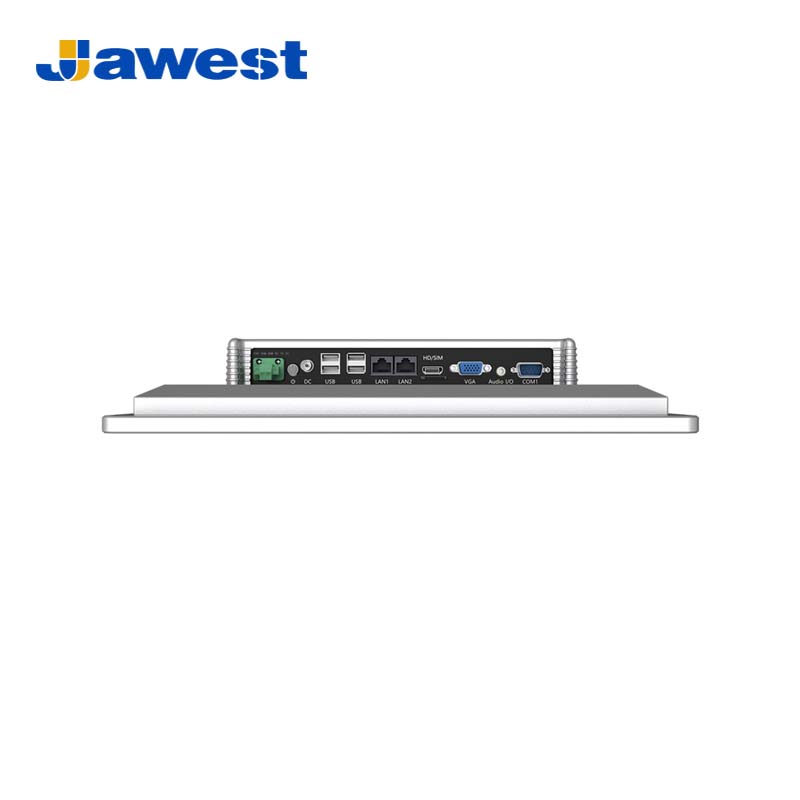

    Interface ParameterUSB8"~10.4": 2*USB2.0, Other size: 3*USB2.0*3+1*USB3.0
    DC1*DC 2.5; Support wide voltage 12V~36V power supply
    HDMISupport HDMI data output, maximum support 1080P
    VGA
    Standard DB15 interface
    RJ451*Realtek 8111F Gigabit interface, support wake-on-LAN
    Earphone Jack3.5mm standard interface
    SIM CardStandard interface supports various formats
    Serial Interface7"~10.4": 1*COM; other sizes: 2*COM; Default with RS232 protocol, RS422/RS485 protocol optional.

    Screen ParametersColor16.7M
    Pixel Pitch0.264mm
    Screen PanelIndustrial control screen
    Contrast800:1
    Display Brightness300cd/m2 (high brightness above 400cd/m2 can be customized)
    Viewing Angle85/85/85/85 (L/R/U/D)
    Backlight TypeLED backlight, screen life ≥ 50000h
    Response Time6.5ms
    Touchscreen TypeNon-touch, capacitive touchscreen, and resistive touchscreen for optional
    Installation MethodPanel mount, embedded mount, wall-hanging, desktop, VESA

    Product ReliabilityOperating Temperature-10°C ~ 60°C
    Storage Temperature-20°C ~ 70°C
    Humidity10% to 95% (non-condensing)

    Power AdapterPower Consumption≤48W
    Power InputDC 12-36V
