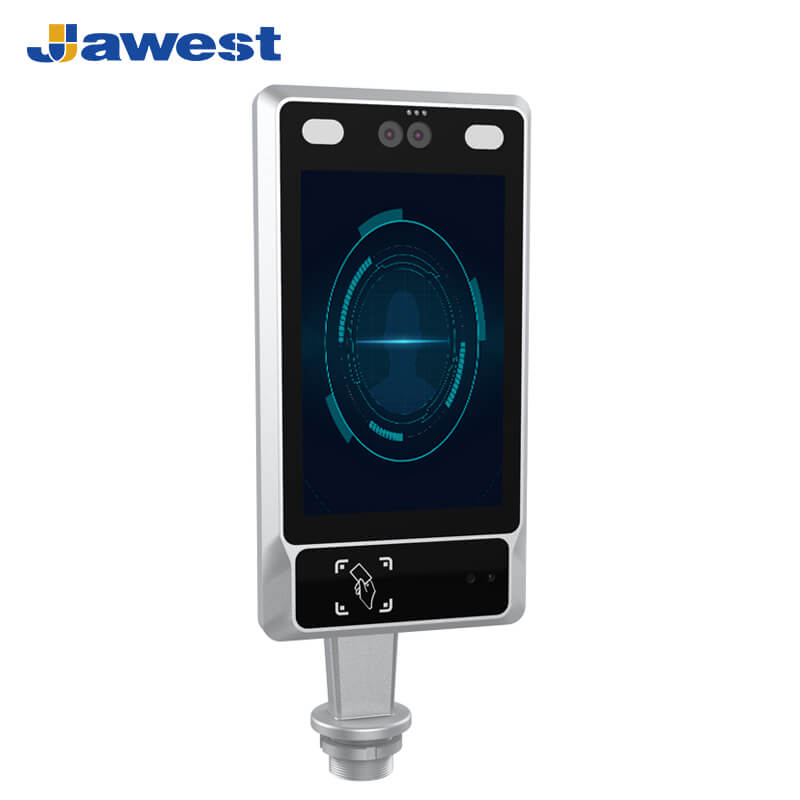

Face Recognition Machine with NFC For Turnstiles System

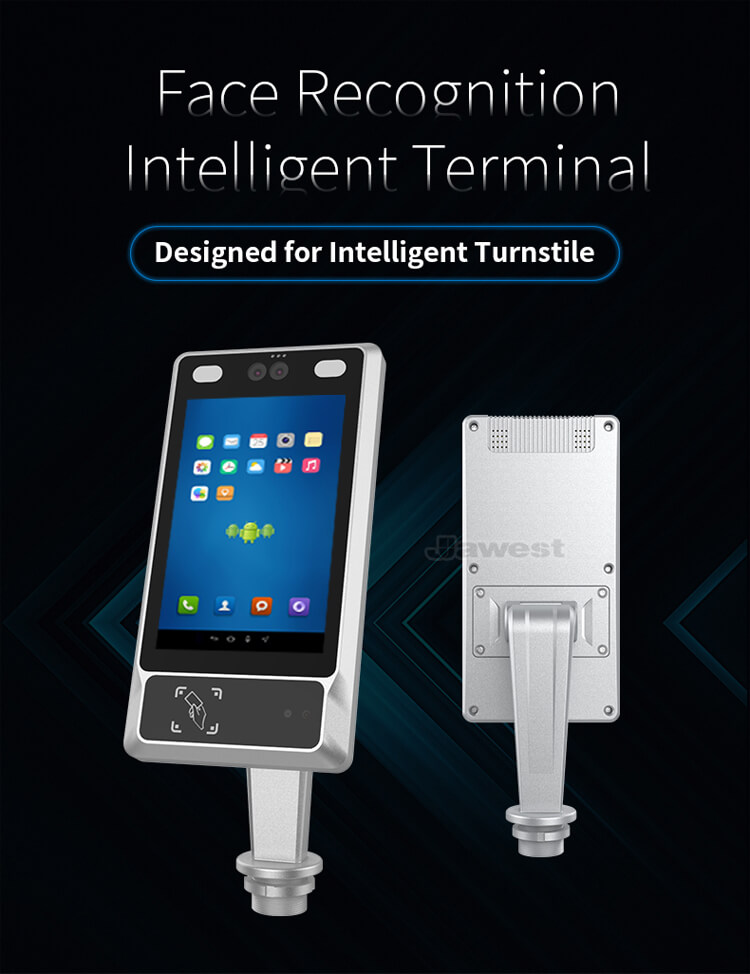

● Face recognition intelligent terminal, designed for intelligent turnstile

● Aluminium alloy casing, good heat-dissipation and corrosion-resistant

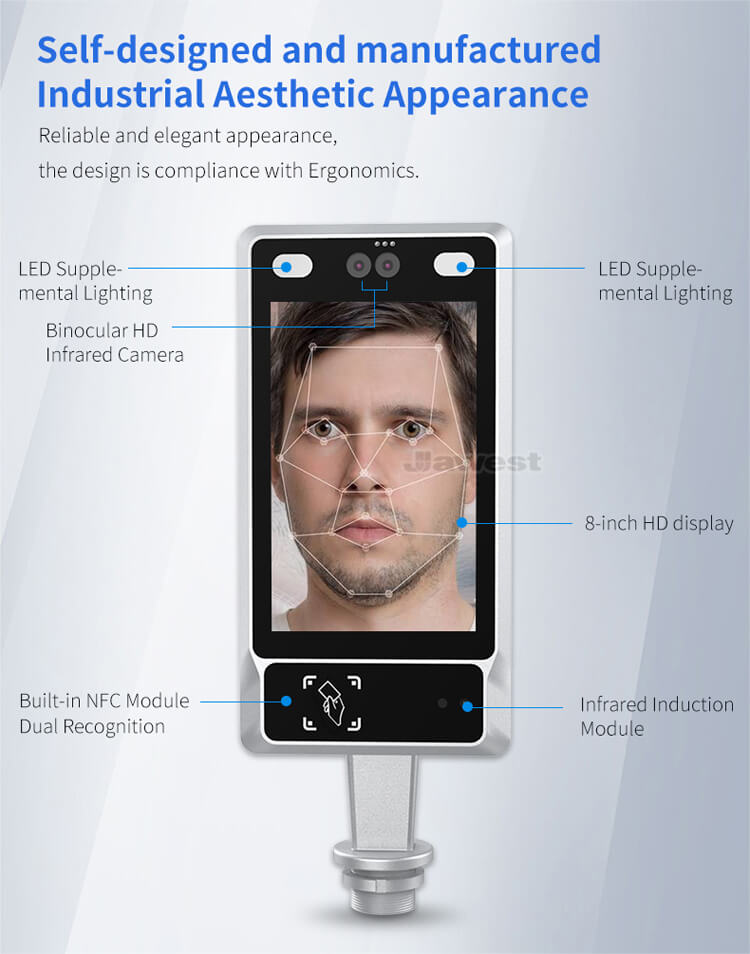

● Self-designed and manufactured, Industrial Aesthetic Appearance

● IP65-rated dust-proof and waterproof

● Support plug-and-play

● Five-point capacitive touchscreen

● Support face liveness detection

● Built-in infrared induction

● Accurate recognition at night

● Provide a complete SDK development kit

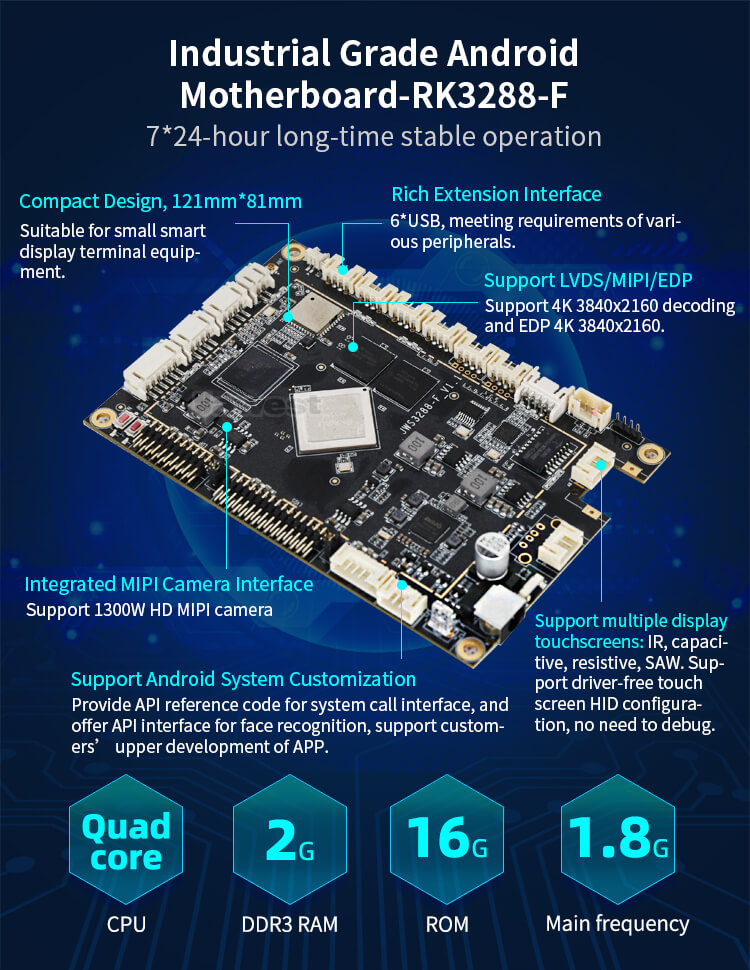

● Industrial-grade Android motherboard

● 7*24-hour long-time stable operation





Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • Biometric Face Recognition Machine For Intelligent Turnstile System


    Face Recognition Device For Turnstiles System

    Face Recognition Device For Turnstiles System

    Face Recognition Device For Turnstiles System

    Face Recognition Device For Turnstiles System

    Face Recognition Device For Turnstiles System

    Face Recognition Device For Turnstiles System

    Face Recognition Device For Turnstiles System

    Face Recognition Device For Turnstiles System

    Face Recognition Device For Turnstiles System

    Face Recognition Device For Turnstiles System




  • Jawest Biometric Face Recognition Device
    Screen
    Size8 inch
    Panel TypeIndustrial LCD panel A/A+ grade
    Aspect Ratio16:10
    Resolution1280*800
    Contrast800:1
    Luminance250nit-1500nit
    Response time5ms
    Active Area (mm)107.64×172.22 mm
    Display colors16.7M
    View angle85/85/85/85° (L/R/U/D; full viewing angle 178° is available)
    Touch screen typeCapacitive touch screen / Non-touch ( mouse control)
    Touch pointsTen-point / five-point
    Input modeFingers / capacitance pen
    Surface hardness>6H
    Configuration
    CPU

    Default with Cortex-A17 quad-core, 32 bits 1.8GHz

    GPUMail-400 533MHz
    Inner memoryLPDDR3 2GB (4/8G optional)
    StorageeMMC 5.1, 16G (8G/32G/64G optional)
    WIFI 2.4G
    BluetoothBT4.1
    MICAvailable
    RTCAvailable
    LED supplemental lightingWhite light, RGB camera light source, control interface in SDK
    SpeakerTwo-channel, 8Ω/2W
    Timing turn on/offAvailable
    System upgradeSupport local USB upgrade

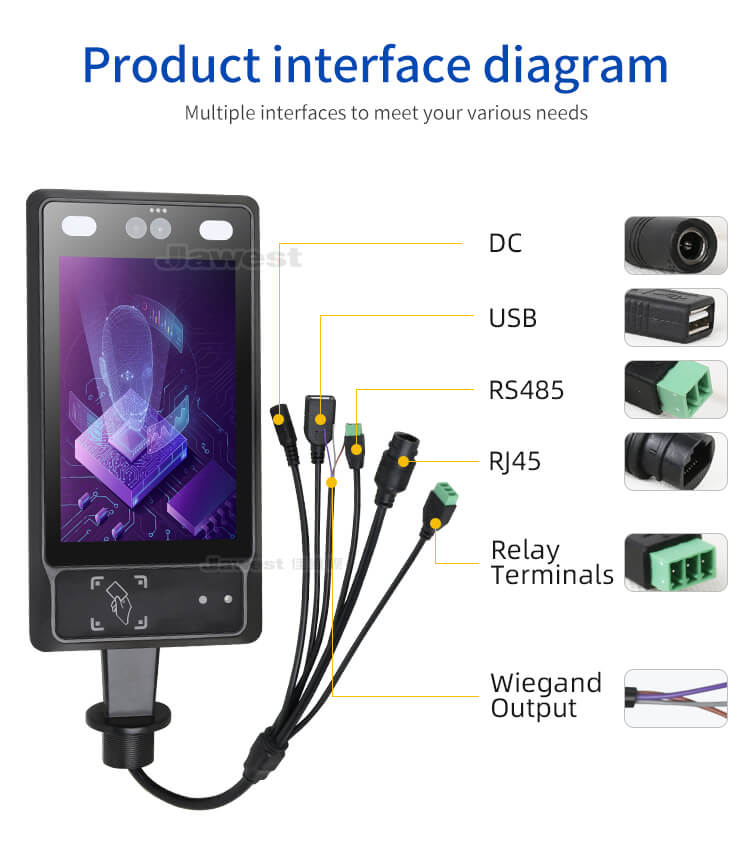

    Interfaces
    DC port1*DC 2.0
    USB-OTG1*typeA
    Wiegand output1-channel (support the Wiegand interface in 26-bit and 34-bit formats)
    RJ45 Ethernet1-channel, 10M/100M Ethernet
    Relay terminal1-channel
    RS4851*RS485 (Two-way alternating communication, Transmission distance is more than 100M)
    Proximity sensorEffective recognition of linear distance for 1M, support automatic sleep
    Card reader13.56MHz, IC card reader (ISO14443-A, ISO14443-B)
    Product Reliability
    Working temperature
    -10°C to 60°C
    Storage temperature-20°C to 70°C
    Working humidity20%-95%, Non-Condensing
    MTBF7*24H
    Power Supply
    Power consumption (Max)15W
    Power inputAC100-240V 50/60Hz; CC, CE approved
    Power outputDC12V/4A

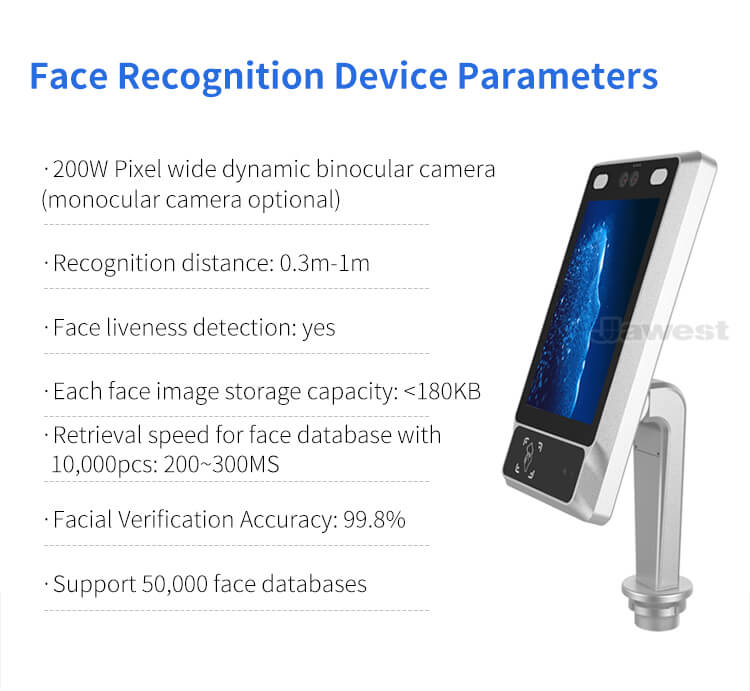

    Face Recognition Parameters
    Camera200W pixel wide dynamic binocular camera (monocular camera optional)
    Recognition distance0.3M-1M
    Face liveness detectionAvailable
    Storage capacity of single face picture≤180KB
    Verification timeThe verification time for 1000 pcs face image is less than 1 second.
    Face verification accuracy rate>99%
    Other
    MaterialAluminum alloy enclosure
    IP ratingIP66 for front panel
    ColorSilver / black (other colors can be customized)
    Installation methodVESA, Embedded, Wall Mount, Desktop
    CertificatesCE, CCC, ISO, FCC, ROHS
    PackagingEPE+Carton  (wooden crate for mass order)
