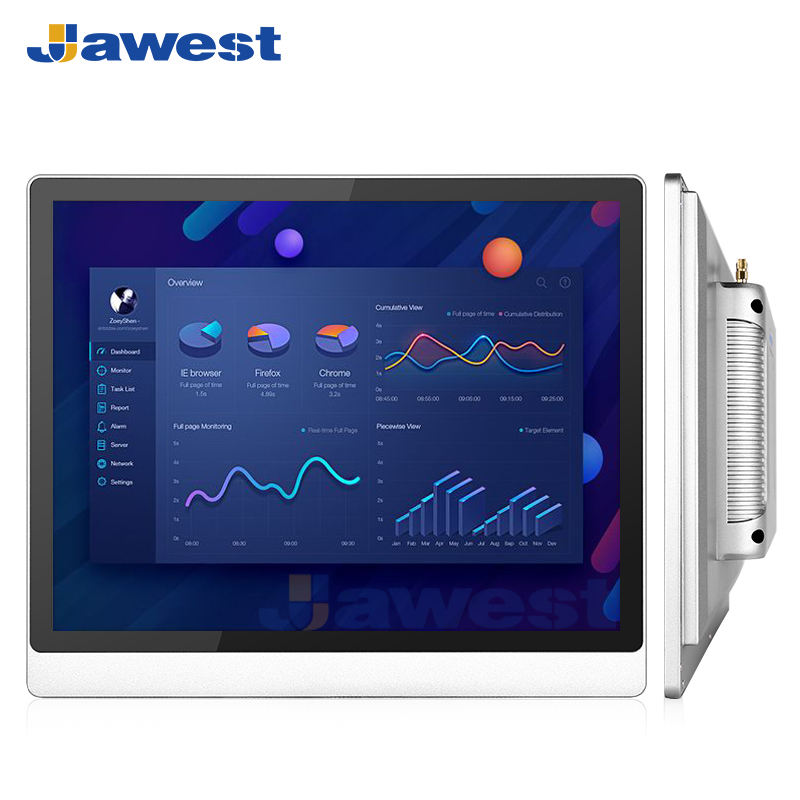

15" HMI Touch Panels With Windows System For CNC Cutting Machines
Model: JWS150-W41
Jawest 15-inch industrial HMI Panel PCs are equipped with an industrial-grade motherboard, IP65 compliant dust-proof, and water-proof for the front panel. integrated with J1900 quad-core Processor. This industrial panel PC comes standard with Windows embedded standard 7 / 8 /10 and an X86 PC-based platform. It is easy to maintain and service, rugged and fan-less. It is able to withstand high electromagnetic environments with its standard anti-interference performance, as well as shock resistance and anti-vibration during manufacturing or delivery. Available in both single-touch and multi-touch screens.
Jawest Industrial All-in-one Panel PC Features
● 15-inch with 1024x768 resolution display; Aspect ratio: 4:3
● XGA display with long service life LED Backlight
● Extremely fast system response: High-performance computing with J1900 quad-core 1.5GHz processor (configurable)
● 2GB DDR3 RAM expandable to 4G/8G; 32G SSD, expandable to 64G/256G/512G

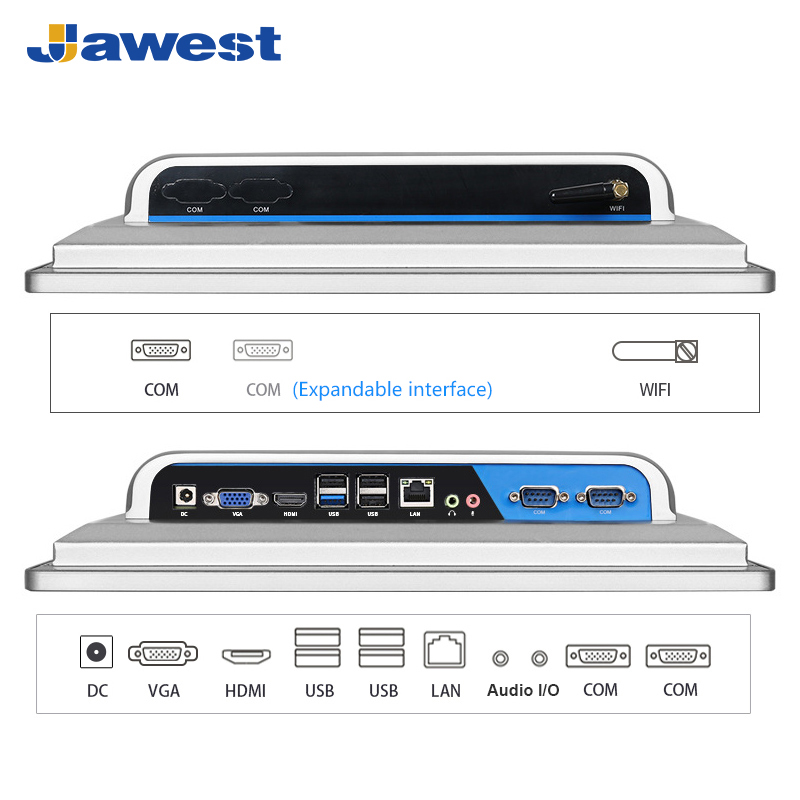

● High-speed Gigabit Ethernet & USB 2.0 & 3.0 ports, and highly flexible RS 232/422/485 serial ports
● Highly reliable touchscreens and long service life displays: Operationally tested to 7/24 long time operation without failure, touch screen positional accuracy standard deviation error is less than 0.080 (2mm)
● Rugged and reliable performance system: Completely flush aluminum alloy housing and IP65 rating dustproof and waterproof for the front panel
● Anti-high/low temperature, anti-vibration, shock resistance, EMI & EMC resistance; fanless design for the cooling system
● Comprehensive operating system: Supports embedded X86 platform (Android for optional), X86-optimized OS and development; Pre-installed Windows 7, other OS for option. Offer SKD
● Sunlight readable screen for outdoor devices (up to 1500 nits)
● 10mm front bezel and aluminum enclosure, strong impact resistance in harsh environments
● Support functional module: NFC, RFID, IC card, ID card reader optional

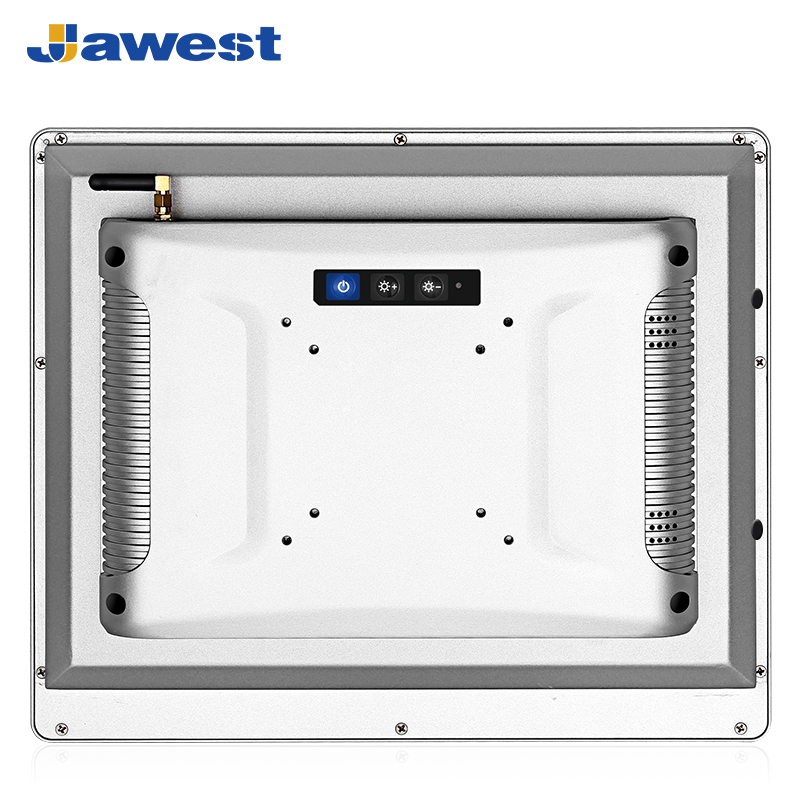

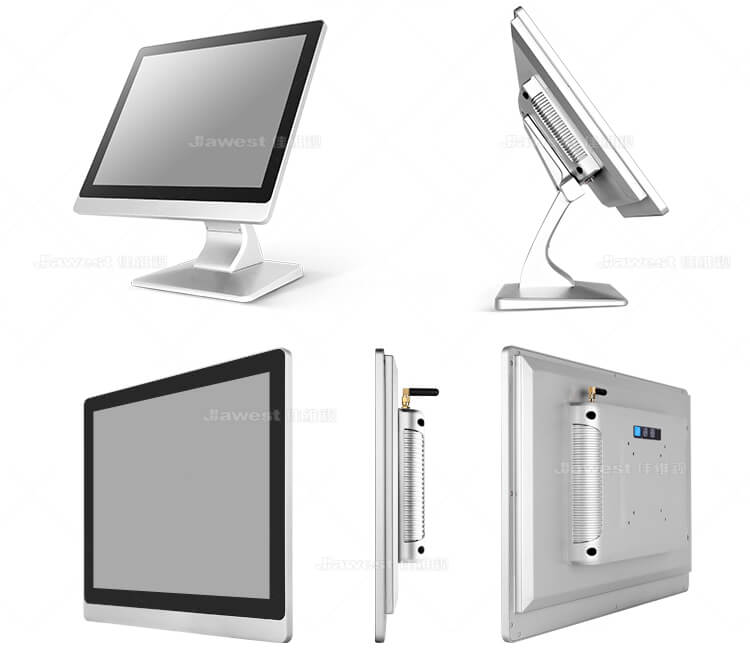

● Multi-mounting options: VESA, open frame, desktop, embedded, panel mount, and wall-mounted
● Functional module customization: built-in camera, high brightness of the screen, wide working temperature, wide voltage, NFC, RFID, fingerprint, card reader, etc.
Best Industrial Automation Touch Control & Display Solution
High reliability, High-scalability, High-integration.

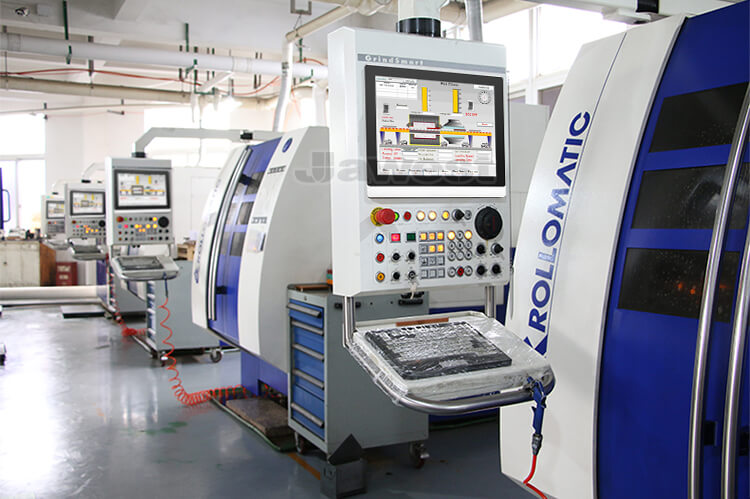

As a specialist in industrial displaying and industrial panel PC-based solution provider, Jawest provides trustworthy, proven, high-performance industrial touch control and display solutions for CNC cutting machine customers.
Jawest industrial panel PCs produced with industrial motherboards, multi-point capacitive touch screen panels, and fast I/O ports expansion available for data visualization and condition monitoring in motion control, process control, sequential control, machine vision, and industrial robotics.
