Low Power Mini Embedded Box PC Rugged Industrial Computer


• Working temperature: -20~65°

• Wireless & Wired Gigabit Lan

• Strong suitable with surrounding

• Remote wakening, automatic reset

• Enclosed dust-proof,anti-corrosion,anti-vibration

• Fanless, noiseless, Silent use is more reassuring

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • Industrial Embedded Mini PC


    Jawest embedded box industrial PCs are engineered to be rugged and perform in the harsh and most demanding environments such as hazardous locations and extreme ambient temperatures.




    Product Features


    •  Enclosed dust-proof, anti-corrosion, anti-vibration, electromagnetic compatibility, high anti-interference ability.

    •  High reliability, continuous production, and decreasing failure rate.

    •  The motherboard adopts a unique design, (watchdog), remote wakening, and automatic reset.

    •  Aluminum alloy materials, drawing process, heat dissipation.

    •  Fanless heat-dissipation, provide mute operation environments.

    •  Working temperature: -20~65°C, stable running 365*24hours under all-weather conditions.

    •  Fast Network Connecting: Wireless & Wired Gigabit Lan.

    •  Support industry standard software, compatible with Win7\8\10 and Linux.

    •  Expandeddisplay for Multi-task ; Electricity Boot.

    •  Graphics Processing Ability: high-definition image quality and full-color display.

    • Strongly suitable with surrounding (temperature/humidity) cold, hot, humid, outdoor, voltage instability.




    Low Power Mini Embedded Box PC

    Low Power Mini Embedded Box PC




    Environmental Testing:

    [Anti-vibration]: 5-19HZ / 1.0mm amplitude; 19-200HZ / 1.0g acceleration

    [Impact]: 10g acceleration, 11ms cycle

    [Working temperature]:-20°-65°  store temperature:-40°-80°

    [Humidity]: 20% -95% (relative humidity without condensation)

    [Anti-interference]: EMI / EMC interference detection standards


    Interfaces Design:

    •  6*COM ports,default RS232,if you want RS485/422 please contact online customer service.

    •  Audio output/input, power switch, ground connection.


    Mount:

    Mount Bracket Support Wall Mount, Rack Mount, Desktop, Embedded mount, fixed on the platform, wall, device, etc, IPC is flexible to save space with easy and fast mounting.

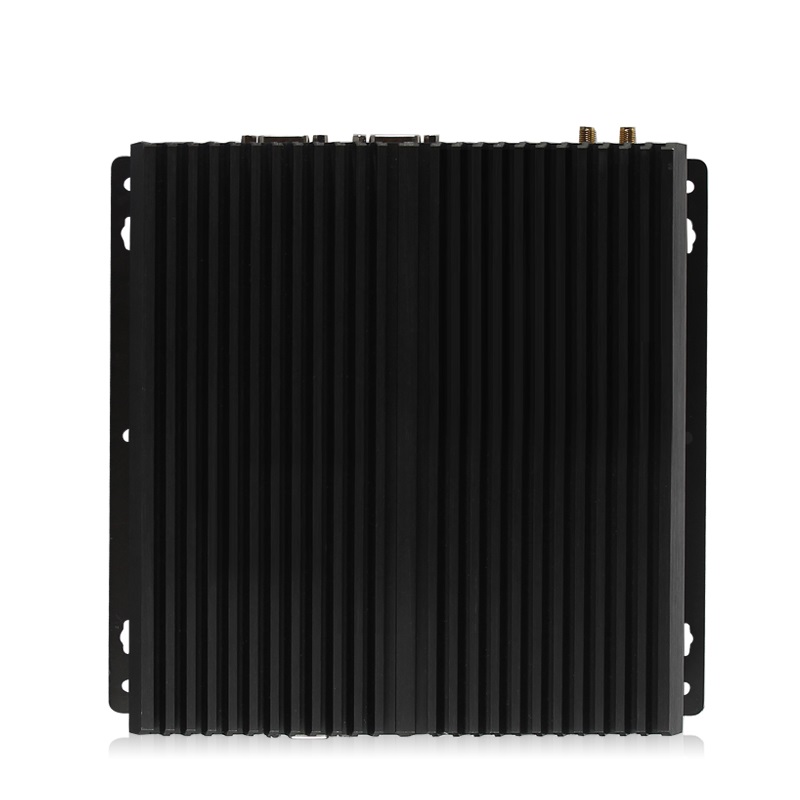

    •  Mount Manual: Screw Holes on Backside, Wall Hanging Mount

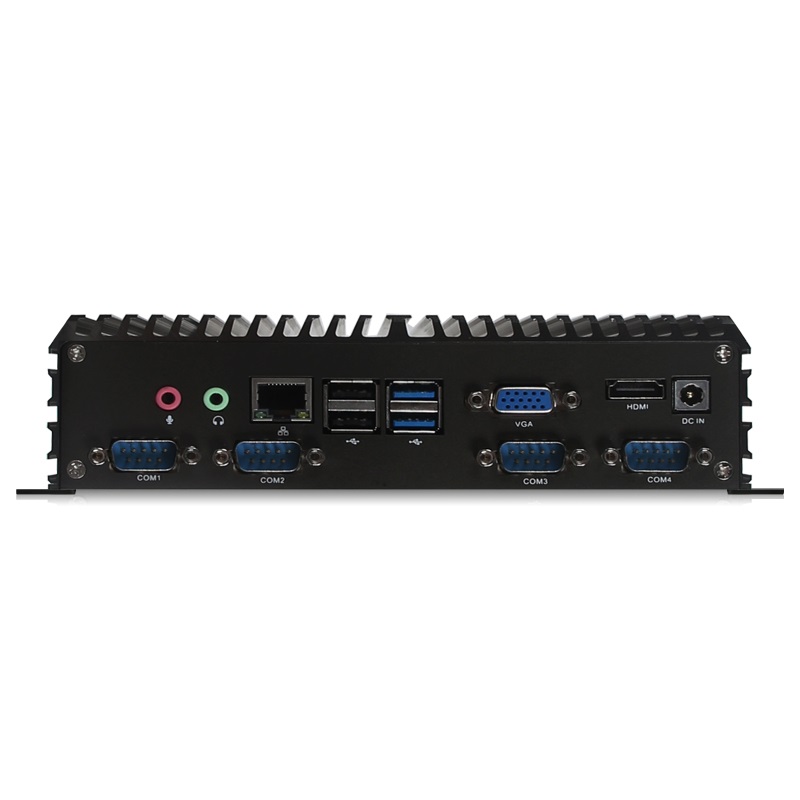

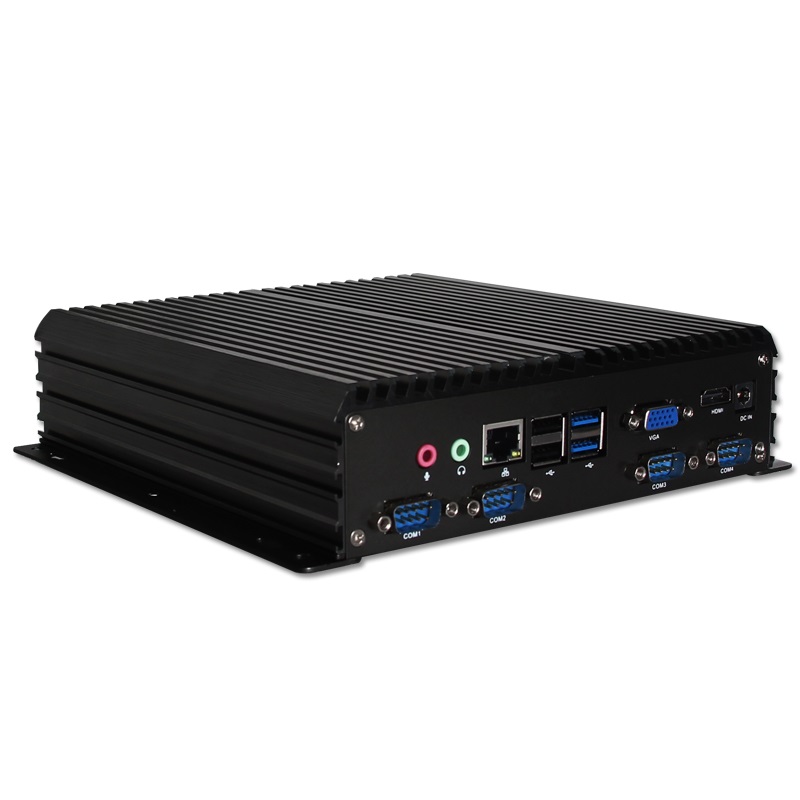

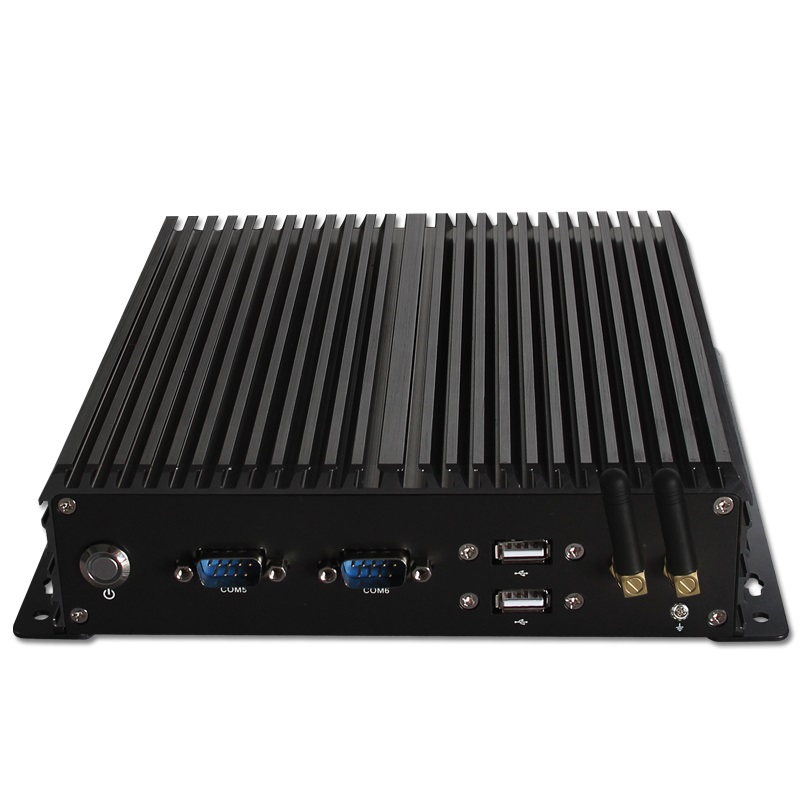

    •  Product Real Image: Front, Back,  Front Side I/O, Rear Side I/O


    Industrial Embedded PC Applications:

    Industrial Solutions, Industry Processing Control, Assemble Line Equipment Control, Entertainment, Public Environment, Financial Institution, Medical, Commercial, Signage Solutions, and other solutions, more industries applications are waiting for your requirement.

  • Embedded Mini PC Datasheet
    Colorblack
    Shell materialaluminum wire drawing process, compact and strong, good shock resistance and impact resistance fan/fanless: fanless
    C P UOnboard Intel Celeron J1900 2GHz Quad Core Four Thread Max 2.41GHz
    Default memory2GB DDR3 (4/8/16GB options)
    Default hard disk64G SSD (128/256/512GB SSD;  1T HDD options)
    Display chipIntel CPU built-in display core
    Audio chipOnboard Realtek ALC662 HD audio decoding controller
    NIC chipOnboard 1 * Realtek RTL 811E gigabit network card, optional RJ45 * 2 or 4-6 * RJ45
    Wireless Network2.4G(standard),5G(optional )
    Power Adapterpower supplier 100-240V.Power input 12V -5A power adapter
    Resolution support800 * 600p or more
    Power Dissipationlow power dissipation 30-40W
    Operating SystemSupport Windows /Linux
    Electricity Bootsupport (set in the BIOS setup)
    HD Support1080P
     way to installembedded, wall-mounted, desktop, rack-mounted
    SizeSMALL mini size
    Consumption12~16W
    LAN Ports2*USB2.0 , 2*USB3.0 , 2*HMI port, 1*VGA , 1*LAN port(RJ-45), 1*COM
