Application:
3mm Bezel Aluminum Alloy Chassis Embedded Industrial Monitor3mm Bezel Aluminum Alloy Chassis Embedded Industrial Monitor3mm Bezel Aluminum Alloy Chassis Embedded Industrial Monitor3mm Bezel Aluminum Alloy Chassis Embedded Industrial Monitor

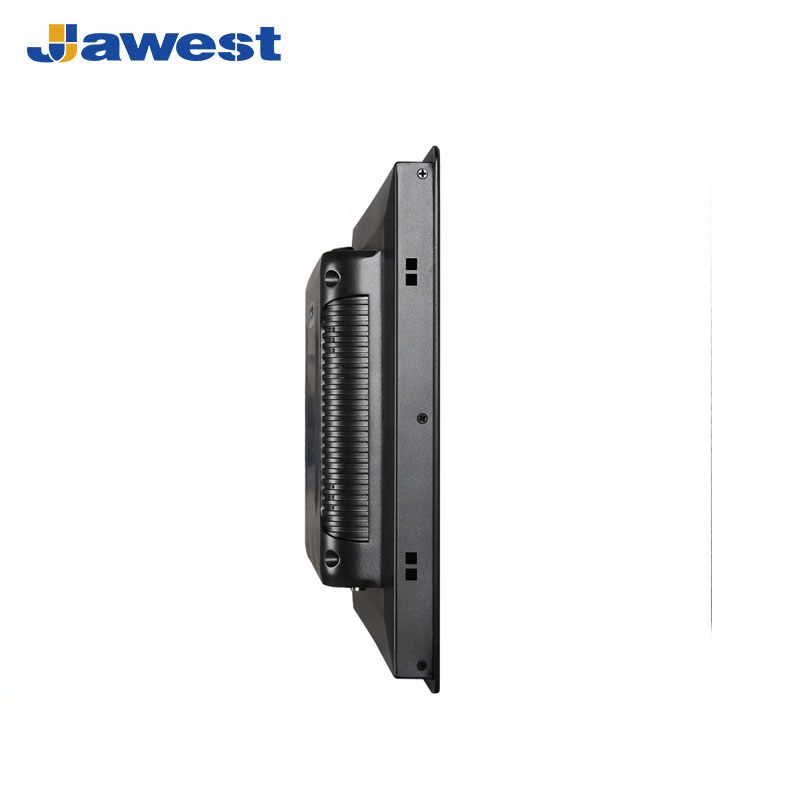

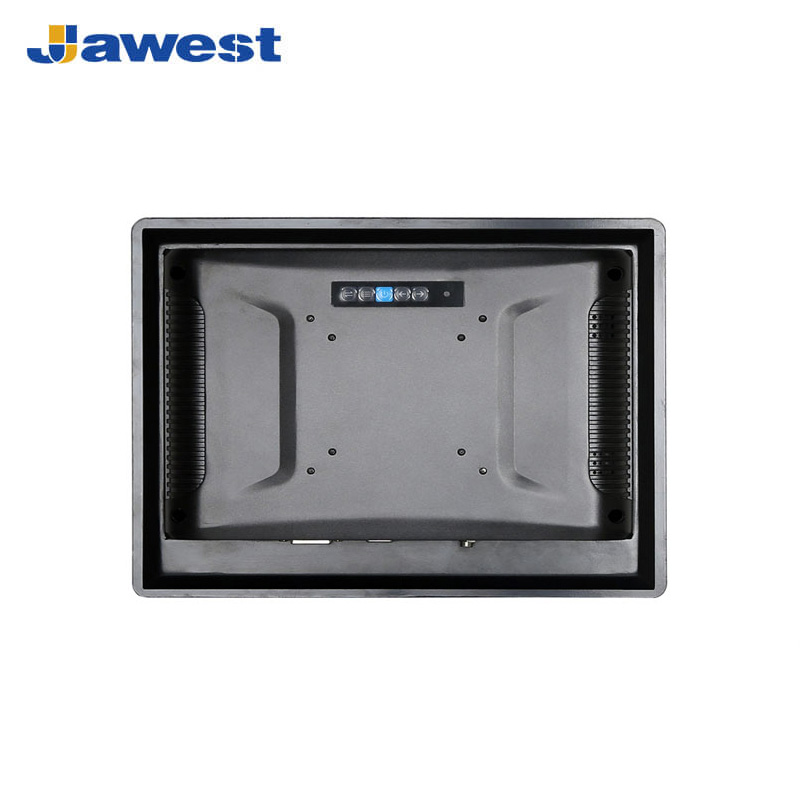

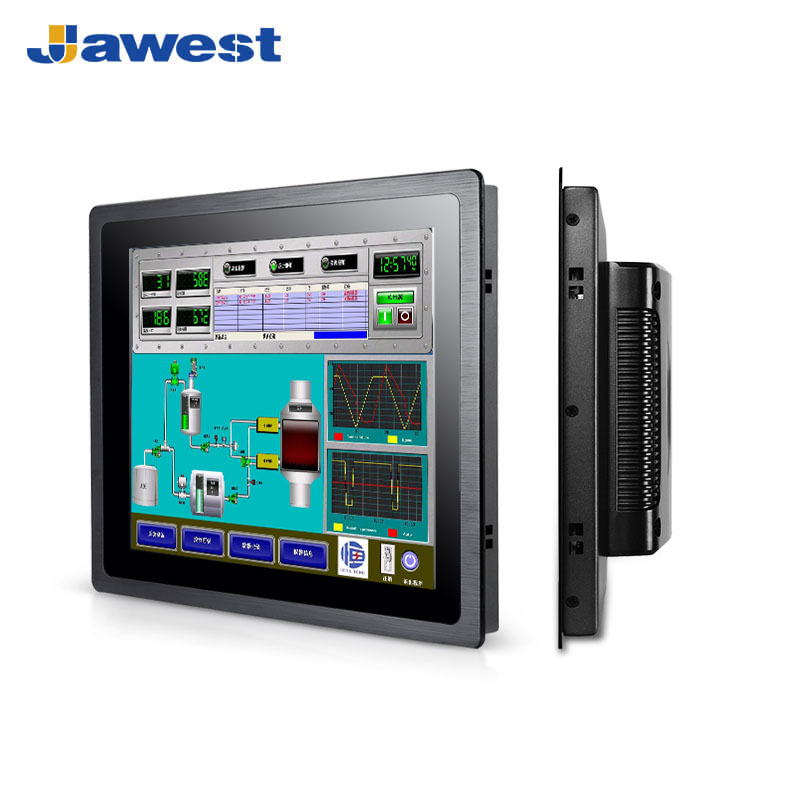

3mm Bezel Aluminum Alloy Chassis Embedded Industrial Monitor


● Display size: 17 inch

● High-level anti-static

● High-quality industrial LCD panel

● Working temperature: -10 to 60°C

● Industrial-grade display chip

● 3mm Bezel Aluminum Touch Monitor

● Days*24hours all-weather working

● IP65 grade waterproof, dustproof

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case

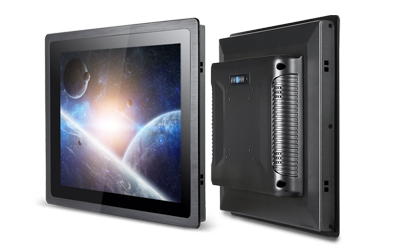

  • 3mm Aluminum Bezel Embedded Industrial Monitor features


    Our industrial monitor has a fashionable mechanism design with 3mm industrial-grade material for the front bezel which can avoid damage from chemical corrosion.


    3mm Bezel Aluminum Alloy Chassis Embedded Industrial Monitor Aluminum alloy shell, good mechanical properties, better performance for heat dissipation.

    ● Adopt industrial control HD LCD screen + LED backlight screen, highlight picture, perfect color display.

    ● Compatible with various industrial systems/applications.

    ● Supporting non-touchscreen, resistive touch display, and capacitive touch display.

    ● Build in 2.0 speakers, support 1080P HD video.

    ● Triple protection for the whole industrial monitor: explosion-proof, flameproof, and moisture-proof.

    ● Shock resistance standard reached GB2423, well-protected during transportation, or working on the sea.

    ● Anti-static level of contact is 4KV (supporting customized MAX level is 6KV), air contact up to 8KV (customized MAX is 16KV).

    ● Anti-surge design, Jawest industrial monitor can work as normal during Instantaneous voltage rising into 280V.

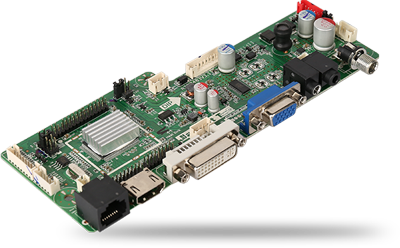

    3mm Bezel Aluminum Alloy Chassis Embedded Industrial MonitorIndustrial Monitor Motherboard Design


    ● PCB design & electronic components: Industrial-level components; anti-interference, anti-combustion, explosion-proof and moisture-proof.

    ● Main chipset: REALTEK industrial-level display chip.

    ● Power supply management: TI chipset, a wide range of 12-24V input.

    ● Pressure resistance design: Pressure resistance of solid-state capacitance in board 36V/105.

    ● Antistatic design: Contact 4KV air 8KV max 16KV.

    ● Automatic sense design: Built-in automatic photosensitive interface, using the luminance automatic regulation of the photosensitive module.





    Expansion of Knowledge of Industrial Monitor


    The Mechanical Performance Of Industrial Monitor


    There are also design changes in global flat-panel LCD products like many other technologies. In industrial-level monitor panels, this change can occur every five years or longer. This change is produced due to better adaption to updated technology or the emergence of better designs. Therefore, it is important to maintain a certain level of continuity when designing industrial and medical equipment, including the same mounting holes, connector locations, and even some of the same industrial monitor sizes. When the industrial monitor changes within five years, the terminal product can keep a 10-year life cycle. Before choosing an industrial monitor, this helps to consider some specifications standards as well as the company's design strategy for products. In contrast, consumer-level monitors can update every six months, which makes them not easy to be applied in applications that require configuration control.


    Jawest company specializes in the development, production, and sales of industrial tablet computers, industrial monitors, industrial computers, industrial touch screens, etc., providing a range of industrial tablet and industrial display solutions and OEM/ODM customized services. Welcome to inquire. Industrial touch screen-related details! jawest@szjawest.com


  • 3mm bezel aluminum touch monitor datasheet
    Size17 inch
    Display
    Panel TypeIndustrial LCD panel A+ grade
    Aspect Ratio5:4
    Resolution1280*1024
    Contrast1000:1
    Luminance250nit-1500nit
    Response time5ms
    Active Area (mm)341.5*274
    Display colors16.7M(8-bit)
    View angle75/75/75/75°
    Touch Screen5-wire resistive/10-point capacitive touch screen/ Mouse control

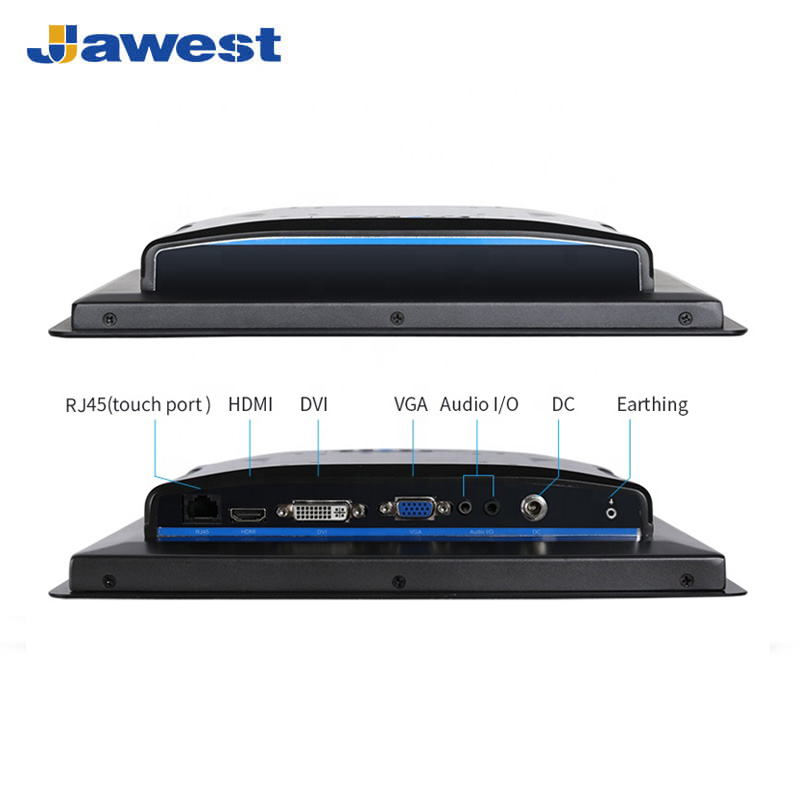

    InterfaceHDMI+DVI+VGA+USB/DVI+VGA+USB optional
    Power InputAC 110-240V, 50/60Hz
    Power Consumption≤30W
    Power Standby≤1.5W
    Plug&PlayDDC1/2B
    Working LifeMore than 50,000 hours
    Operation Temperature-10°C-50°C
    Storage Temperature-10°C-60°C
    Operation Humidity10%--80%
    Storage Humidity10%-90%
    Metal ShellAluminum alloy enclosure
    ColorSilver, black color optional
    Bezel thickness3mm bezel, 10mm bezel(optional)
    IP ratingIP65 for front Panel
    InstallationVESA, Embedded, Wall Mount, Desktop optional
    CertificatesCE, CCC, ISO, FCC, ROHS
    PackageEPE+Carton  (wooden crate for mass order)
