Model: JWS190-M42
● Display size: 19 inch
● High level anti-static
● High quality industrial LCD panel
● Working temperature:-10-60°C
● Industrial-grade motherbaord
● 10mm Bezel Aluminum Touch Monitor
● 365*24hours running under all-weather condition
● IP65 rated dust-proof and water-proof for front panel

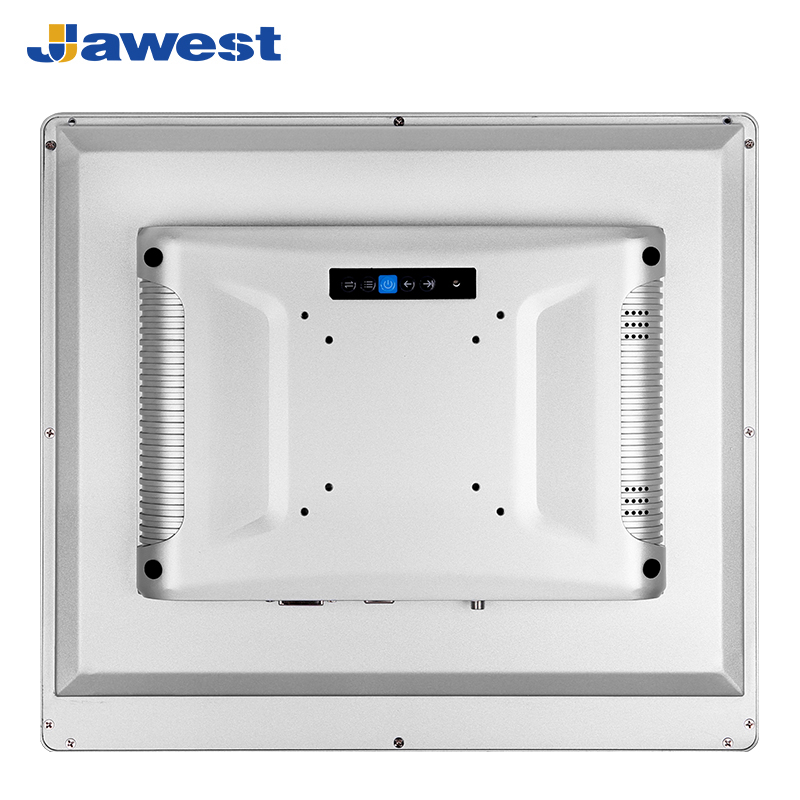

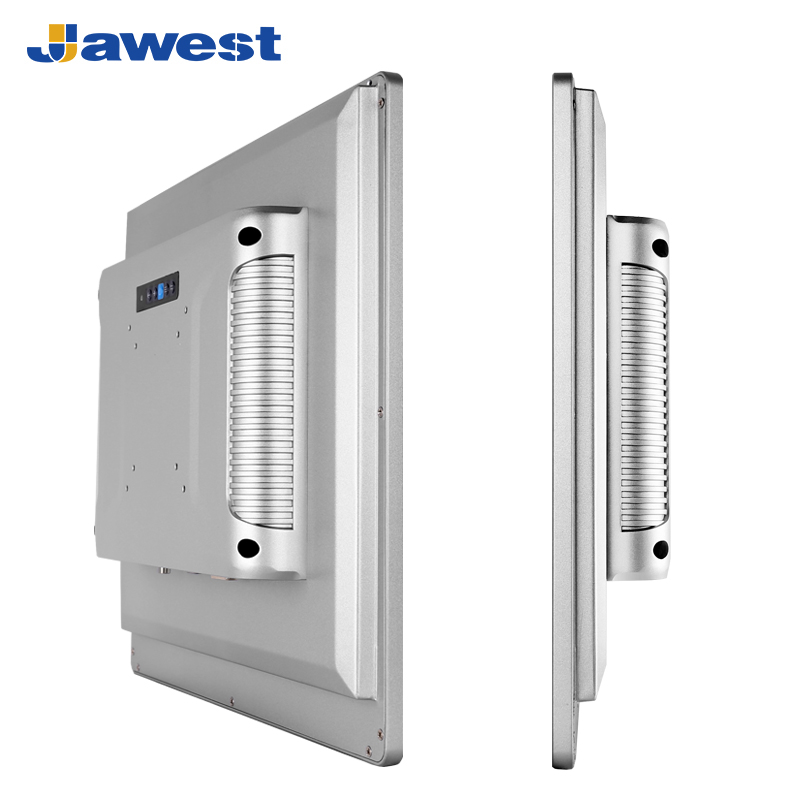

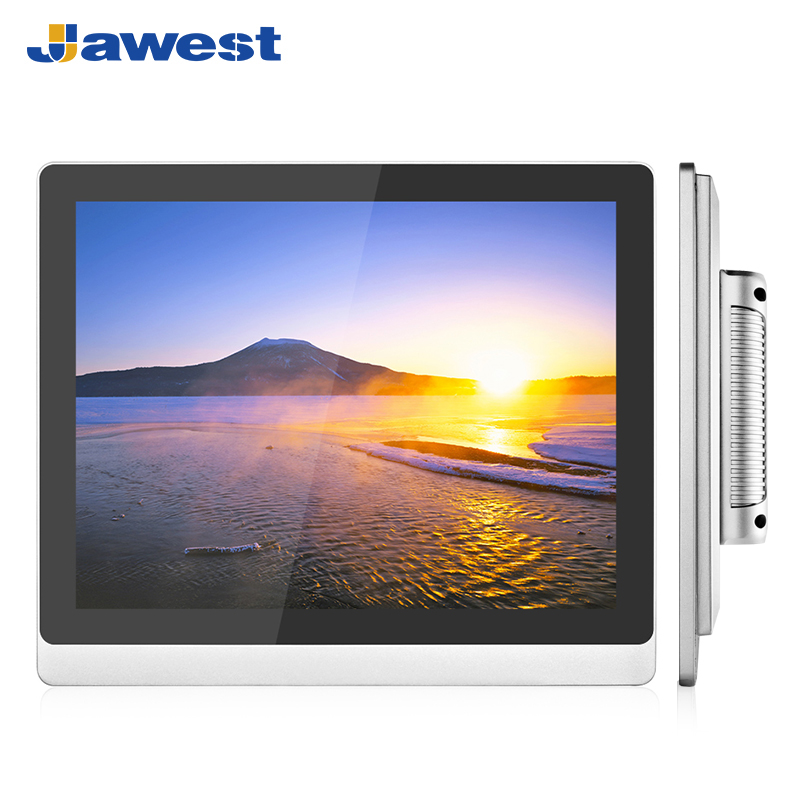

19" IP65 Sunlight Readable Touchscreen LCD Monitor Resistive Touch Displays
Model: JWS190-M42
Jawest’s rugged industrial LCD IP65 displays are designed for a wide range of applications where it will be exposed to harsh conditions which are common in outdoor & indoor devices and industrial automation settings. These industrial displays are engineered to withstand the effects of splashes of water, dust and other elements that might damage the screen. There are various sizes available, from 7” to 21.5” and support wide voltage and wide temperature operation. The resolutions range from 1024x768 to 1920x1080.
Jawest Industrial Monitor Features
•19" TFT-LCD with resolution of 1280x1024 resolution.
• Aluminum alloy enclosure, IP65 rating for front panel.
• Rear OSD control.
• Resistive touch panel, capacitive touch for option.
• Wide-range power input.
• Fanless heat-dissipation, energy efficient, low power consumption.
• 7/24 long-time operation in harsh factory and industrial environment.
• Wide operational temperature range: -10°C to +60°C (offer extended temperature ranges).
• Offer multi-installation methods, desktop, wall, embedded, and VESA arm mounting.
• Three (3) years warranty.
10mm bezel aluminum touch monitor datasheet | |||||||
Size | 19-inch | ||||||
Display | |||||||
Panel Type | Industrial LCD panel A+ grade | ||||||
Aspect Ratio | 4:3 | ||||||
Resolution | 1280*1024 | ||||||
Contrast | 1000:1 | ||||||
Luminance | 250nit-1500nit | ||||||
Response time | 5ms | ||||||
Active Area (mm) | 478*269.24 | ||||||
Display colors | 16.7M(8-bit) | ||||||
View angle | 89/89/89/89 | ||||||
Touch Screen | Capacitive touch screen (5 wire resistive touch screen/dual Infrared touch optional) | ||||||

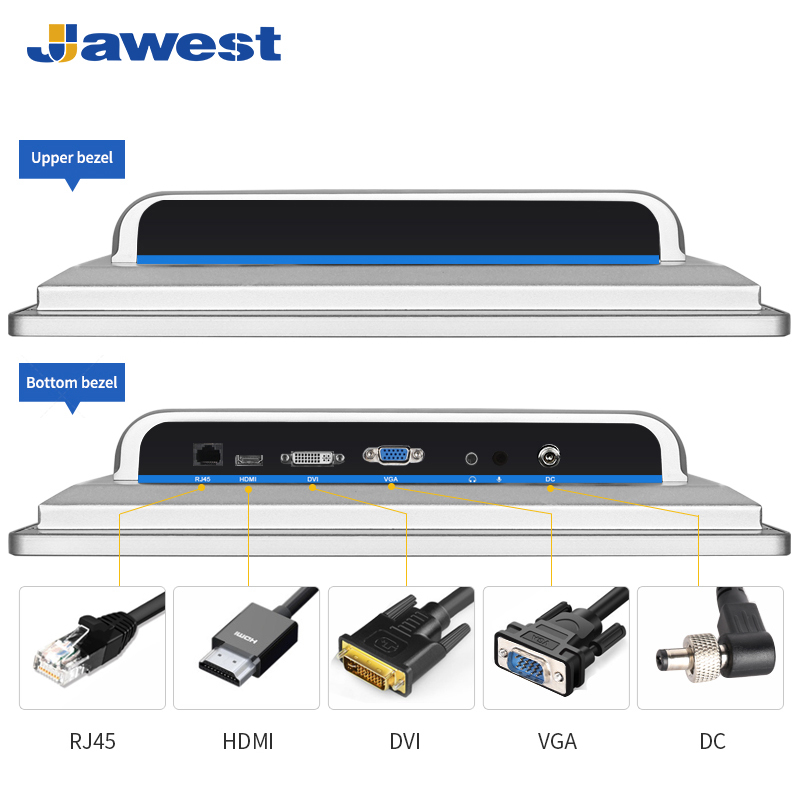

Interface | HDMI+DVI+VGA+USB/DVI+VGA+USB optional | ||||||
Power Input | AC 110-240V, 50/60Hz | ||||||
Power Consumption | ≤30W | ||||||
Power Standby | ≤1.5W | ||||||
Plug&Play | DDC1/2B | ||||||
Working Life | More than 50,000 hours | ||||||
Operation Temperature | -10°C-60°C (Support wide temperature customization) | ||||||
Storage Temperature | -10°C-60°C | ||||||
Operation Humidity | 10%--80% | ||||||
Storage Humidity | 10%-90% | ||||||
Metal Shell | Aluminum alloy enclosure | ||||||
Color | Silver, black color optional | ||||||
Bezel thickness | 10mm bezel | ||||||
IP rating | IP65 dust-proof and water-proof for front Panel | ||||||
Installation | VESA, Embedded, Wall Mount, Desktop, open frame optional | ||||||
Certificates | CE,CCC,ISO,FCC,ROHS | ||||||
Package | EPE+Carton (wooden crate for mass order) |
