Application:
19.1 Inch LCD Display Monitor with HDMI DVI VGA Inputs19.1 Inch LCD Display Monitor with HDMI DVI VGA Inputs19.1 Inch LCD Display Monitor with HDMI DVI VGA Inputs19.1 Inch LCD Display Monitor with HDMI DVI VGA Inputs

19.1 Inch LCD Display Monitor with HDMI DVI VGA Inputs


Model: JWS191-M42

● Display size: 19.1-inch.

● High-level anti-static.

● High-quality industrial LCD panel.

● Working temperature:-10 ~ +60°C.

● Industrial grade display chip.

● 10mm bezel Aluminum touch monitor.

● 365 days*24 hours all-weather running.

● IP65 grade dust-proof and waterproof.

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 19.1 Inch LCD Display Monitor with HDMI, DVI, VGA Inputs


    Model: JWS191-M42


    Jawest is pleased to announce the launch of its new generation of industrial monitors, support wide temperature, wide voltage, sunlight readable, multi-touch capacitive touch or single touch resistive monitor. Designed and made by Jawest, one of the leading manufacturers of industrial monitors, industrial panel PC, Android tablet PCs, and industrial mini PCs in China, which possess decades of experience, reliability, timely deliveries, warranty support.



    Jawest Industrial Monitor Features


    ● 19.1” TFT-LCD display with long service life LED Backlight

    ● High Bright TFT display, 300~1500 nits

    ● High Contrast: 1000:1

    ● Solid State LED Backlight

    ● 1440 x 900 resolution

    ● VGA + DVI video Inputs

    ● Composite Video (NTSC/PAL) – RCA Jack

    ● Extended operating temperature rating: -10°C to +60°C

    ● Support image size and position adjustment

    ● Aluminum alloy rugged construction

    ● Rugged industrial-grade chassis




    Industrial Monitor Display For Industrial Machinery 10.1"

    Industrial Monitor Display For Industrial Machinery 10.1"




  • 10mm bezel aluminum touch monitor datasheet
    Size19.1 inch
    Display
    Panel TypeIndustrial LCD panel A, A+ grade
    Aspect Ratio16:10
    Resolution1440*900
    Contrast1000:1
    Luminance250nit-1500nit
    Response time5ms
    Active Area (mm)341.5*274
    Display colors16.7M(8-bit)
    View angle75/75/75/75
    Touch ScreenResistive touch screen (10-point capacitive and Infrared touch for optional)

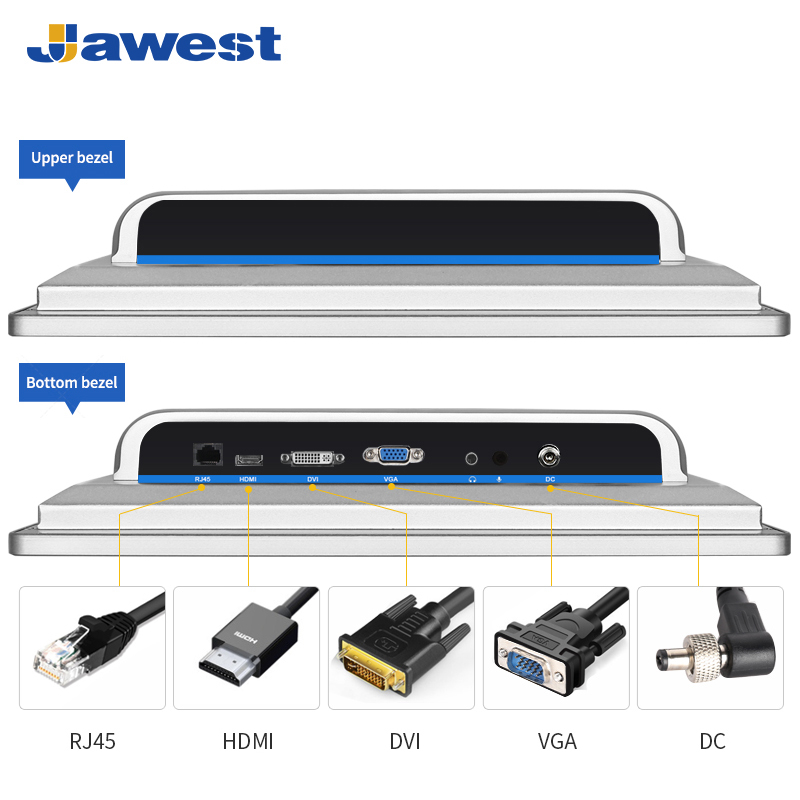

    InterfaceHDMI+DVI+VGA+USB/DVI+VGA+USB optional
    Power InputAC 110-240V, 50/60Hz
    Power Consumption≤30W
    Power Standby≤1.5W
    Plug&PlayDDC1/2B
    Working LifeMore than 50,000 hours
    Operation Temperature-10°C-60°C
    Storage Temperature-10°C-60°C
    Operation Humidity10%--80%
    Storage Humidity10%-90%
    Metal ShellAluminum alloy enclosure
    ColorSilver, black color optional
    Bezel thickness10mm bezel (3mm bezel for optional)
    IP ratingIP65 for front Panel

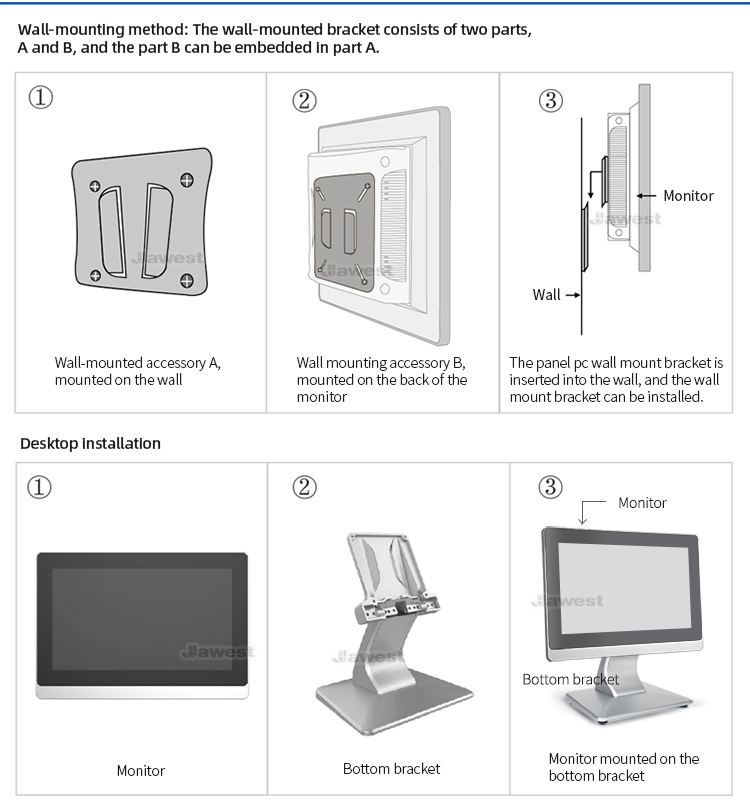

    InstallationVESA, Embedded, Wall Mount, Desktop optional
    CertificatesCE,CCC,ISO,FCC,ROHS
    PackageEPE+Carton  (wooden crate for mass order)
