● Display size: 15.6-inch.
● High level anti-static.
● High quality industrial LCD panel.
● Working temperature:-10-60°C.
● Industrial grade display chip.
● 10mm bezel Aluminum touch monitor.
● 365 days*24 hours all-weather running.
● IP65 grade dust-proof and water proof.

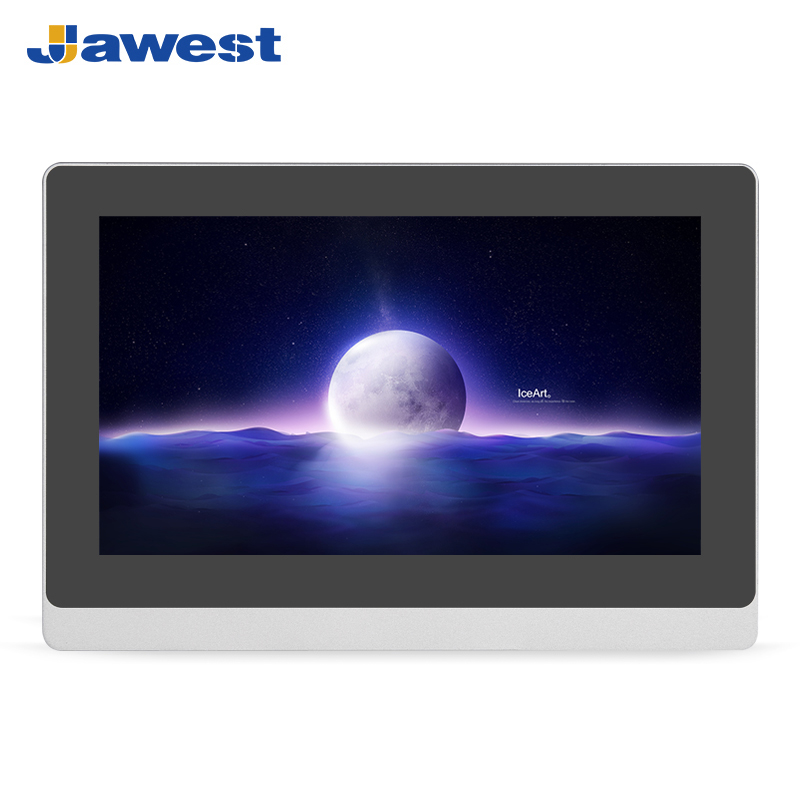

15.6 Inch Touch Screen Display Monitors
Jawest newest industrial display offers all of the innovation and inputsalong with a resistive
touchscreen panel. Multi touch capacitive for option. They are widely used in harsh industrial
environments. IP65 dust/water resistant. This fanless 15.6-inch industrial lcd display monitor
is guaranteed to prevent any amount of dust from entering the device, making it completely
dust proof. Jawest series industrial monitors suitable used in security system, water purifiers,
sewing machines, fitness machines, thermal printers, banking terminals, and any embedded
solutions.
Jawest Industrial Monitor Features
1. Aluminum alloy shell, high performance for heat dissipation.
2. Function to disable front button(s) and on screen text.
3. HD LCD screen +LED backlight screen, highlight picture, perfect color display.
4. Explosion-proof, flameproof, moisture proof for motherboard.
5. Automatic sense design: Built-in automatic photosensitive interface.
6. AV2 Auto Switching for Backup Camera.
7.Support 360° monitor stand.

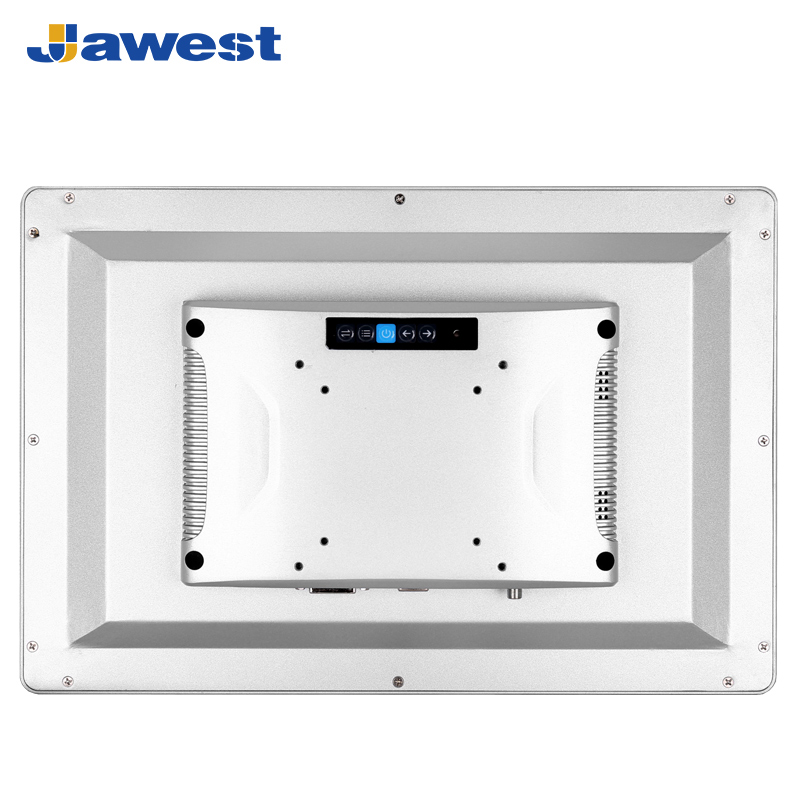

8. Standard VESA 75mm mounting holes.
9. Support connector locking.
10. Ruggedized Aluminum alloy Casing.
11. "CE" mark certified.
12. ROHS Compliant.
13. Three years warranty.
10mm bezel aluminum touch monitor datasheet | |||||||
Size | 15.6 inch | ||||||
Display | |||||||
Panel Type | Industrial LCD panel A, A+ grade | ||||||
Aspect Ratio | 16:9 | ||||||
Resolution | 1920*1080 | ||||||
Contrast | 1000:1 | ||||||
Luminance | 250nit-1500nit | ||||||
Response time | 5ms | ||||||
Active Area (mm) | 341.5*274 | ||||||
Display colors | 16.7M(8-bit) | ||||||
View angle | 75/75/75/75 | ||||||
Touch Screen | Resistive touch screen (10-point capacitive and Infrared touch for optional) | ||||||

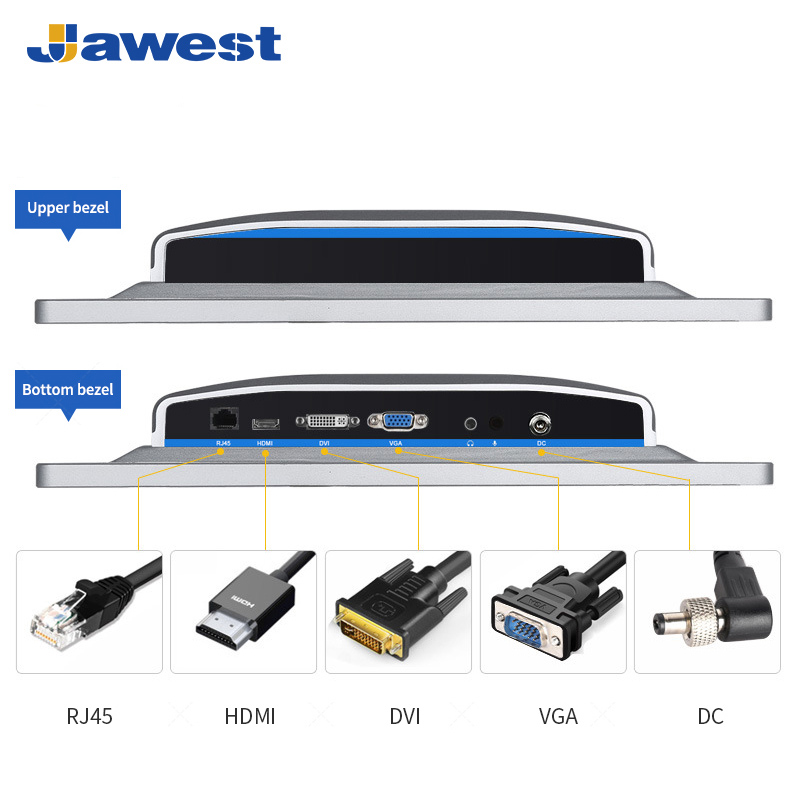

Interface | HDMI+DVI+VGA+USB/DVI+VGA+USB optional | ||||||
Power Input | AC 110-240V, 50/60Hz | ||||||
Power Consumption | ≤30W | ||||||
Power Standby | ≤1.5W | ||||||
Plug&Play | DDC1/2B | ||||||
Working Life | More than 50,000 hours | ||||||
Operation Temperature | -10°C-60°C | ||||||
Storage Temperature | -10°C-60°C | ||||||
Operation Humidity | 10%--80% | ||||||
Storage Humidity | 10%-90% | ||||||
Metal Shell | Aluminum alloy enclosure | ||||||
Color | Silver, black color optional | ||||||
Bezel thickness | 10mm bezel (3mm bezel for optional) | ||||||
IP rating | IP65 for front Panel | ||||||
Installation | VESA, Embedded, Wall Mount, Desktop optional | ||||||
Certificates | CE,CCC,ISO,FCC,ROHS | ||||||
Package | EPE+Carton (wooden crate for mass order) |
